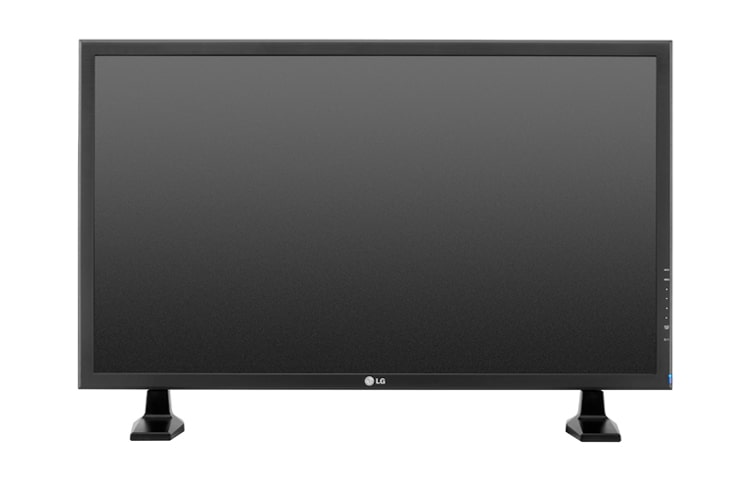

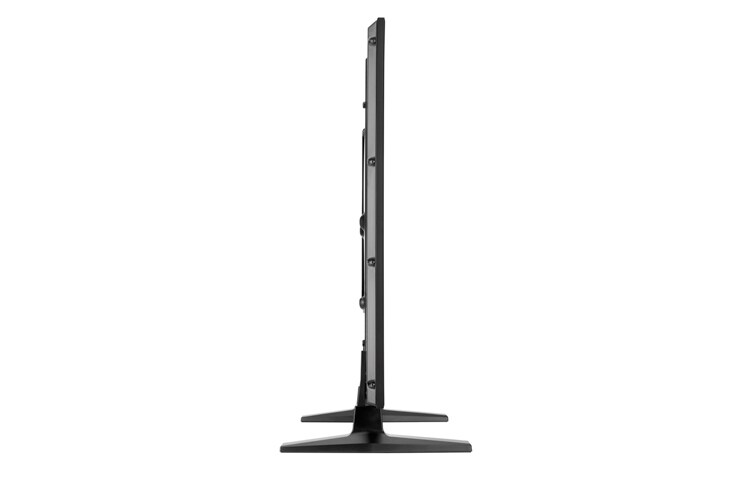

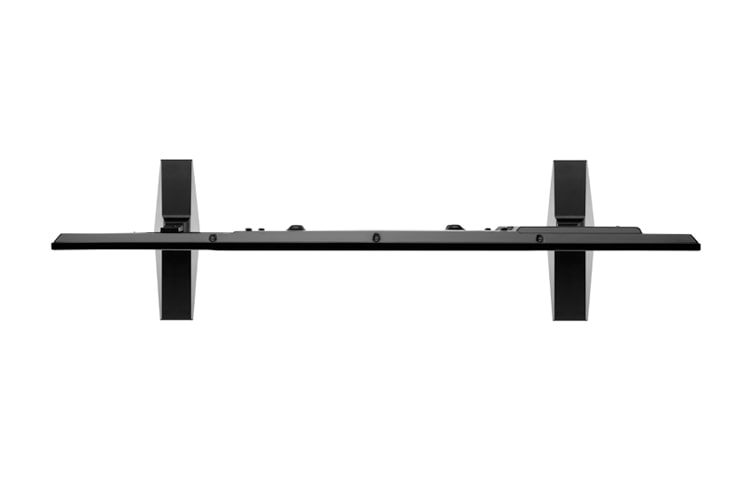

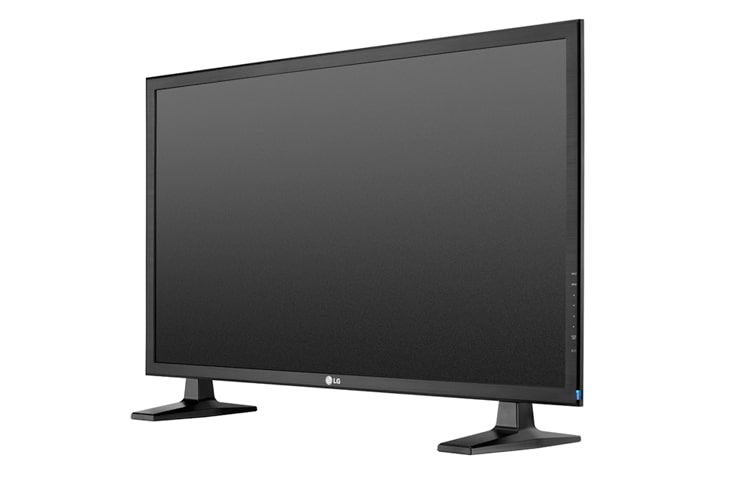

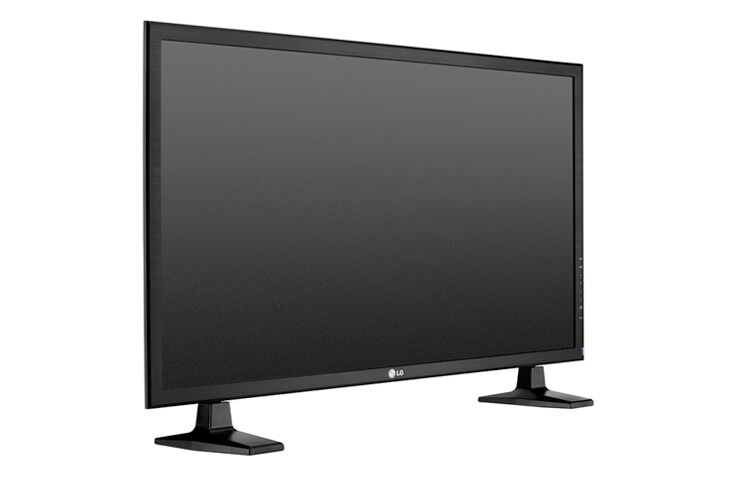

42WS10
42″ LED Widescreen Full HD Capable Monitor
  • Clear & Vivid Picture (Dynamic CR : 500,000 : 1)
  • Smart Energy Saving
  • Media Player Integrated Solution
  • Eco-Friendly
42″ LED Widescreen Full HD Capable Monitor
MSRP $

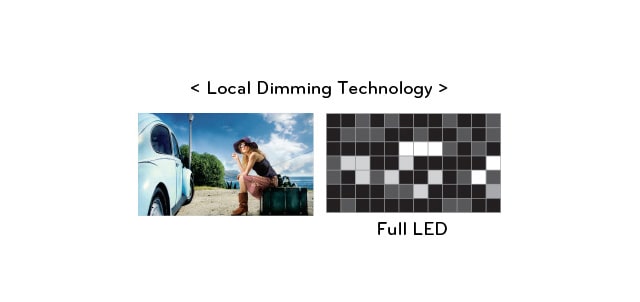

Clear & Vivid Picture (Dynamic CR : 500,000 : 1)

Clear & Vivid Picture (Dynamic CR : 500,000 : 1)

Local Dimming Technology allows brightness to be controlled in block units. This ensures brightness and clarity providing high picture quality. As a bonus, power consumption is reduced.

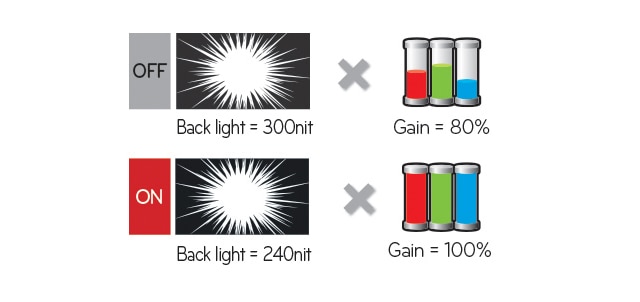

Smart Energy Saving

Smart Energy Saving

Reduction energy consumption by approximately 30%.

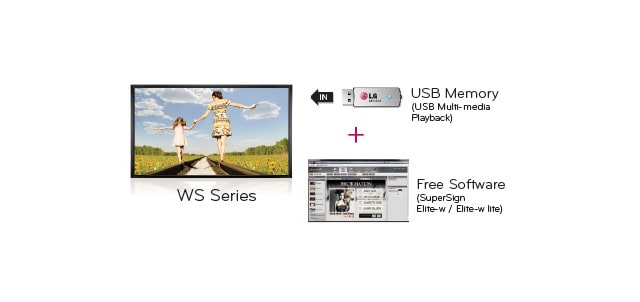

Media Player Integrated Solution (WS Series)1

Media Player Integrated Solution (WS Series)

• Reduction in TCO

• Supersign Elite-w, Elite-w Lite Software

Eco-Friendly

Eco-Friendly

- Environmental Regulation : EPA, ERP
- No Harmful Material : RoHS
- CO2 Reduction

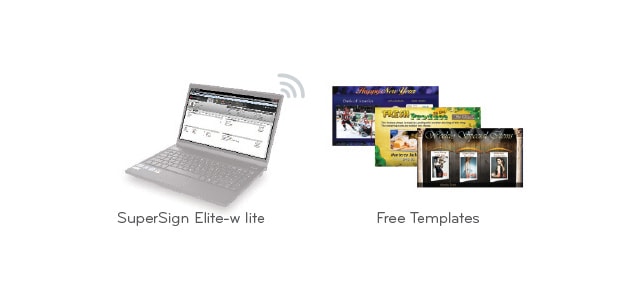

Easy & Fast Delivery of Contents1

Easy & Fast Delivery of Contents

- USB multi-media playback
- User friendly interface by using web-based management S/W SuperSign Elite-w Lite

PANEL

  • Screen Size
    42F"
    Panel Technology
    IPS (LED BLU)
  • Aspect Ratio
    16 : 9
    Native Resolution
    1920 x 1080 (FHD)
  • Brightness
    450nit
    Contrast Ratio
    1,300:1
  • Dynamic CR
    500,000:1
    Viewing Angle(H x V)
    178 x 178
  • Response Time
    8ms (G to G, *WOT)

CONNECTIVITY

  • Input (Rear) - Digital
    DVI-D(1), HDMI(1), Display Port(1) with HDCP for all input
    Input (Rear) - Analog
    Component(1), Composite(1), RGB(1) (Shared with D-Sub)
  • Input (Rear) - Audio
    RGB/DVI-D/AV/Component(3.5Φ 1)
    Input (Rear) - External Control
    RS232C(1), RJ45(1)
  • Input (Rear) - USB
    YES(1)
    Output (Rear) - Digital
    DVI-D(1)
  • Output (Rear) - Analog
    Component(1), Composite(1), RGB(1) (Shared with D-Sub)
    Output (Rear) - Audio
    External speaker
  • Output (Rear) - External Control
    RS232C(1)

PHYSICAL SPECIFICATION

  • Bezel Width
    27.6mm
    Monitor Dimension(W x H x D)
    99.17cm x 58.43cm x 3.75cm
  • Weight(Head)
    12.6kg
    Carton Dimensions(W x H x D)
    106.9cm x 71.5cm x 10.9cm
  • Packed Weight
    15.8kg
    VESA™ Standard Mount Interface
    400mm x 400mm

ENVIRONMENT CONDITIONS

  • Operation Temperature
    0°C ~ 40°C
    Operation Humidity
    10% ~ 80%

SPECIAL FEATURES

  • Additional
    Smart Energy Saving, Multi-media playback, PIP/PBP, Temp Sensor, Auto Brightness Sensor, Tile mode (Up to 5x5), ISM Method, Key Lock

POWER

  • Power Supply
    100-240V~, 50/60Hz
    Power Consumption - Typical / Smart Energy saving
    115W (Typ) / 80W (Smart Energy Saving on)
  • Power Consumption - DPMS
    1W(Set Only), 2W(With External Device)
    Power Consumption - Power off
    0.5W

STANDARD(CERTIFICATION)

  • Safety
    UL, cUL, CB scheme, TUV
    EMC
    FCC Class "B", VCCI, C-tick, CE, KCC
  • ErP / Energy Star
    Yes / Yes(Energy Star 5.1)

MEDIA PLAYER COMPATIBILITY

  • External Media player Attatchable
    Yes

SOFTWARE COMPATIBILITY

  • Supersign Compatibility
    Elite-w / Elite-w lite

ACCESSORY

  • Included
    Remote Controller, Power Cable, RGB Cable, Manual, ESG
    Optional
    AP-WX60 (Wall Mount), SP-2000 (Speaker), ST-200T (Stand)
