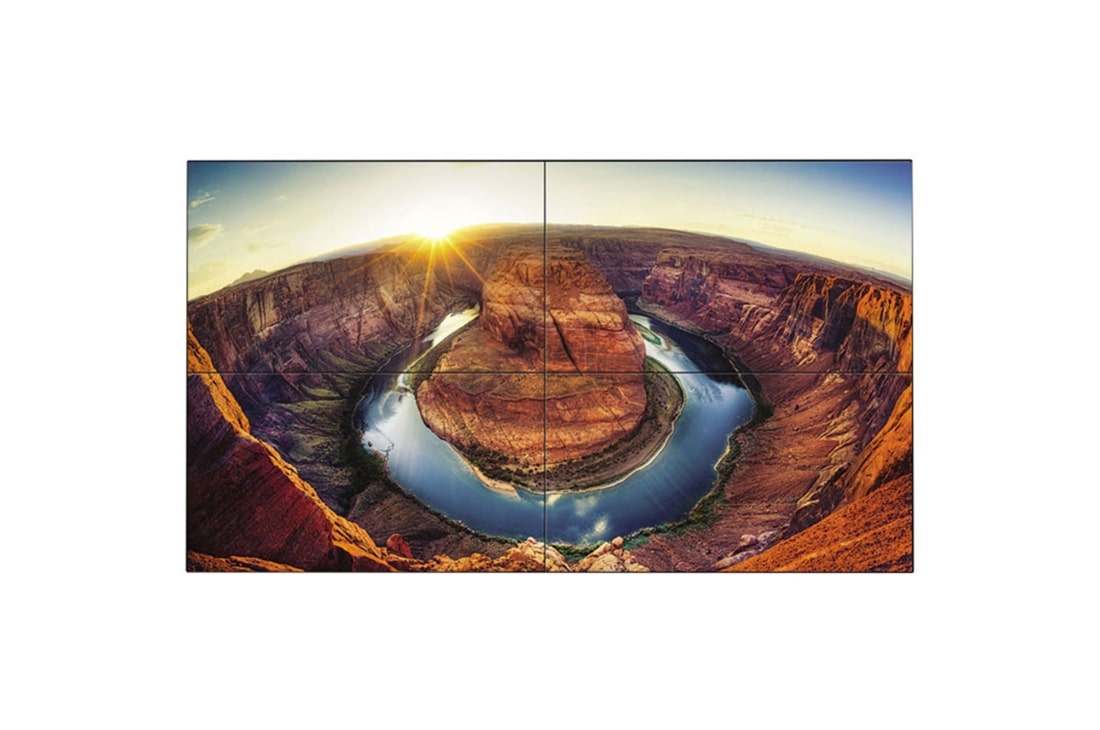

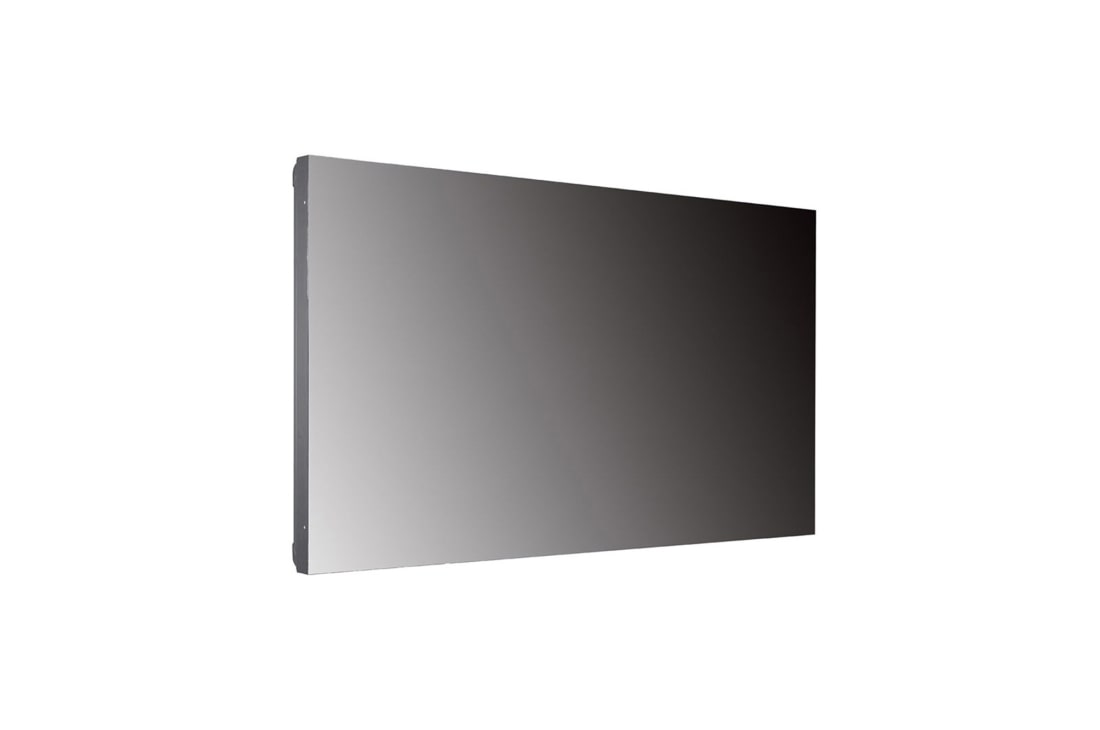

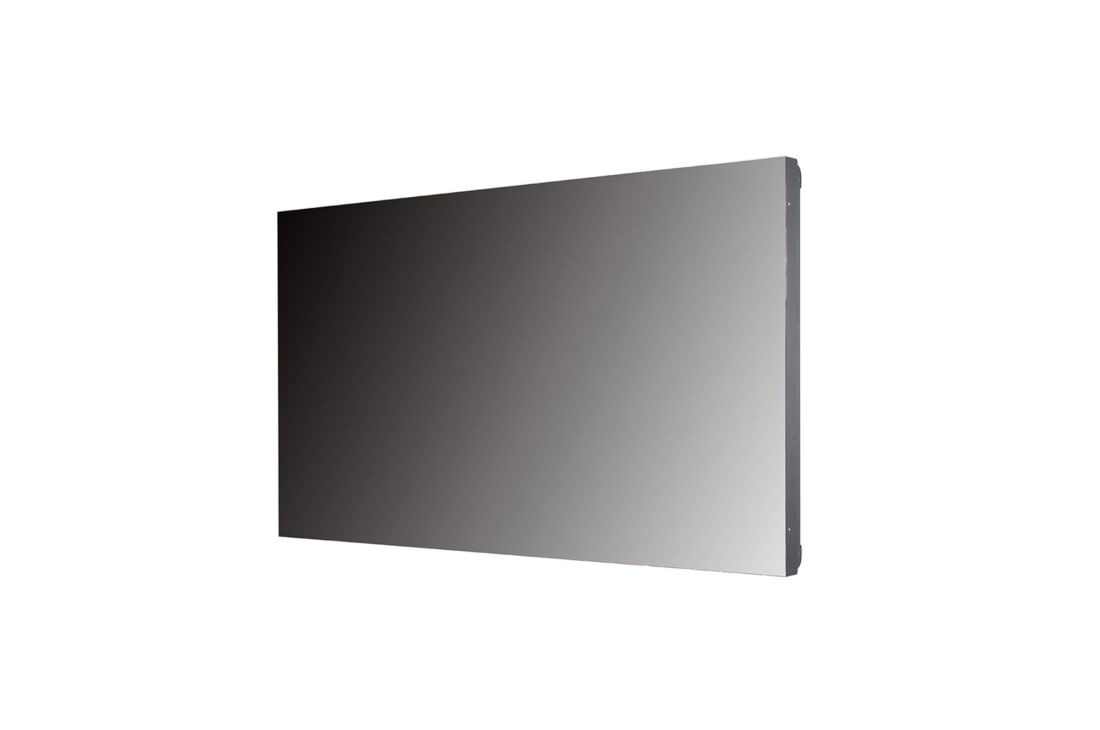

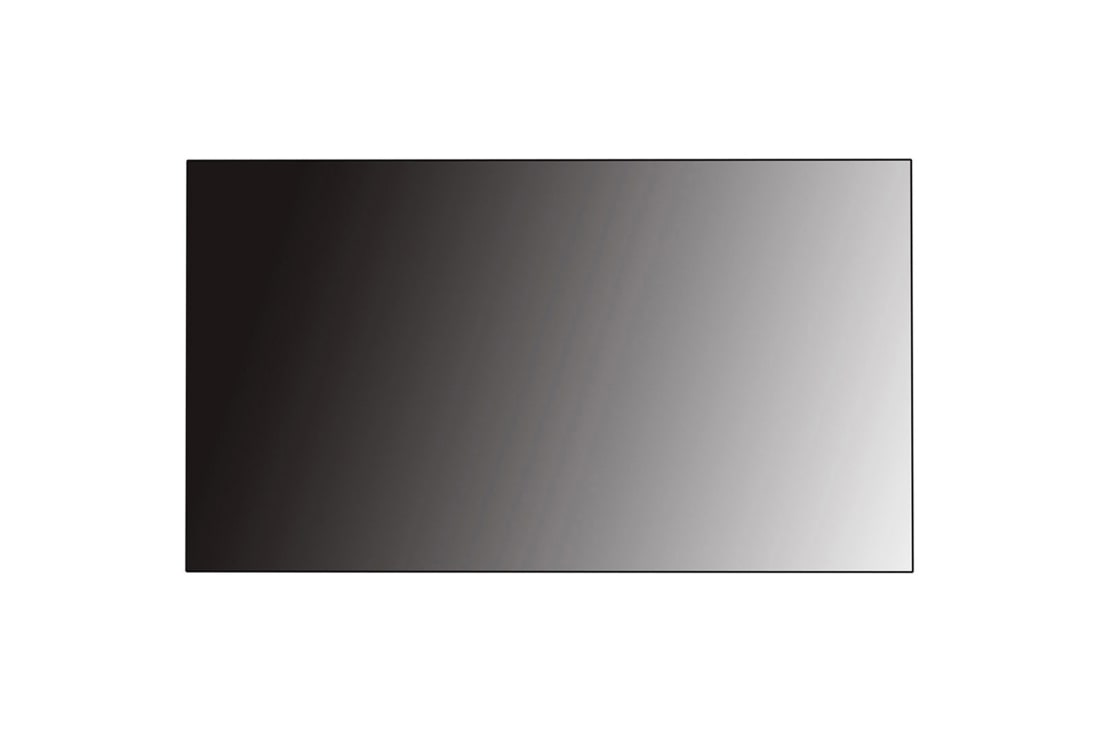

49VH7C-B
Artistic Immersion, Overwhelming Attractiveness
49"
  • Brightness(Typ.): 700 cd/m²
  • Surface Treatment : Hard coating (2 H), Anti-glare low reflection treatment of the front polarizer(Haze 3 % (Typ))

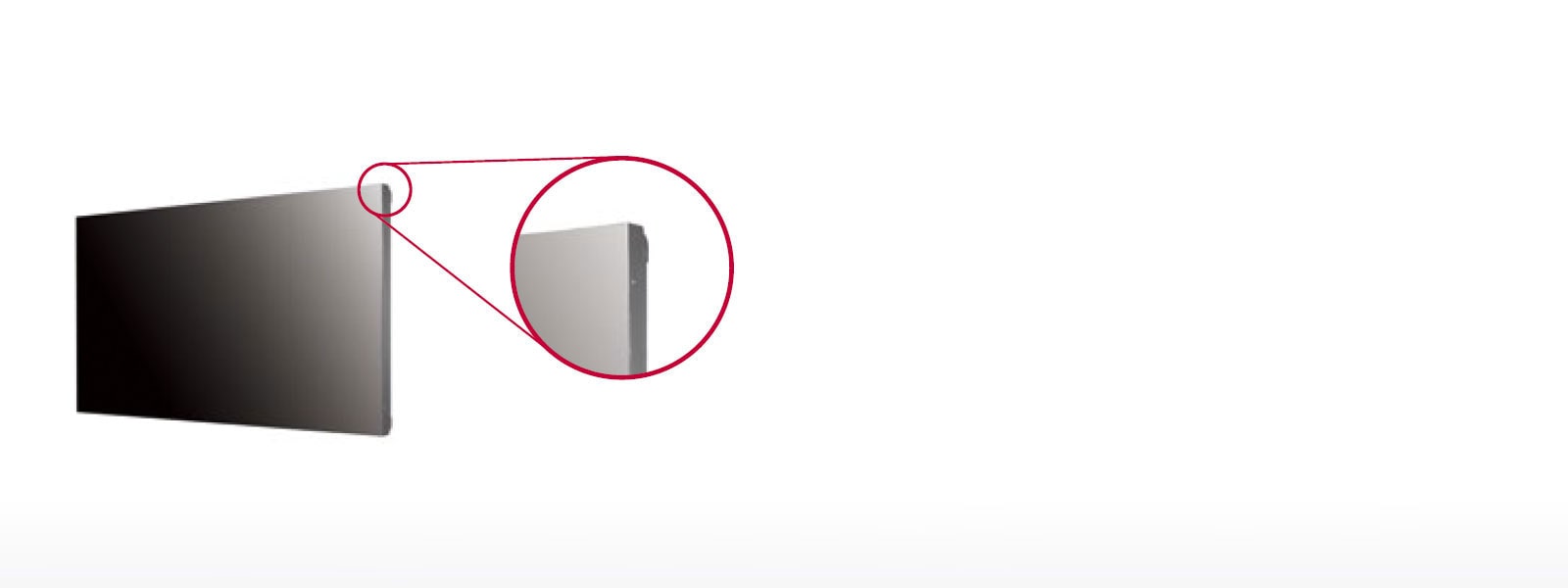

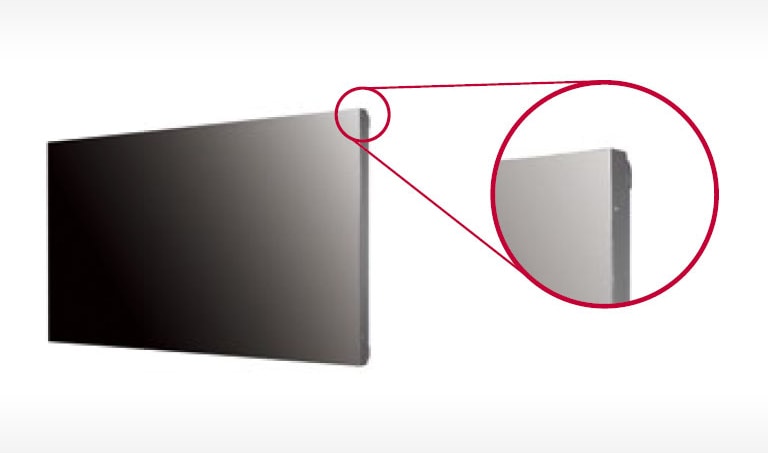

  • Bezel : 0.9 mm (T/B/L/R even bezel)

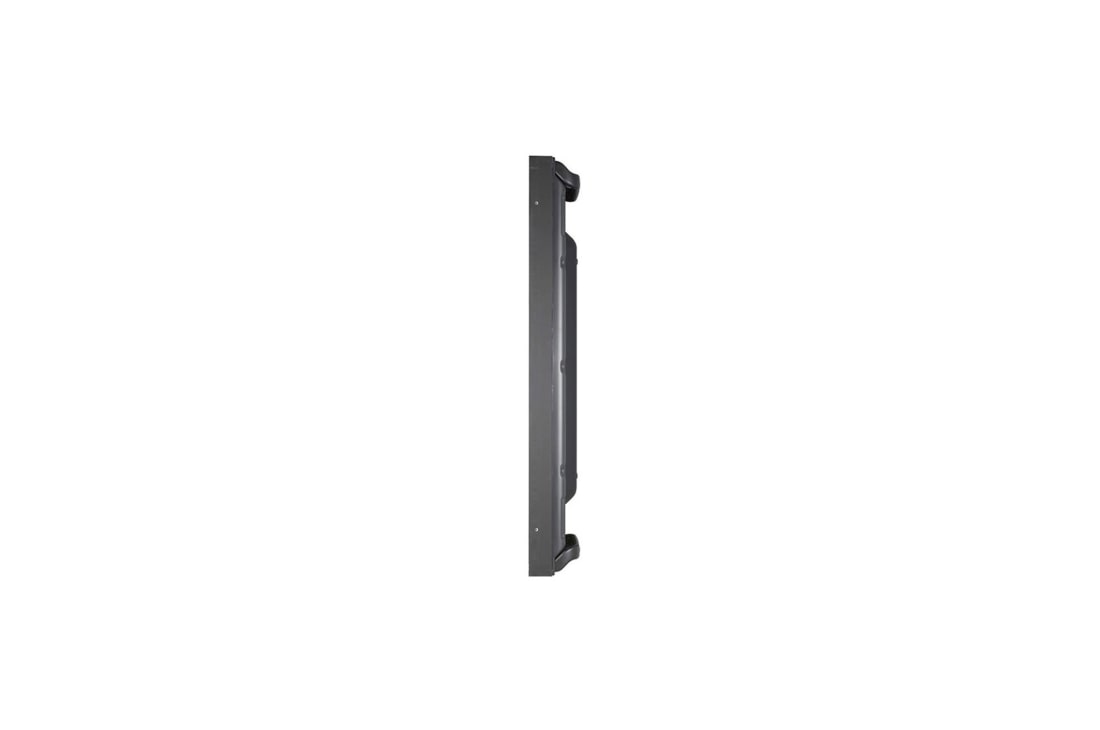

  • Depth : 86.2 mm

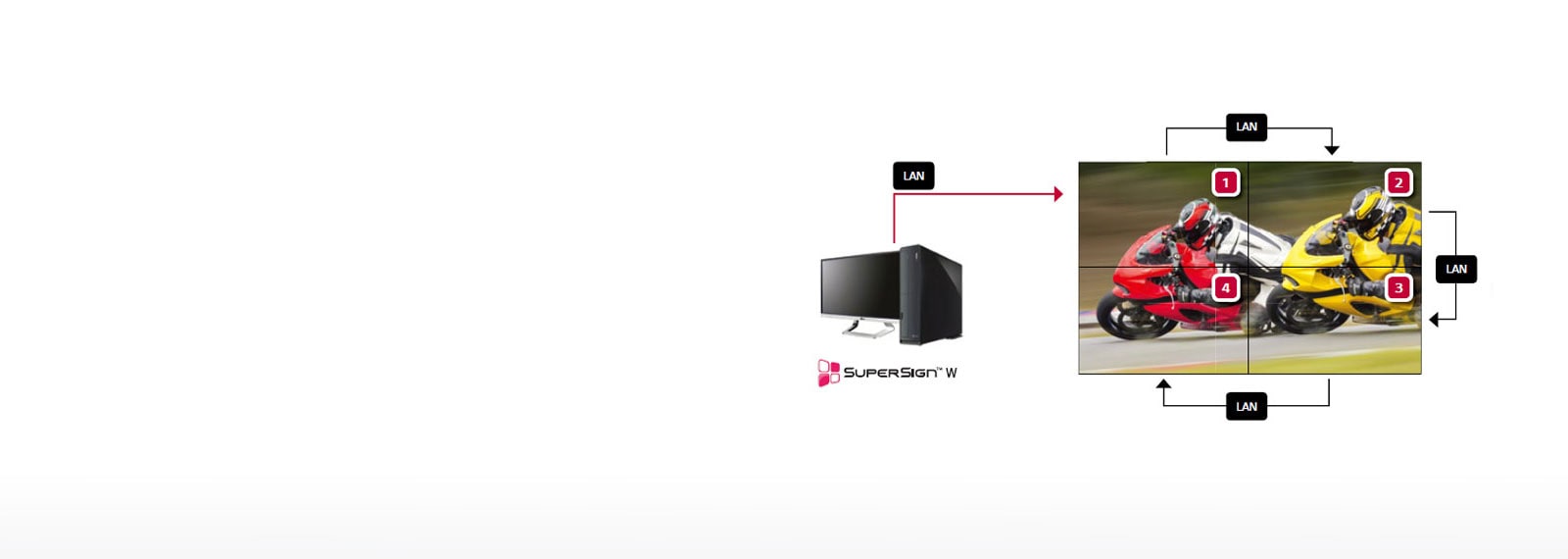

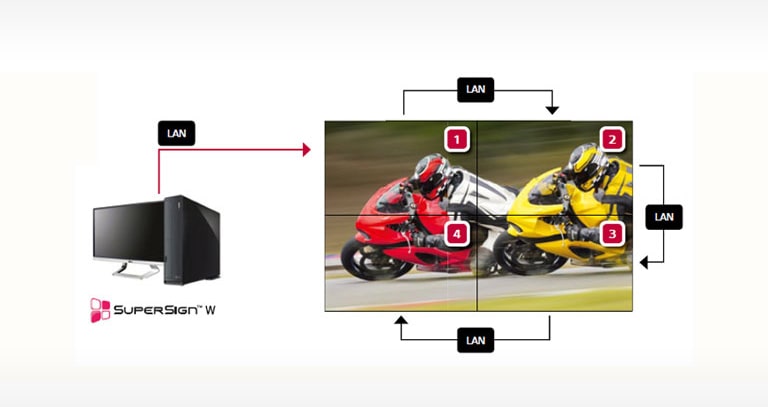

  • Interface : HDMI / DVI / RGB / IR, Daisy-chain (DP, RS232C, RJ45)
Artistic Immersion, Overwhelming Attractiveness
MSRP $

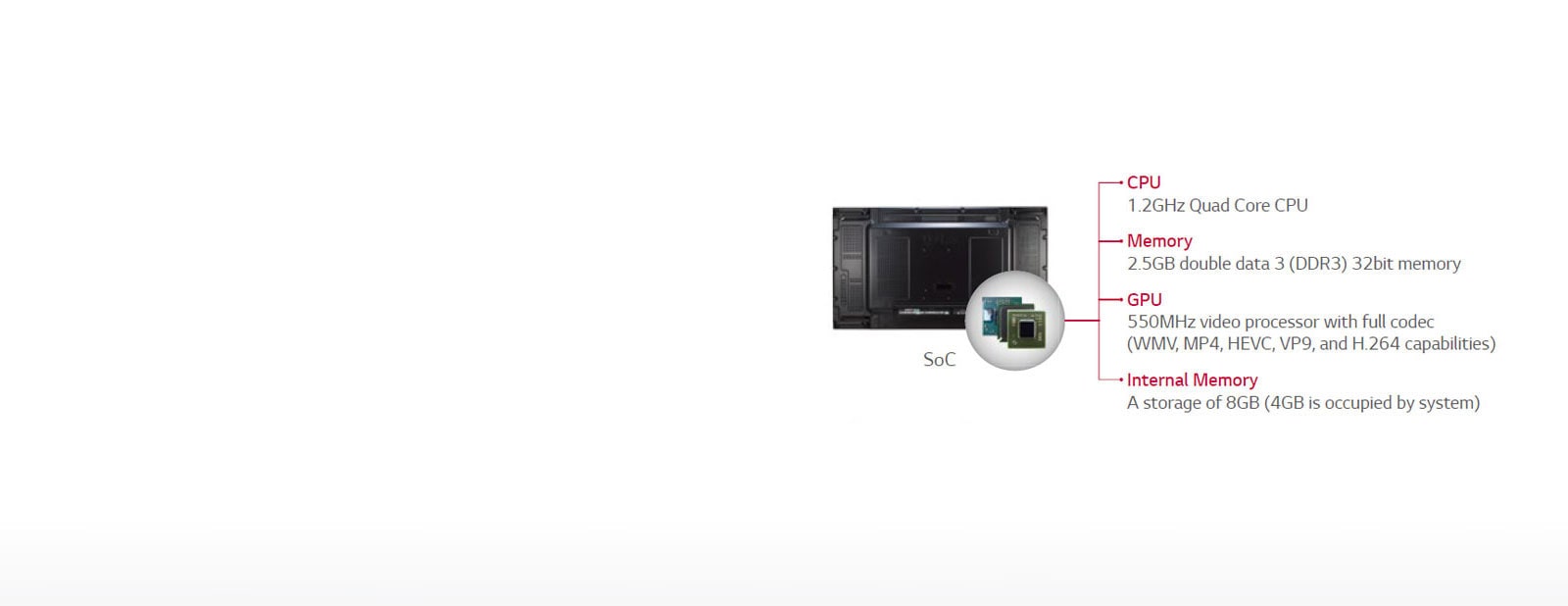

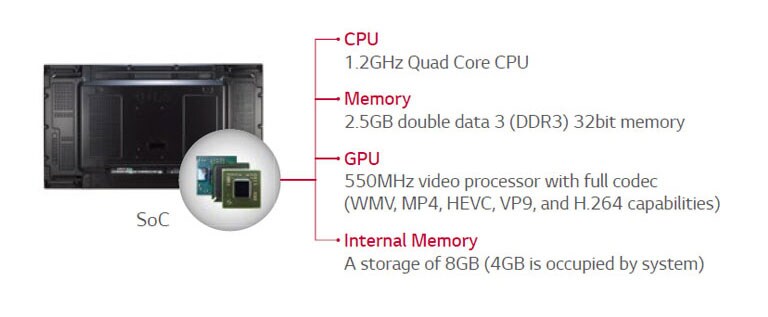

*SoC: System-on-Chip

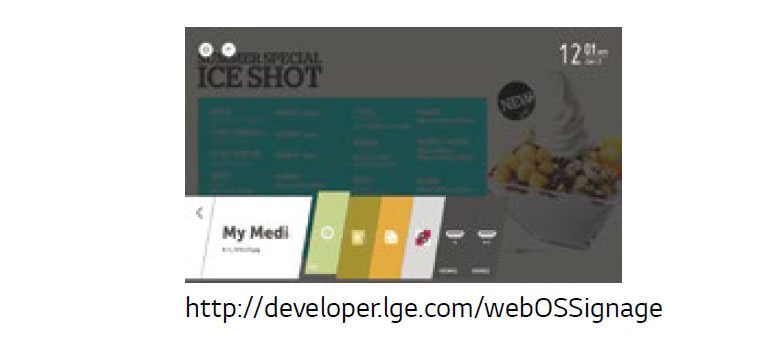

*Software Development Kit.

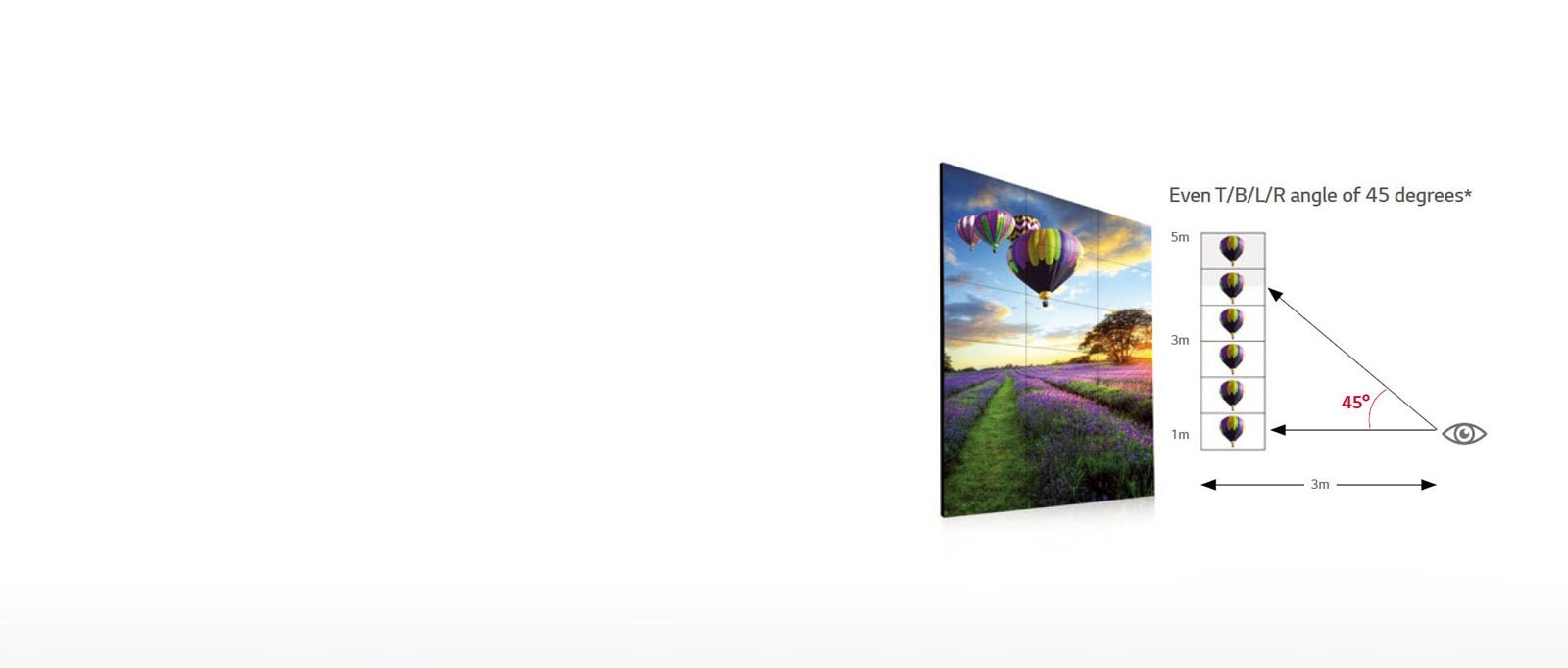

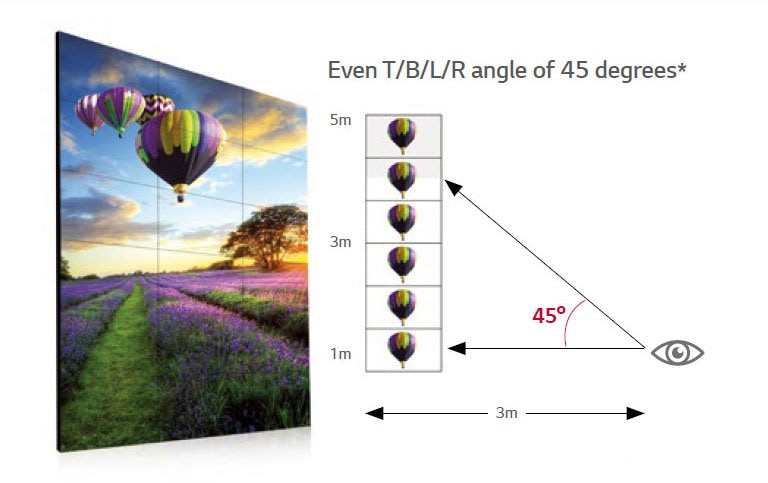

*The angle from the center of the screen to have 50% of the initial luminance.

PANEL

  • Screen Size
    49"
    Resolution
    1,920 x 1,080 (FHD)
  • Brightness(Typ., Module, cd/m²)
    700

CONNECTIVITY

  • Input
    HDMI, DP, DVI-D, OPS, Audio, USB 2.0, USB 3.0, RGB
    Output
    DP, Audio
  • External Control
    RS232C, RJ45, IR Receiver

PHYSICAL SPECIFICATION

  • Bezel Width
    0.9mm (Top/Bottom/Left/Right even bezel) / 1.8mm *B to B : Panel Bezel + Panel Bezel
    Monitor Dimension (W x H x D)
    1,075.6 x 605.8 x 86.2 mm
  • Weight (Head)
    17.5 kg
    VESA™ Standard Mount Interface
    600 x 400mm

ENVIRONMENT CONDITIONS

  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %

POWER

  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power

STANDARD (CERTIFICATION)

  • Safety
    UL / cUL / CB / TUV / KC
    EMC
    FCC Class "A" / CE / KCC
  • ErP / Energy Star
    NA / Yes (Energy Star 7.0)

MEDIA PLAYER COMPATIBILITY

  • OPS Type Compatible
    Yes
    External Media player Attatchable
    Yes (MP500/MP700)

SOFTWARE COMPATIBILITY

  • SuperSign-w lite
    Yes
    SuperSign-c
    Yes

ACCESSORY

  • Basic

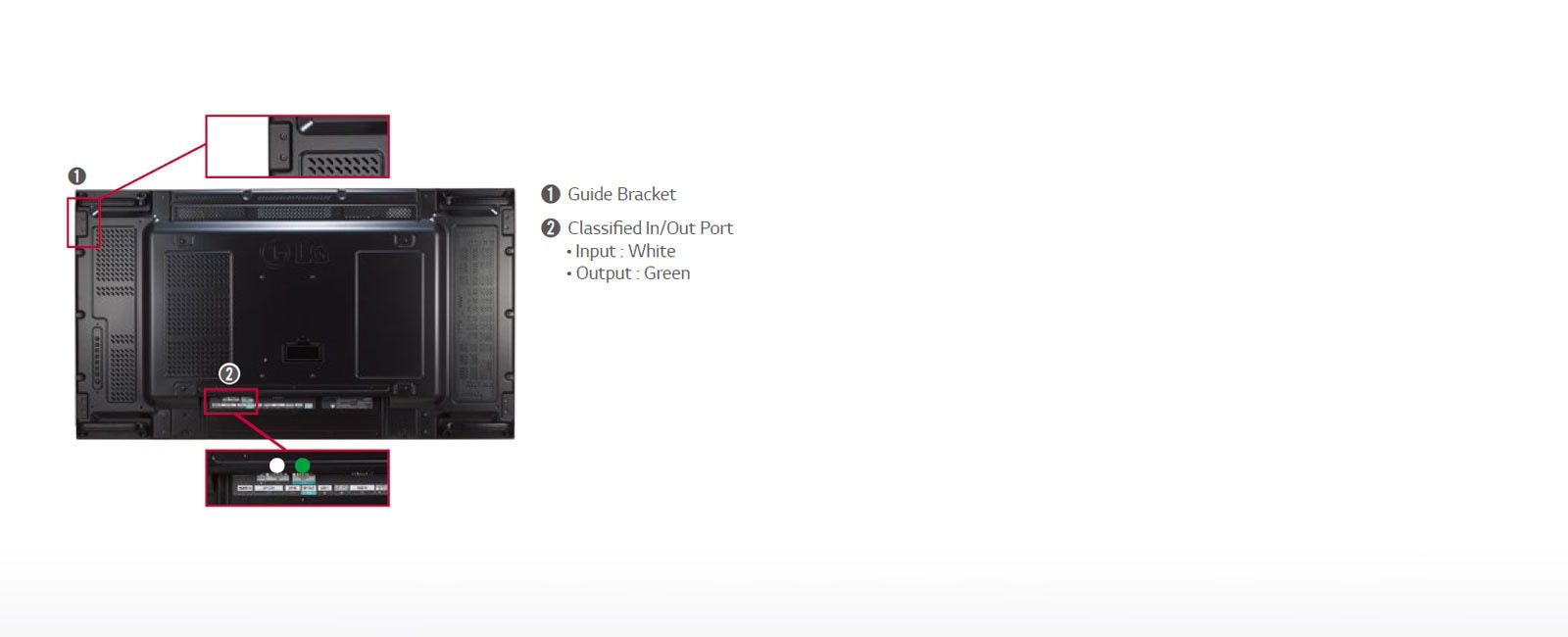

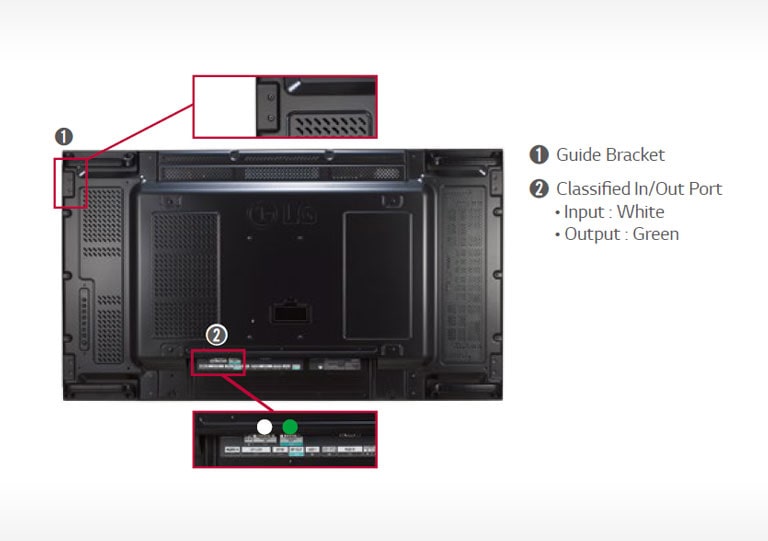

    Remote Controller, Power cable, DP Cable, Manual, IR Receiver, RS-232C Cable, LAN Cable, Guide Bracket, Screws
    Optional
    Wall mount (Landscape: WM-L640V, Portrait: WM-P640V), OPS kit (KT-OPSA), HDBaseT (EB-B100)
