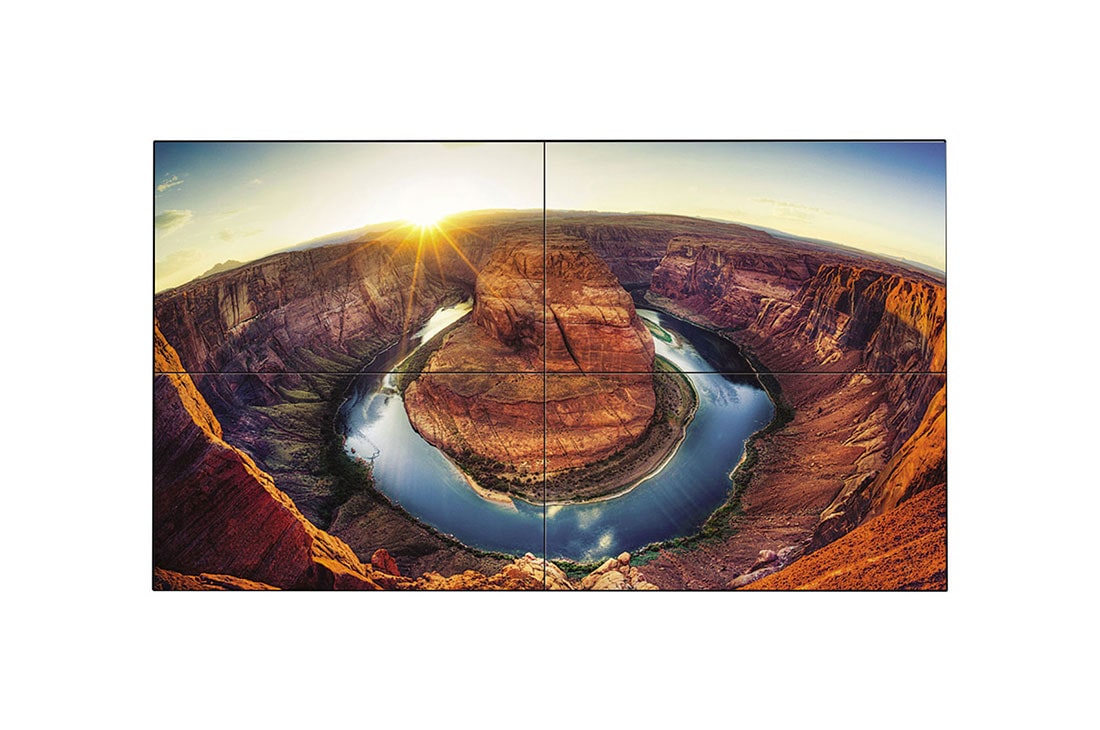

49VM5C-A
VM5C Series
49"
  • Brightness(Typ.): 500 cd/m²

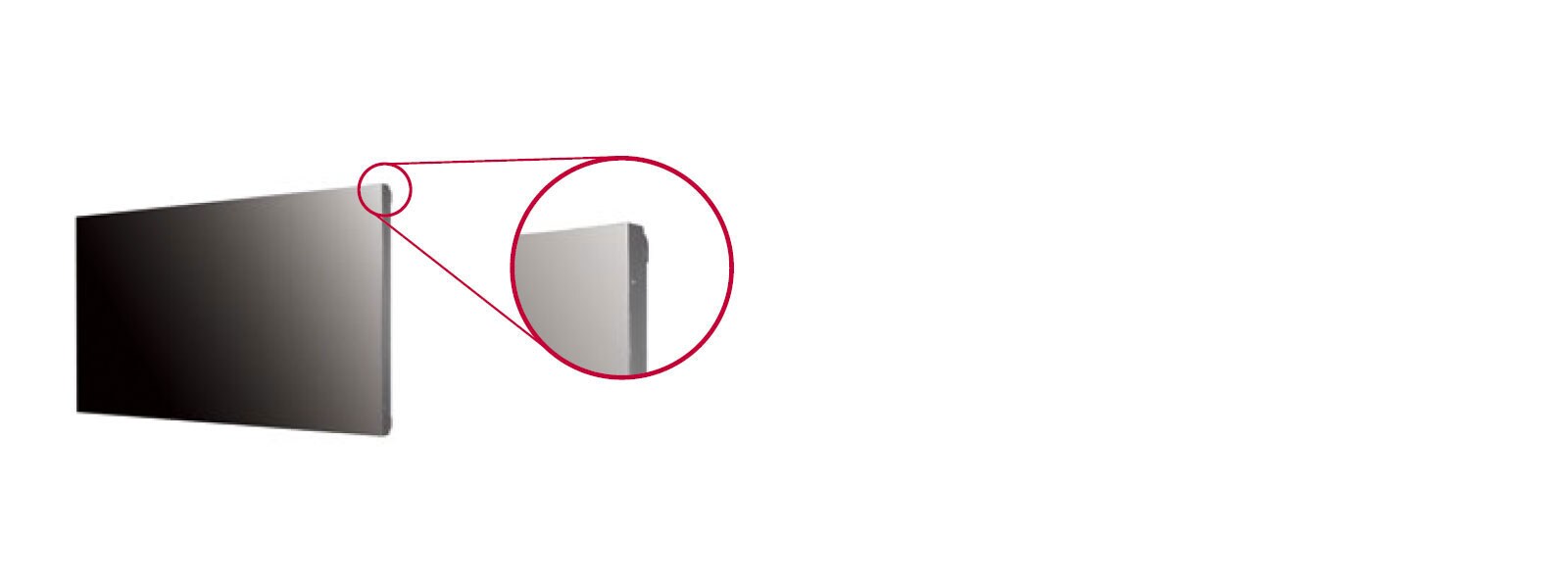

  • Bezel : 0.9mm (T/B/L/R even bezel)
  • Depth : 86.2 mm

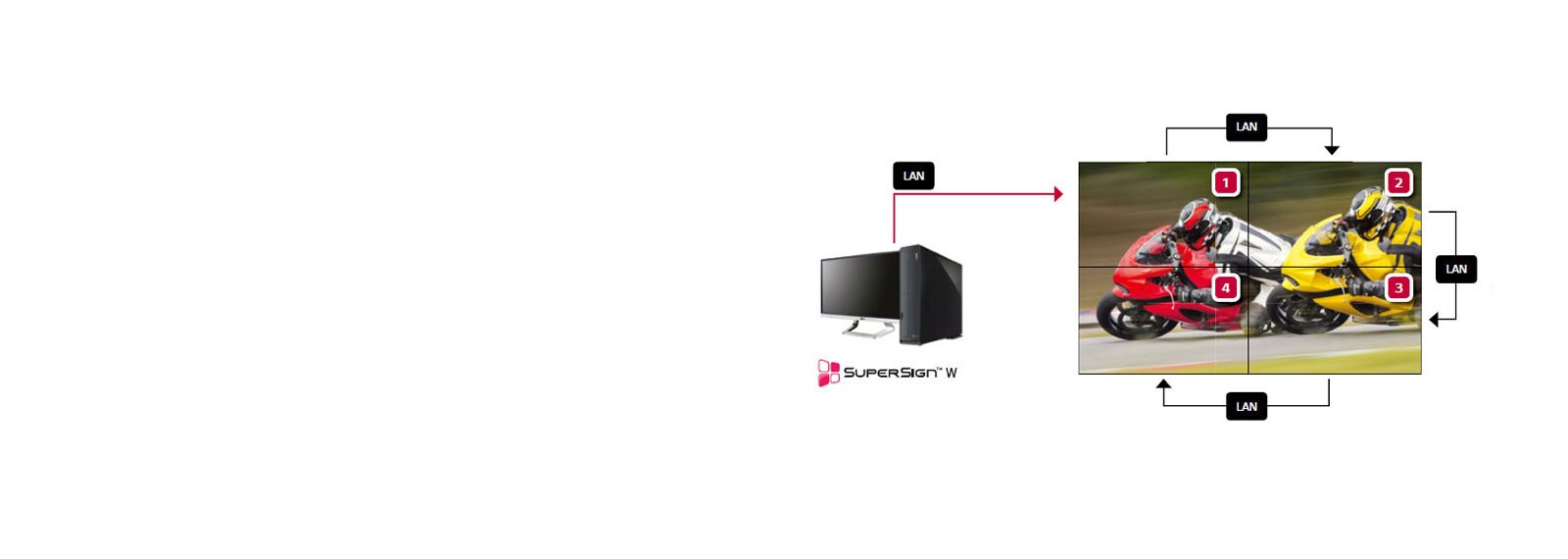

  • Interface : HDMI, DVI, RGB, IR, Daisy-chain (DP, RS232C, RJ45)

component-OBScountrySelectDesc

VM5C Series

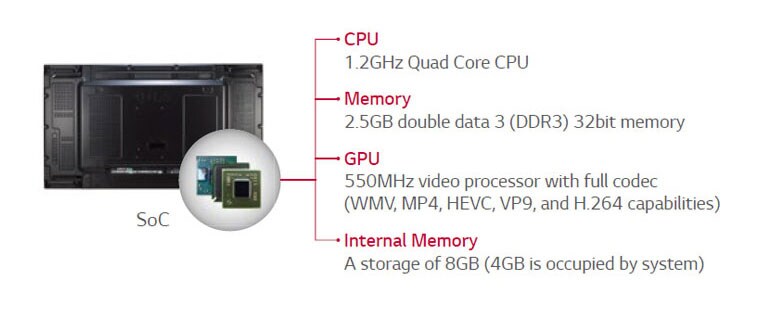

*System-on-Chip.

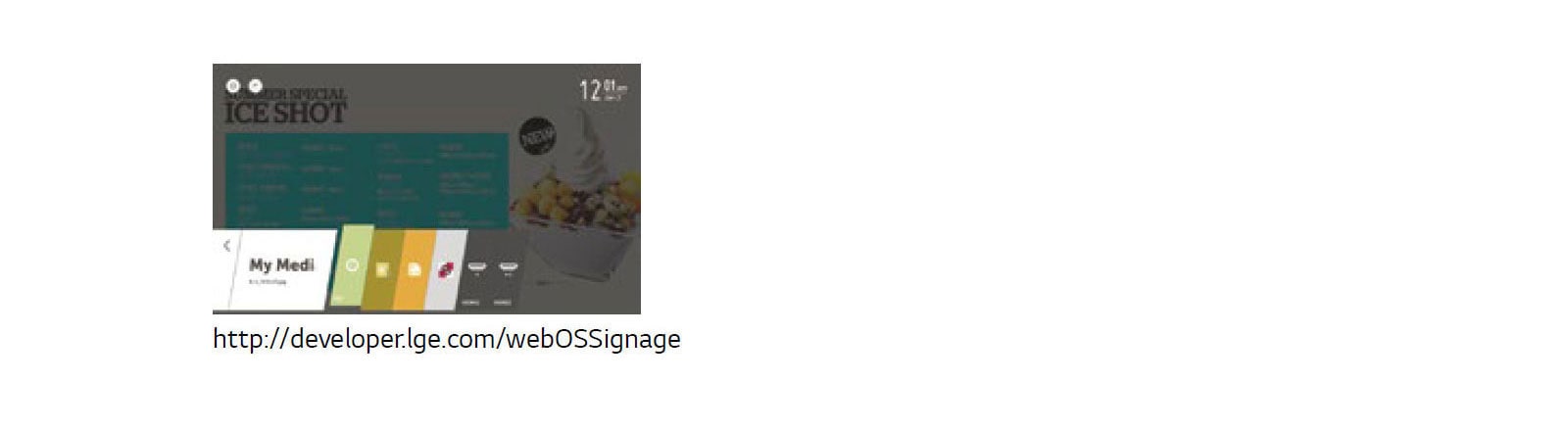

*Software Development Kit.

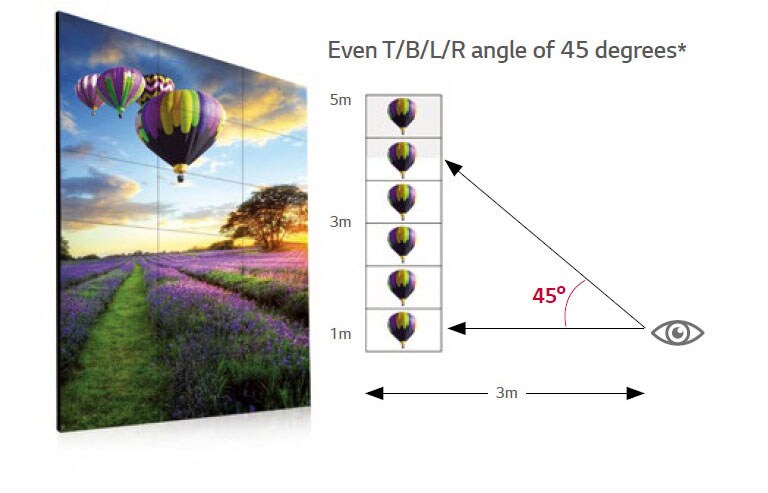

*The angle from the center of the screen to have 50% of the initial luminance.

PANEL

  • Screen Size
    49"
    Resolution
    1,920 x 1,080 (FHD)
  • Brightness(Module, Typ., cd/m²)
    500
    Orientation
    Portrait & Landscape

CONNECTIVITY

  • Input
    HDMI, DP, DVI-D, OPS, Audio, USB 2.0, USB3.0, RGB
    Output
    DP, Audio
  • External Control
    RS232C, RJ45, IR Receiver

PHYSICAL SPECIFICATION

  • Bezel Width
    0.9mm (Top/Bottom/Left/Right even bezel)/1.8mm *B to B : Panel Bezel + Panel Bezel
    Monitor Dimension (W x H x D)
    1,075.6 x 605.8 x 86.2 mm
  • Weight (Head)
    17.5kg
    VESA™ Standard Mount Interface
    600 x 400mm

ENVIRONMENT CONDITIONS

  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%

POWER

  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power

POWER CONSUMPTION

  • Typ.
    120W
    Smart Energy Saving
    70W

STANDARD (CERTIFICATION)

  • Safety
    UL/cUL/CB/TUV/KC
    EMC
    FCC Class "A"/CE/KCC
  • ErP / Energy Star
    NA/Yes (Energy Star 6.0)

MEDIA PLAYER COMPATIBILITY

  • OPS type compatible
    Yes
    External Media player Attatchable
    Yes (MP500/MP700)

SOFTWARE COMPATIBILITY

  • SuperSign-w lite
    Yes
    SuperSign-c
    Yes

ACCESSORY

  • Basic

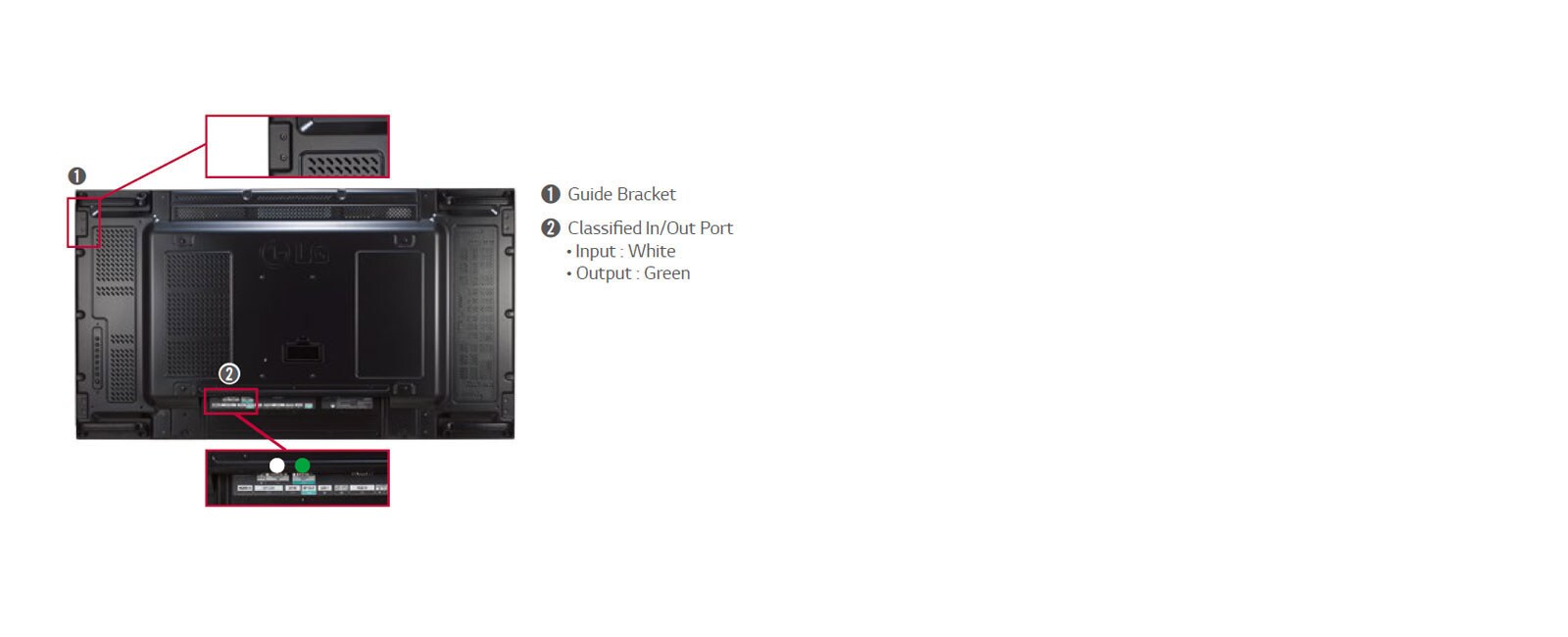

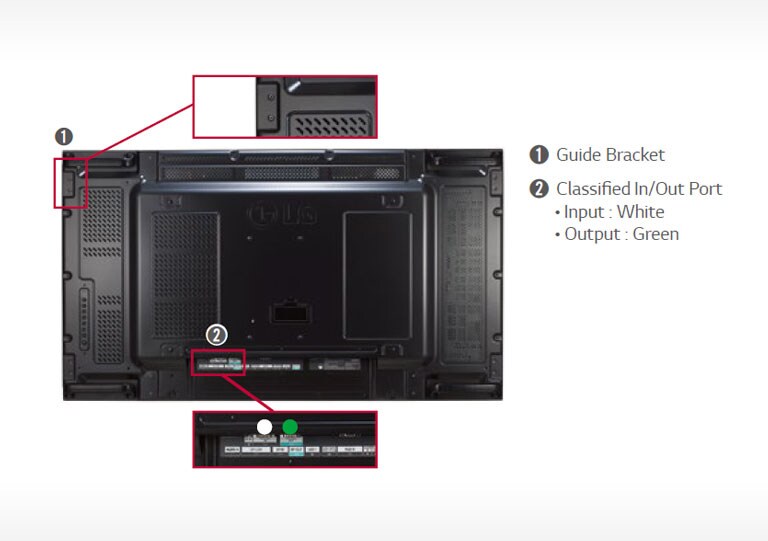

    Remote Controller, Power cable, DP Cable, Manual, IR Receiver, RS-232C Cable, LAN Cable, Guide Bracket, Screws
    Optional
    Wall mount (Landscape: WM-L640V, Portrait: WM-P640V), OPS kit (KT-OPSA), HDBaseT (EB-B100)
