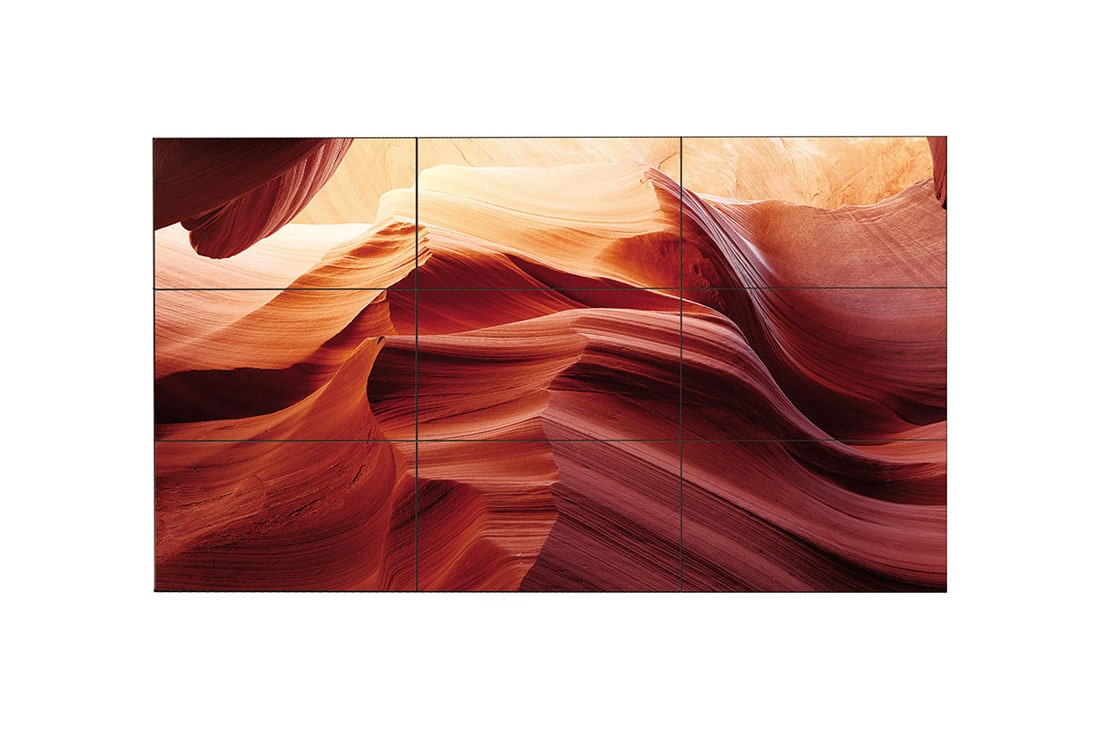

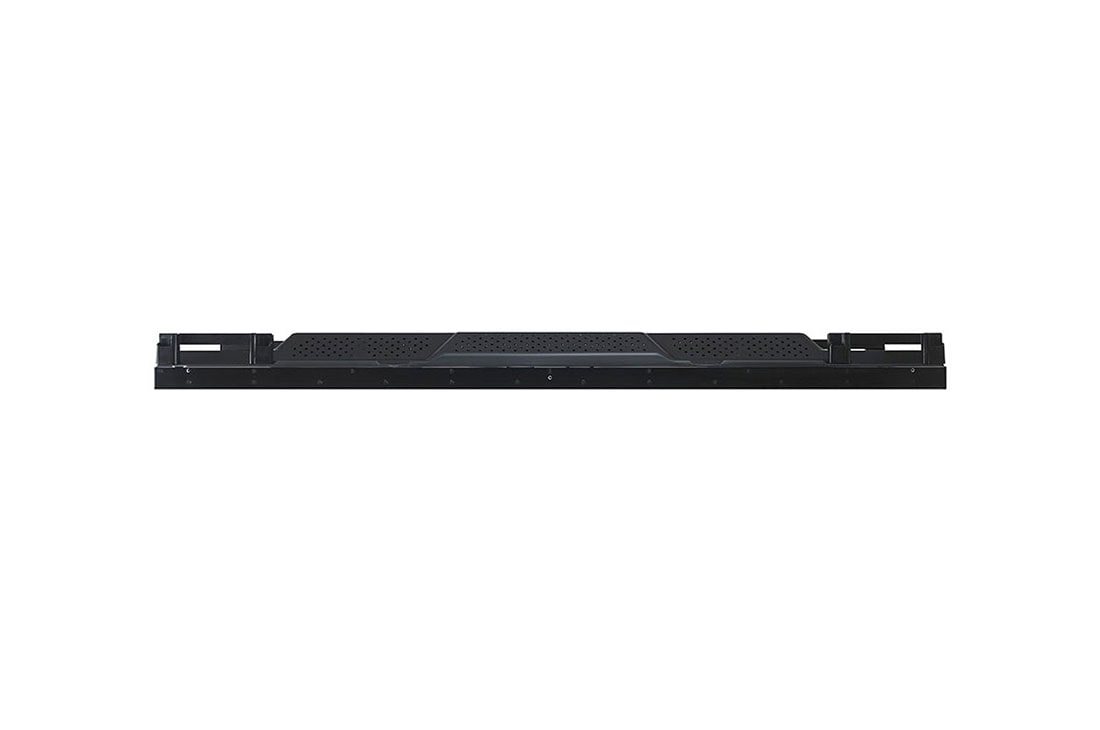

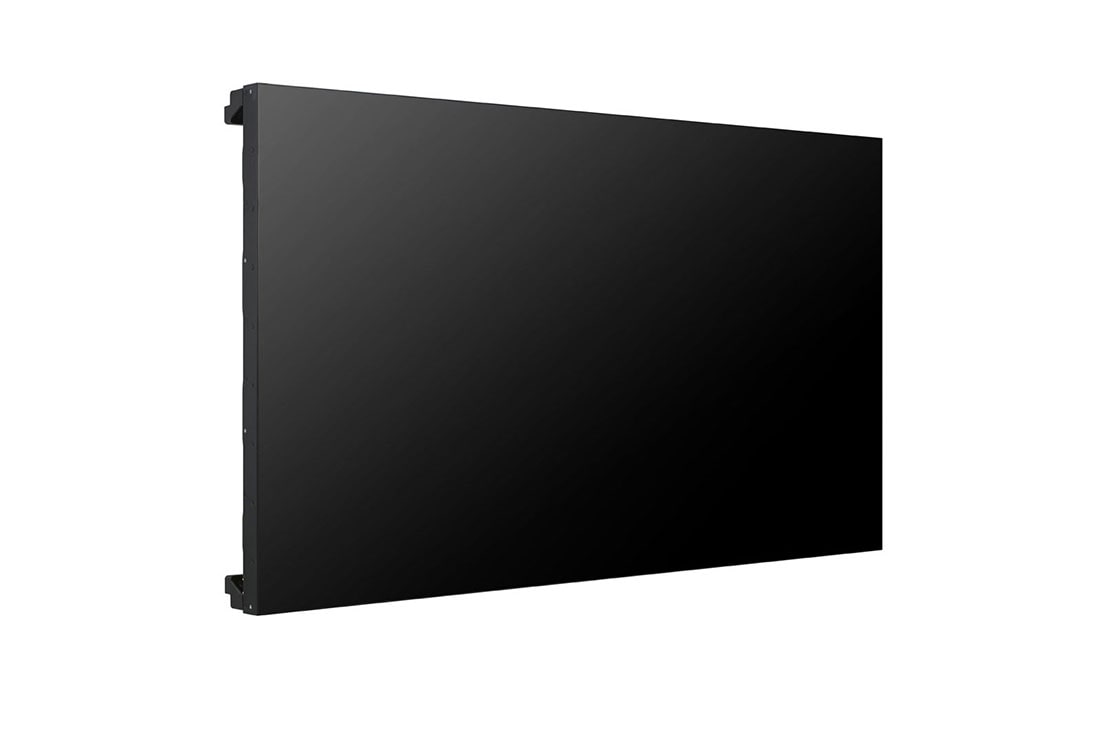

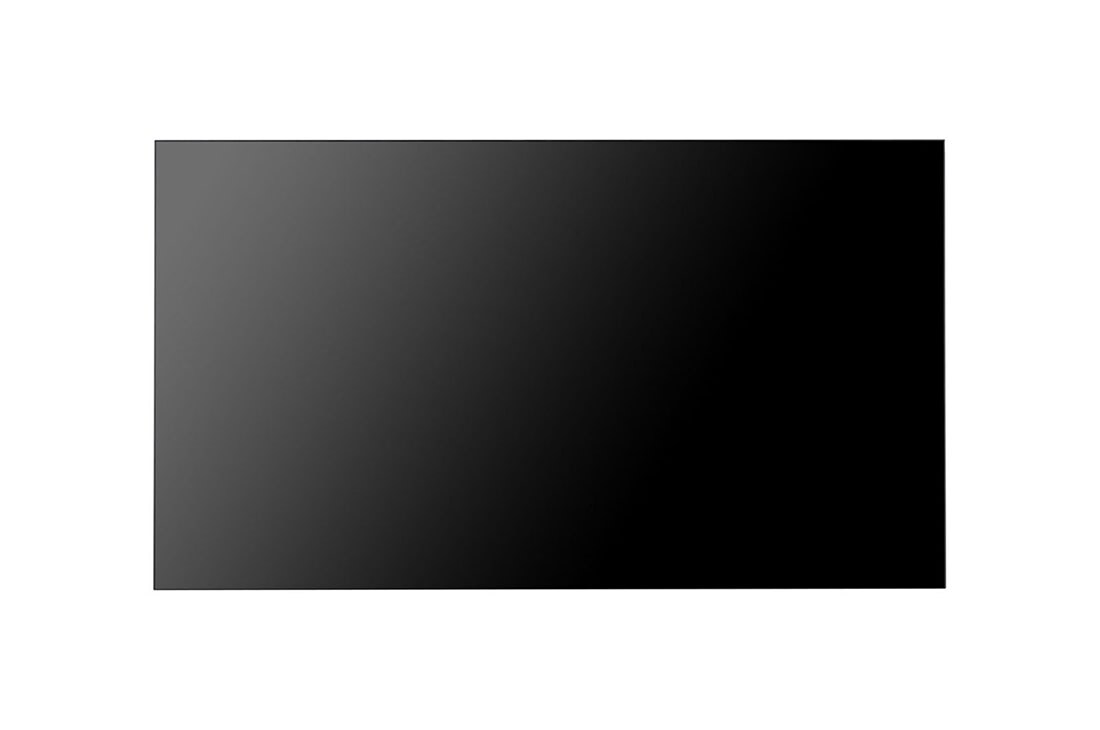

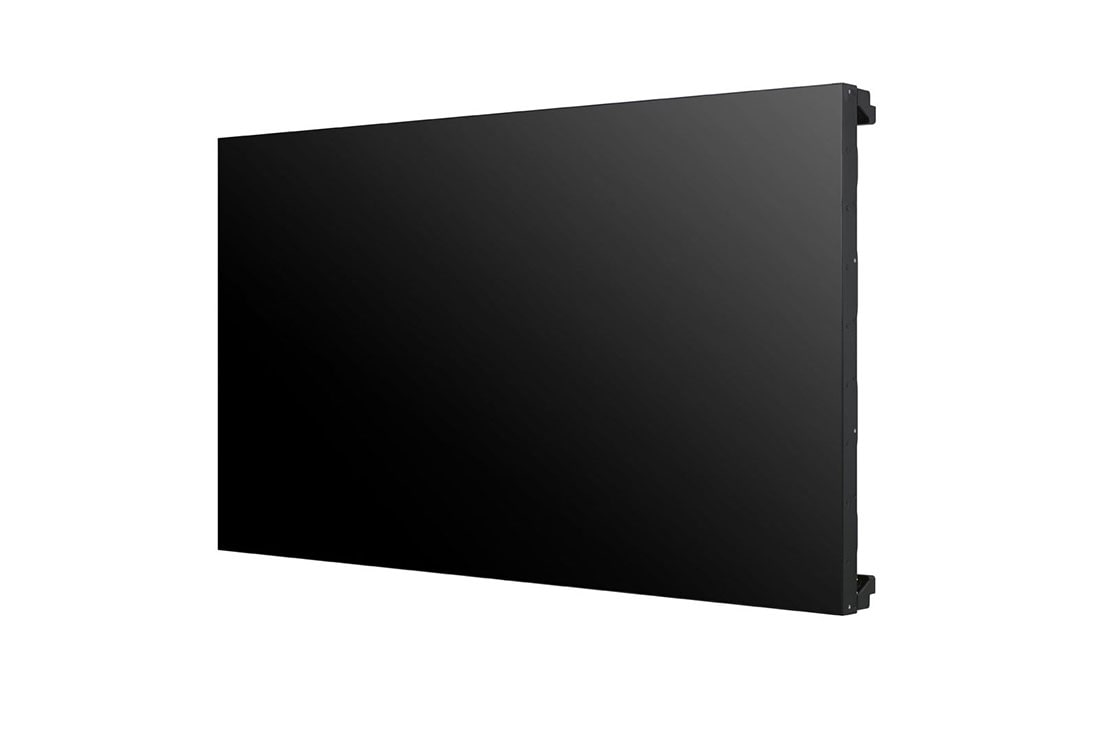

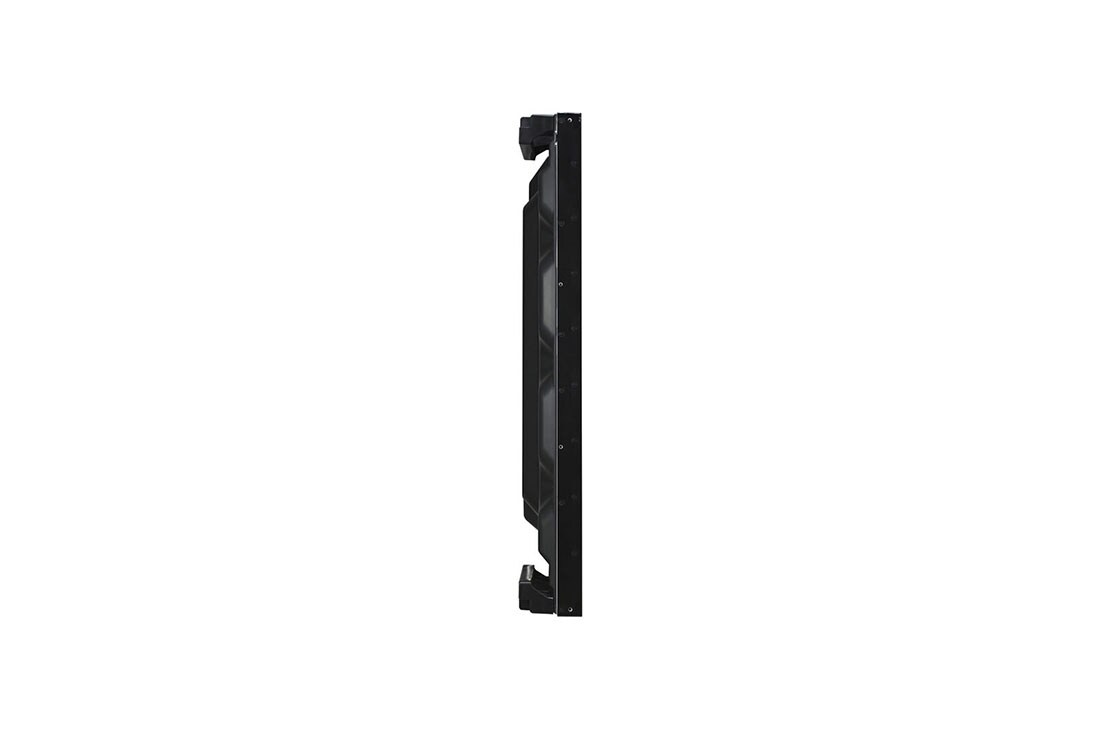

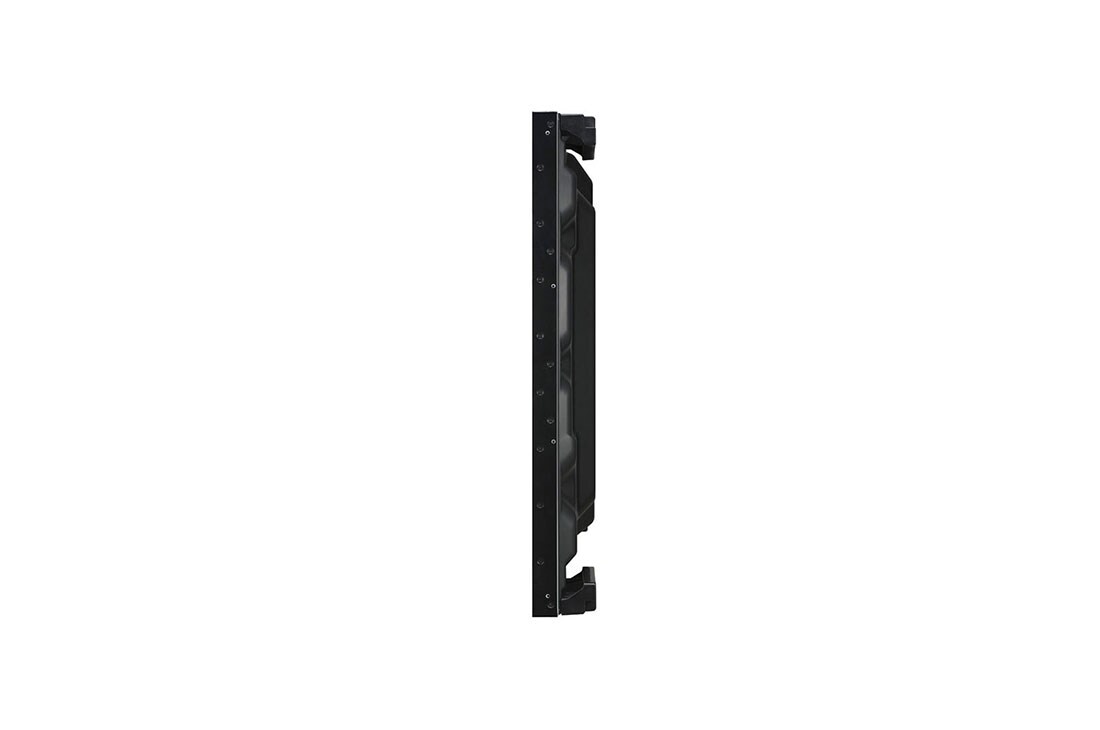

55LV75A-5B
LV75A Series
  • Direct LED
  • Brightness (Typ.): 500 cd/m²

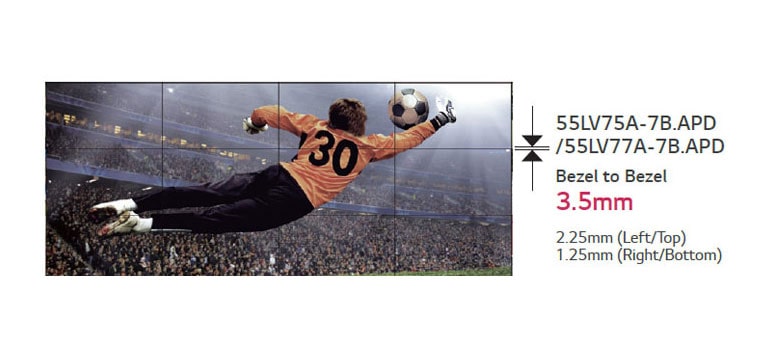

  • Bezel : 3.5mm (B-to-B)

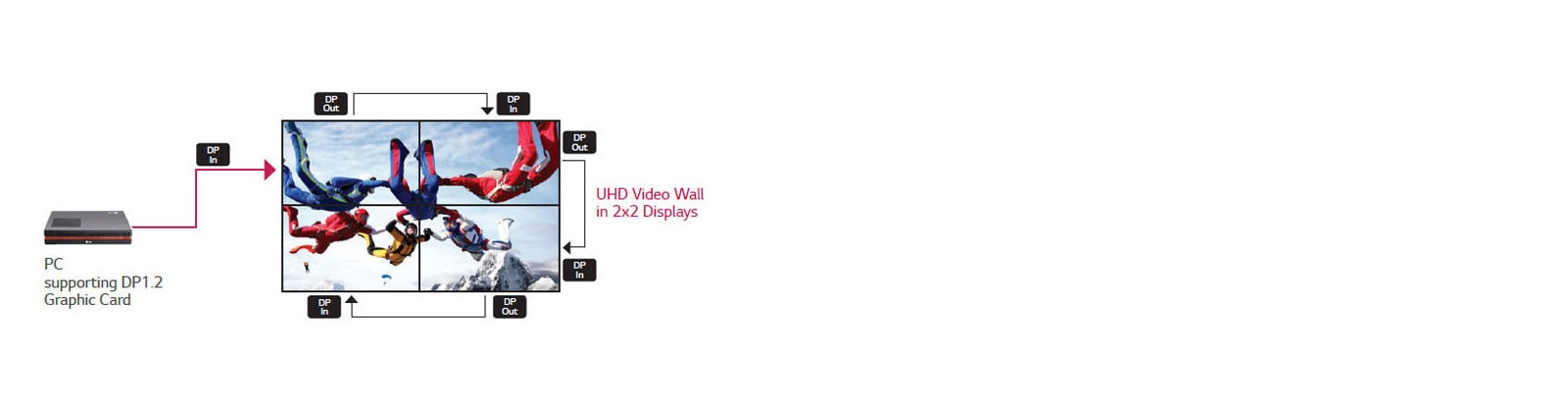

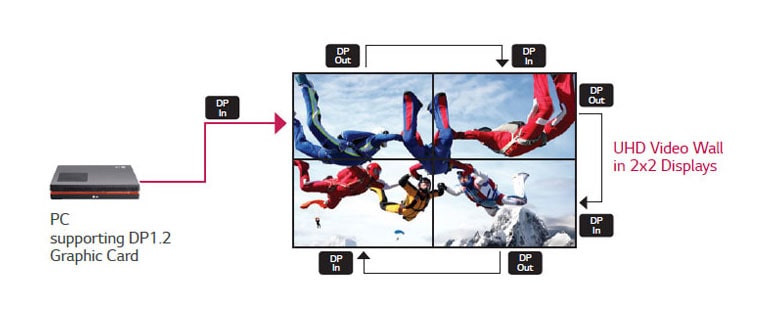

  • DP1.2 Daisy Chain
  • 24/7 Operation
  • Landscape and Portrait Mode

component-OBScountrySelectDesc

LV75A Series

PANEL

  • Screen Size
    55" (54.64" measured diagonal)
    Resolution
    1,920 x 1,080 (FHD)
  • Brightness (Module, Typ., cd/m²)
    500

CONNECTIVITY - INTPUT

  • Digital
    DVI-D (1), HDMI (2), Display Port (1) with HDCP for input
    Analog
    RGB (1), Shared Component, AV (1)
  • Audio
    PC Audio In (1)
    External Control
    RS232C (1), RJ45 (1), IR Receiver (1)
  • USB
    USB (1)

CONNECTIVITY - OUTPUT

  • Digital
    Display Port (1)
    Audio
    Audio Out (1)
  • External Control
    RS232C (1)

PHYSICAL SPECIFICATION

  • Bezel Width
    2.25mm (left/top), 1.25mm (right/bottom)
    Monitor Dimension (W x H x D)
    1213.4 x 684.2 x 88.5 mm
  • Weight (Head)
    23.0kg

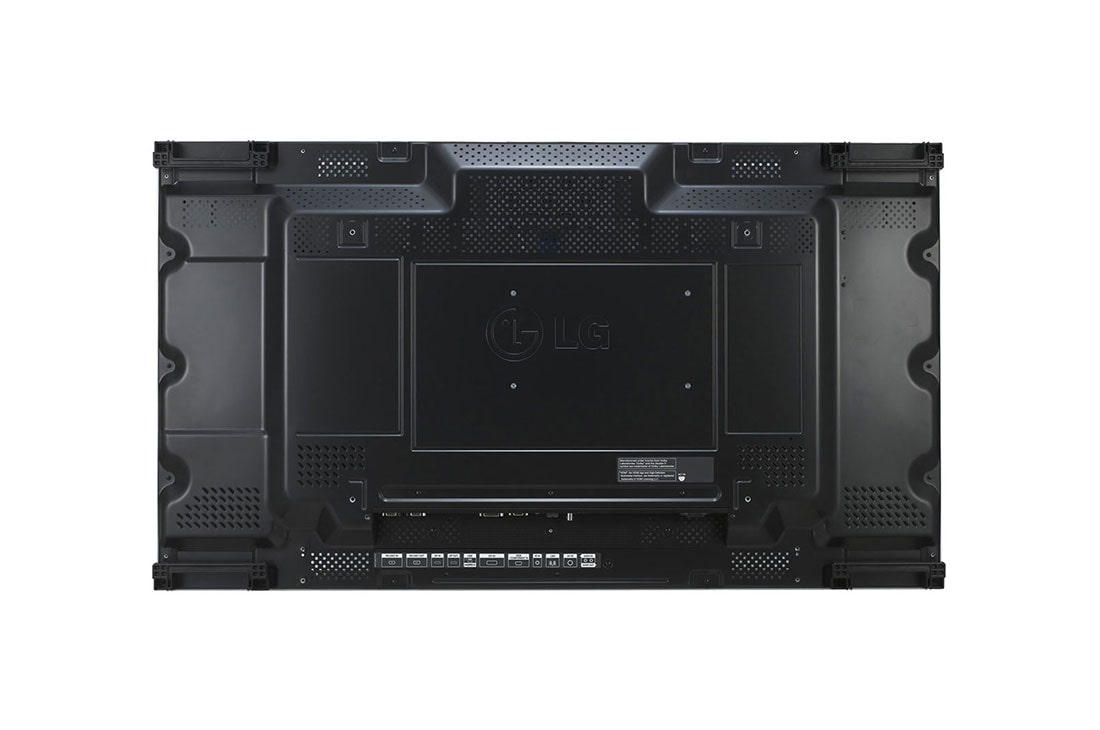

    VESA™ Standard Mount Interface
    600 x 400mm

ENVIRONMENT CONDITIONS

  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%

POWER

  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power

POWER CONSUMPTION

  • Typ.
    160W
    Smart Energy Saving
    130W
  • DPM
    0.7W
    Power off
    0.5W

STANDARD (CERTIFICATION)

  • Safety
    UL/cUL/CB/TUV/KC
    EMC
    FCC Class "B"/CE/KCC
  • ErP/Energy Star
    NA/Yes (Energy Star 6.0)

MEDIA PLAYER COMPATIBILITY

  • External Media player Attatchable
    Yes

SOFTWARE COMPATIBILITY

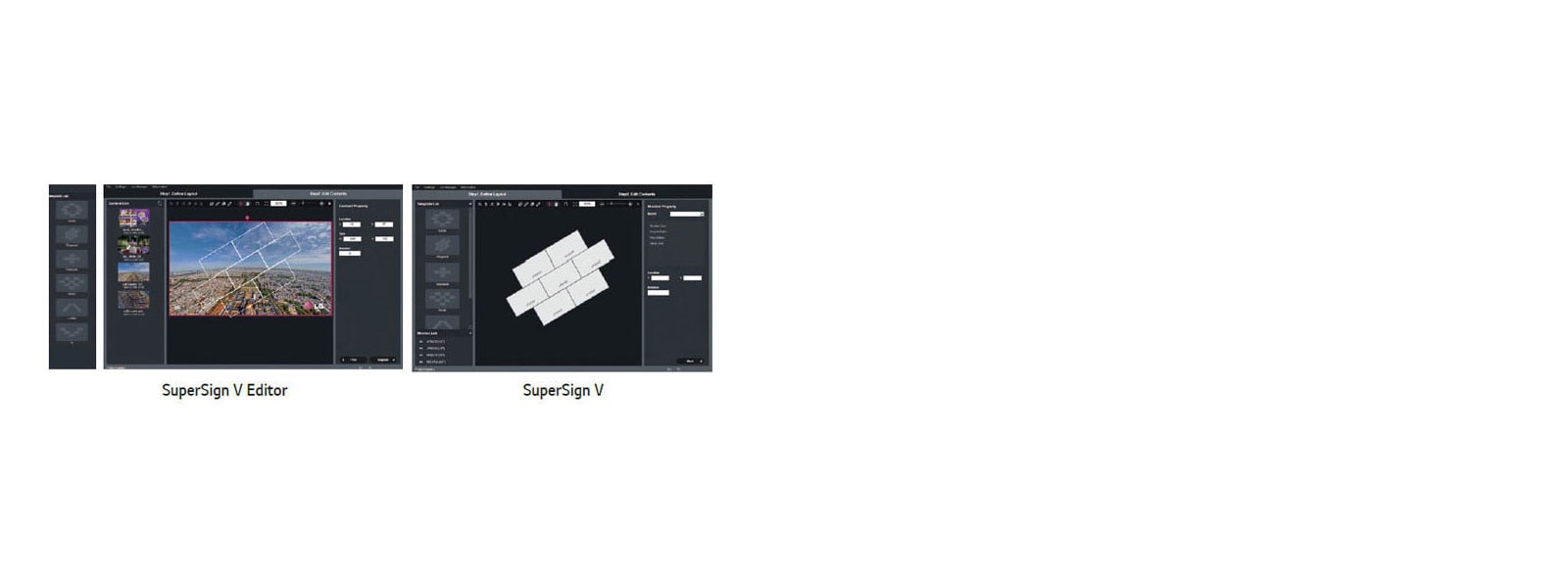

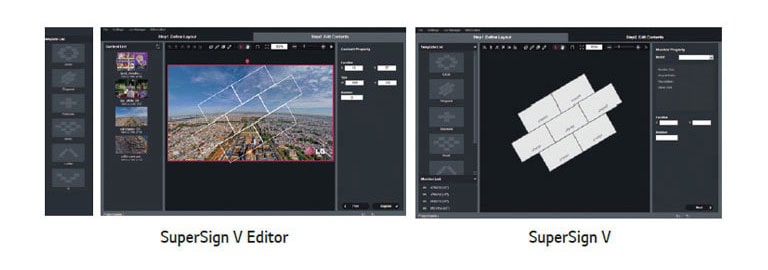

  • SuperSign-w lite
    Yes

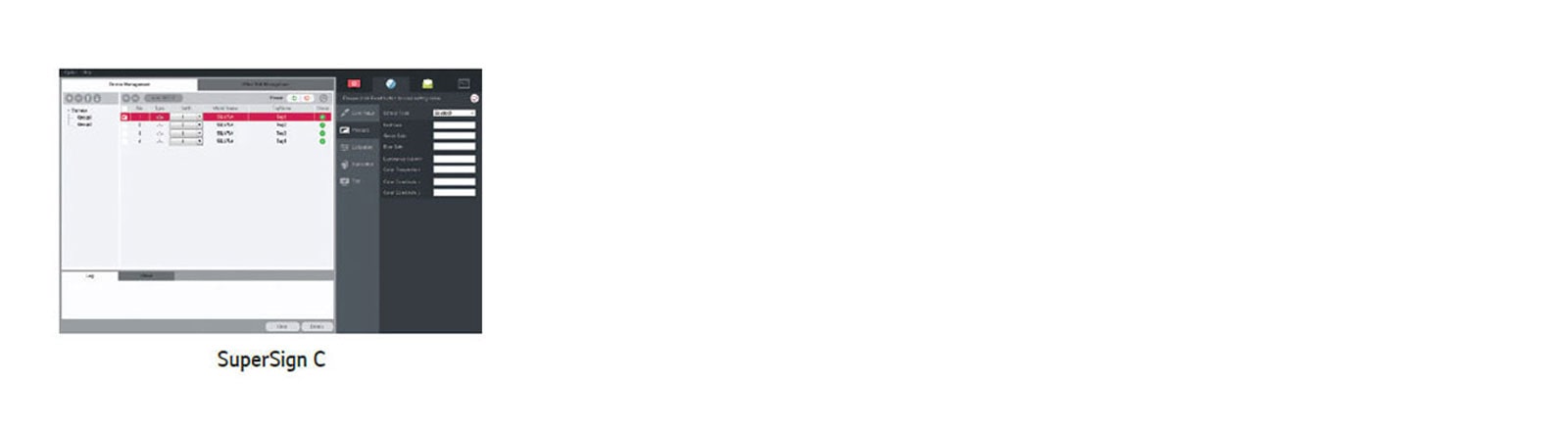

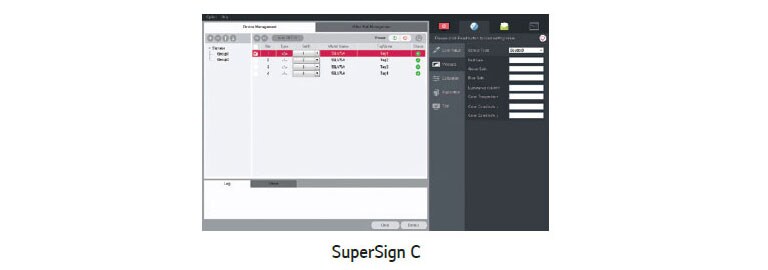

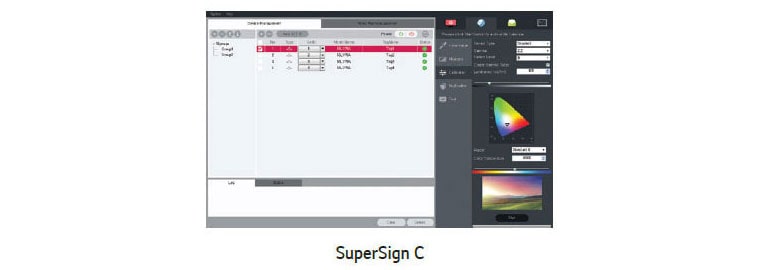

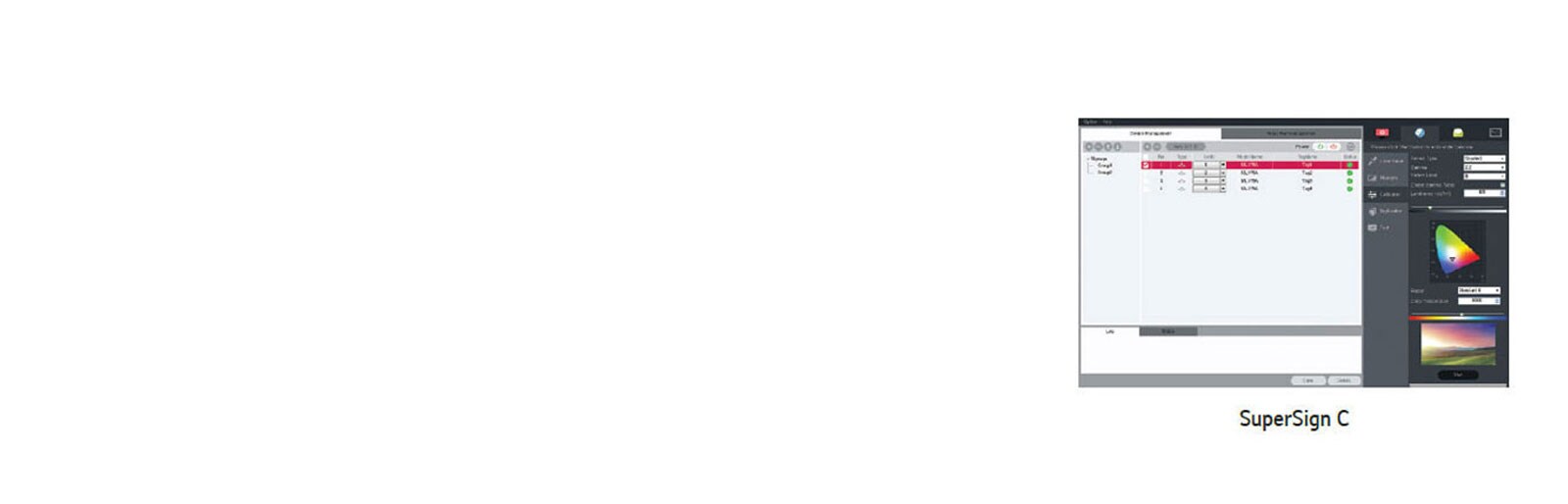

    SuperSign-c
    Yes

ACCESSORY

  • Basic
    Remote Controller, Power Cable, DP Cable, Manual, IR Receiver, RS-232C Cable, Tiling Guide, Screw
    Optional
    WM-L640V (Landscape), WM-P640V (Portrait)
