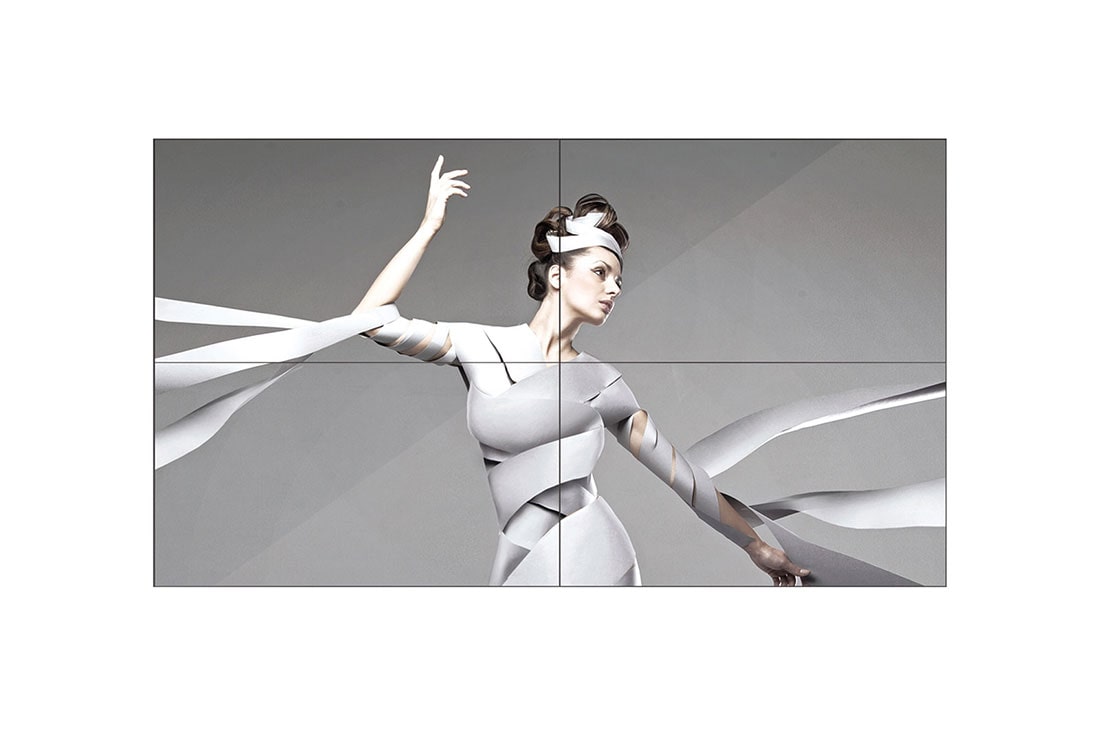

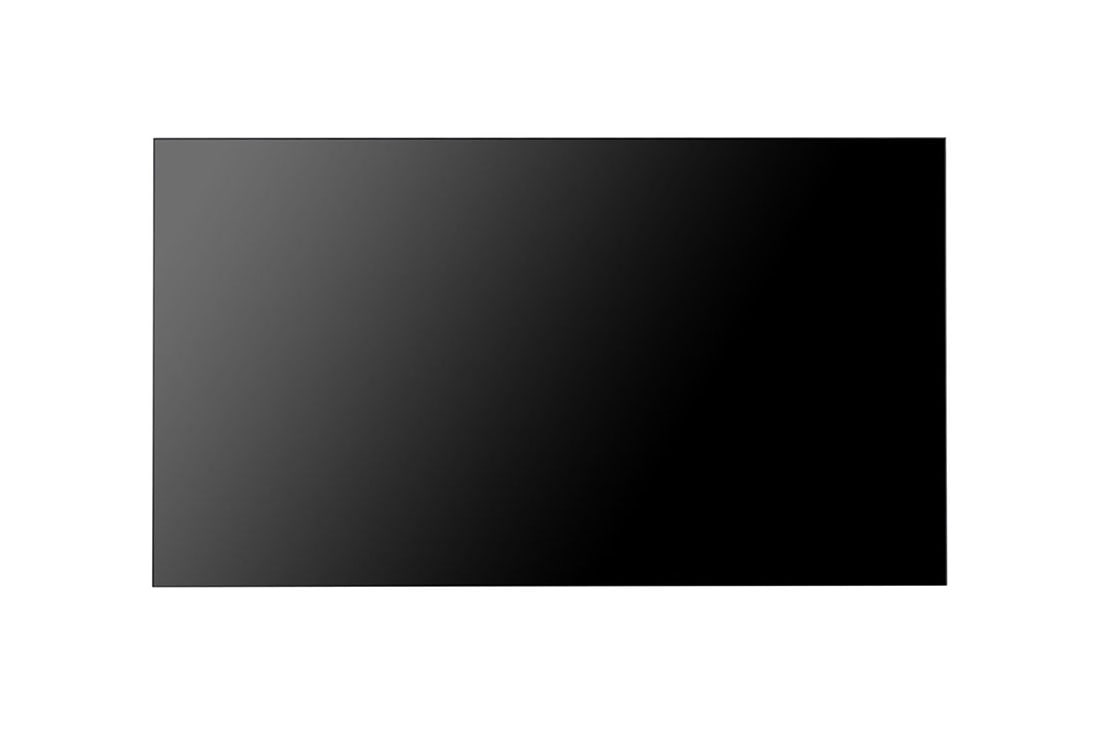

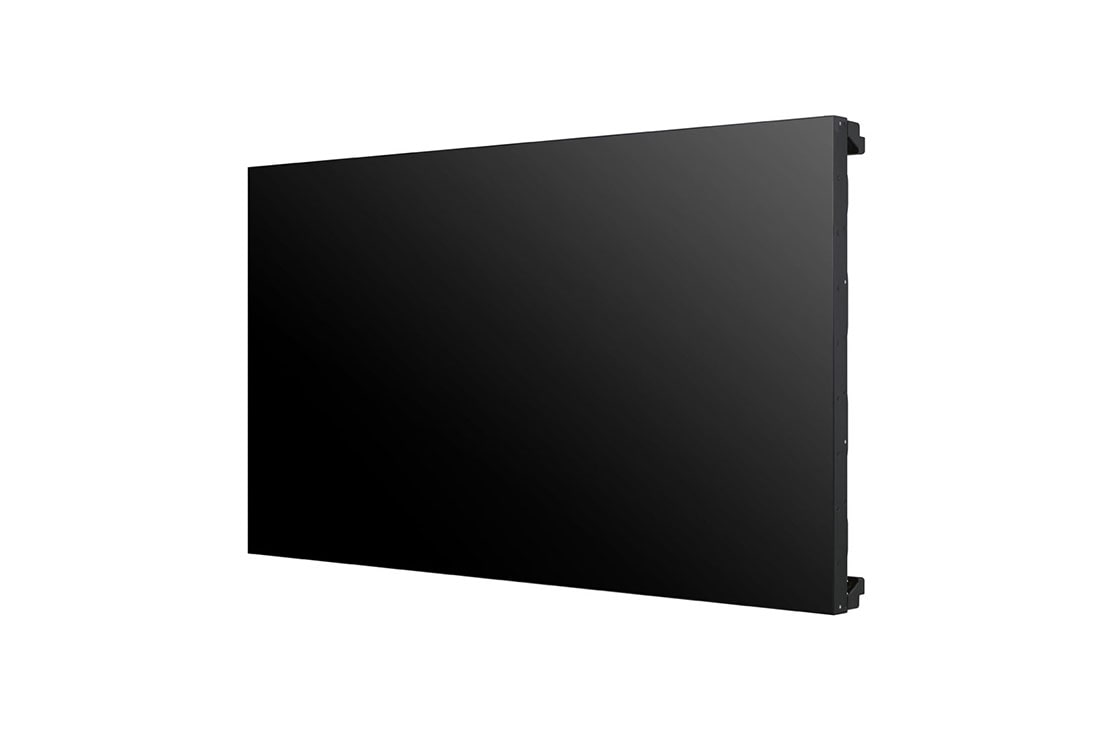

55LV75D-B
Ultra Narrow Bezel Video Wall
55"
  • Brightness(Typ.): 500cd/m²

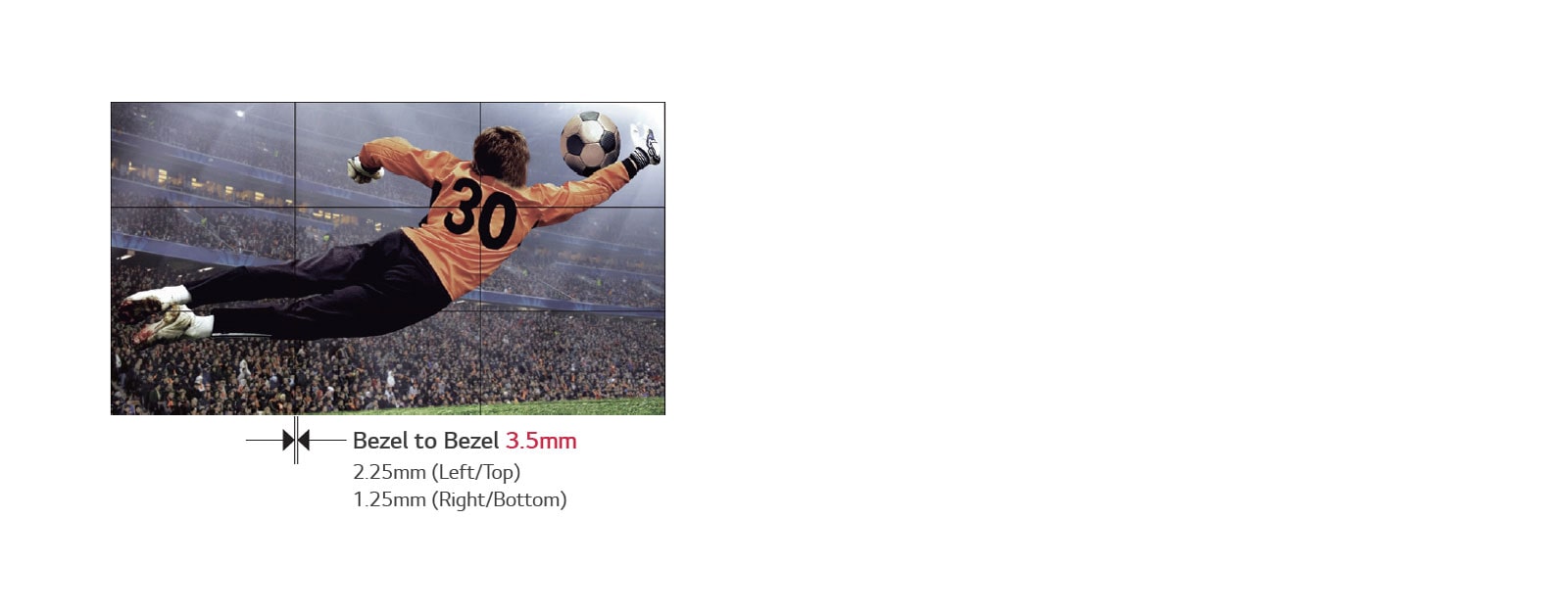

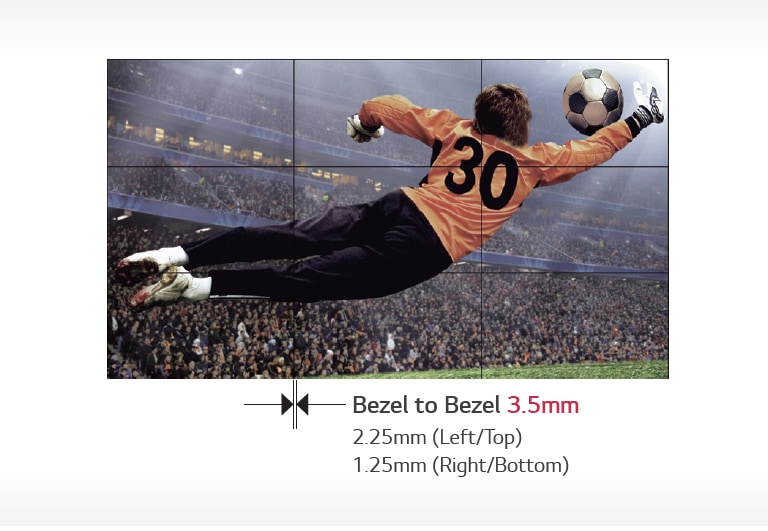

  • Bezel: 2.25mm (Top/Left), 1.25mm (Bottom/Right)

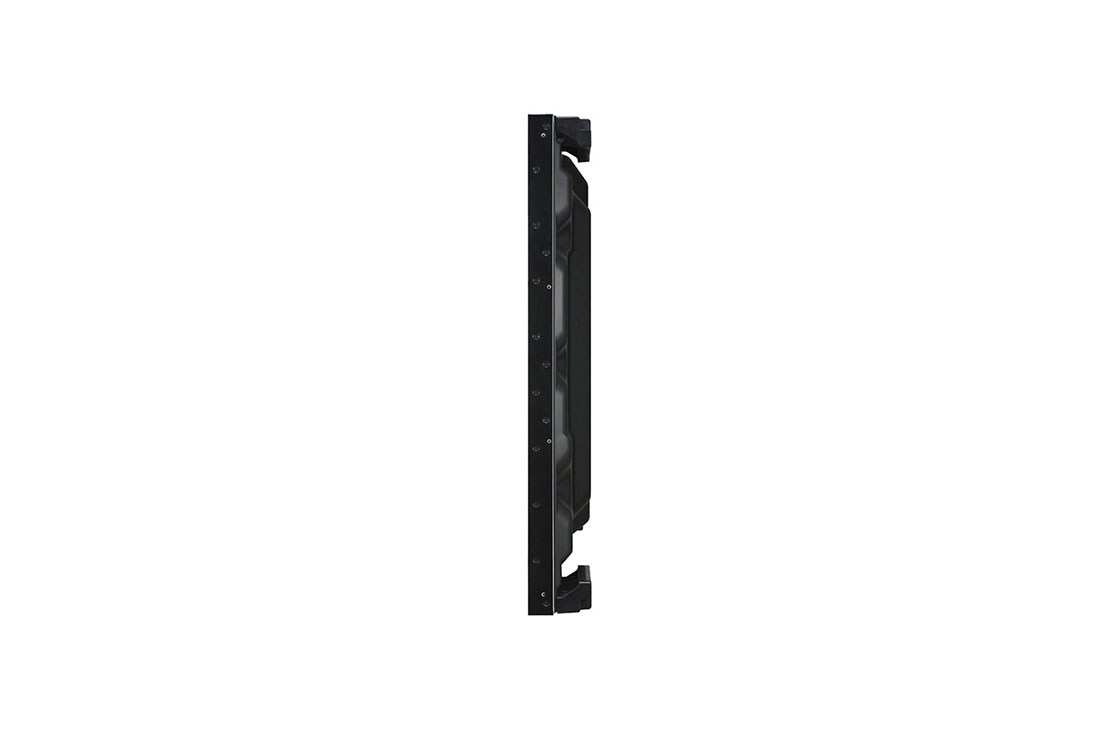

  • Depth: 88.5mm
  • Interface: HDMI/DP/DVI-D/RGB/RS232C/RJ45/USB/IR Receiver/Audio
Ultra Narrow Bezel Video Wall
MSRP $

PANEL

  • Screen Size
    55"
    Native Resolution
    1,920 x 1,080 (FHD)
  • Brightness (Module, Typ., cd/m²)
    500
    Orientation
    Landscape & Portrait

CONNECTIVITY

  • Input
    HDMI, DP, DVI, RGB, Audio, USB
    Output
    DP, Audio
  • External Control
    RS232C In/Out, RJ45 In, IR Reciever

PHYSICAL SPECIFICATION

  • Bezel Width
    2.25mm (L/T)/1.25mm (R/B)
    Monitor Dimension (W x H x D)
    1,213.4 x 684.2 x 88.5 mm
  • Weight (Head)
    23kg
    Carton Dimensions (W x H x D)
    1,337 x 828 x 239 mm
  • Packed Weight
    30.5kg
    Handle
    Yes
  • VESA™ Standard Mount Interface
    600 x 400 mm

ENVIRONMENT CONDITIONS

  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%

POWER CONSUMPTION

  • Typ.
    160W
    Max
    230W
  • Smart Energy Saving
    130W

STANDARD (CERTIFICATION)

  • Safety
    UL/cUL/CB/TUV/KC
    EMC
    FCC Class "A"/CE/KCC
  • ErP/Energy Star
    NA/Yes (Energy Star 7.0)

MEDIA PLAYER COMPATIBILITY

  • OPS type compatible
    No
    External Media player Attatchable
    Yes

SOFTWARE COMPATIBILITY

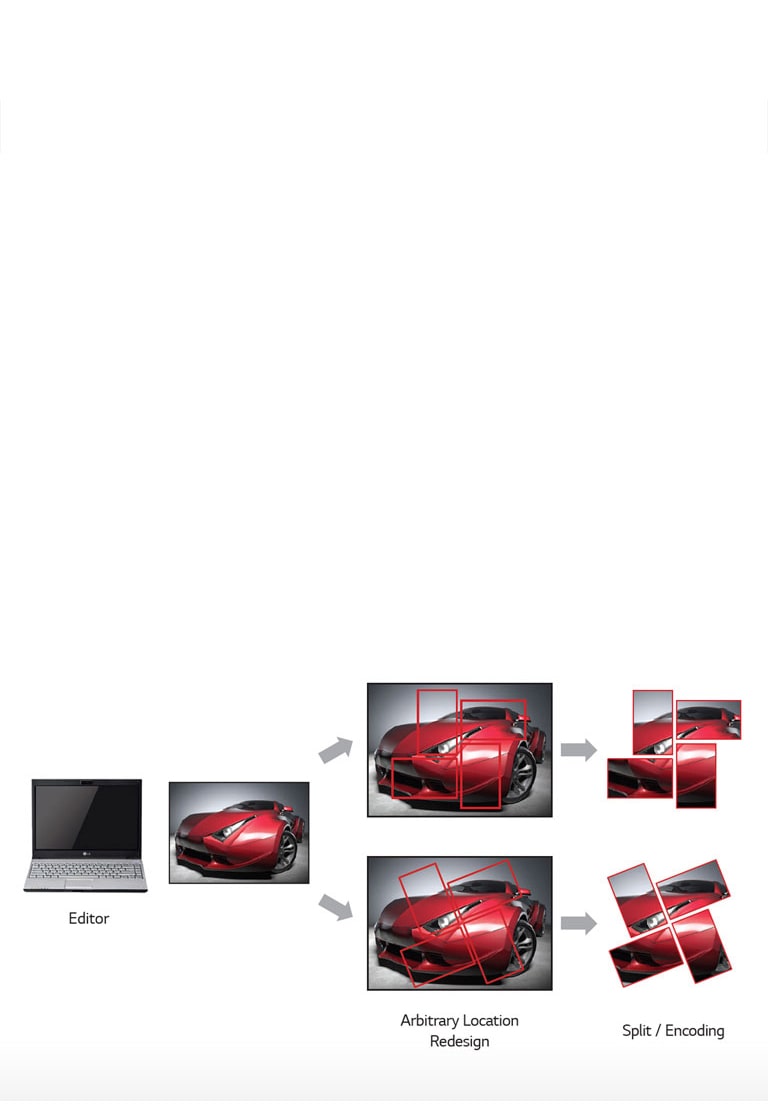

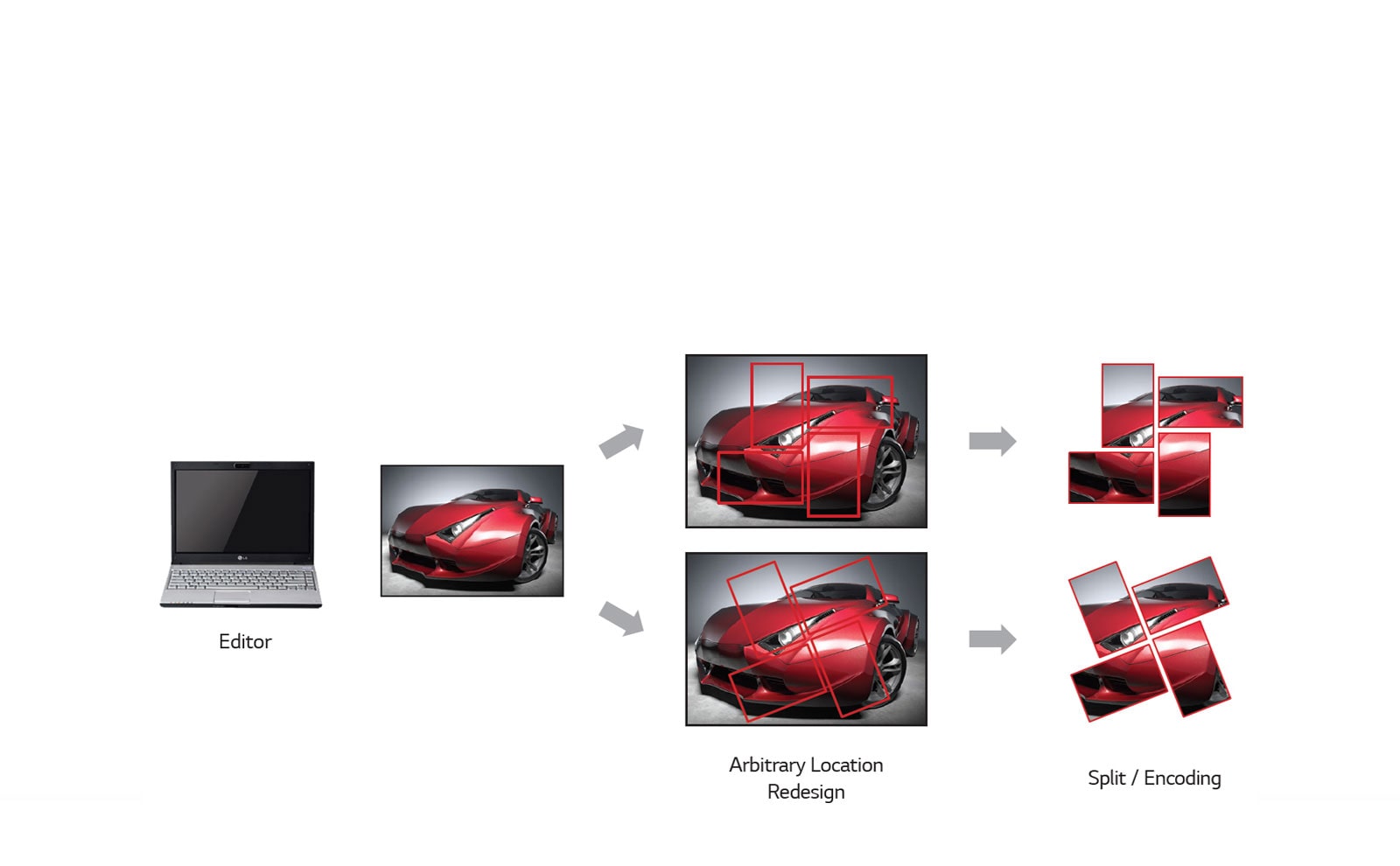

  • Content Management Software
    SuperSign W
    Control and Monitoring Software
    SuperSign C

ACCESSORY

  • Basic
    Remote controller, Power cable, DP cable, IR receiver, RS-232C cable, Tiling guide, Screw
    Optional
    WM-L640V (Landscape), WM-P640V (Portrait), Frame kit (Horizontal: FK-55V10 / Vertical: FK-55V20)
