55SH7E-B
SH7E Series
55"
  • Brightness(Typ.): 700 cd/m²
  • Bezel: 11.9 mm (T/L/R), 18 mm (B)
  • Depth: 54 mm
  • Interface : HDMI(3), DP, DVI-D, USB 3.0, RS232C, RJ45, IR
  • Built-in Speaker(10W+10W)

component-OBScountrySelectDesc

SH7E Series
* Supported model: NIPPON PRIMEX (NP-3511, NP-3611)
* SDK: Software Development Kit
* CMS: Content Management System

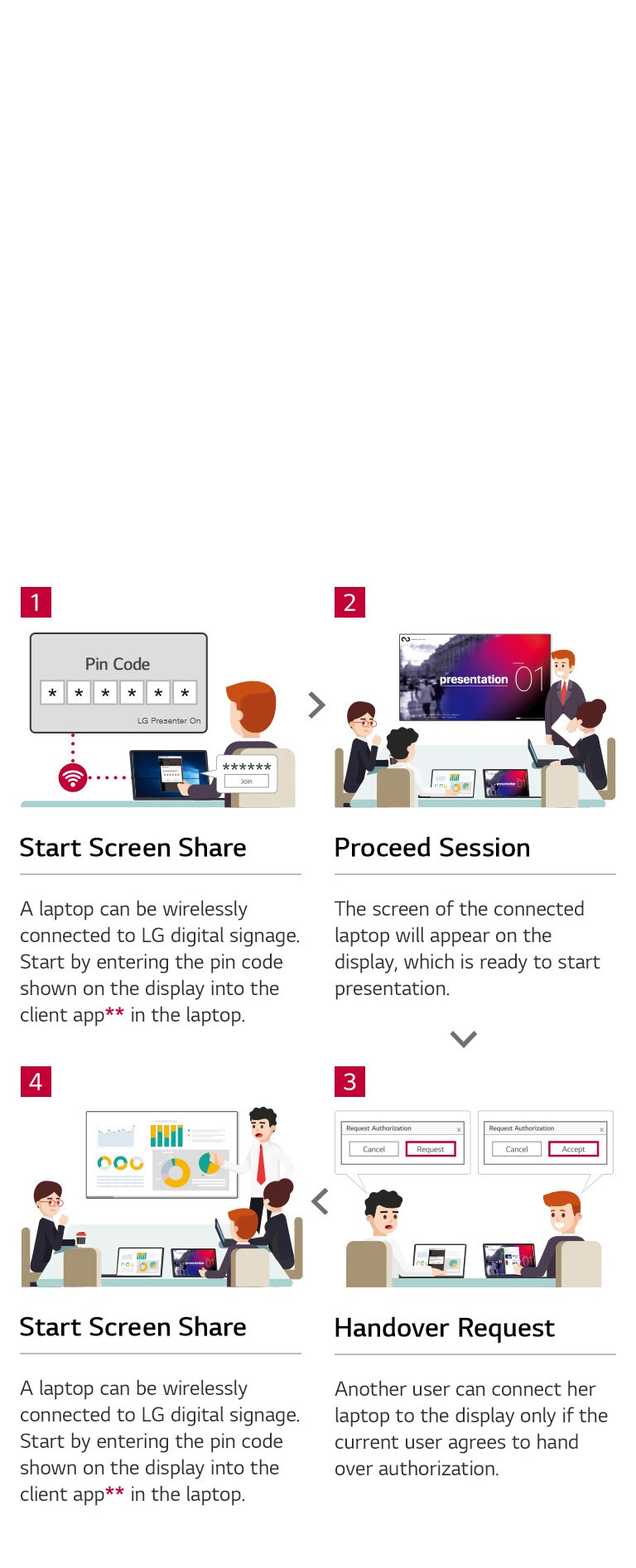

* A laptop and display must be connected to the same network.
** Installation of the PC client app is required. Go tp the 'Tech SPec' section of this page for the minimum requirements ang then visit the Software Download Page.

PANEL

  • Screen Size
    55"
    Native Resolution
    1,920 x 1,080 (FHD)
  • Brightness(Typ.,cd/m²)
    700

CONNECTIVITY

  • Input
    HDMI (3), DP, DVI-D, Audio, USB 3.0
    Output
    DP, Audio
  • External Control
    RS232C in/out, RJ45 in, IR in

PHYSICAL SPECIFICATION

  • Bezel Width
    11.9 mm (T/R/L), 18 mm (B)
    Monitor Dimension (W x H x D)
    1,238 x 714.9 x 54 mm
  • Weight (Head)
    17.5 kg
    Carton Dimensions (W x H x D)
    1,330 x 807 x 170 mm
  • Packed Weight
    21.7 kg
    VESA™ Standard Mount Interface
    300 x 300 mm

ENVIRONMENT CONDITIONS

  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %

POWER

  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power

POWER CONSUMPTION

  • Typ. / Max.
    130 W / 150 W
    Smart Energy Saving
    91 W

STANDARD (CERTIFICATION)

  • Safety
    IEC 60950-1 / EN 60950-1 / UL 60950-1
    EMC
    FCC Class "A"/CE/KC
  • ErP / Energy Star
    N/A / Yes (Energy Star 8.0)

MEDIA PLAYER COMPATIBILITY

  • OPS Type compatible
    Yes
    External Media player Attatchable
    Yes

SOFTWARE COMPATIBILITY

  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Link

MINIMUM REQUIREMENTS FOR LG PRESENTER

  • OS (Windows)
    Windows 7 (64bit), Windows 10 (64bit)
    OS (macOS)
    macOS 10.12 Sierra, MacOS 10.13 High Sierra
  • CPU (Windows)
    2.7GHz+ Dual Core Broadwell or higher
    CPU (macOS)
    Any CPU which supports Sierra or High Sierra
  • Memory
    4GB RAM
    Hard Drive
    1GB of free space
  • Graphics Hardware (Windows)
    Intel Iris or higher, Nvidia, ATI
    Graphics Hardware (macOS)
    Any GPU which supports Sierra or High Sierra

ACCESSORY

  • Basic
    Remote Controller (2 Batteries Included), Power Cord, QSG, HDMI Cable,Regulation Book, Phone to RS232C Gender
    Optional
    Stand (ST-492T), Media Player, Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA), HDBaseT (EB-B100), Touch Overlay (KT-T55E)
