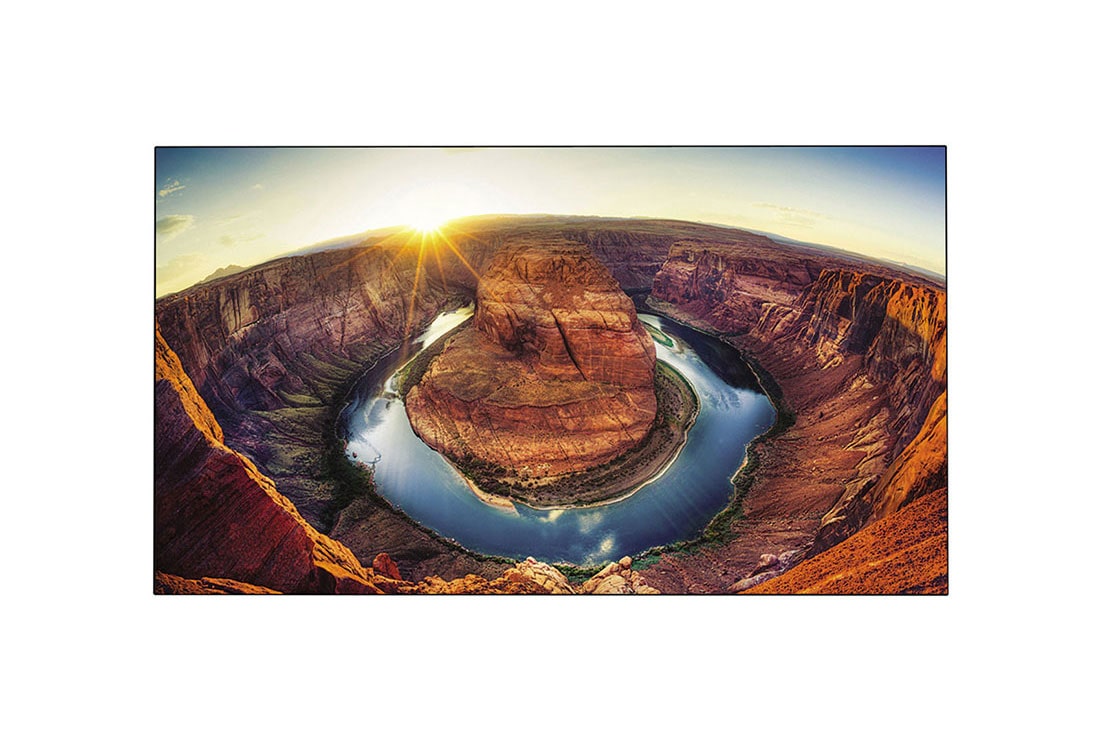

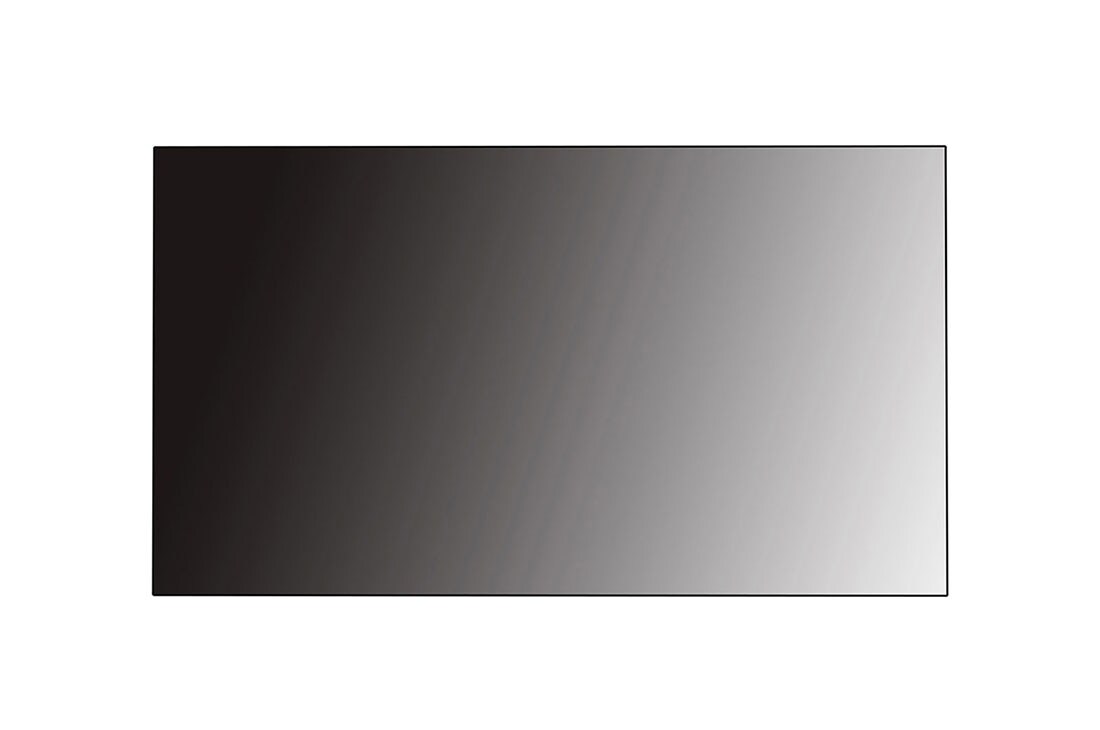

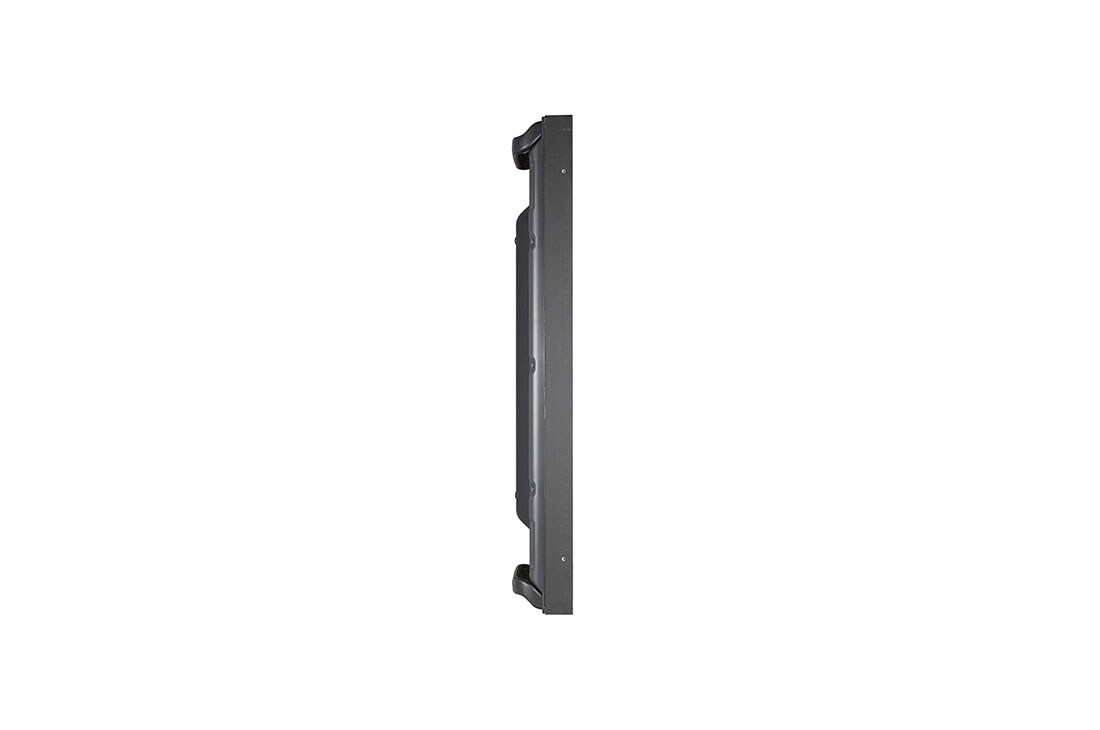

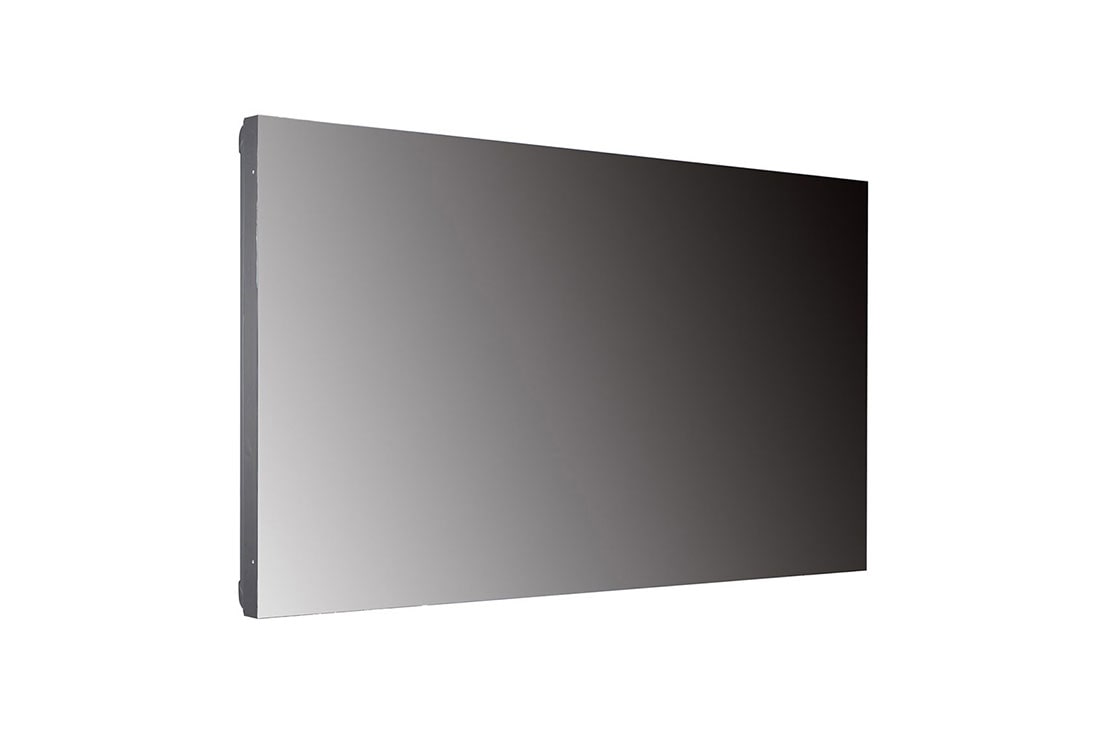

55VH7B-A
VH7B Series
55"
  • webOS 2.0
  • Quad Core SoC built-in

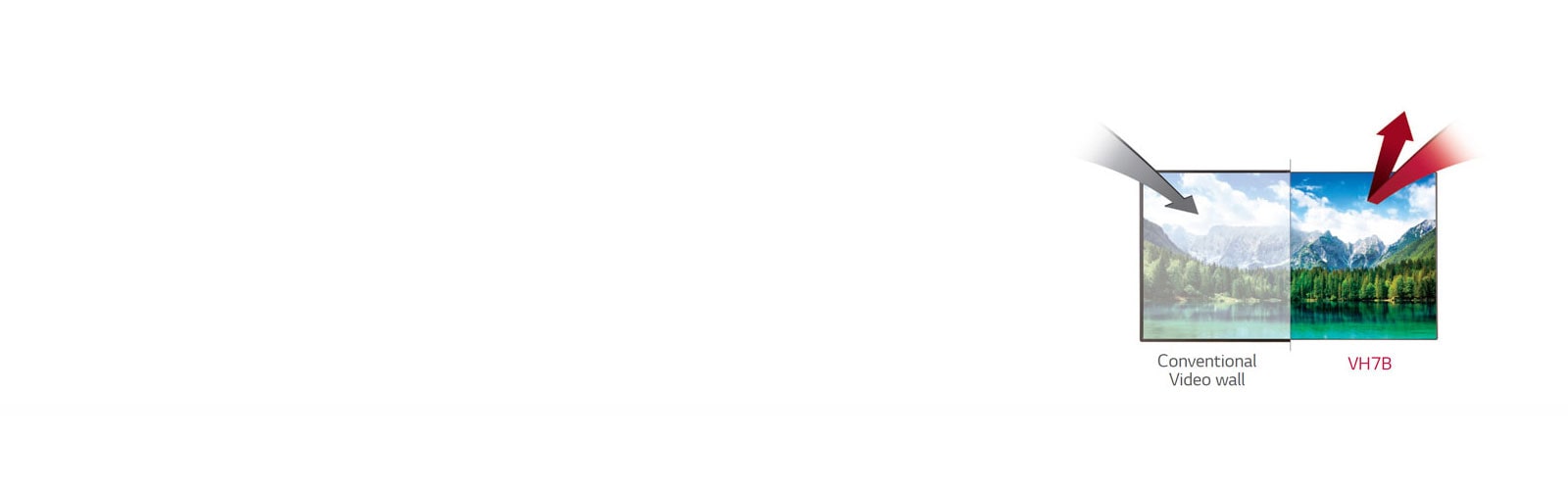

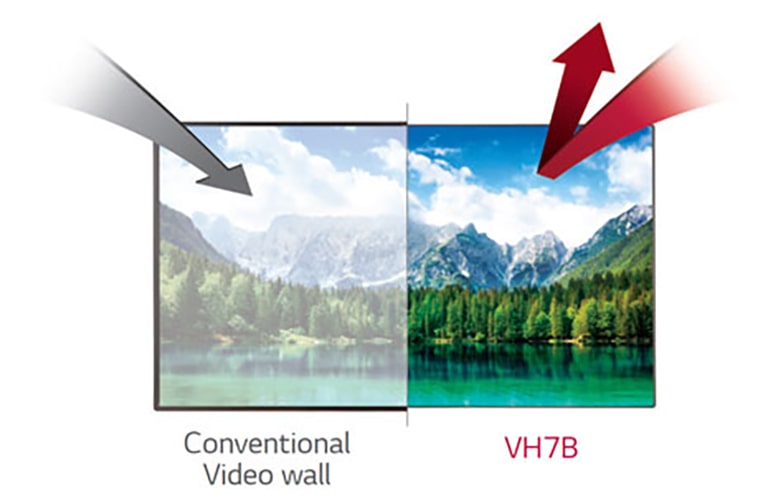

  • Brightness(Typ.) : 700 cd/m²

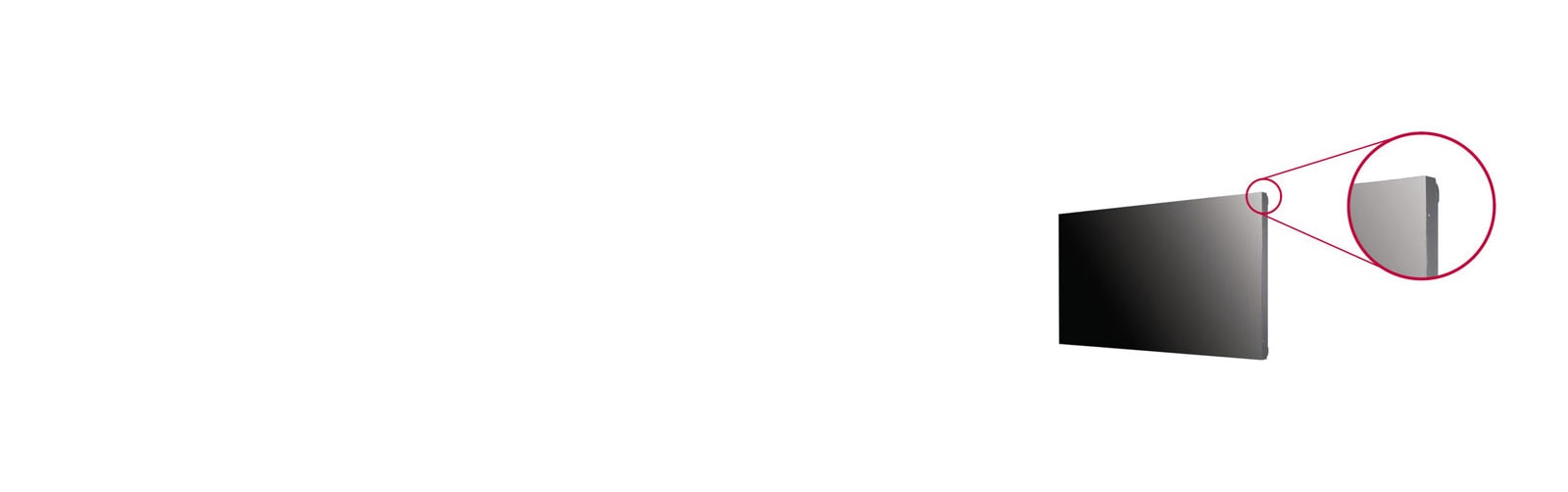

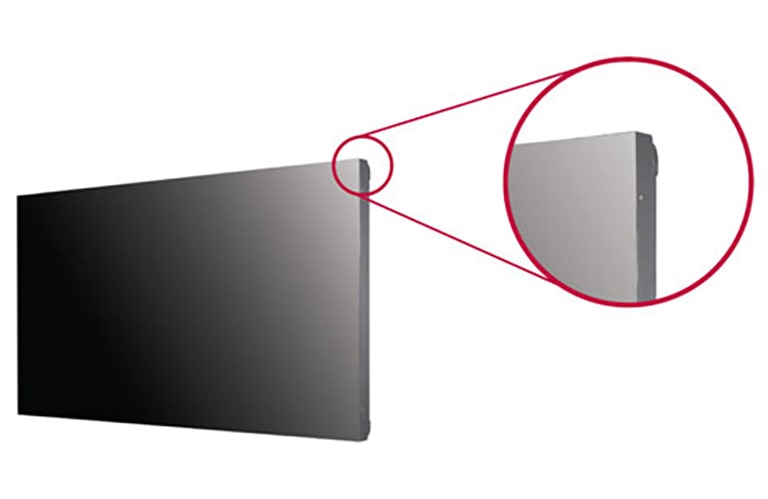

  • Bezel : Less than 2.0mm (B-to-B)
  • SoC Based Sync-Playback
  • Image Gap Reduction
VH7B Series
MSRP $

PANEL

  • Screen Size
    55"
    Resolution
    1,920 x 1,080 (FHD)
  • Brightness(Module, Typ., cd/m²)
    700

CONNECTIVITY - INTPUT

  • HDMI
    Yes (1), HDMI /HDCP2.2
    DP
    Yes (1), DP1.2a/HDCP1.3
  • DVI-D
    Yes (1), HDCP2.2
    Analog (RGB)
    Yes (1)
  • Audio In
    Yes (1)
    External Control (RS232C IN)
    Yes (1)

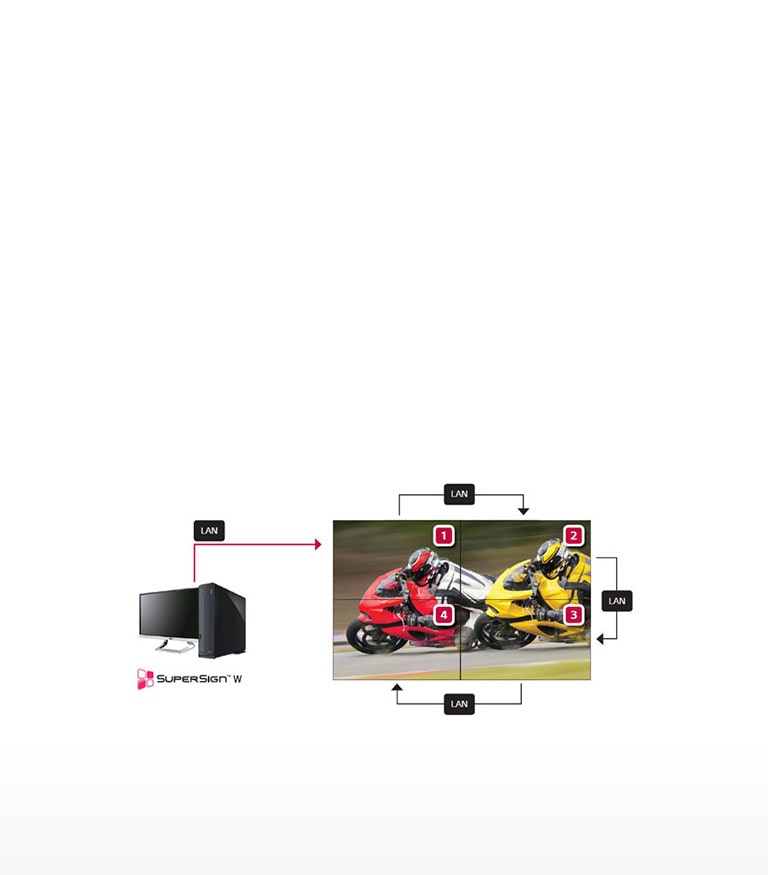

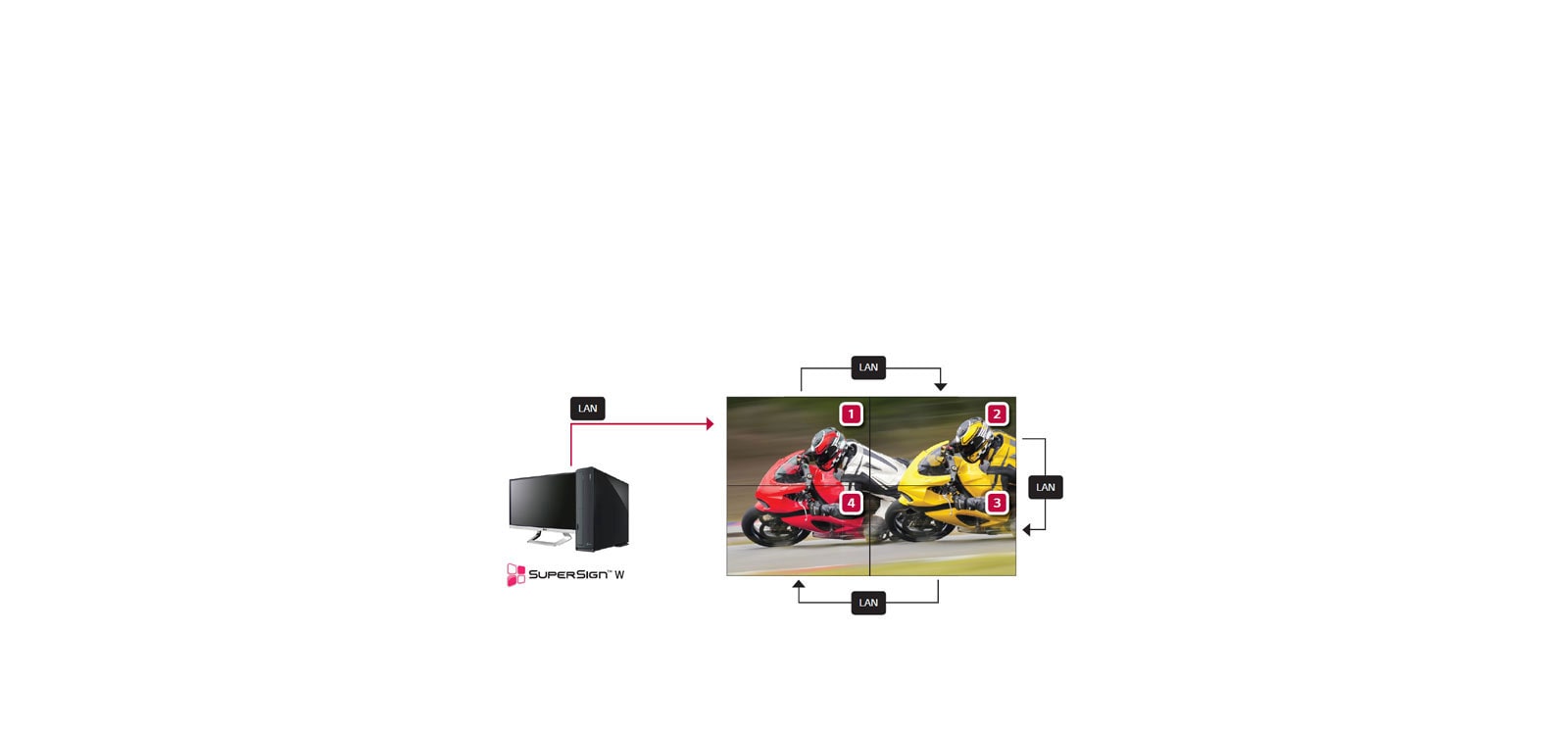

  • External Control (RJ45)
    Yes (1)
    External Control (IR receiver)
    Yes (1)
  • External Control (Pixel Sensor)
    -
    USB (USB3.0/USB2.0)
    Yes (1) / Yes (1)
  • SD Card (SDHC/Full Size)
    -

CONNECTIVITY - OUTPUT

  • DP Out
    Yes (1), DP1.2a/HDCP1.3
    Audio Out
    Yes (1)
  • Externel Speaker Out
    -
    External Control (RS232C OUT)
    Yes (1)
  • External Control (RJ45)
    Yes (1)

PHYSICAL SPECIFICATION

  • Bezel Width (B to B)
    0.9 (top/bottom/left/right even bezel) mm (1.8mm) * B to B : Panel Bezel + Panel Bezel
    Monitor Dimension (W x H x D)
    1,211.4mm X 682.2mm X 86.5mm
  • Weight (Head)
    18.6kg
    VESA™ Standard Mount Interface
    600mm x 400mm

MEDIA PLAYER COMPATIBILITY

  • OPS type compatible
    Yes
    External Media player Attatchable
    Yes (MP500/MP700)

SOFTWARE COMPATIBILITY

  • SuperSign-w lite
    Yes
    SuperSign-c
    Yes

ACCESSORY

  • Basic
    Remote Controller, Power cable, DVI Cable, Manual, IR Receiver, RS-232C Cable, Guide Bracket, Screw
    Optional
    Wall Mount (Landscape : WM-L640V, Portrait : WM-P640V), OPS Kit (KT-OPSA), HD Base T (EB-B100)

GENERAL

  • Region
    Africa
