55VM5B-A
VM5B Series
  • Brightness(Typ.): 500 cd/m²

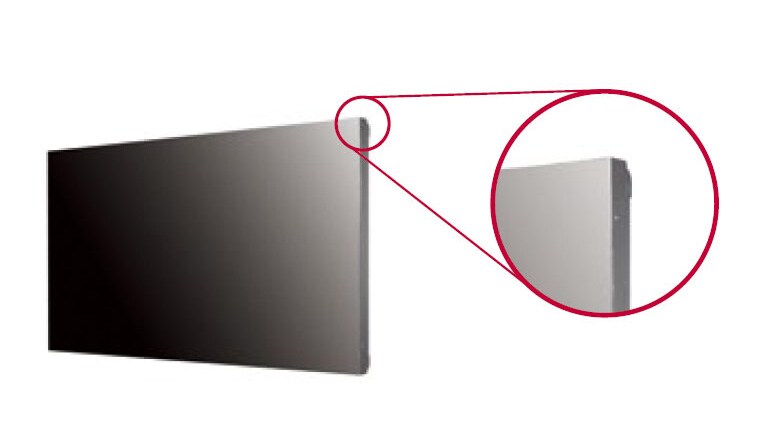

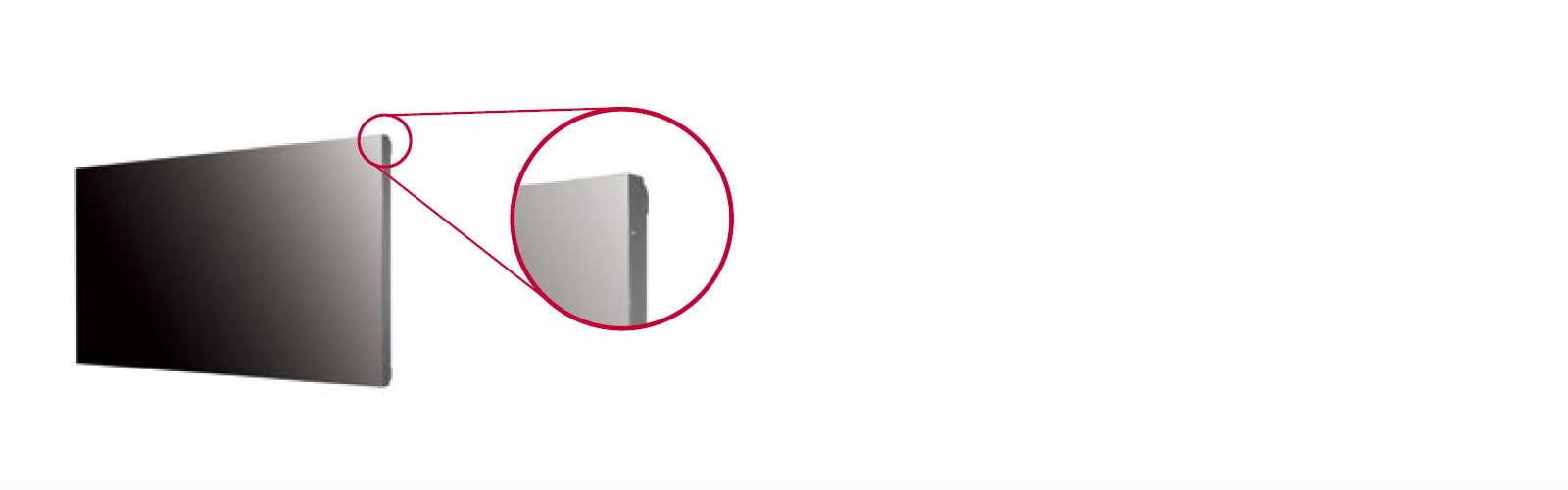

  • Bezel : 0.9mm (T/B/L/R even bezel)
  • Depth : 87mm

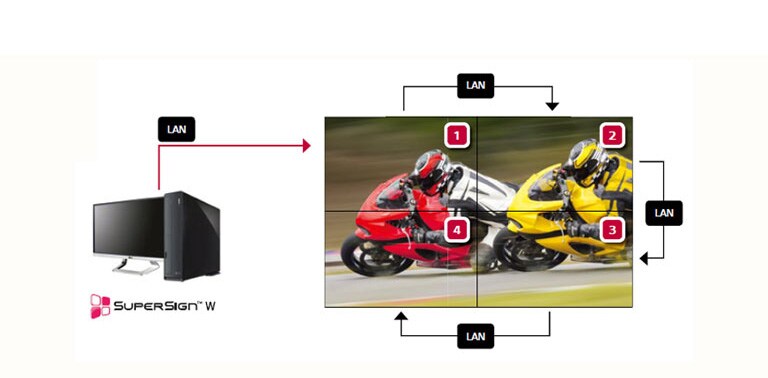

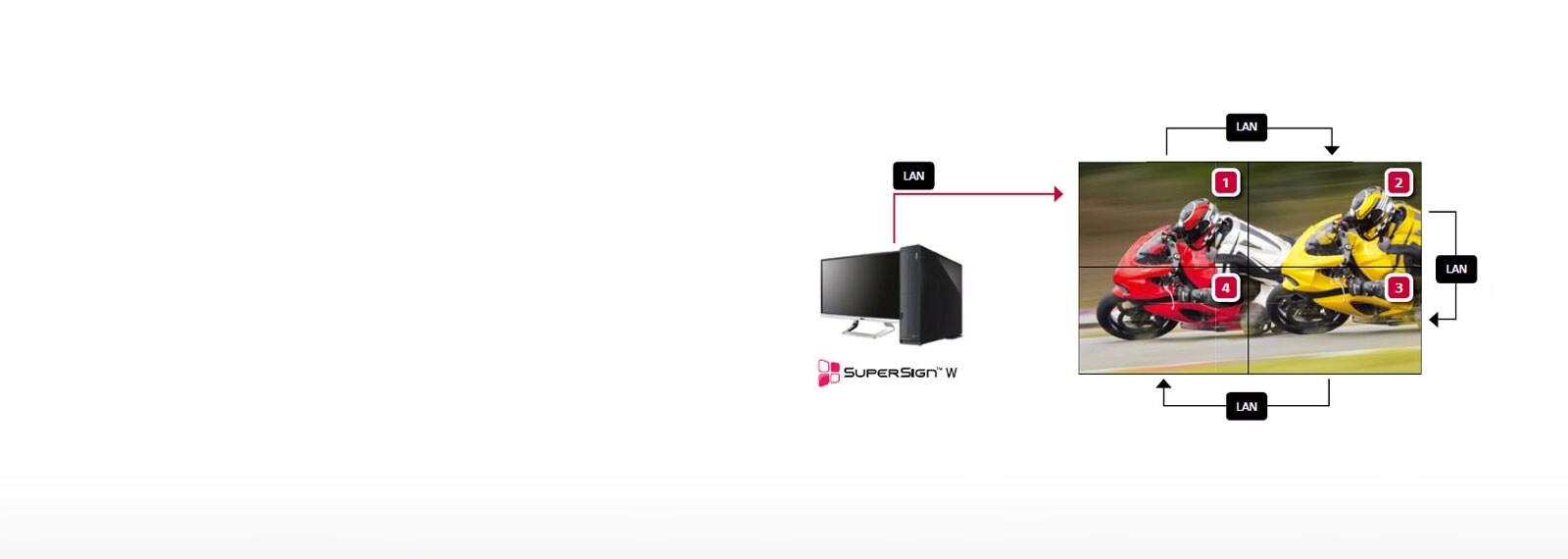

  • Interface : HDMI / DVI / RGB / IR, Daisy-chain (DP, RS232C, RJ45)

component-OBScountrySelectDesc

VM5B Series

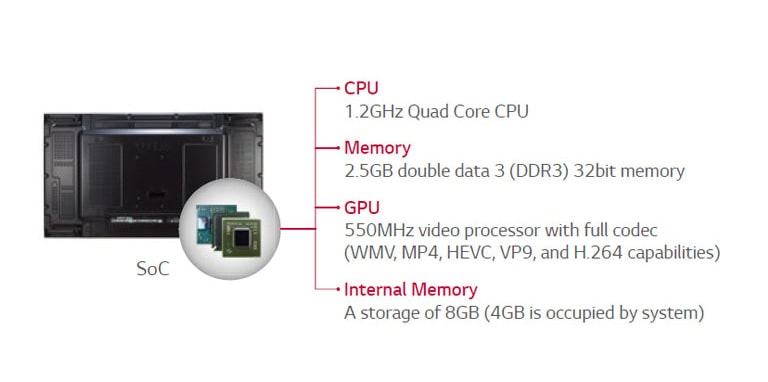

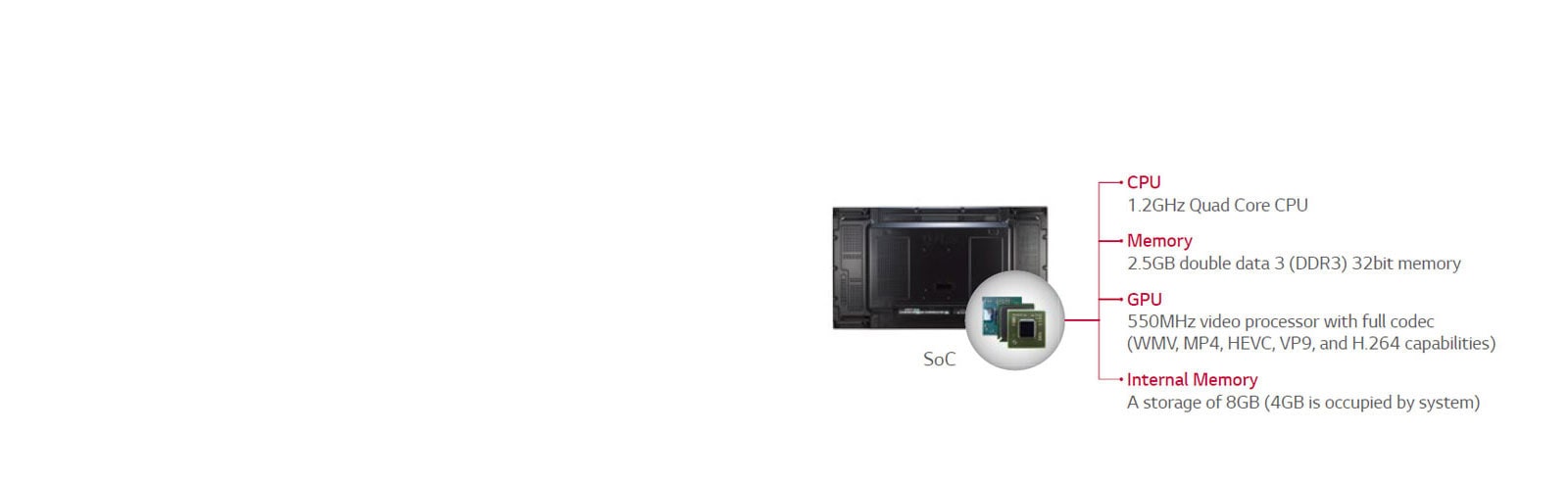

*System-on-Chip
*Software Development Kit

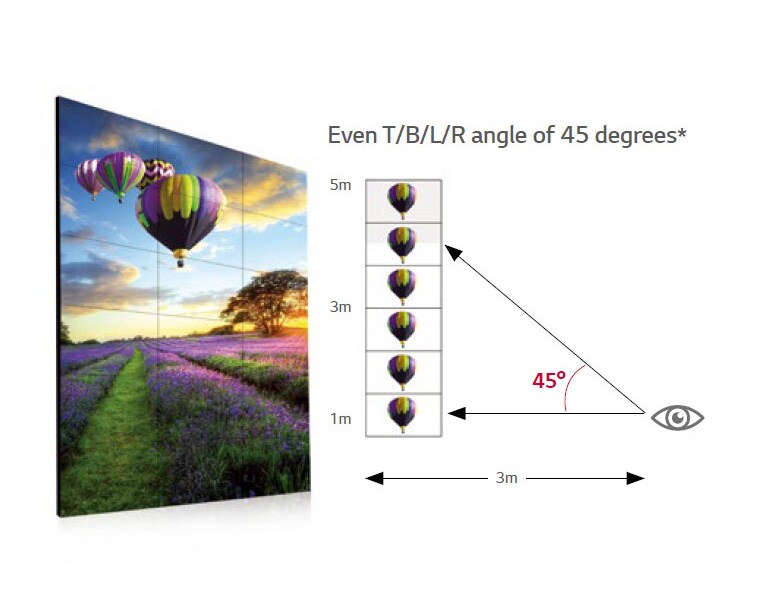

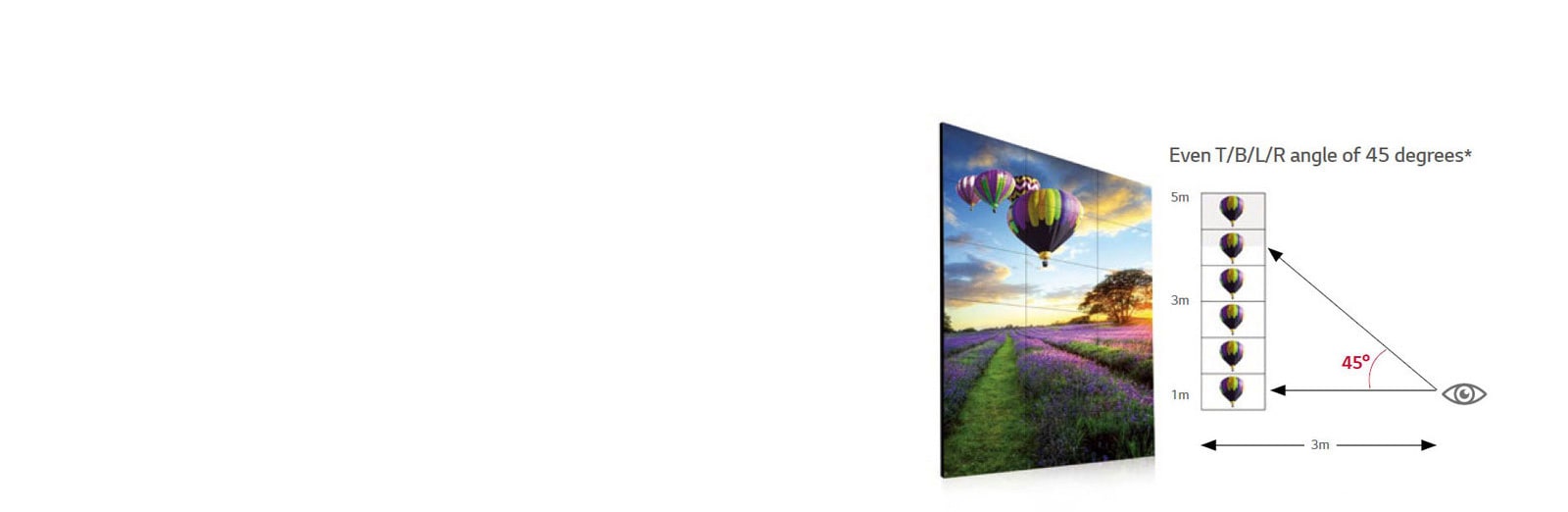

*The angle from the center of the screen to have 50% of the initial luminance.
PANEL
  • Screen Size
    55"
    Resolution
    1,920 x 1,080 (FHD)
  • Brightness(Module, Typ., cd/m²)
    500
CONNECTIVITY
  • Input
    HDMI, DP, DVI-D, OPS, Audio, USB 2.0, USB3.0, RGB
    Output
    DP, Audio
  • External Control
    RS232C, RJ45, IR Receiver
PHYSICAL SPECIFICATION
  • Bezel Width
    0.9mm (Top/Bottom/Left/Right even bezel) / 1.8mm *B to B : Panel Bezel + Panel Bezel
    Monitor Dimension (W x H x D)
    1,211.4 x 682.2 x 86.5mm
  • Weight (Head)
    18.6kg
    VESA™ Standard Mount Interface
    600 x 400mm
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
POWER
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ.
    150 W
    Smart Energy Saving
    80 W
STANDARD (CERTIFICATION)
  • Safety
    UL / cUL / CB / TUV / KC
    EMC
    FCC Class "A" / CE / KCC
  • ErP / Energy Star
    NA / Yes (Energy Star 6.0)
MEDIA PLAYER COMPATIBILITY
  • OPS type compatible
    Yes
    External Media player Attatchable
    Yes (MP500/MP700)
SOFTWARE COMPATIBILITY
  • SuperSign-w lite
    Yes
    SuperSign-c
    Yes
ACCESSORY
  • Basic

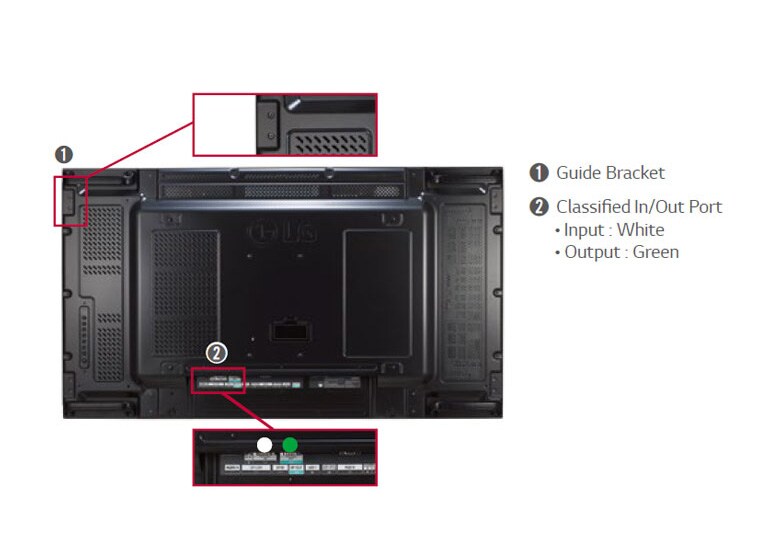

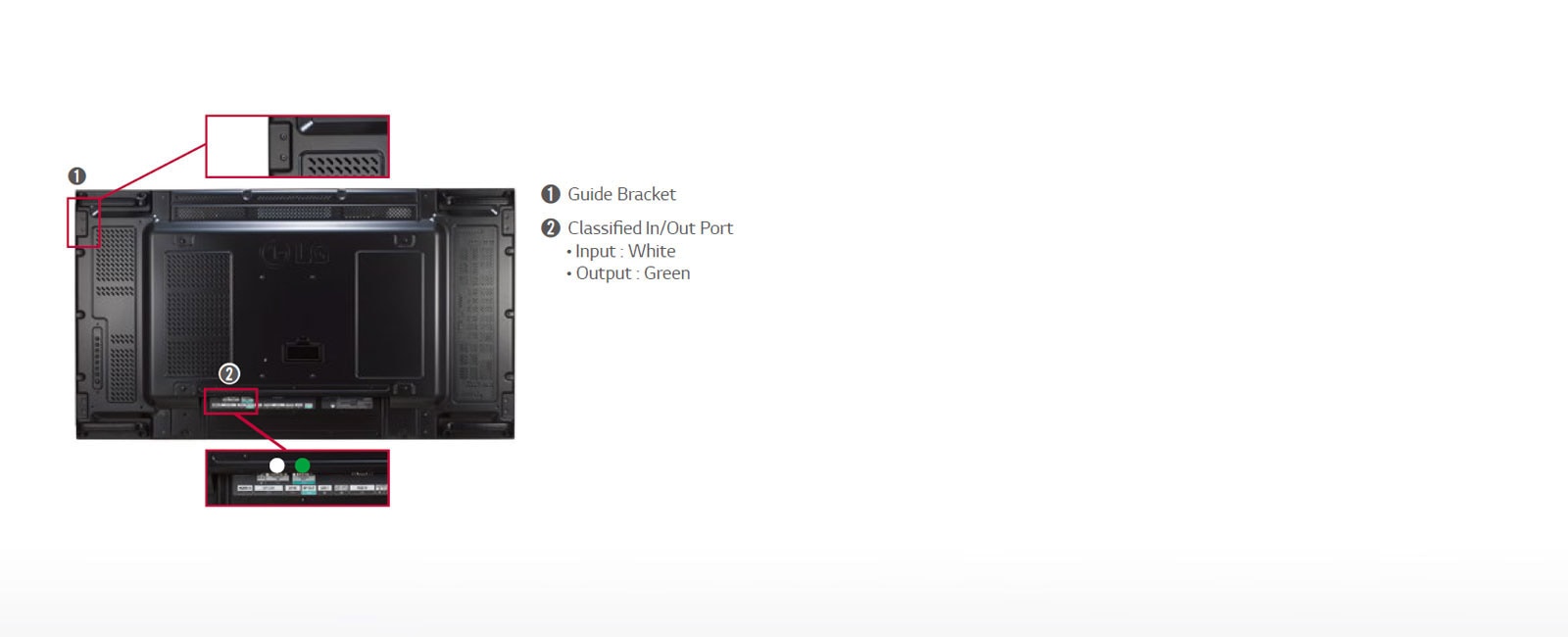

    Remote Controller, Power Cable, DP Cable, Manual, IR Receiver, RS-232C Cable, LAN Cable, Guide Bracket, Screw
    Optional
    Wall Mount (Landscape : WM-L640V, Portrait : WM-P640V), OPS Kit (KT-OPSA), HDBaseT (EB-B100)
