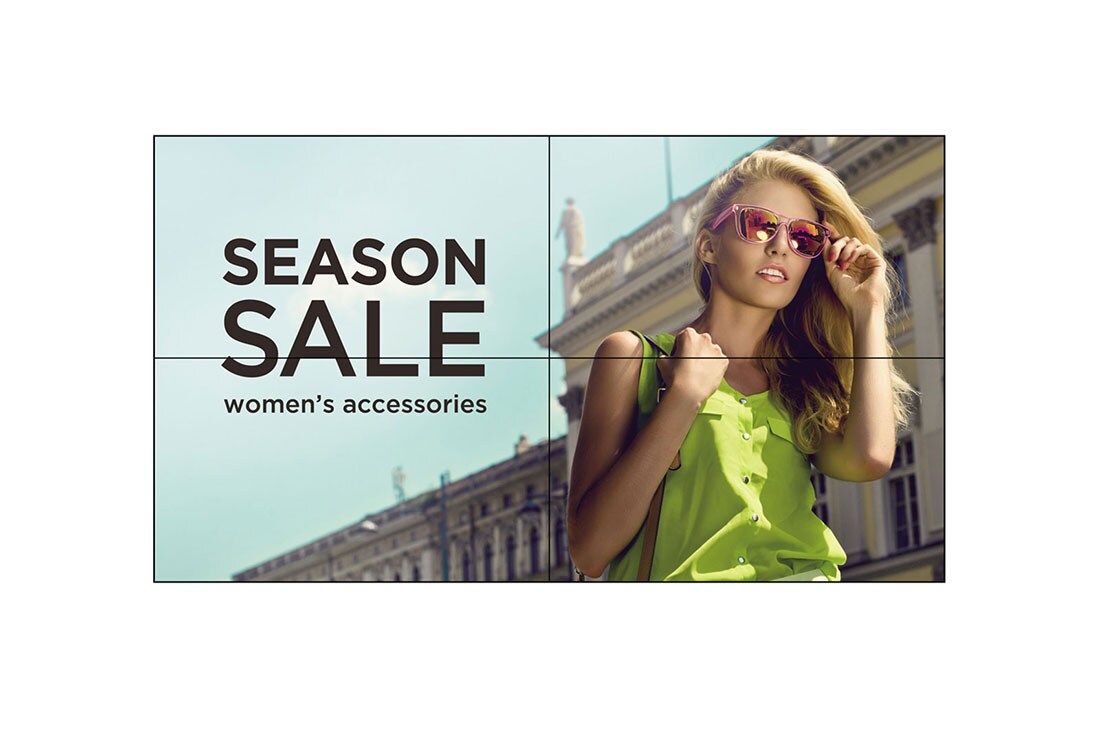

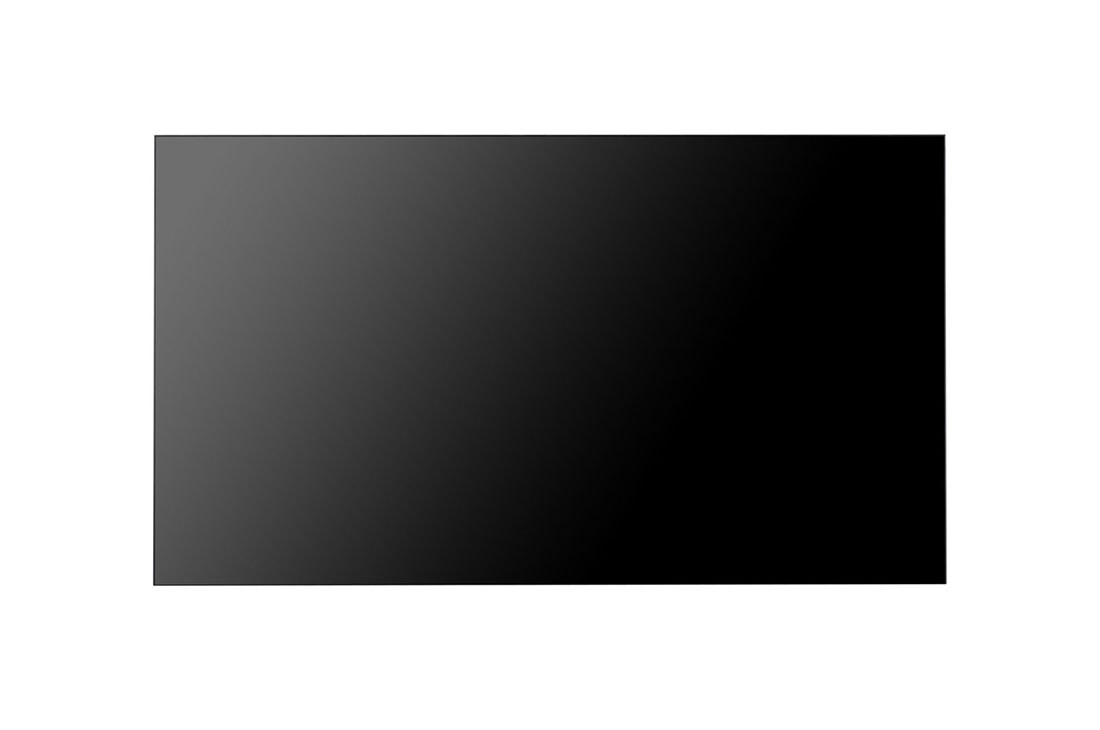

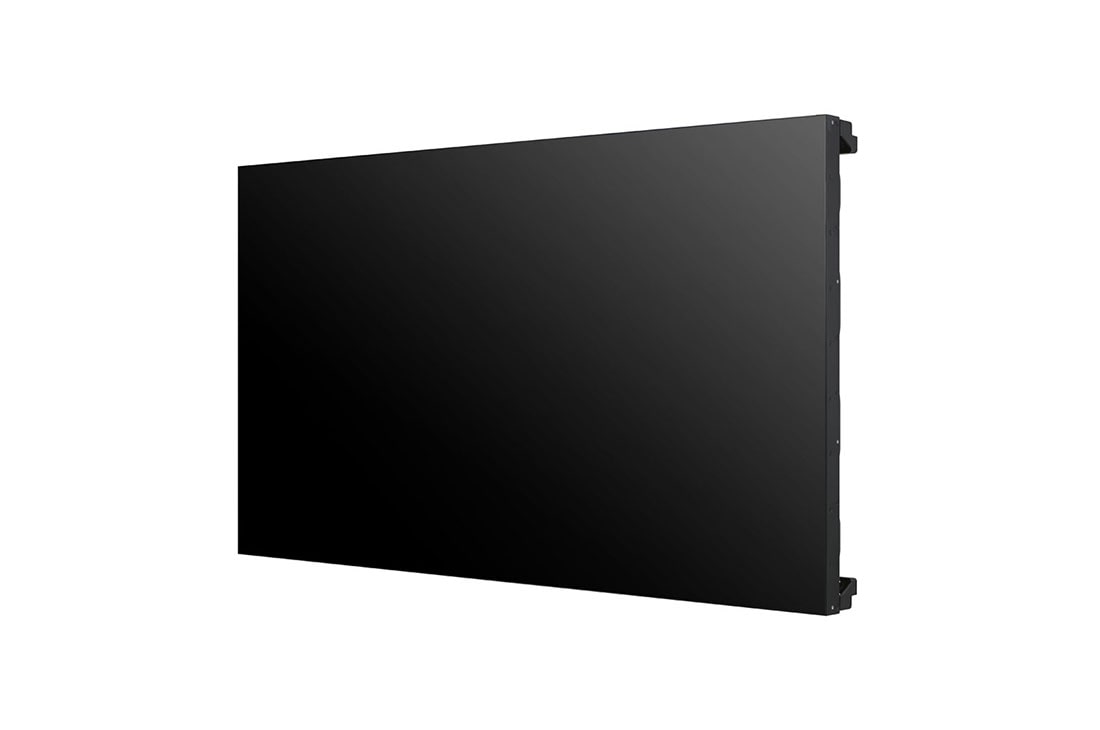

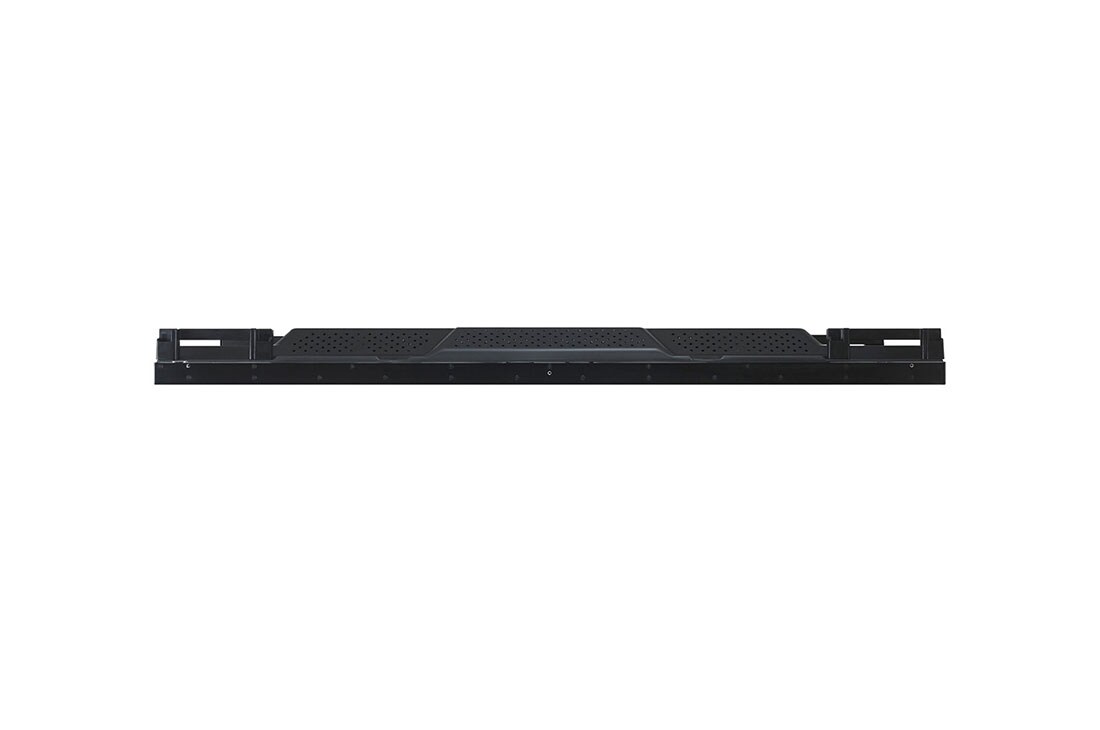

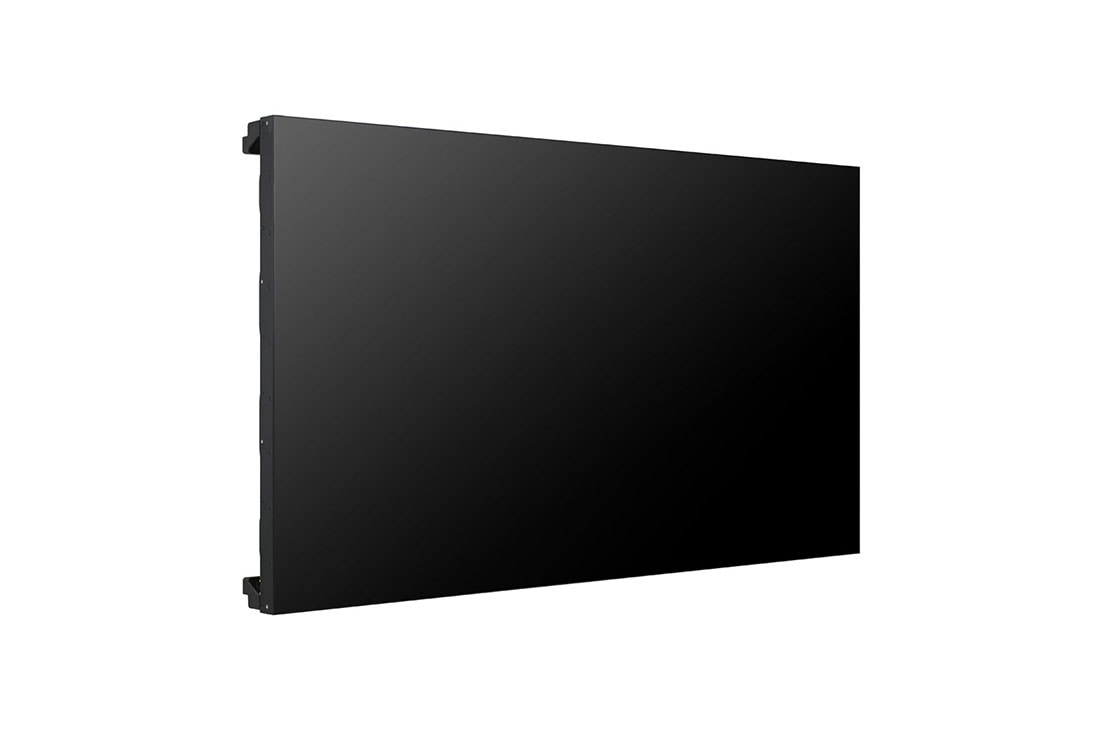

55VX1D-B
High Brightness Video Wall

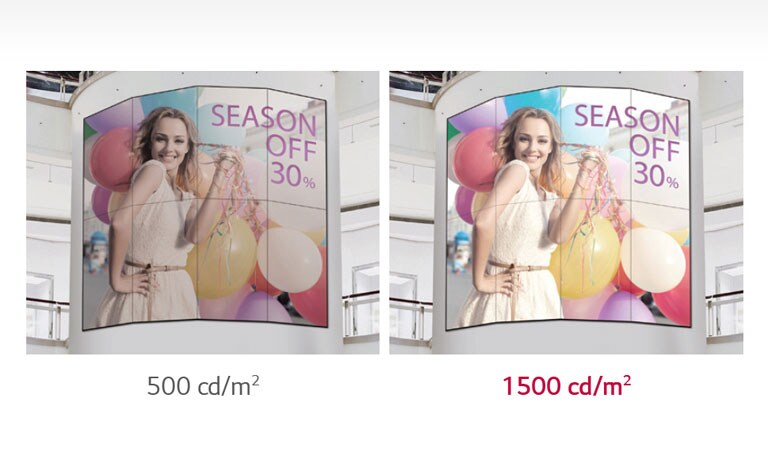

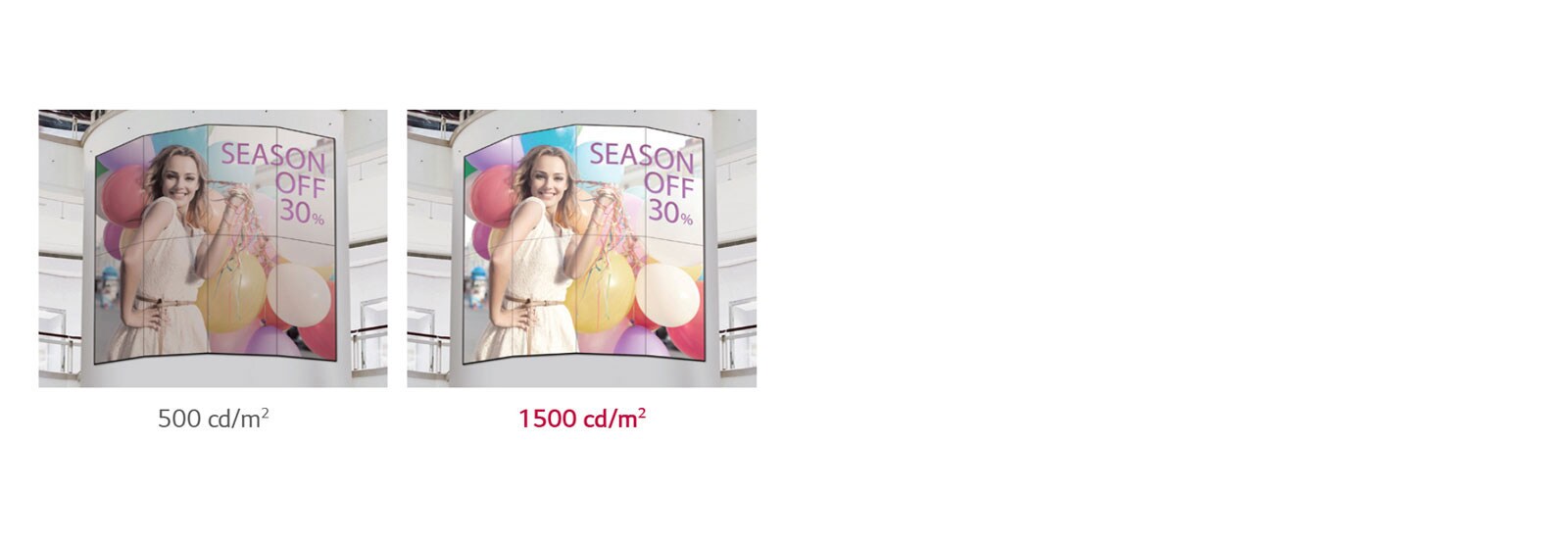

  • Brightness(Typ.): 1,500cd/m²

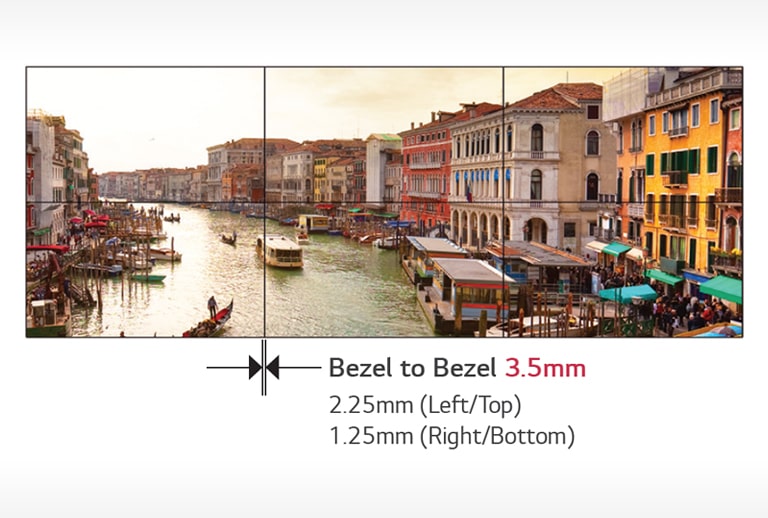

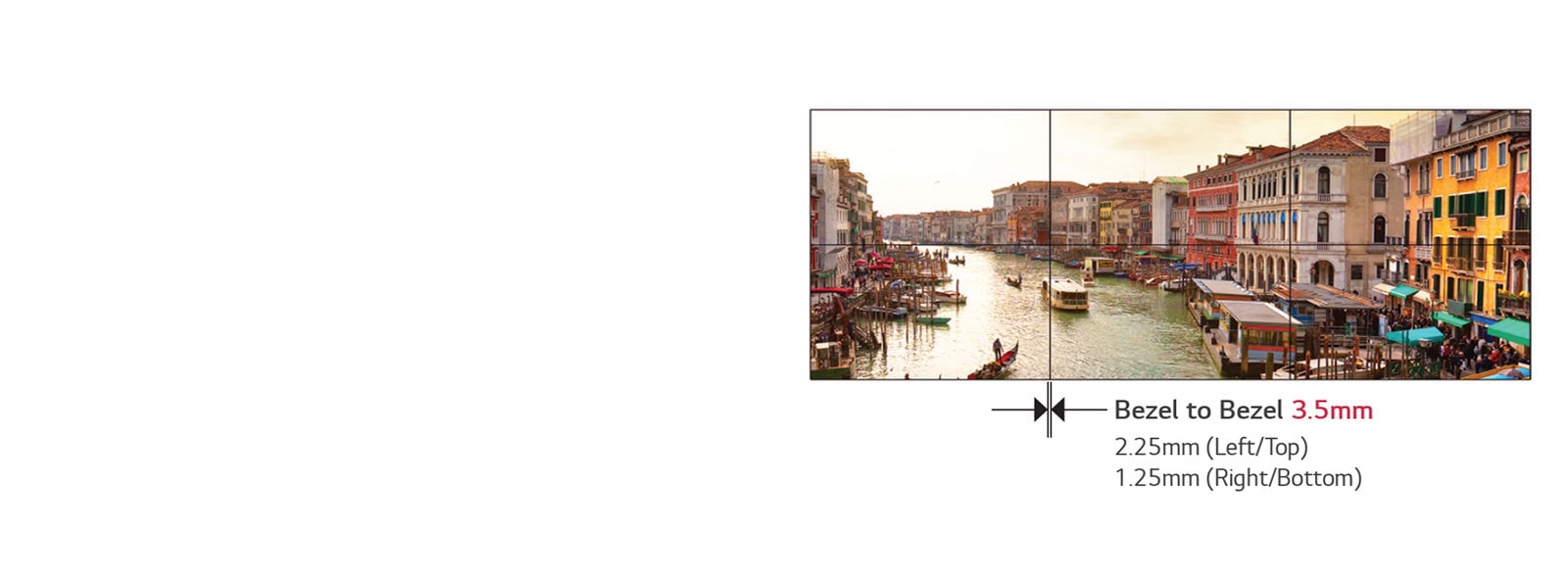

  • Bezel: 2.25mm (Top/Left), 1.25mm (Bottom/Right)

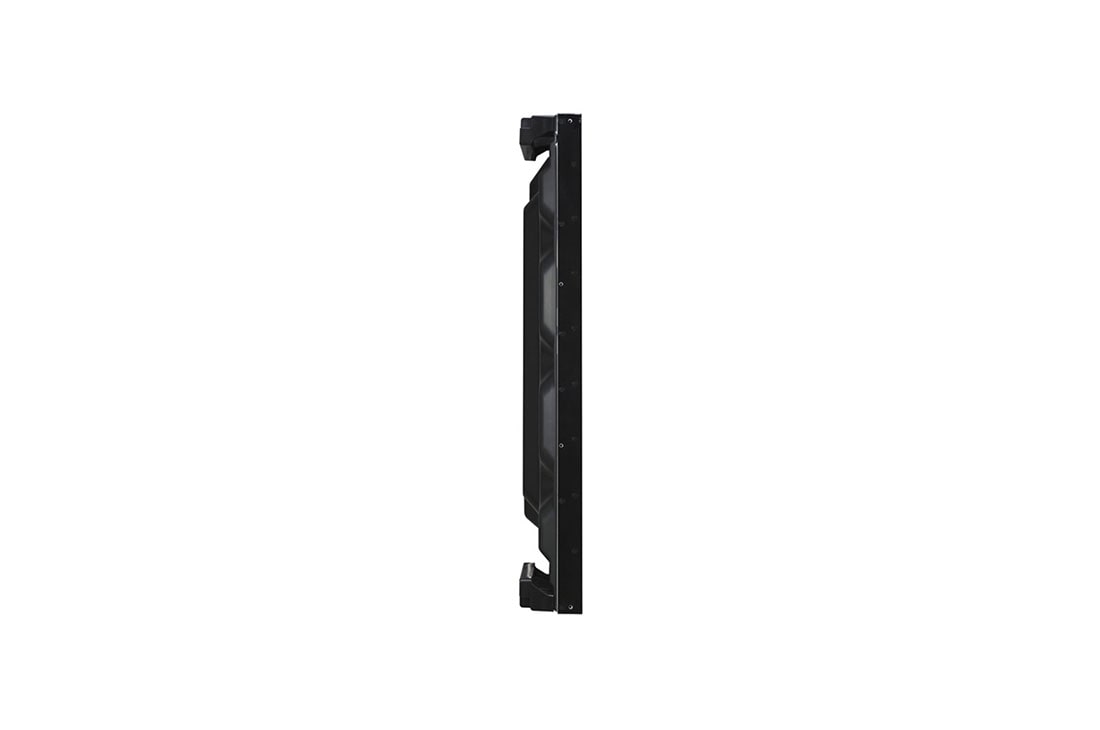

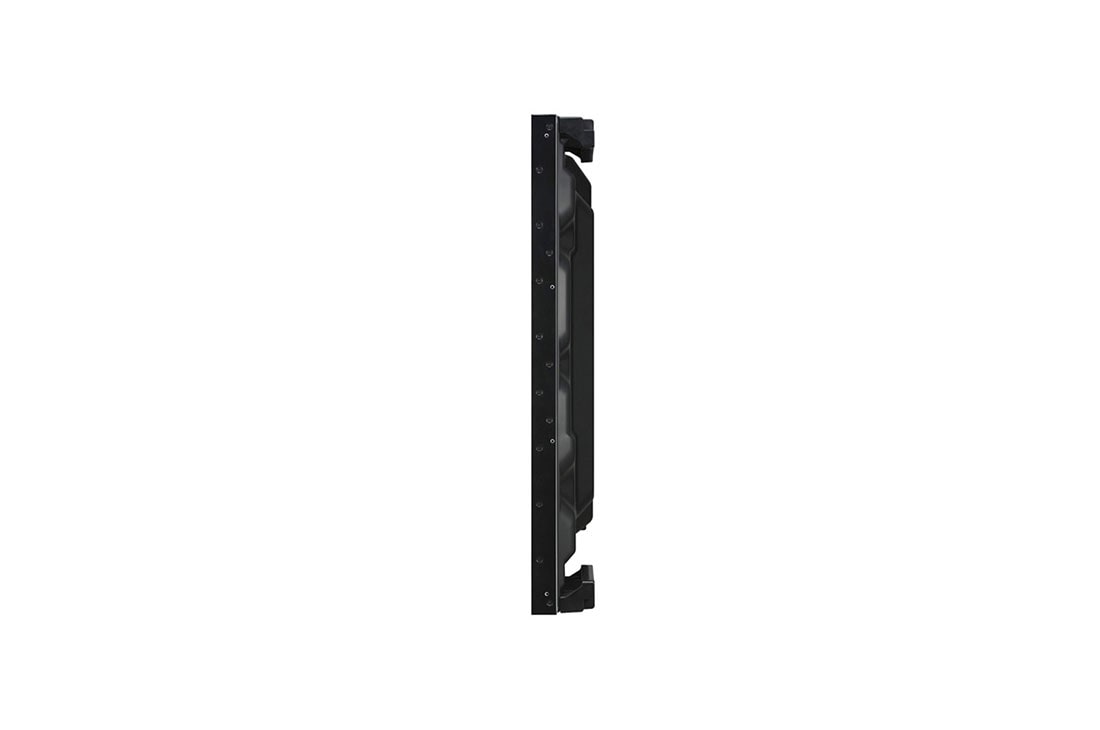

  • Depth: 92.8mm
  • Interface: HDMI/DP/DVI-D/RGB/RS232C/RJ45/USB 3.0/IR Receiver/Audio
  • webOS 3.0+
High Brightness Video Wall
MSRP $
*For exterior window-facing video walls, the conditions of the installation site should be checked in advance.

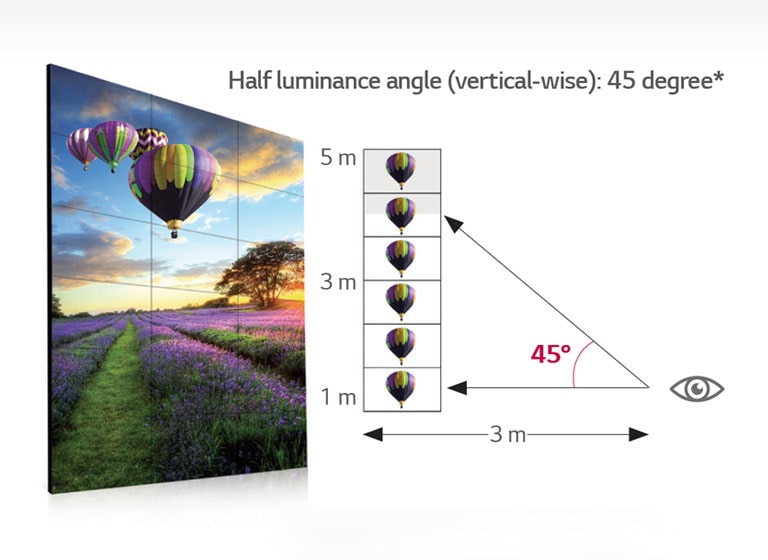

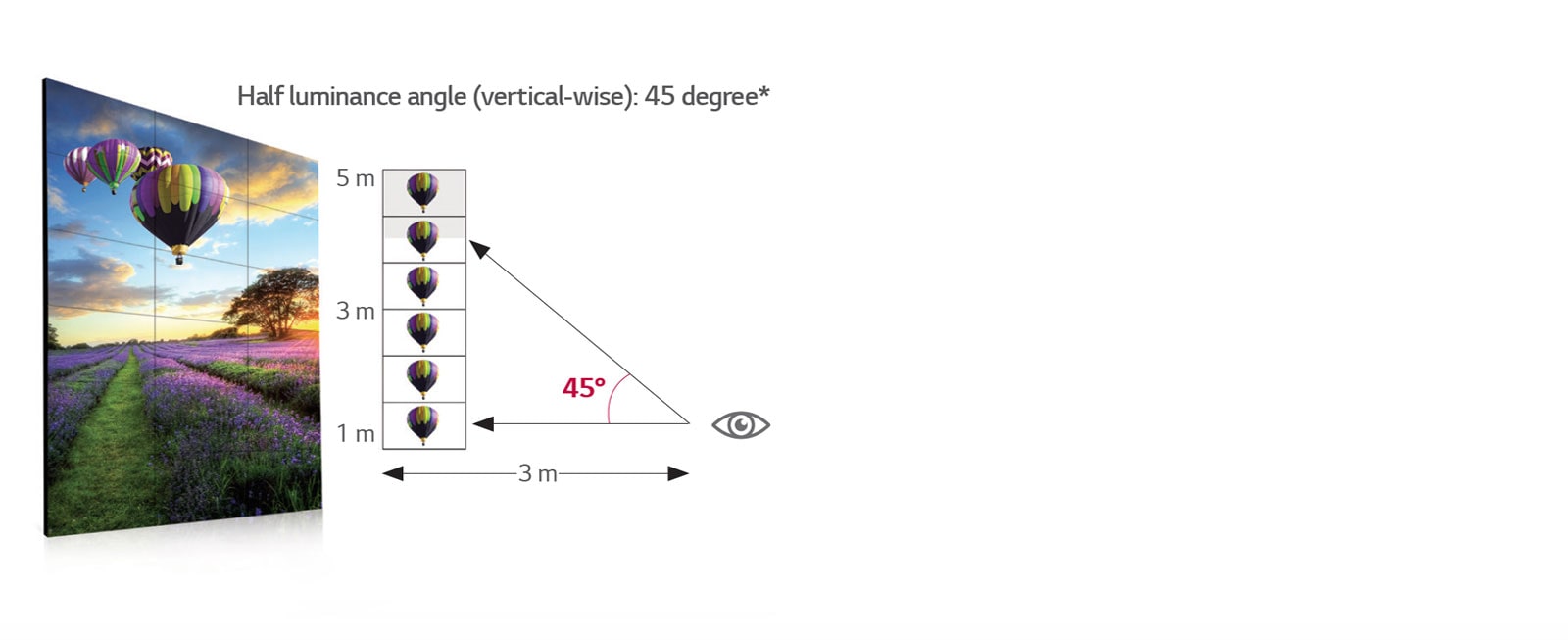

*The angle from the center of the screen to have 50% of the initial luminance.

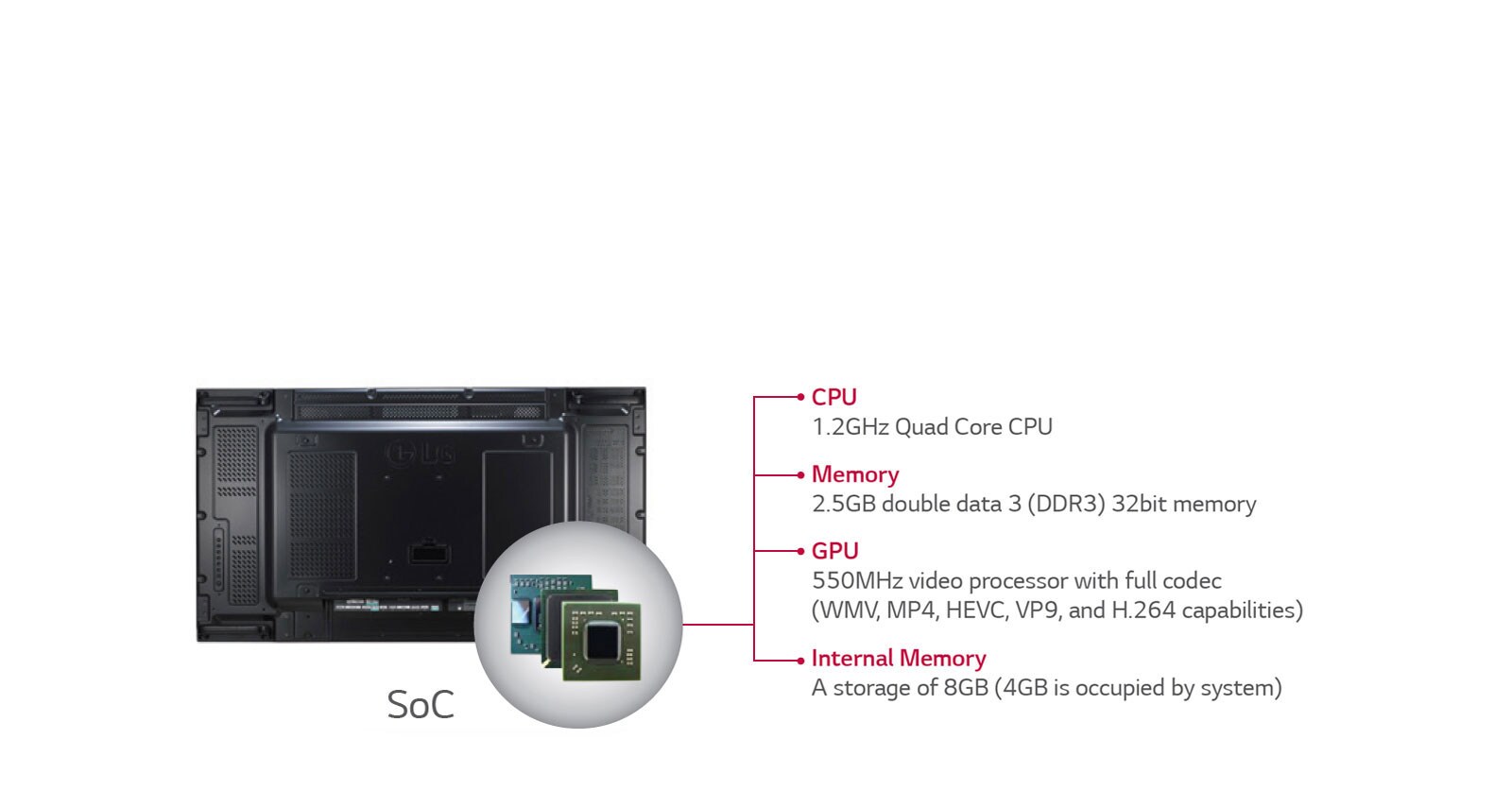

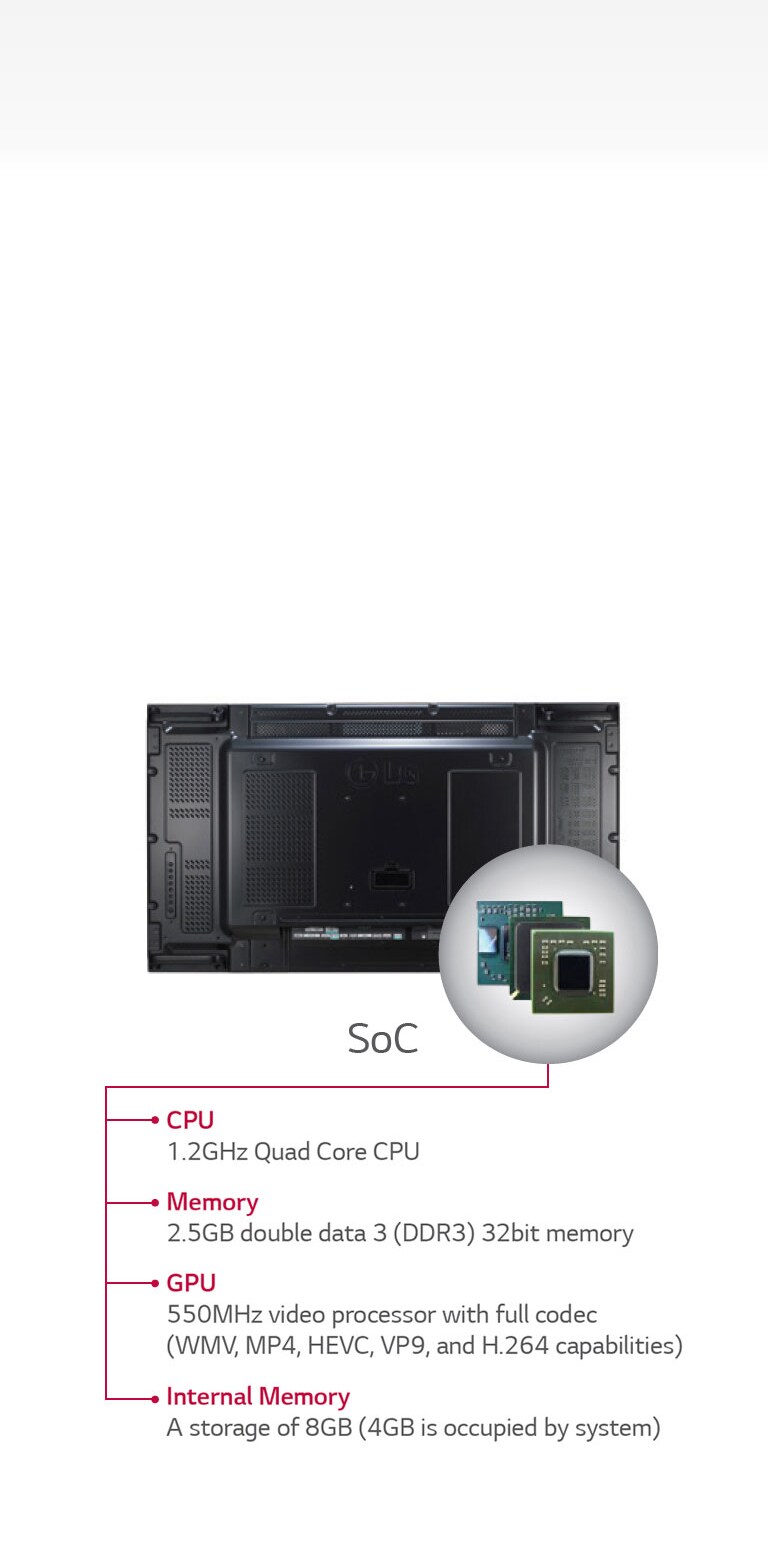

*System-on-Chip.

PANEL

  • Screen Size
    55"
    Native Resolution
    1,920 x 1,080 (FHD)
  • Brightness(Module, Typ., cd/m²)
    1500
    Orientation
    Landscape & Portrait

CONNECTIVITY

  • Input
    HDMI, DP, DVI-D, RGB, Audio In, USB 3.0
    Output
    DP, Audio Out
  • External Control

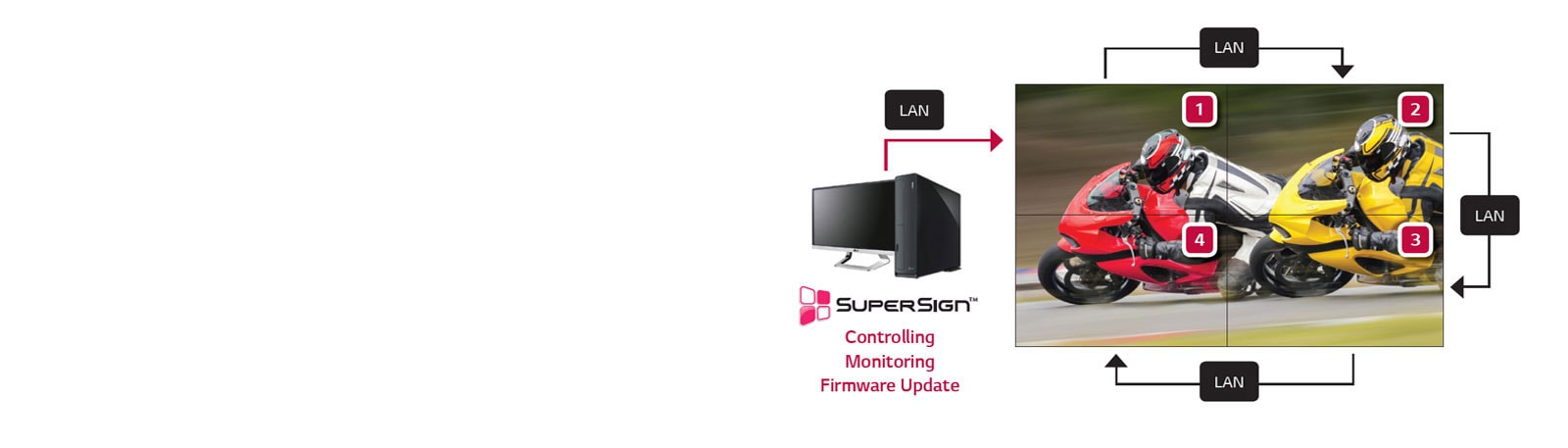

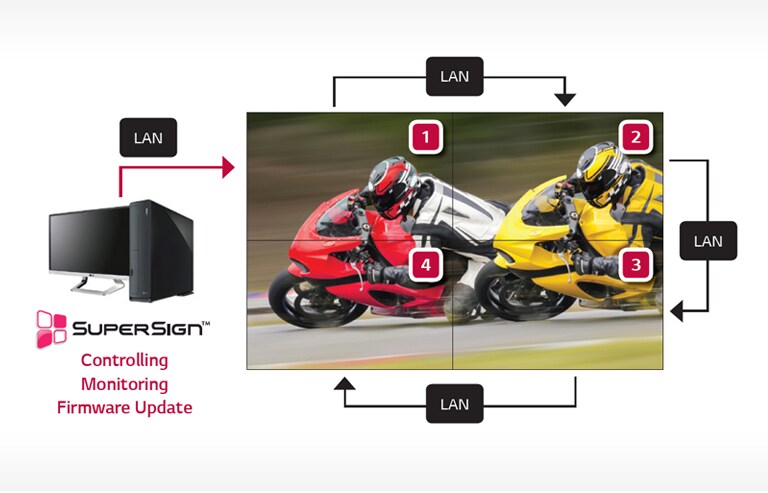

    RS232C In/Out, RJ45 In/Out, IR Receiver In

PHYSICAL SPECIFICATION

  • Bezel Width
    2.25mm (L/T)/1.25mm (R/B)
    Monitor Dimension (W x H x D)
    1,213.4 x 684.2 x 92.8 mm
  • Weight (Head)
    23.5kg
    Carton Dimensions (W x H x D)
    1,353 x 855 x 263 mm
  • Packed Weight
    36.6kg
    VESA™ Standard Mount Interface
    600 x 400 mm

ENVIRONMENT CONDITIONS

  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%

POWER CONSUMPTION

  • Typ./Max
    250W/280W
    Smart Energy Saving
    213W

STANDARD (CERTIFICATION)

  • Safety
    UL/cUL/CB/TUV/KC
    EMC
    FCC Class "A"/CE/KCC
  • ErP / Energy Star
    NA/Yes (Energy Star 7.0)

MEDIA PLAYER COMPATIBILITY

  • External Media player Attatchable
    Yes (MP500/MP700)

SOFTWARE COMPATIBILITY

  • Content Management Software
    SuperSign Premium
    Control and Monitoring Software
    SuperSign Link

ACCESSORY

  • Basic
    Remote Controller, Power cable, DP Cable, Manual, IR Receiver, RS-232C Cable, LAN Cable, Guide Bracket, Screws
    Optional
    Wall mount (Landscape: WM-L640V, Portrait: WM-P640V)
