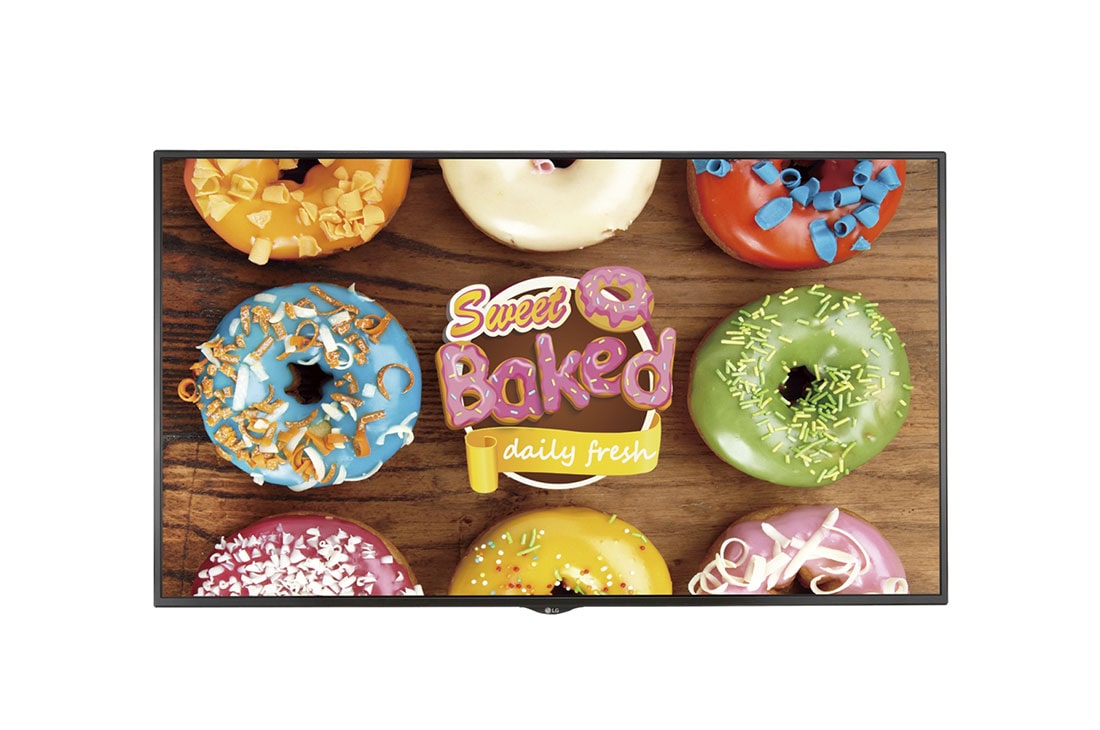

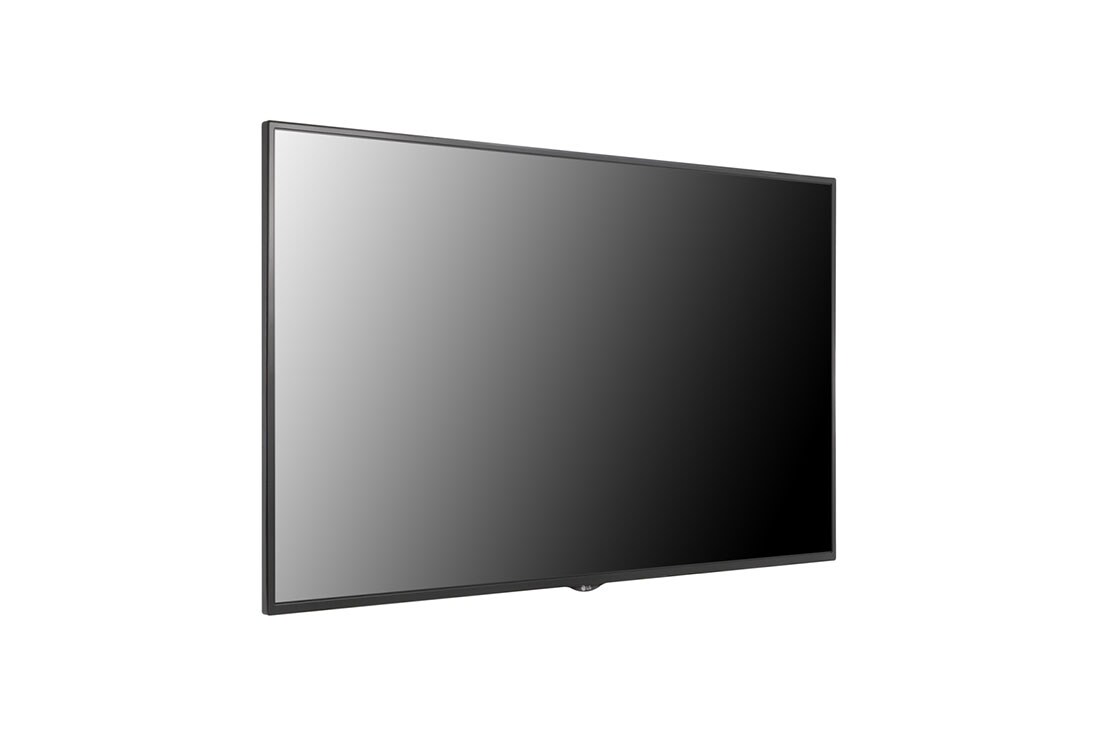

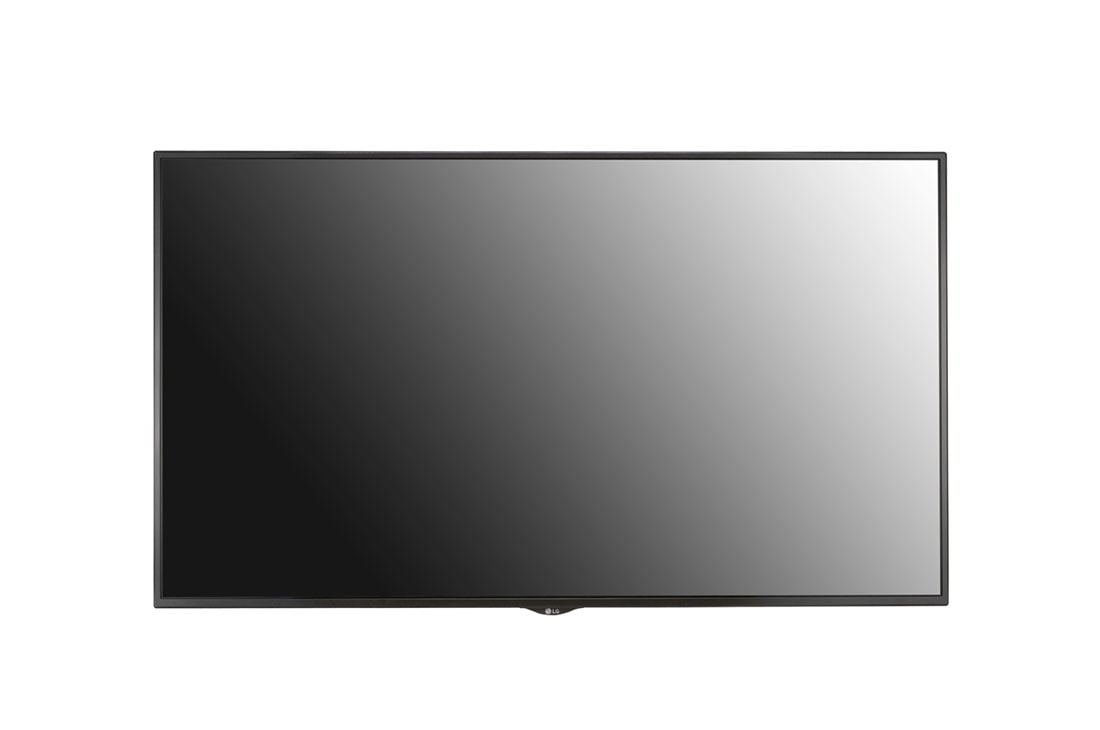

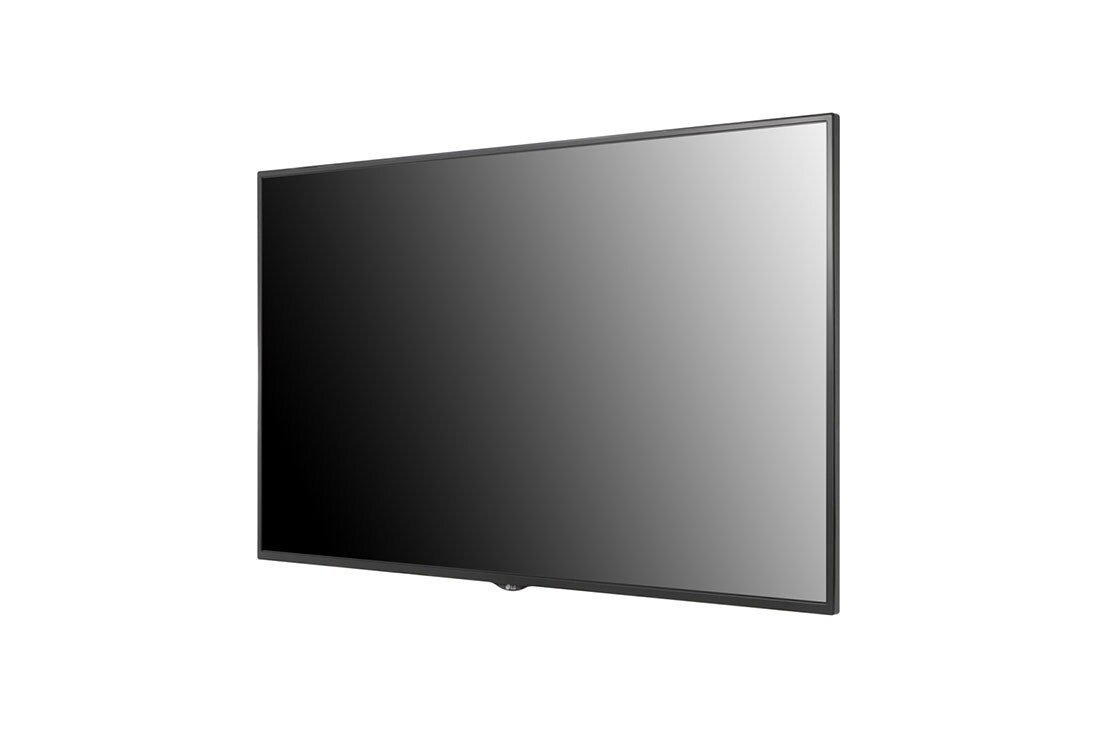

65UH5E-B
UH5E Series
65"
  • Brightness(Typ.) : 500 cd/m²
  • Bezel : 12.1mm (T), 12.6mm (R/L), 15.7mm (B)

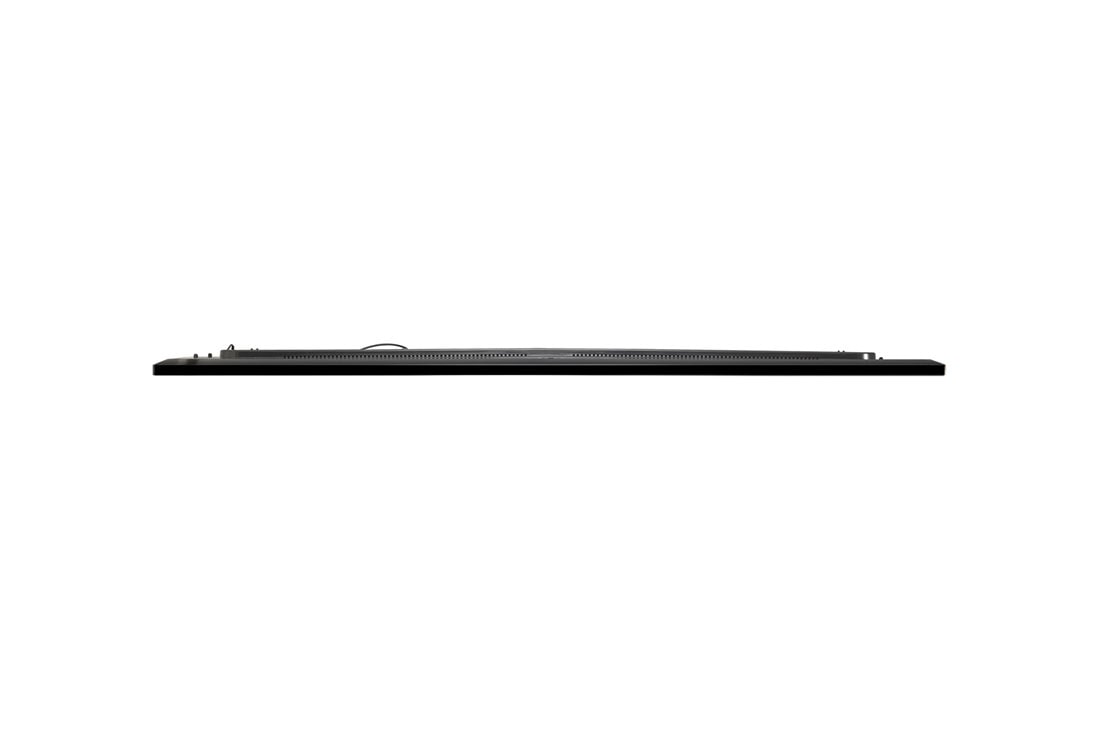

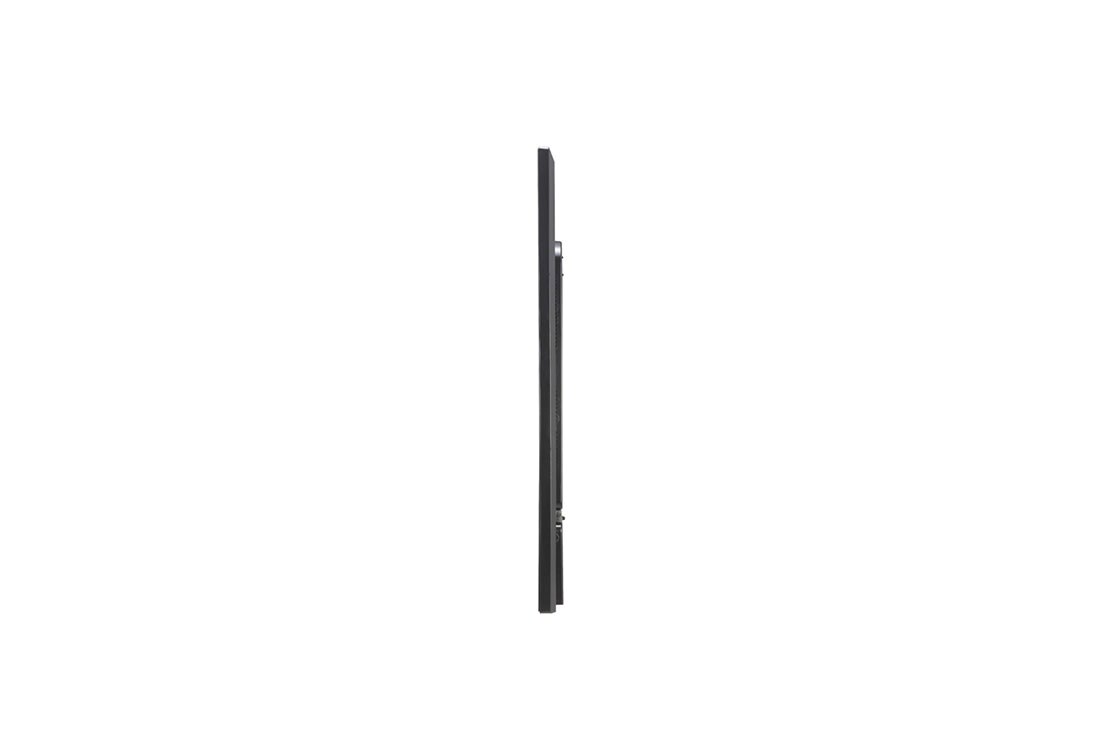

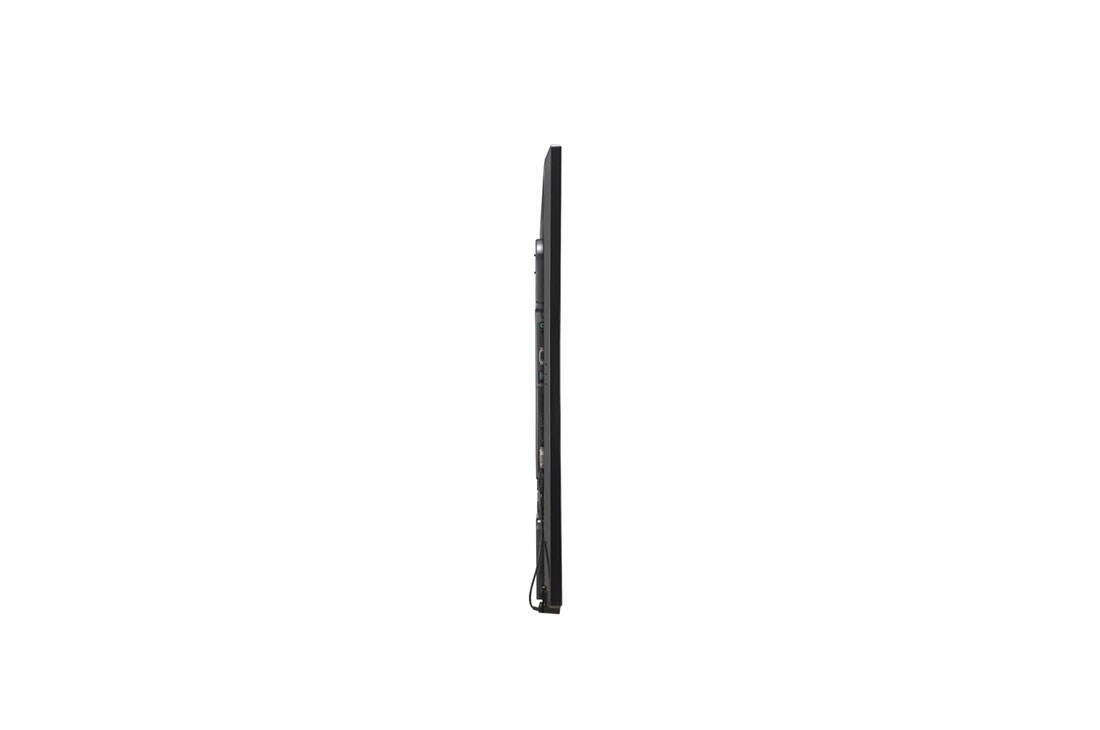

  • Depth : 40.1mm

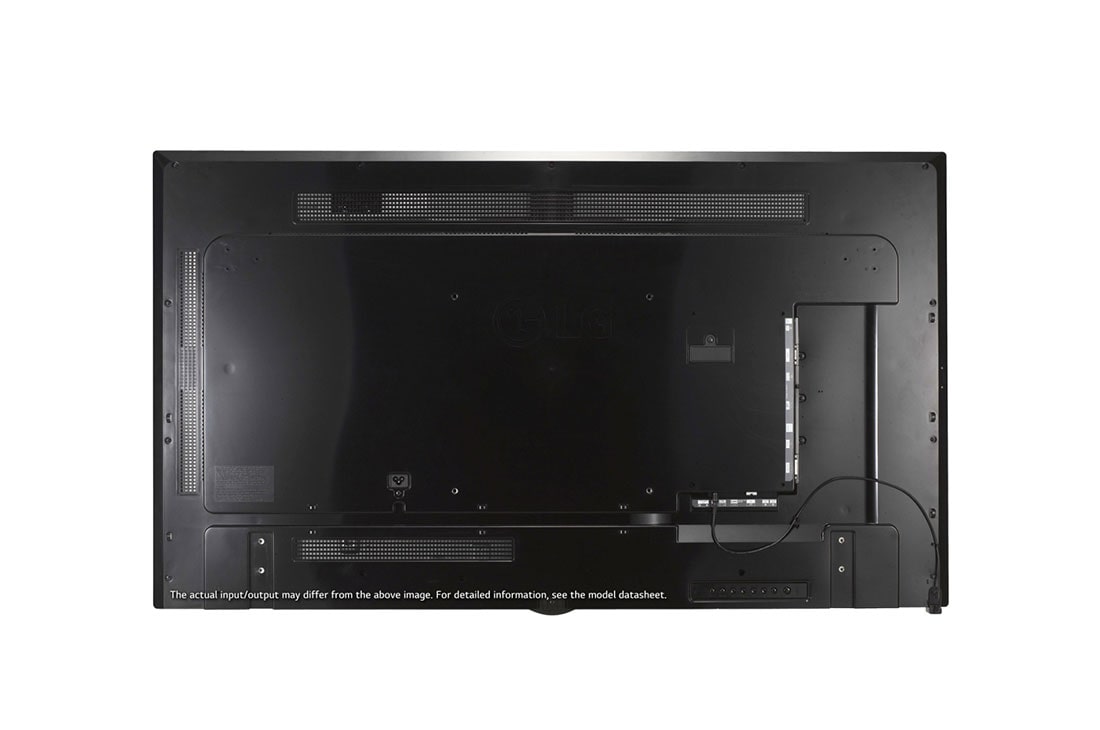

  • Interface : HDMI(3)/DP/DVI-D/USB 2.0(2)/RS232C/RJ45/Audio/IR/External Speaker Out

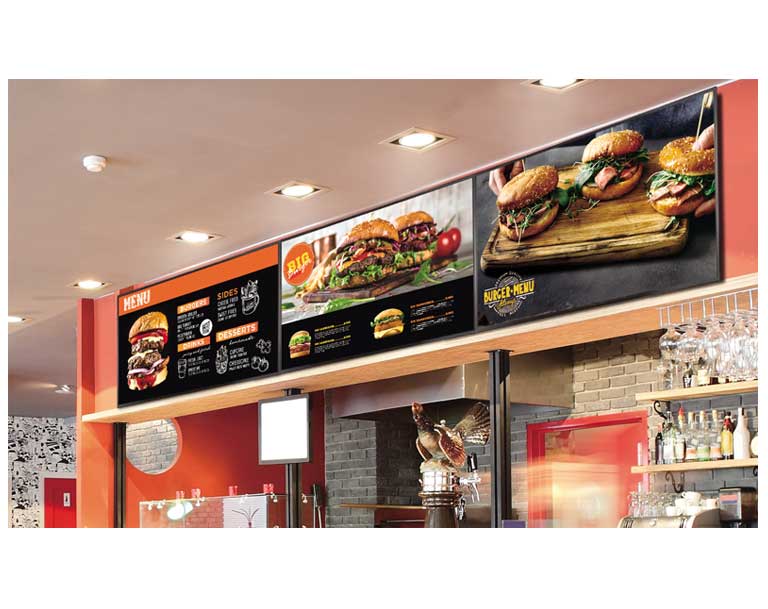

  • Haze 28%

component-OBScountrySelectDesc

UH5E Series
1) Network-based control.
*Using an HDMI cable connection.

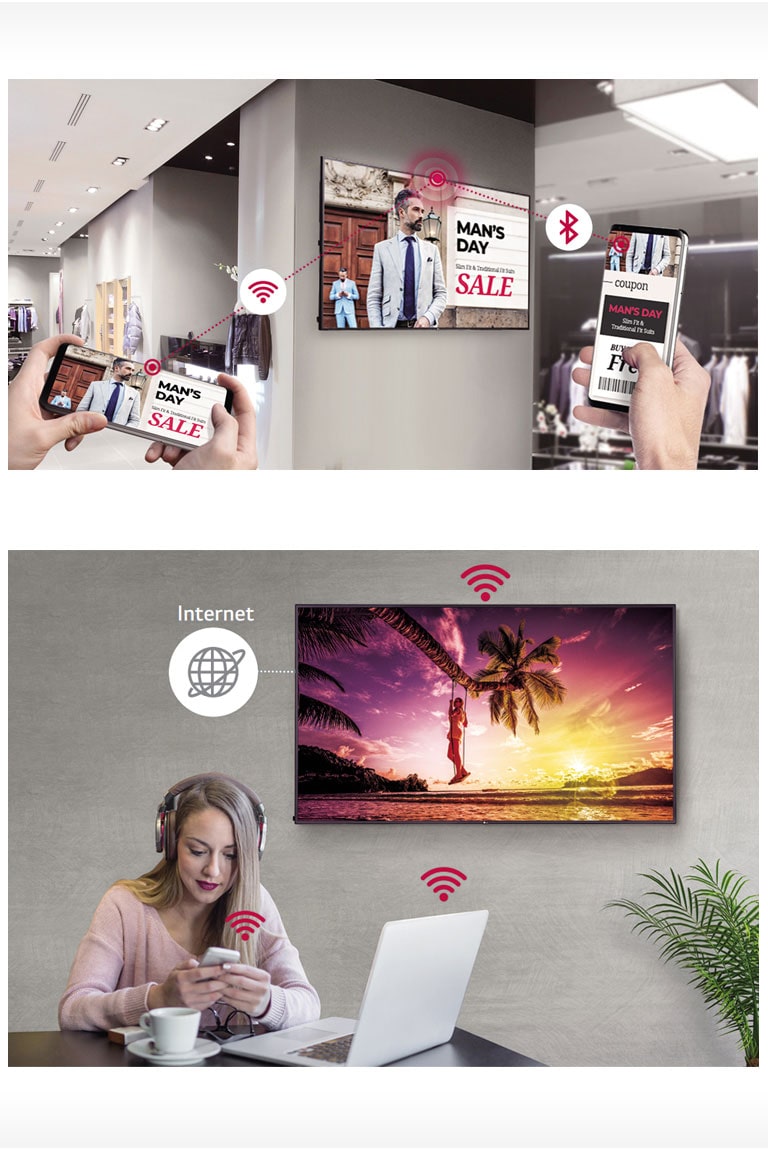

  • Wireless Solution

    Wireless Solution1 Wireless Solution2
  • Content Sharing

    Content mirroring among devices is more convenient on a Wi-Fi network.

  • Real-time Promotion

    With Beacon and BLE(Bluetooth Low Energy), shop managers can provide coupons and information in real-time.

  • Wireless Access Point

    The UH5E series operates as a virtual router which can be an wireless access point for mobile devices.

*The availability of "Signage 365 Care" service can differ by region, so please contact the LG sales representative in your region for further details.

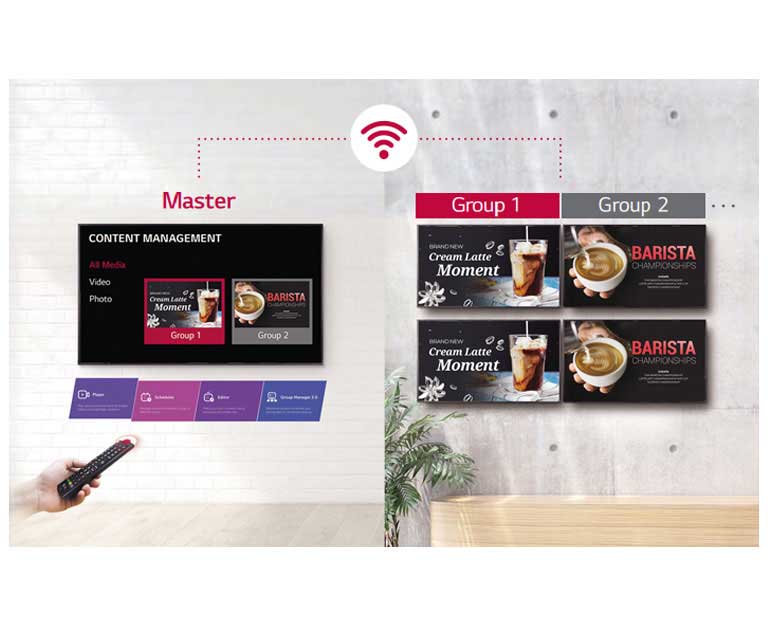

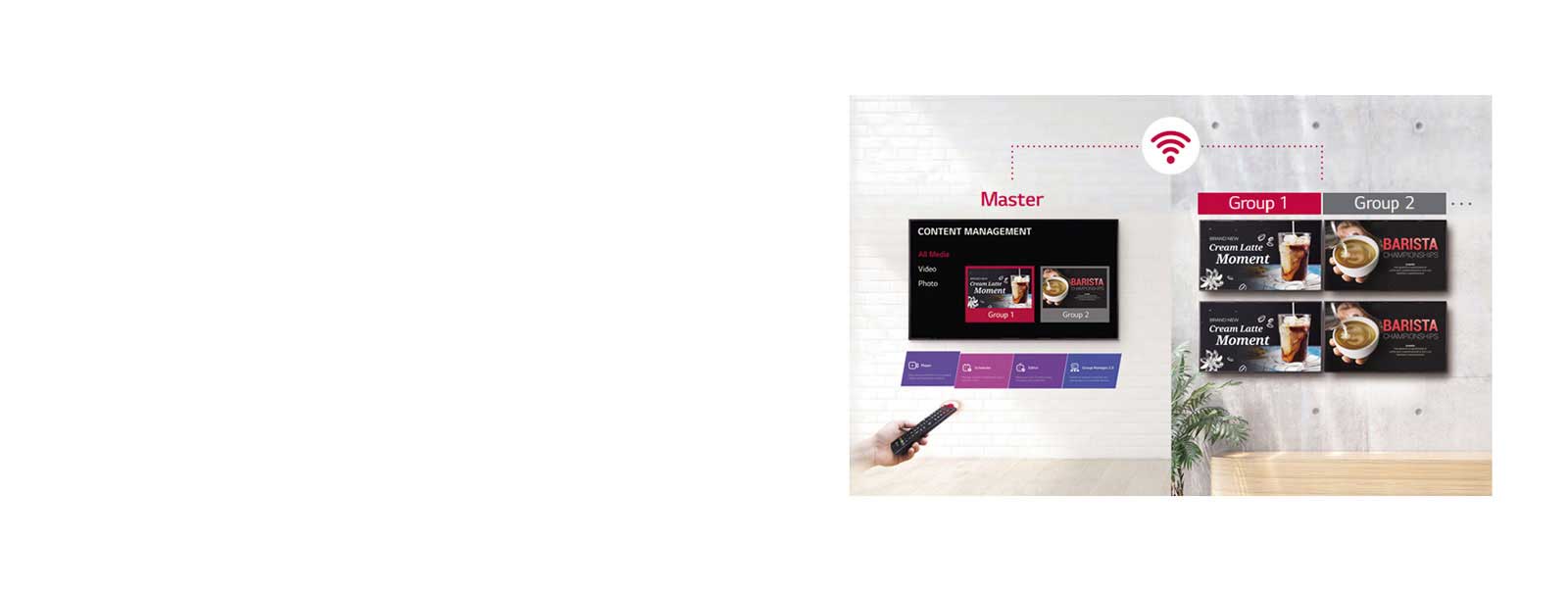

*One master display can create a max. of 25 groups, and each group can consist of a max. of 12 slave displays.

PANEL

  • Screen Size
    65"
    Native Resolution
    3,840 x 2,160 (UHD, RGB)
  • Brightness(Typ.,cd/m²)
    500

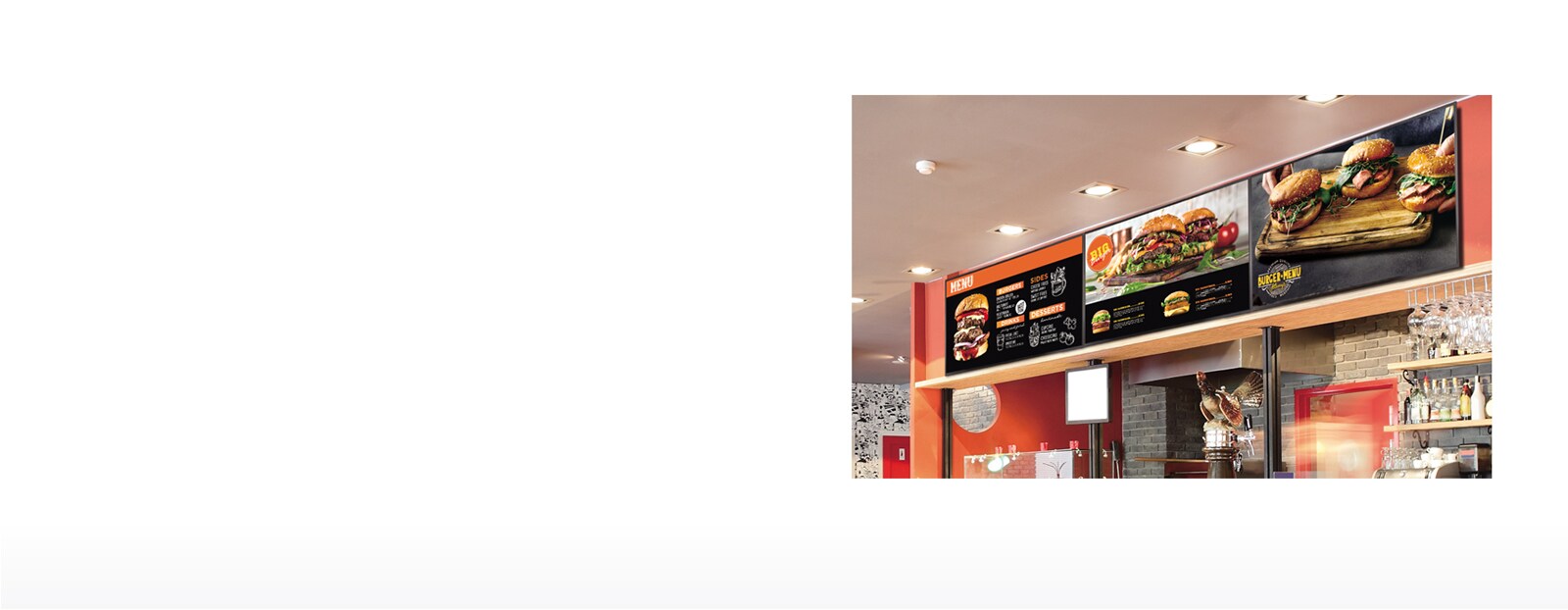

    Surface Treatment (Haze)
    Haze 28%

CONNECTIVITY

  • Input
    HDMI (3), DP, DVI-D, Audio, USB 2.0 (2)
    Output
    DP, Audio (Off/Fixed/Variable), External Speaker
  • External Control
    RS232C In/out, RJ45 (LAN) In, IR In

MECHANICAL SPECIFICATION

  • Bezel Width
    12.1mm (T), 12.6mm (R/L), 15.7mm (B)
    Monitor Dimension (W × H × D)
    1,458.6 x 848.9 x 40.1 mm
  • Weight (Head)
    26kg
    Carton Dimensions (W × H × D)
    1,561 x 971 x 190 mm
  • Packed Weight
    32.5kg
    VESA™ Standard Mount Interface
    300 x 300 mm

ENVIRONMENT CONDITIONS

  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%

POWER

  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power

POWER CONSUMPTION

  • Typ. / Max.
    140W/200W
    Smart Energy Saving
    98W

CERTIFICATION

  • Safety
    CB / NRTL
    EMC
    FCC Class "A"/CE/KC
  • ErP / Energy Star
    Yes (EU Only) / Yes (Energy Star 8.0)

MEDIA PLAYER COMPATIBILITY

  • OPS Type compatible
    Yes

SOFTWARE COMPATIBILITY

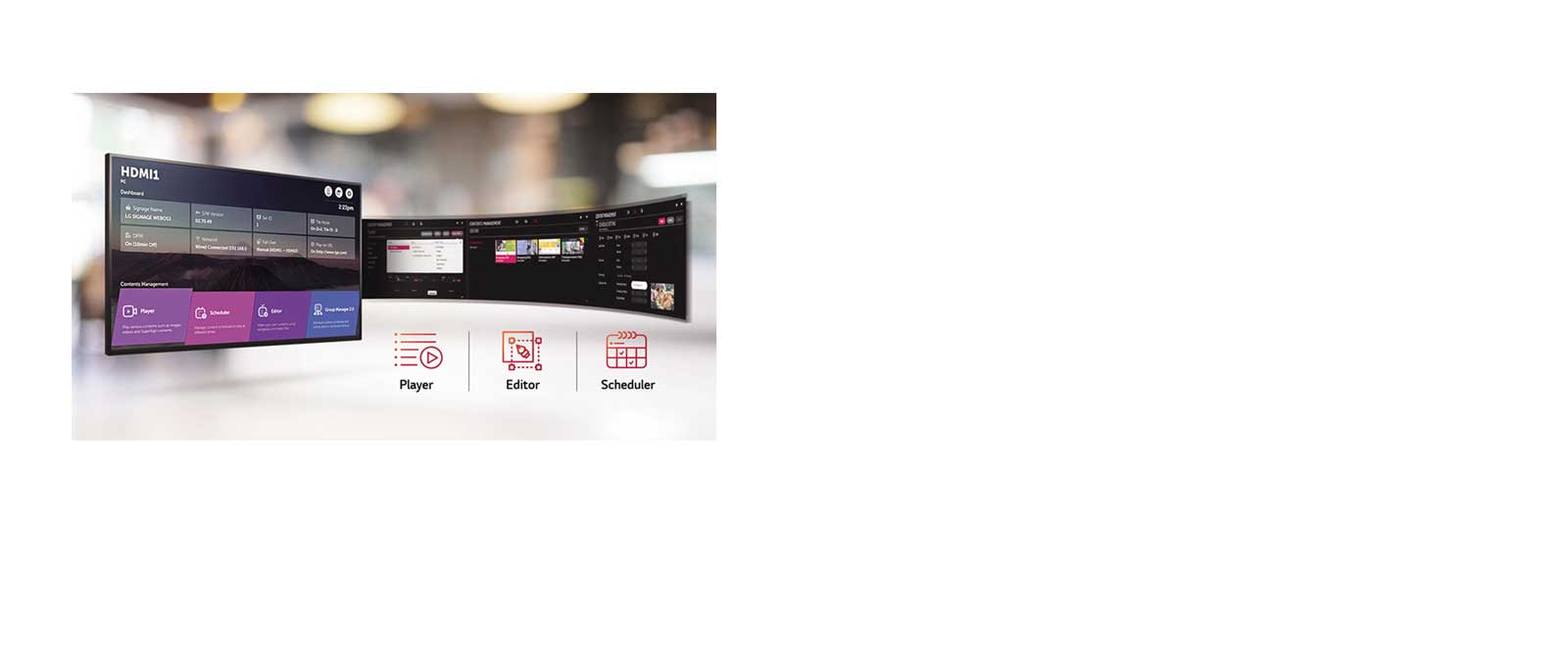

  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control/Control+

ACCESSORY

  • Basic
    Remote Controller, Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender
    Optional
    Speaker (SP-5200), Stand (ST-651T), Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSF)
