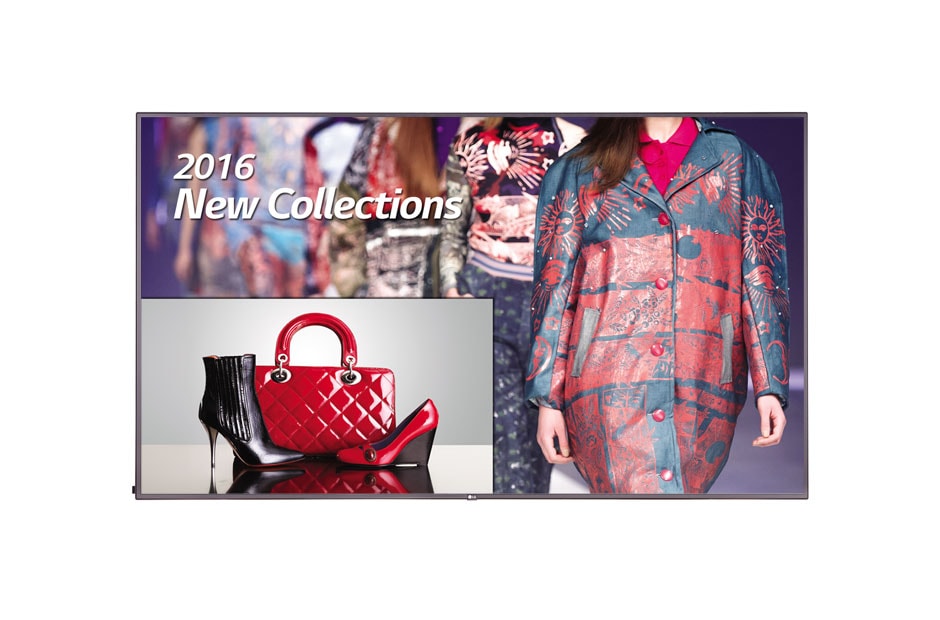

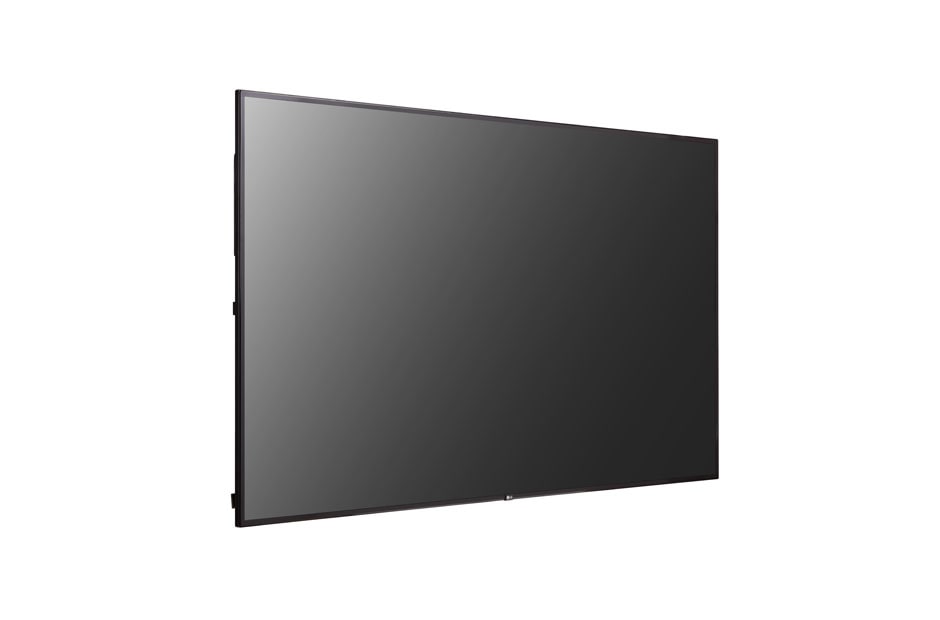

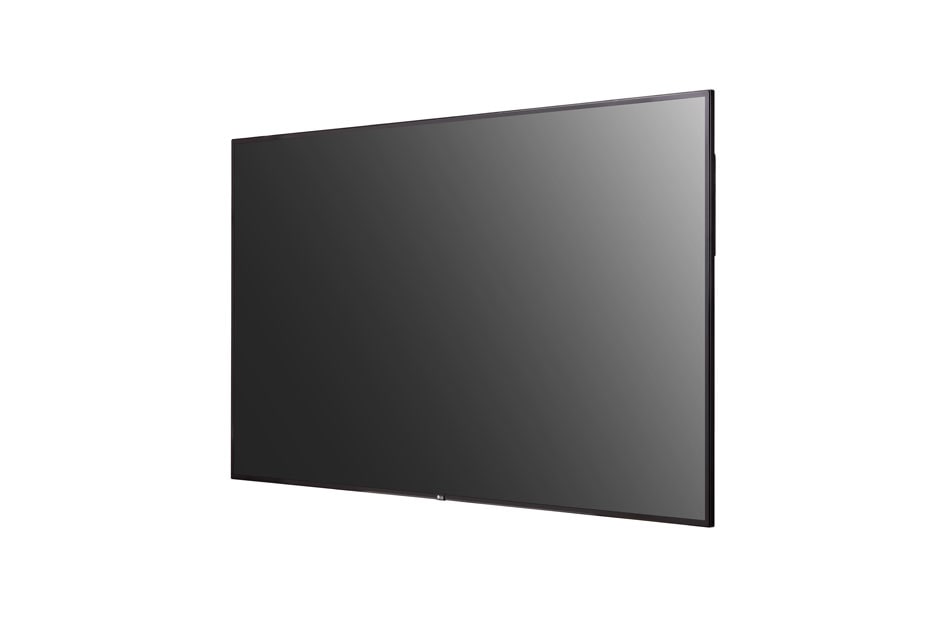

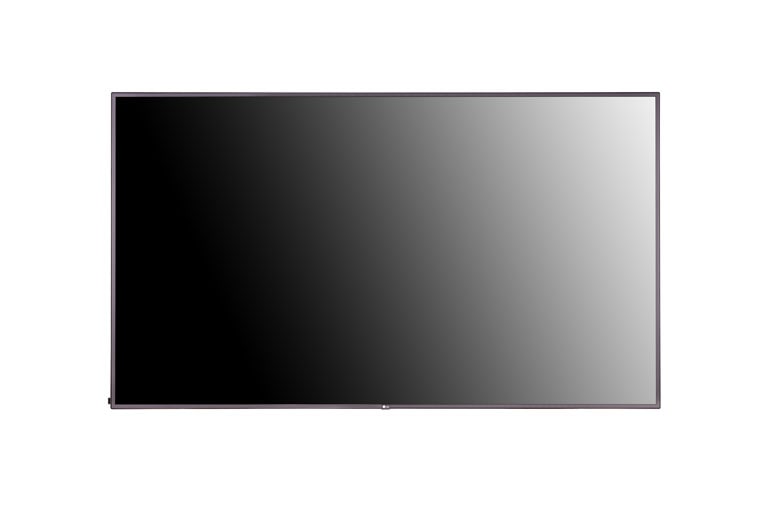

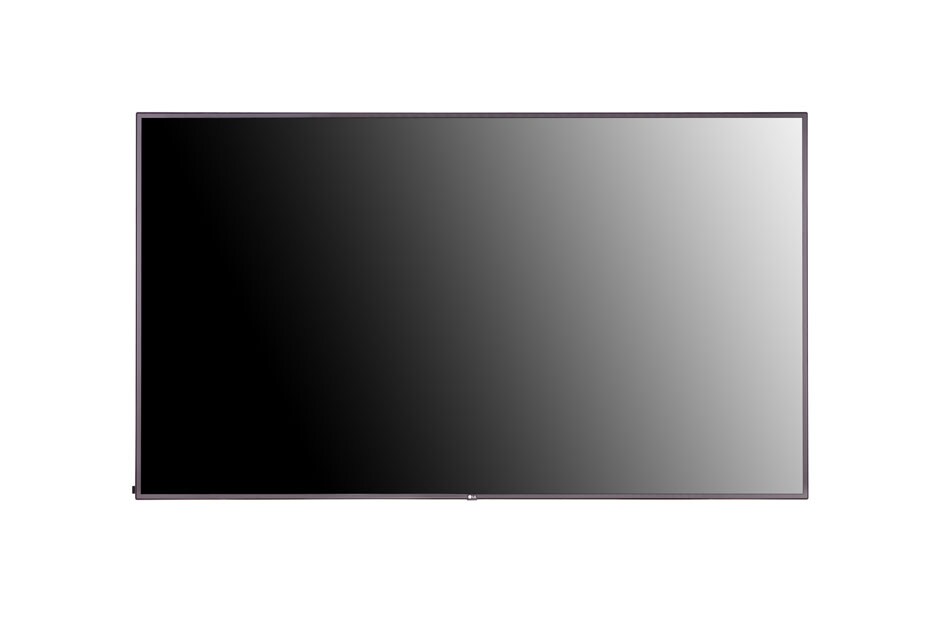

75UH5C
UH5C Series
  • Brightness : 500cd/m2
  • Bezel : 14.9mm Even Bezel

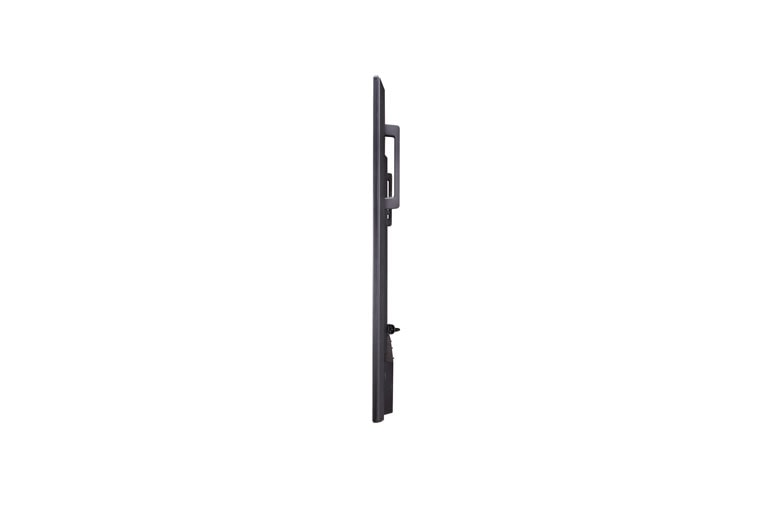

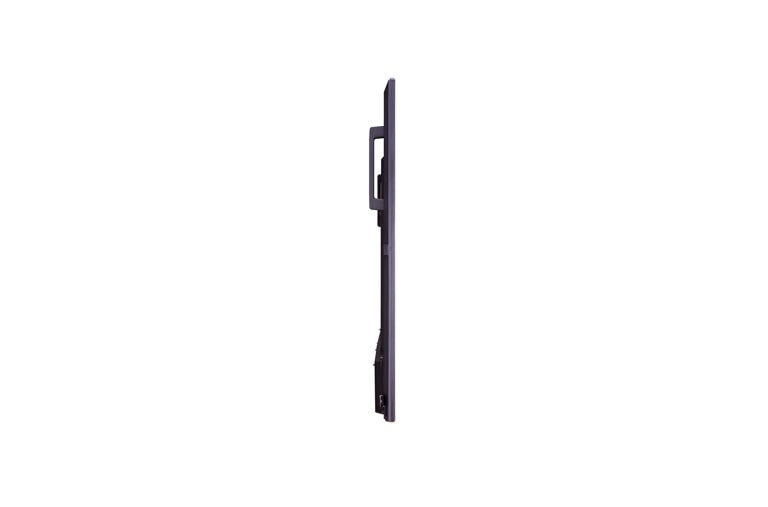

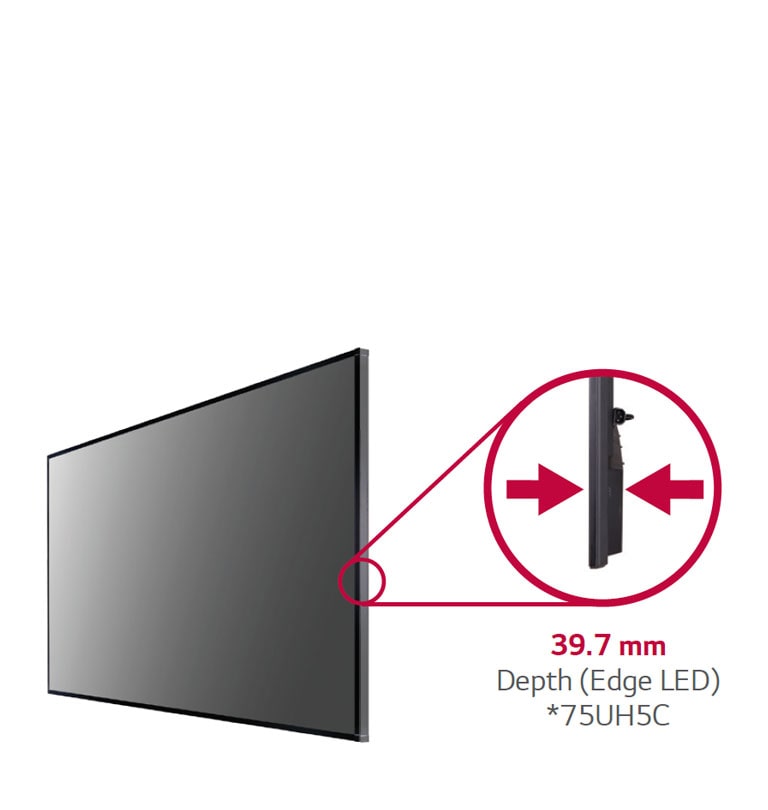

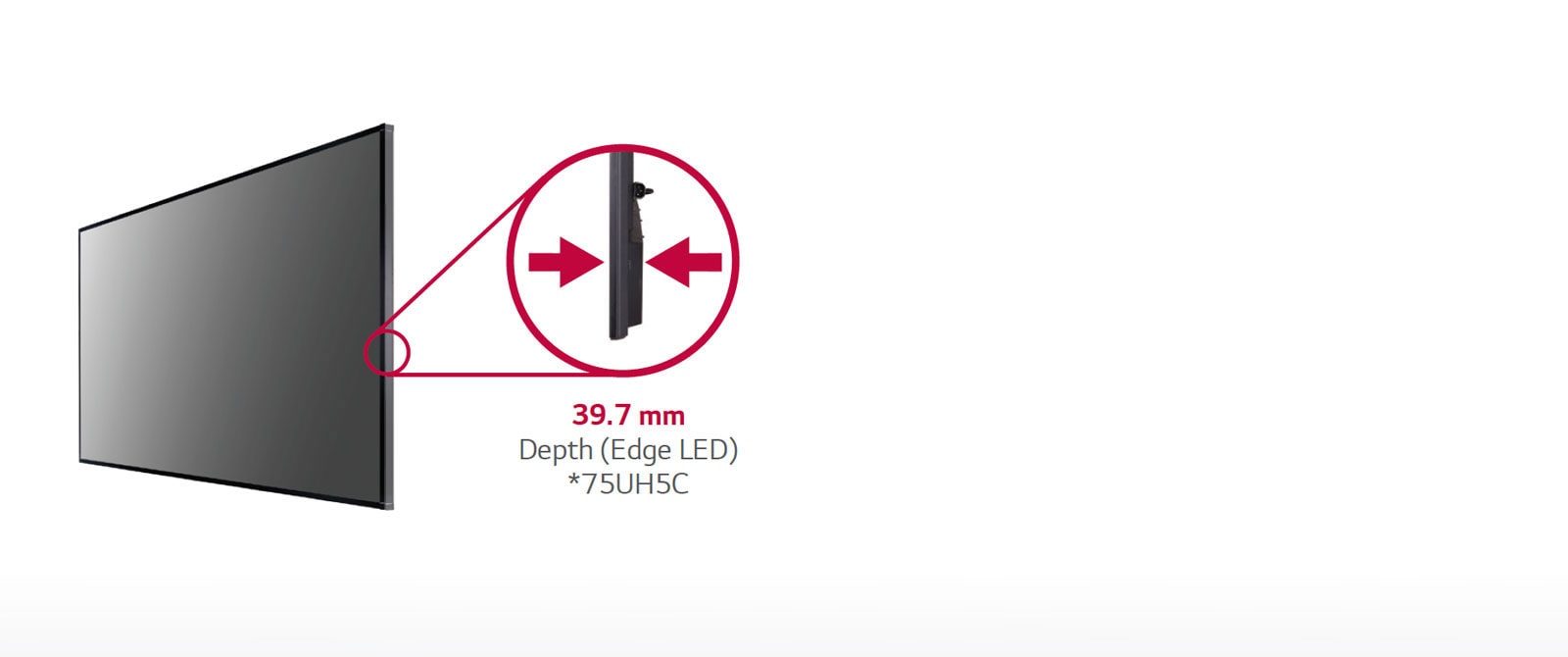

  • Depth : 39.7mm / without logo, handle
  • Interface : DP / HDMI / DVI / RS232C / RJ45 / Pixel Sensor / SD Card / USB
  • SuperSign W/C/N

component-OBScountrySelectDesc

UH5C Series

PANEL

  • Screen Size
    75"
    Resolution

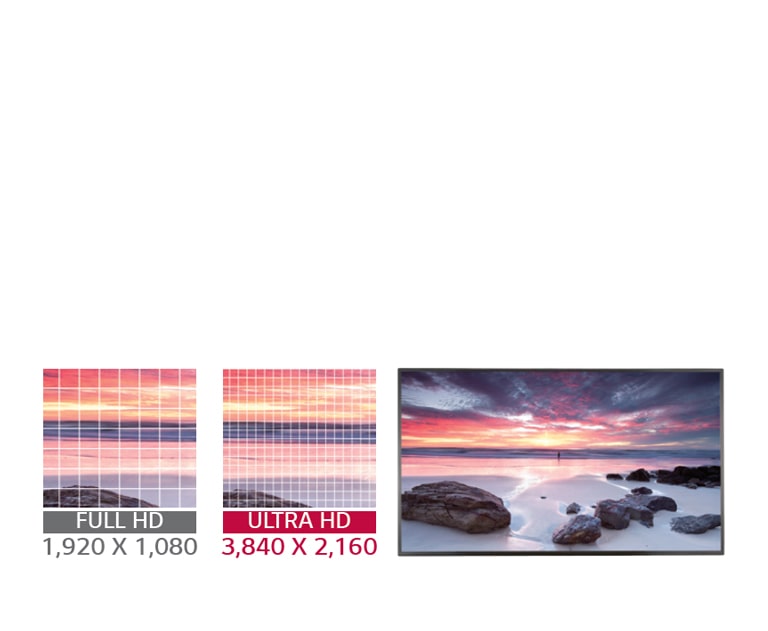

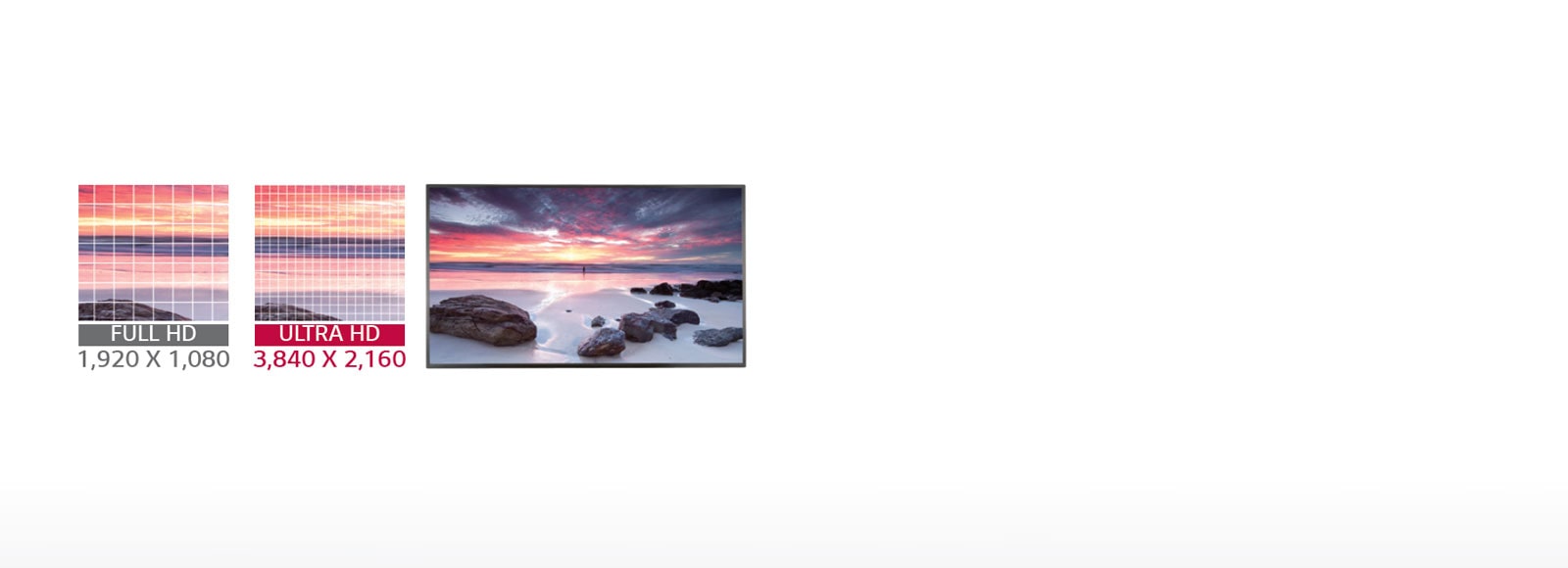

    3,840 x 2,160 (UHD)
  • Brightness
    500cd/m²

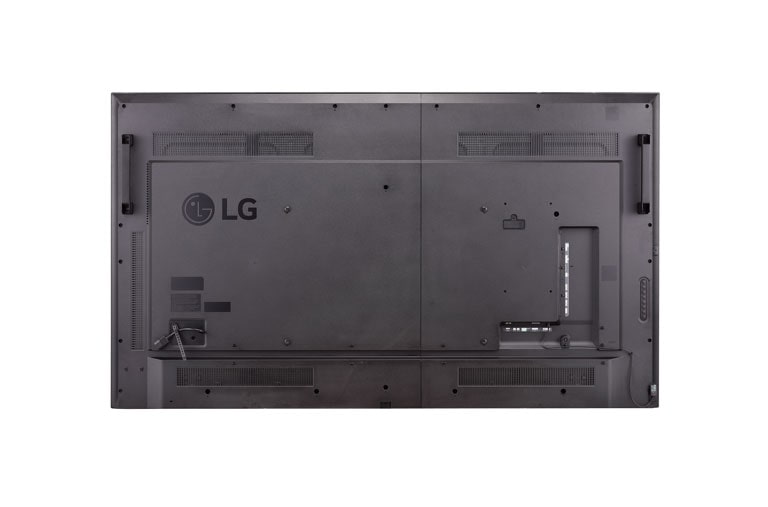

CONNECTIVITY

  • Input
    HDMI, DP, DVI-D, Audio, USB 3.0, SD Card
    Output
    DP, Audio
  • External Control
    RS232C, RJ45, IR Receiver, Pixel Sensor

PHYSICAL SPECIFICATION

  • Bezel Width
    14.9mm
    Monitor Dimension (W x H x D)
    1,682.4 x 960.3 x 39.7mm (without logo / handle)
  • Weight (Head)
    41.5kg

ENVIRONMENT CONDITIONS

  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %

POWER

  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power

POWER CONSUMPTION

  • Typ.
    240W
    Smart Energy Saving
    170W

STANDARD (CERTIFICATION)

  • Safety
    UL / cUL / CB / TUV / KC
    EMC
    FCC Class "A" / CE / KCC
  • ErP / Energy Star
    No / No

MEDIA PLAYER COMPATIBILITY

  • OPS type compatible
    Yes
    External Media player Attatchable
    Yes (MP500/MP700)

SOFTWARE COMPATIBILITY

  • SuperSign-w lite
    Yes
    SuperSign-c
    Yes

ACCESSORY

  • Basic
    Remote Controller (include 2ea batteries), Power Cord, QSG, DP 1.8M, Regulation Book, Phone to RS232C Gender, Memory Cover
    Optional

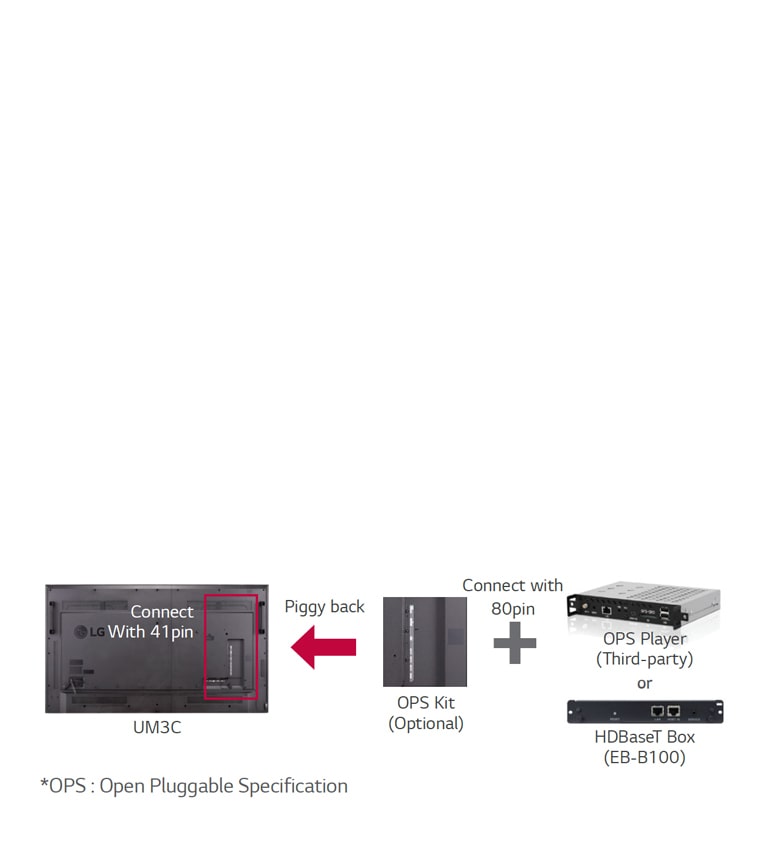

    Pixel Sensor (KT-SP0), Media Player, OPS Kit (KT-OPSA), HDBaseT (EB-B100)
