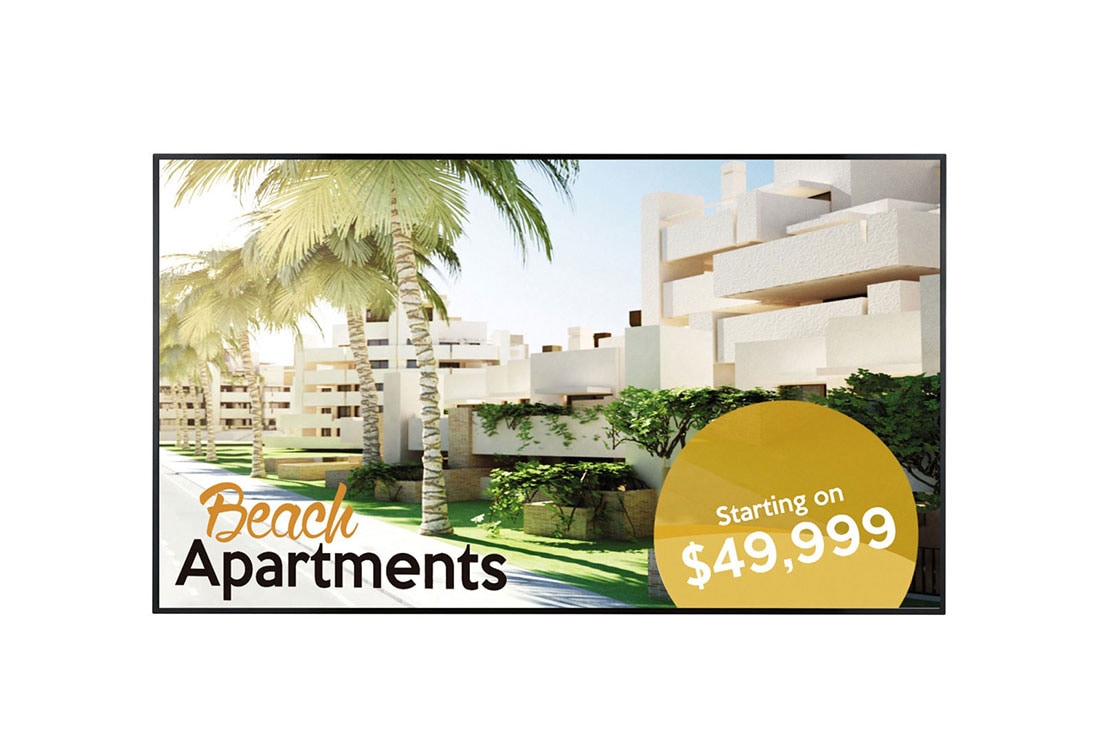

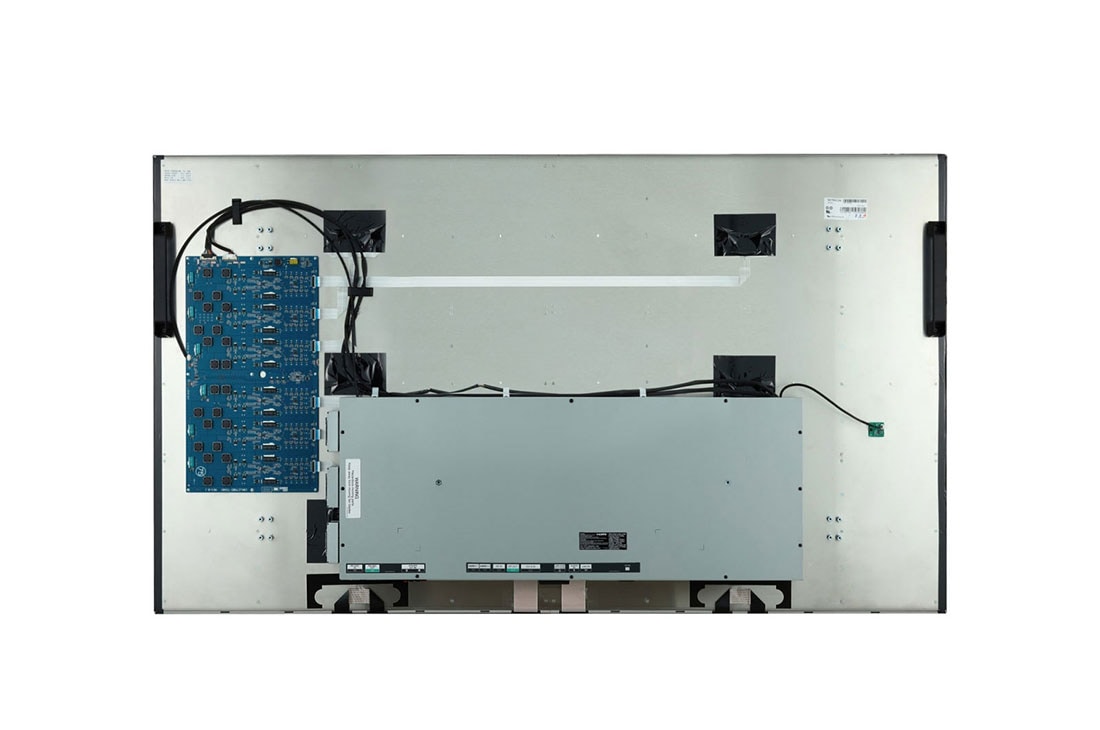

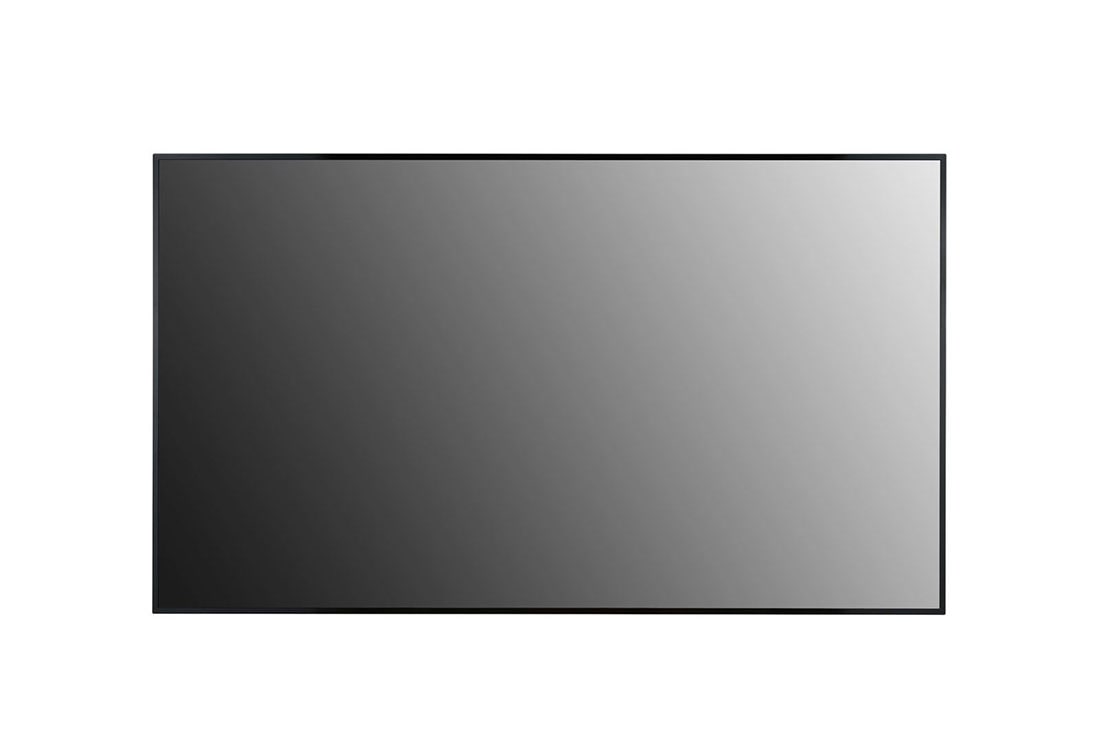

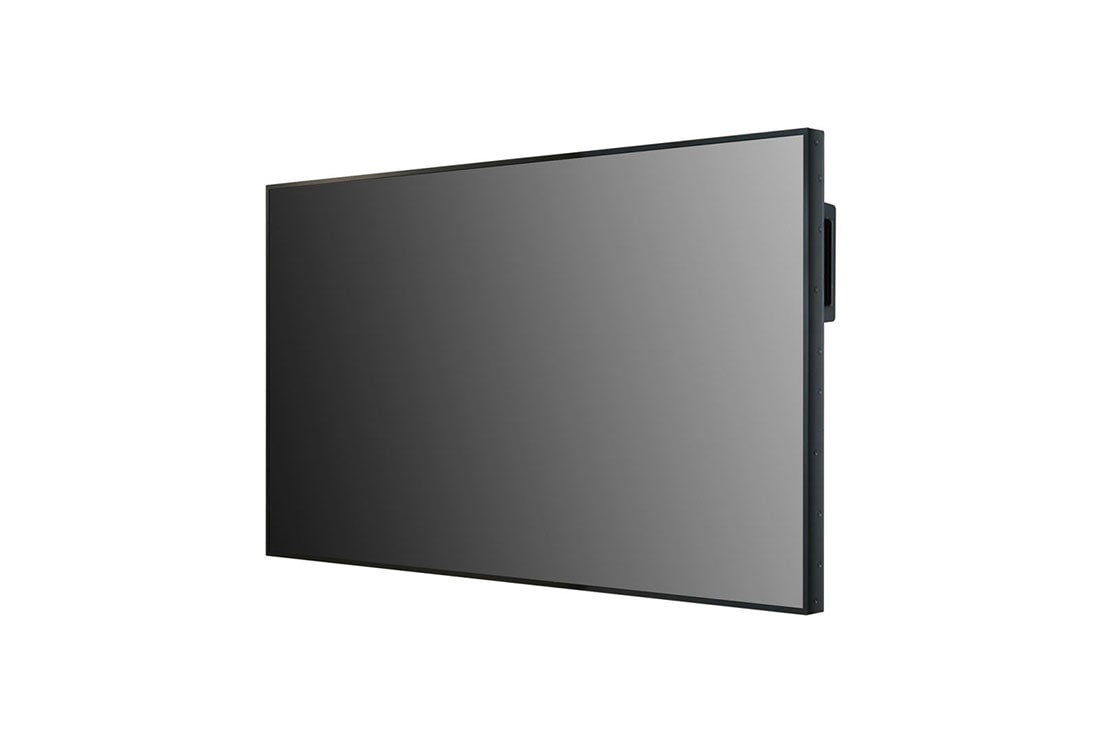

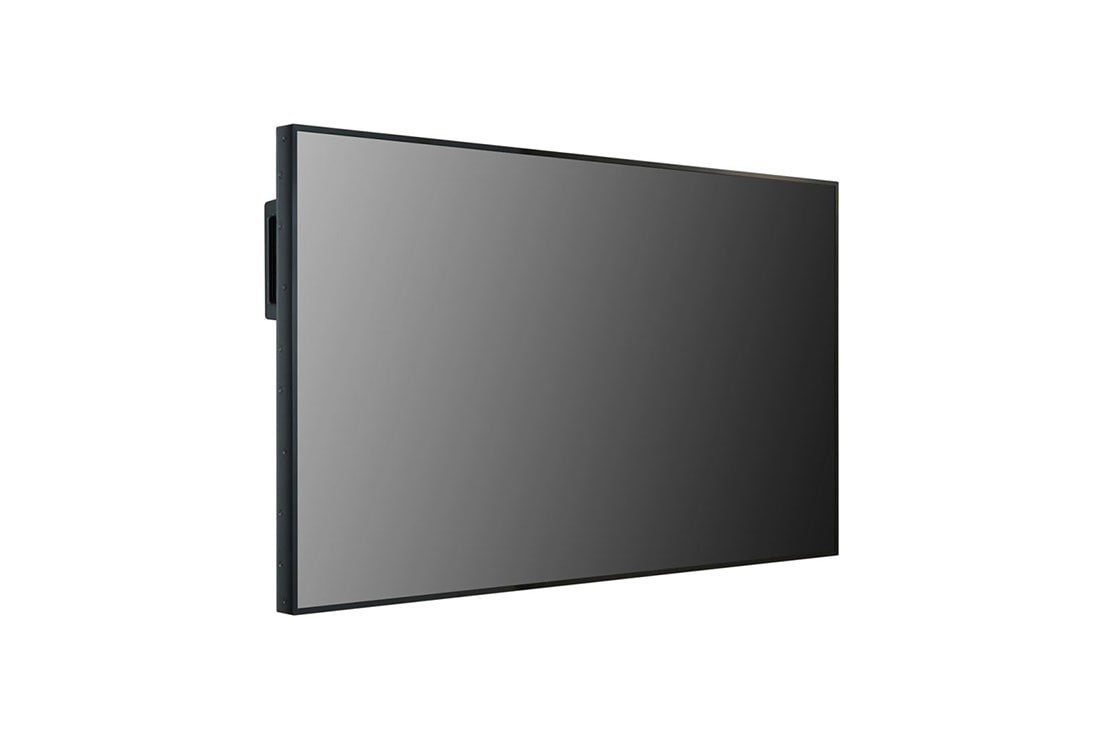

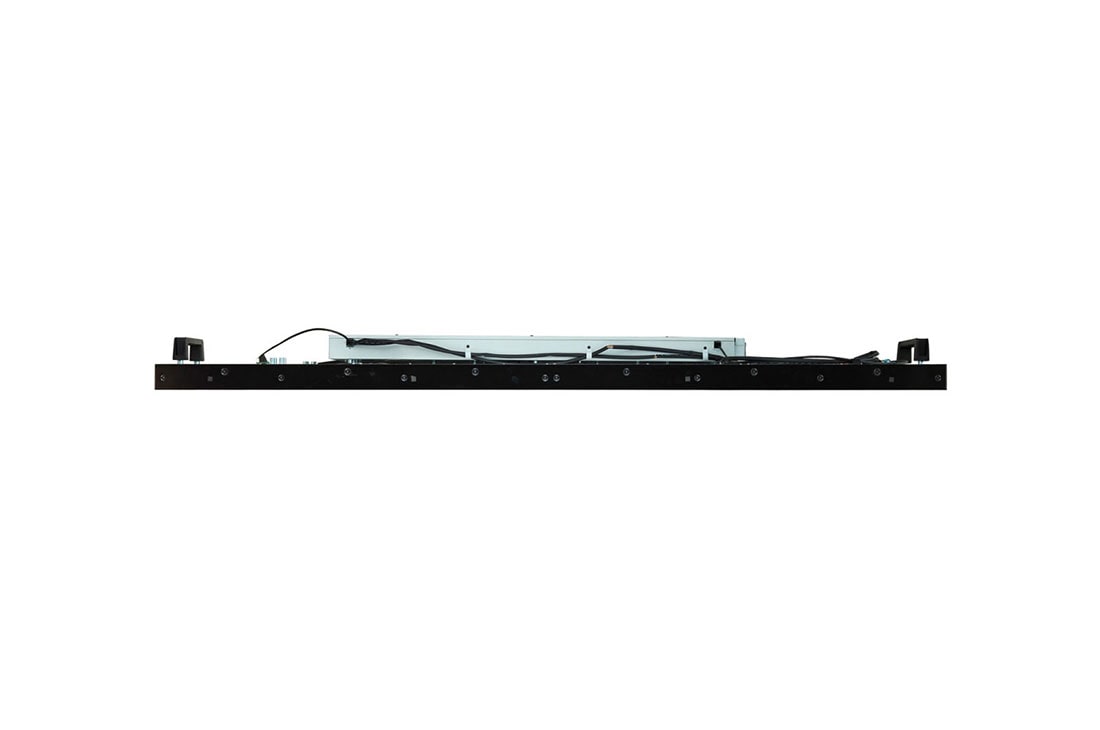

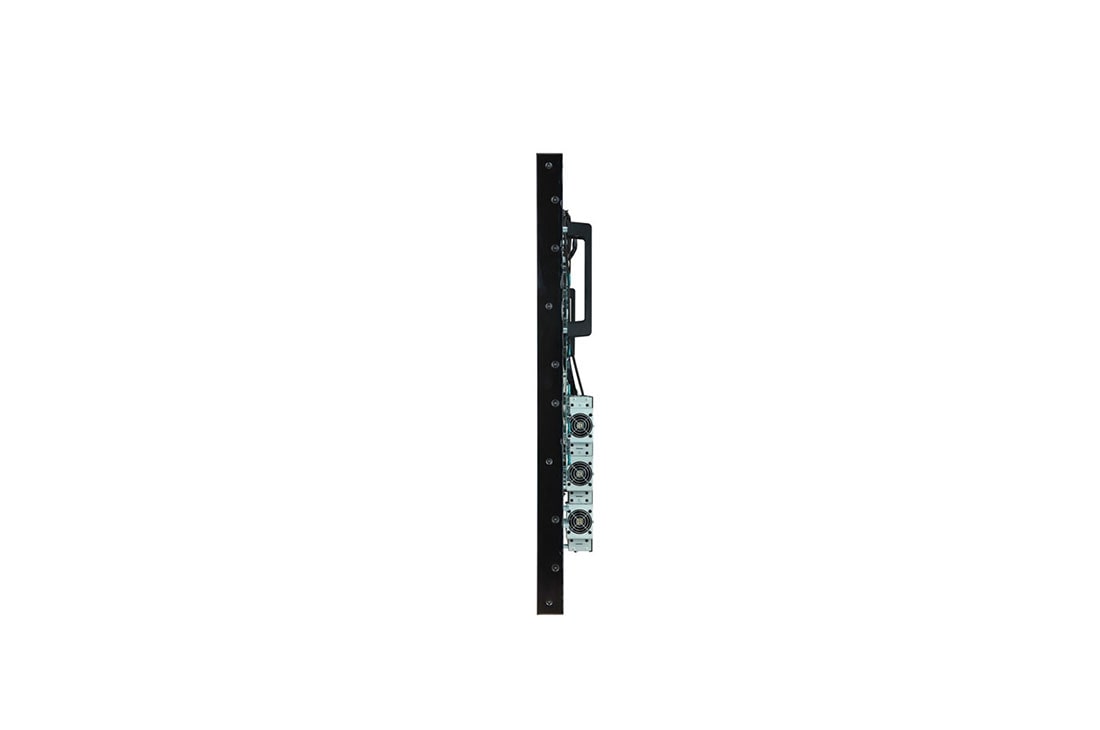

75XF3ES-B
Open Frame
75"
  • Brightness : 3,000 cd/m² (Typ.)
  • Life Time : 50,000 hours
  • Bezel : 11.8 mm (Even bezel)
  • Depth : 128.9 mm
  • Interface : HDMI (2)/ DP/ DVI-D/ USB/ RJ45/ RS232C/ IR/ External speaker out

component-OBScountrySelectDesc

Open Frame

PANEL

  • Screen Size
    75" (74.52" Measured Diagonal)
    Native Resolution
    3,840 x 2,160 (UHD)
  • Brightness (Typ., cd/m²)
    3000

CONNECTIVITY

  • Input
    HDMI (2), DP, DVI-D, Audio, USB
    Output
    DP, External Speaker
  • External Control
    RS232C In/out, RJ45 In, IR

PHYSICAL SPECIFICATION

  • Bezel Width
    11.8mm (Even)
    Monitor Dimension (W x H x D)
    1,675.2 x 953.6 x 128.9 mm
  • Weight (Head)
    37.5kg
    Carton Dimensions (W x H x D)
    1,816 x 1,106 x 285 mm
  • Packed Weight
    47.0kg

ENVIRONMENT CONDITIONS

  • Operation Temperature
    0℃ to 50℃
    Operation Humidity
    10% to 80%

POWER

  • Power Supply
    100-240 V~, 50/60 Hz
    Power Type
    Built-In Power

POWER CONSUMPTION

  • Typ./Max.
    620W/700W
    Smart Energy Saving
    350W

STANDARD (CERTIFICATION)

  • Safety
    IEC 60950-1/EN 60950-1/UL 60950-1
    EMC
    FCC Class "A"/CE/KC

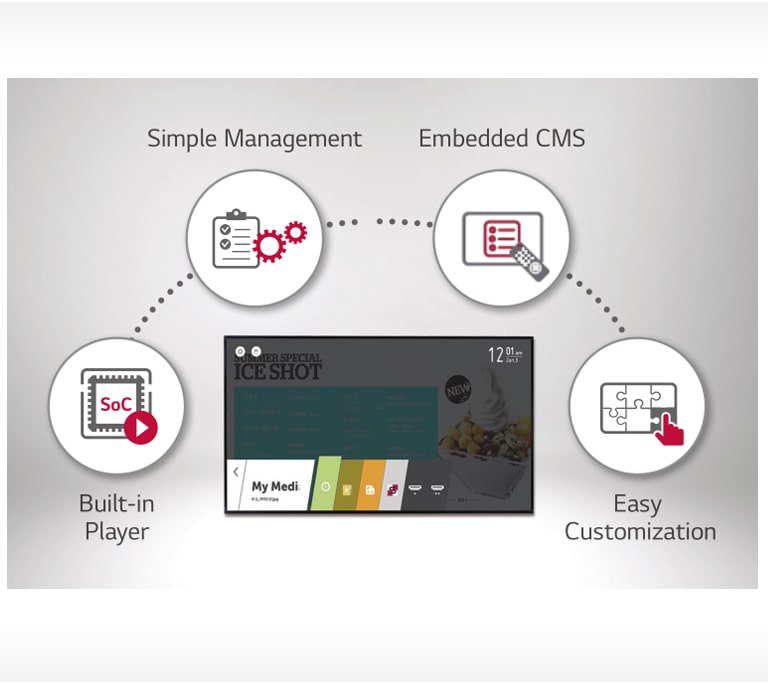

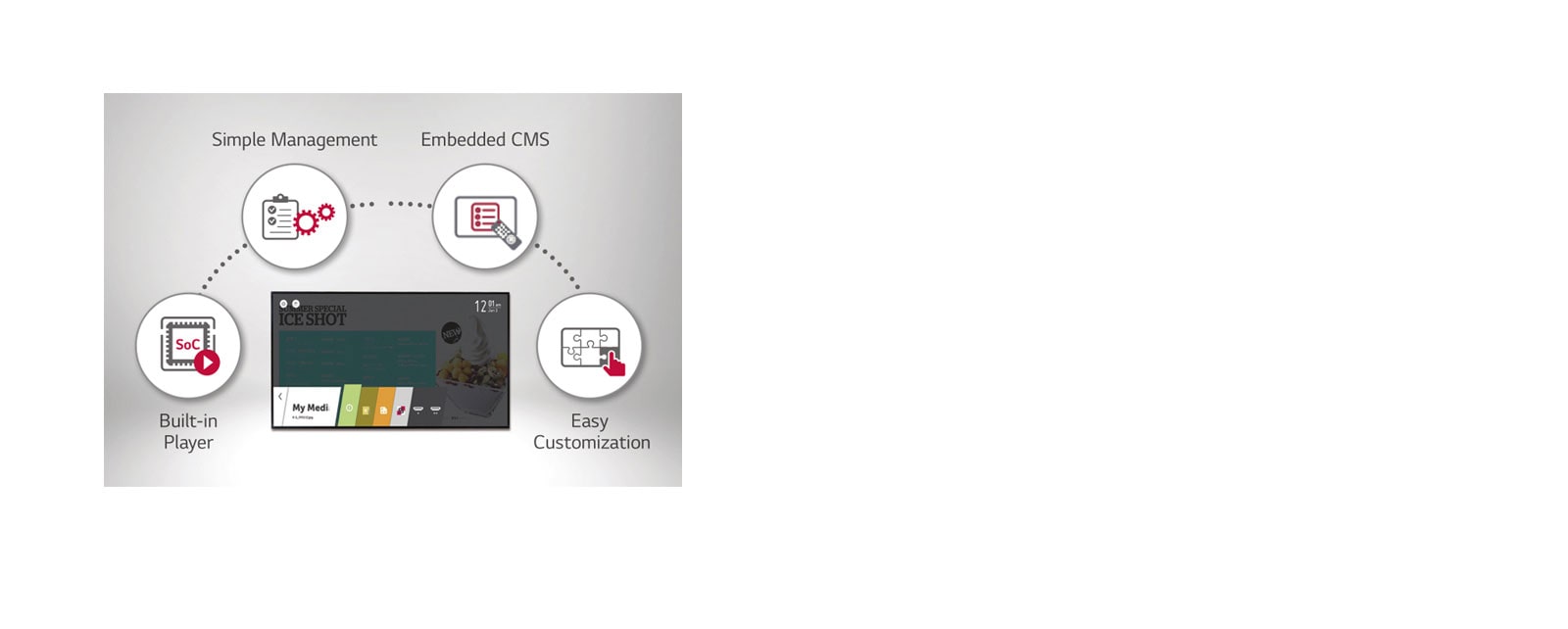

SOFTWARE COMPATIBILITY

  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control+/Control

ACCESSORY

  • Basic
    Remote Controller, Power Cord, HDMI Cable, IR Extension Kit, Manual (ESG&EIG)
    Optional
    Wi-Fi Dongle (AN-WF500)
