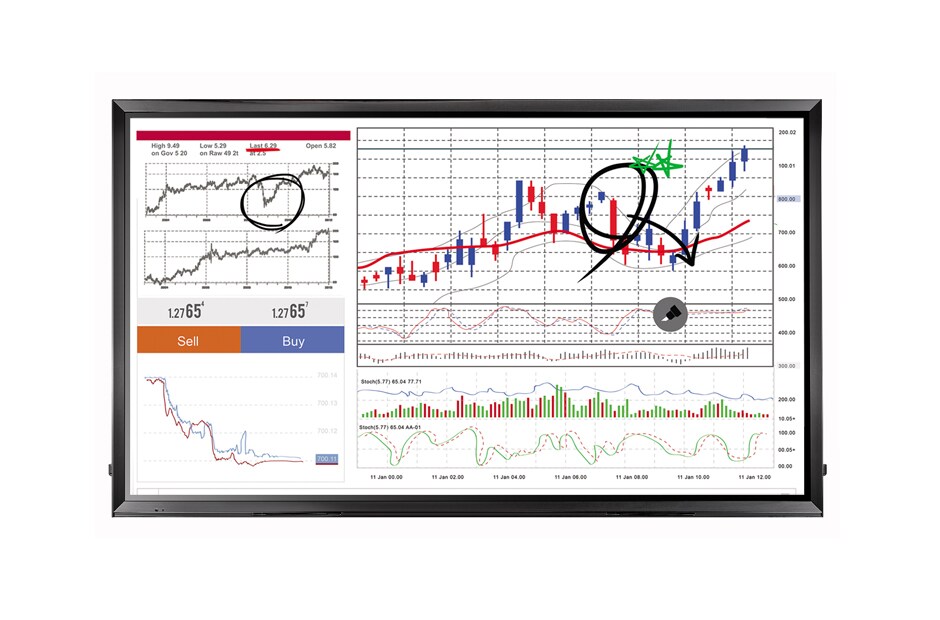

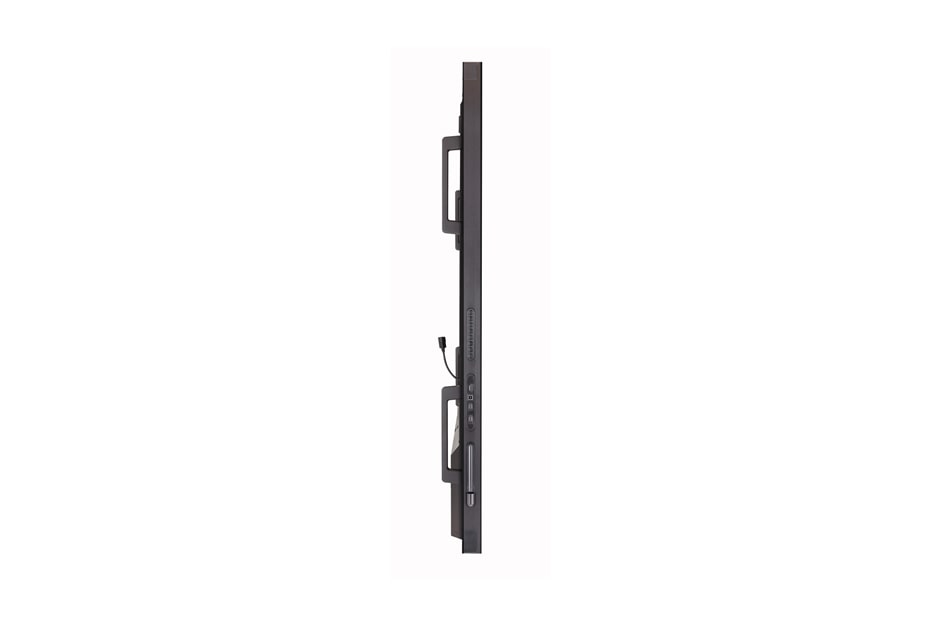

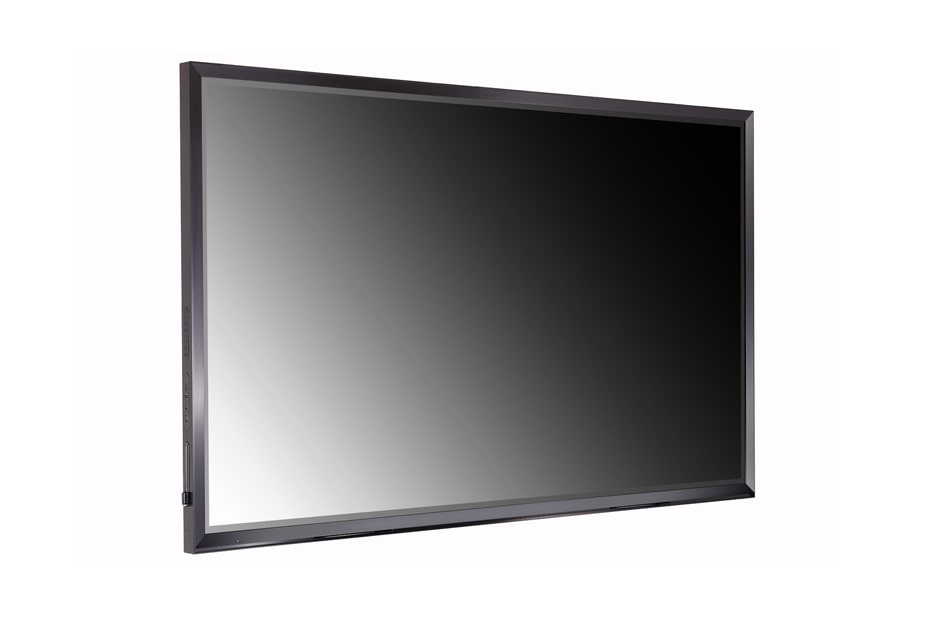

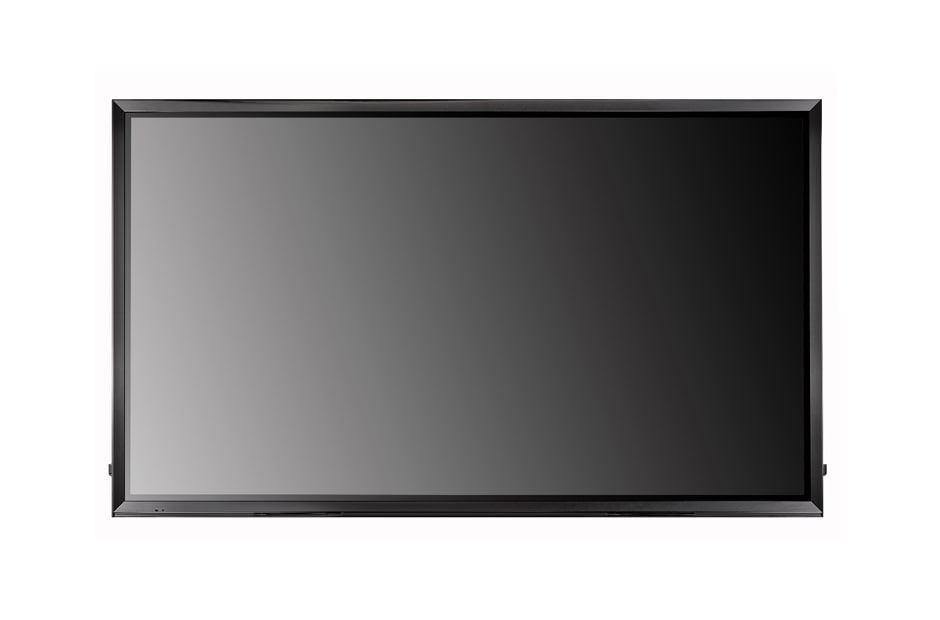

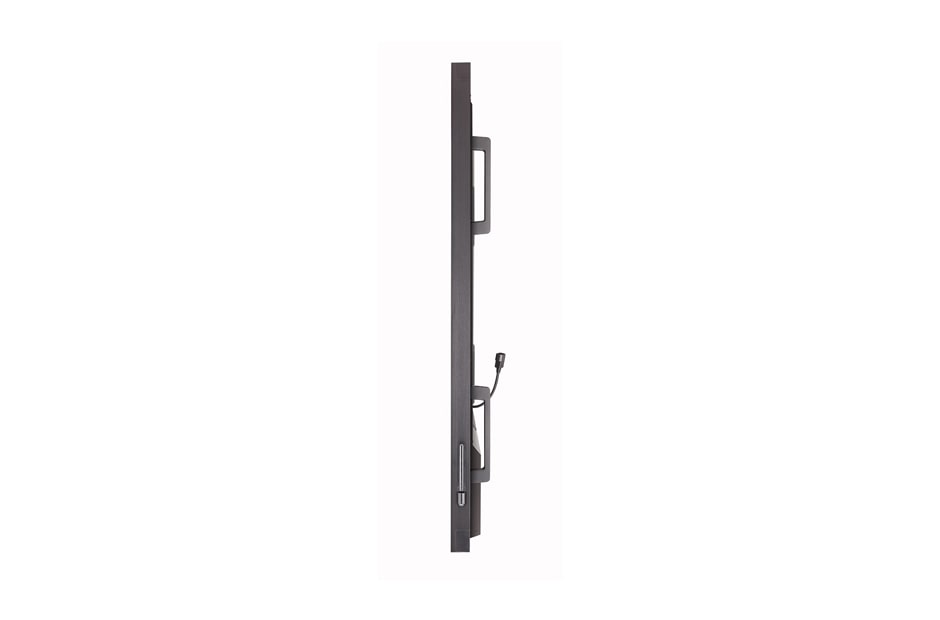

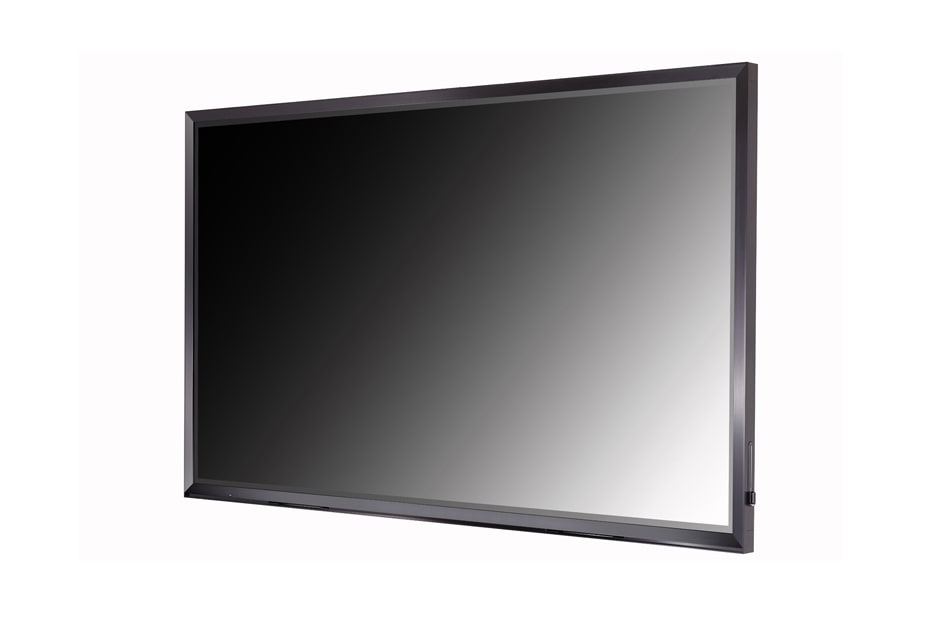

86TR3E-B
Interactive Digital Board
  • Brightness(Typ.): 410 cd/m²
  • Touch Type: InGlass™
  • Multi touch point: Max 20 Point

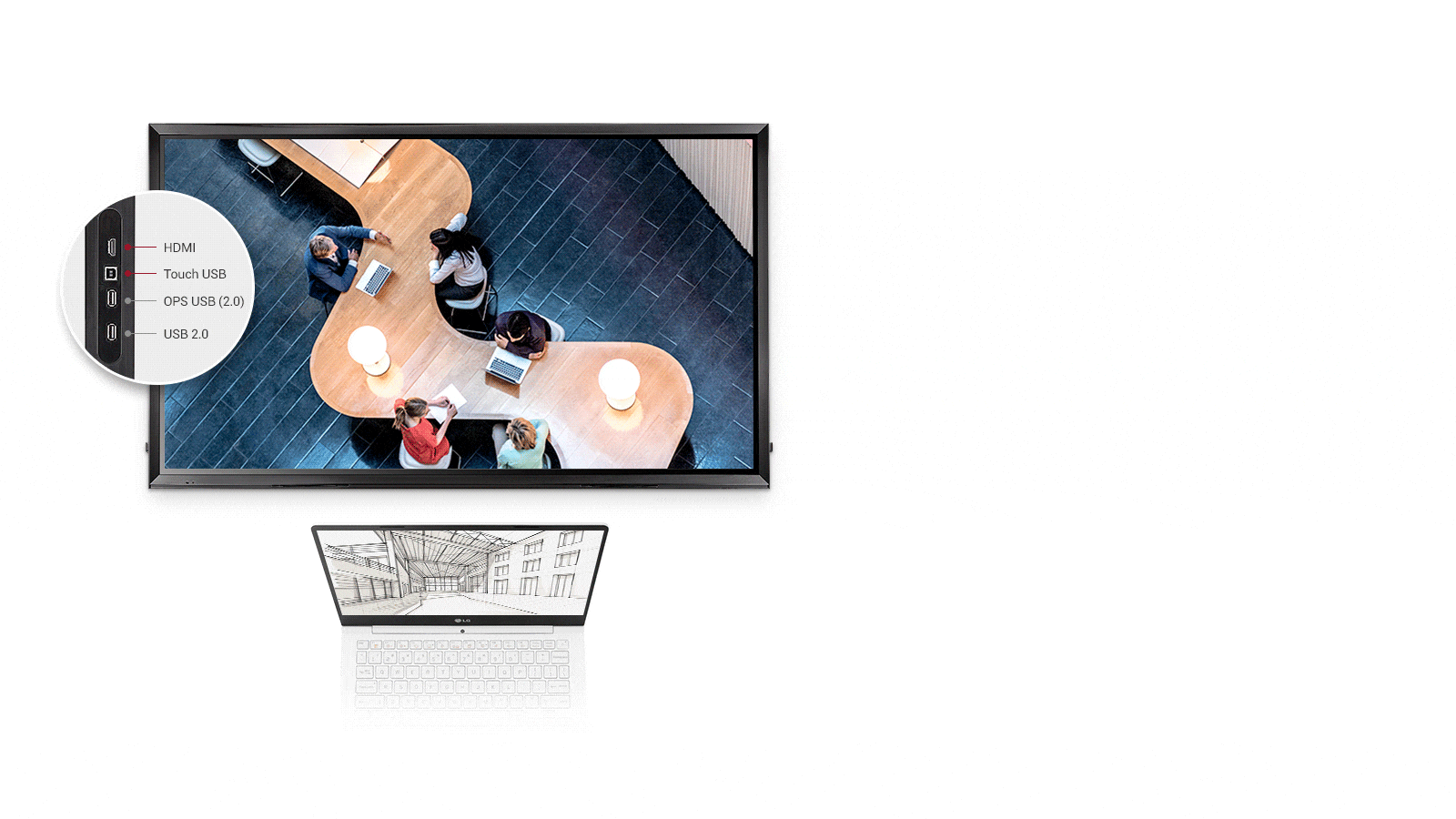

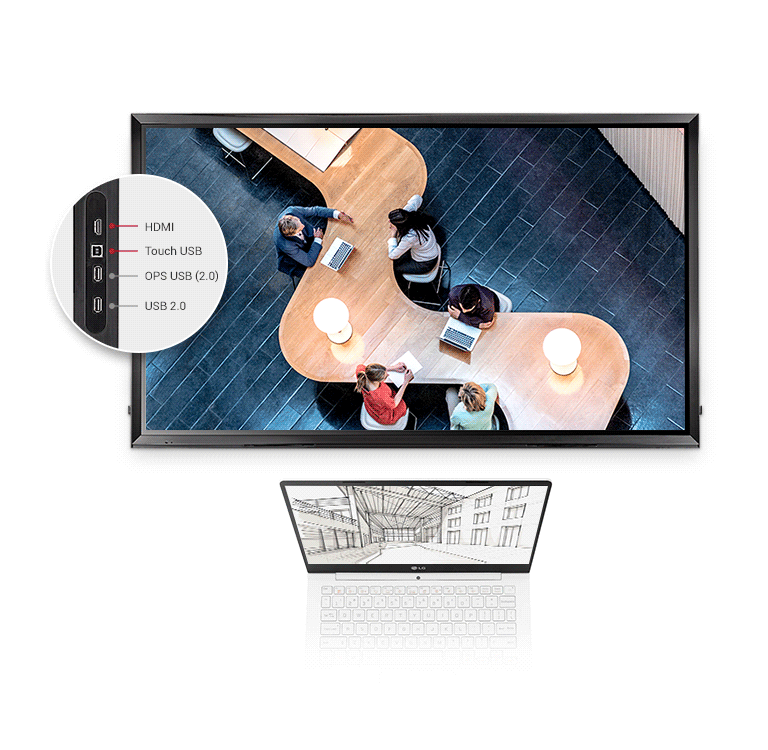

  • Interface: HDMI (3), DP, DVI, RGB, RS232C, RJ45, USB (2), OPS USB, Touch USB (2), Wi-fi Built-in
Interactive Digital Board
MSRP $
*Installation of the PC client app(IDB Duo) is required. Go to the 'Tech Spec' section of this page for the minimum requirements and then download the app from the 'Business Resources' section.
* The menu design(GUI) is subject to change without notice

PANEL

  • Screen Size
    86"
    Brightness(Module, Typ., cd/m²)
    410

CONNECTIVITY

  • Input
    HDMI (3), DP, DVI-D, RGB, Audio, USB 3.0, USB 2.0, OPS USB 2.0
    Output
    Touch USB 2.0 (2)

PHYSICAL SPECIFICATION

  • Bezel Width
    50.7 mm (T/L/R), 62.2 mm (B)
    Monitor Dimension (W x H x D)
    2,026.9 x 1,180.3 x 79.5 mm (w/o Handle)
  • Weight (Head)
    85.8 kg
    Carton Dimensions (W x H x D)
    2,190 × 1,470 × 371 mm
  • Packed Weight
    114.6 kg
    VESA™ Standard Mount Interface
    600 x 400mm

ENVIRONMENT CONDITIONS

  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %

SOFTWARE COMPATIBILITY

  • Content Management Software
    SuperSign Premium
    Control and Monitoring Software
    SuperSign Link

MINIMUM REQUIREMENTS FOR LG IDB DUO

  • OS (Windows 32bit or 64bit)
    Windows 7, Windows 10
    OS (macOS)
    macOS 10.12 Sierra, MacOS 10.13 High Sierra
  • CPU (Windows)
    2.7GHz+ Dual Core Broadwell or higher
    CPU (macOS)
    Any CPU which supports Sierra or High Sierra
  • Memory
    4GB RAM
    Hard Drive
    1GB of free space
  • Graphics Hardware (Windows)
    Intel Iris or higher, Nvidia, ATI
    Graphics Hardware (macOS)
    Any GPU which supports Sierra or High Sierra

ACCESSORY

  • Basic
    Remote Controller (include battery 2ea), Power Cord, QSG, HDMI (3M), Regulation Book, Phone to RS232C Gender, Touch Pen (2ea), Eyebolt (2ea)
    Optional
    OPS Kit (KT-OPSA)

TOUCH

  • Touch type
    InGlass™
    Available object size for touch
    more than Ø 3 mm
  • Accuracy
    2 mm
    Interface
    USB 2.0
  • Protection Glass Thickness
    4T (Anti-Glare)
    Multi touch point
    Max 20 Point
