LAAF015-EG
All-in-one Premium Series
  • Pixel Pitch: 1.5mm
  • Screen Size: 130"
  • Brightness: 500 cd/m²
  • HDR (HDR10/HDR10 Pro) / Surface Sound
  • Embedded System Controller

component-OBScountrySelectDesc

All-in-one Premium Series

Winner of Design Awards

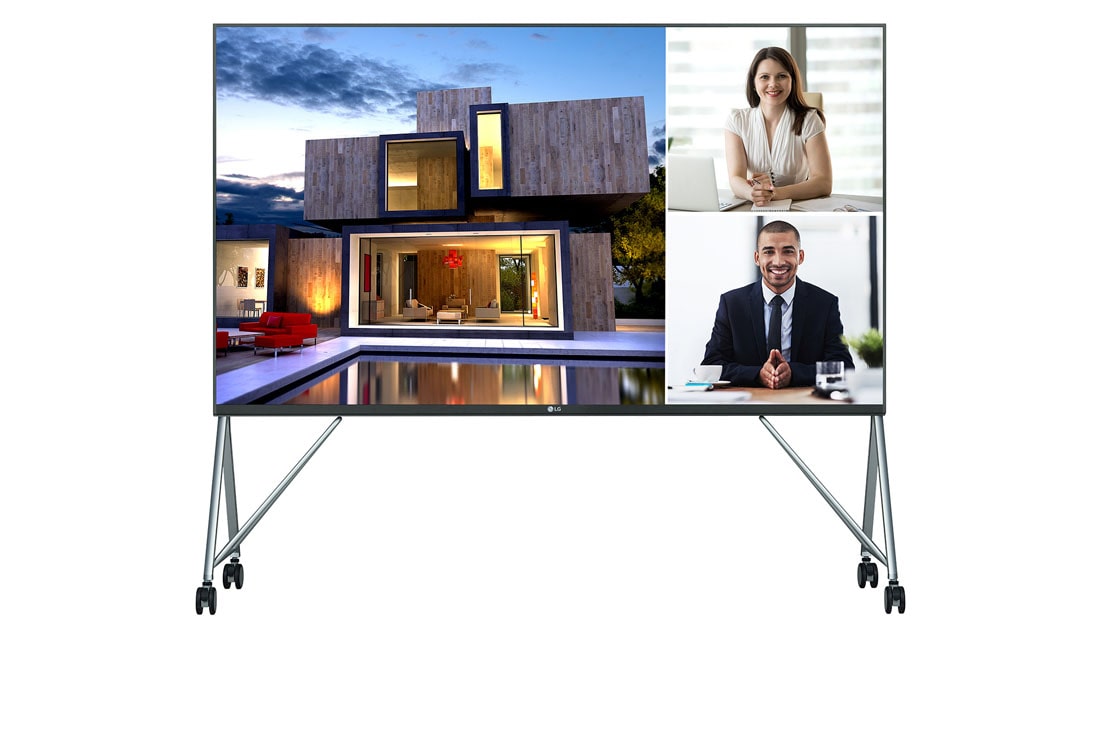

130" Large Screen with No Bezel

The greatest advantage of LG's LED screen is the 130-inch large-sized screen with no bezel. Even bigger than four 55-inch conventional LCD displays combined, it displays content without lines or distortions and provides a more immersive visual experience.
130" Large Screen with No Bezel 130" Large Screen with No Bezel

Vivid Color Expression Powered by HDR

With HDR (HDR10, HDR10 Pro*) support, content becomes more vivid and has greater visual impact. The wider color spectrum and greater contrast ratio allows viewers to fully enjoy content as it appears in real life.
Vivid Color Expression Powered by HDR Vivid Color Expression Powered by HDR
* HDR10 Pro is LG's own HDR solution to process HDR signal by using enhanced dynamic tone mapping.

Immersive Surface Sound

The 130" All-in-one LED Screen doesn't require any additional speakers for its impactful audio effect. Its embedded Surface Sound comes from the entire screen with 162W (4.5W x 36points) and is able to reach all meeting attendees, including people seated far from the screen.
Immersive Surface Sound Immersive Surface Sound

Multi Screen with PBP/PIP

PBP (Picture-By-Picture) features multi screen in a single display with upto 2 input sources while PIP (Picture-In-Picture) supports playing both main screen and sub screen at the same time with various layouts. This gives great flexibility to allocate space for each content source.
Multi Screen with PBP/PIP Multi Screen with PBP/PIP
Physical Parameters
  • Pixel Configuration
    3 in 1 SMD
    Pixel Pitch(mm)
    1.5
  • Screen Resolution (WxH)
    1,920 x 1,080
    Screen Dimension (W x H x D,mm)
    2,880 x 1,620 x 128.5 (w/o Screen Frame)
  • Screen Weight (kg)
    162 (w/o Screen Frame)
    No. of Cabinet per Screen (WxH)
    3 x 3
  • No. of Modules per Cabinet (WxH)
    4 x 3
    Cabinet Resolution (WxH)
    640 x 360
  • Cabinet Demension (WxHxD, mm)
    960 x 540 x 128.5
    Cabinet Surface Area (m2)
    0.52
  • Weight per Cabinet (kg/cabinet)
    Master: 19.34, Slave: 17.84
    Weight per Square Meter (kg/m2)
    34.72
  • Physical Pixel Density (pixel/m2)
    444,444
    Flatness of Cabinet (mm)
    ±0.2
  • Cabinet Material
    Front : Die Casting Aluminum
    Rear : PC+ABS
    Servie Access
    Front and Rear
Optical Specifications
  • Max. Brightness
    500 cd/m2
    Color Temperature
    6,500
  • Visual Viewing Angle (Horizontal)
    160
    Visual Viewing Angle (Vertical)
    140
  • Brightness Uniformity
    95%
    Color Uniformity
    ±0.015Cx,Cy
  • Contrast Ratio
    5,000 : 1
    Processing Depth
    16 bit
  • HDR Compatibility
    HDR10, HDR10 Pro (HDR10 Pro is LG's own HDR solution to process HDR signal by using enhanced dynamic tone mapping.)
Electrical Specifications
  • Power Consumption (W/Screen, Max)
    2,900
    Power Consumption (W/Screen, Avg.)
    980
  • Power Consumption (W/m2, Max)
    622
    Power Supply (V)
    100 to 240
  • Frame Rate (Hz)
    50 / 60
    Refresh Rate (Hz)
    3,840
  • Sound Output (Max)
    162W
Operation Specifications
  • LED Lifetime (Half Brightness)
    100,000
    Operating Temperature (℃)
    0 to +40
  • Operating Humidity
    10-80% RH
Connectivity(Embeded Controller)
  • Video Inputs
    HDMI In(3), DP In, USB 2.0
    Control
    RJ45 In, RS232C In/Out
  • Special Features
    Temperature Sensor, Ambient Light Sesnsor, Crestron Connected
SW
  • Platform
    webOS4.0
    Support
    Signage365 Care, SuperSign CMS, LED Assistant
CERTIFICATION
  • Certification
    IEC 60950-1 / EN 60950-1 / UL60950-1
    FCC Class A / CE / KC
Environment
  • Environment
    RoHS
Basic Accessory
  • Basic Accessory
    Data Cable, LAN Cable, Power Cord
    RS232C Gender (9pin to Phone Jack)
    Remote Controller, IR Receiver, Manual
Optional Accessory
  • Optional Accessory
    Screen Frame (ACC-LAASF15), Floor Stand (ST-1300F)
