ARUN120LLS5 component-copyModelName

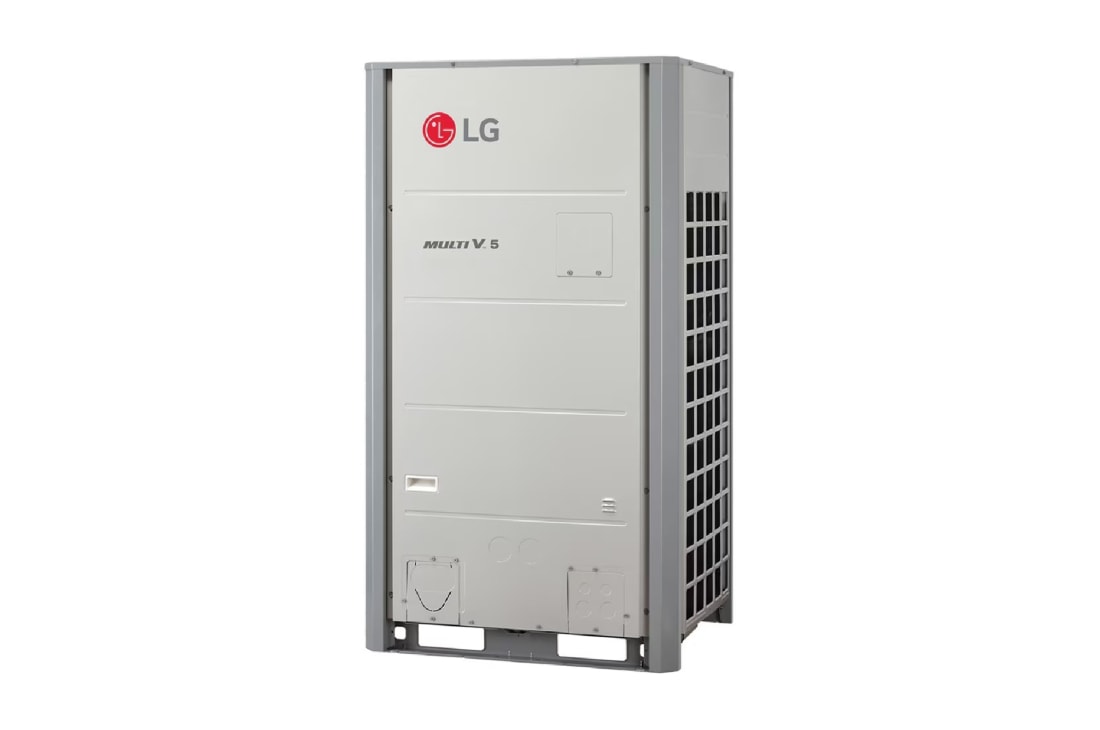

MULTI V 5 PRO, Heatpump, Outdoor Unit, 12HP, R410A

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (ARUN120LLS5)
    $
    $
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (ARUN120LLS5)
    $
    $
    LG Members Price
Total
MULTI V 5 PRO, Heatpump, Outdoor Unit, 12HP, R410A
  • The 5th generation inverter compressor is surrounded by a shield represented by lines.

    High Reliability

    MULTI V 5 PRO is equipped with the 5th generation inverter compressor. It reduces vibration and bearing loads, and increases bearing performance in oil-free operation.

  • A cogwheel surrounded by two circulating arrows.

    Dual Sensing Control

    Dual Sensing Control senses both humidity and temperature. Also, it controls temperature and amount of air according to the surrounding environment for economical and comfortable operation.

  • A shield with a check mark in the circle.

    Corrosion Resistance

    LG’s exclusive “Black Fin” heat exchanger brings durability and long-lasting performance. This coating offers strong protection from various corrosive external substances.

Close
POWER SUPPLY
  • Case 1 (V, Phase, Hz)
    50 Hz 380-415 V 3N~
    Limit Range of Voltage(Case 1) (V)
    342 - 456
  • Case 2 (V, Phase, Hz)
    60 Hz 380 V 3N~
    Limit Range of Voltage(Case 2) (V)
    342 - 418
COOLING CAPACITY
  • Rated (kW)
    33.6
    Rated (Btu/h)
    114600
HEATING CAPACITY
  • Rated (kW)
    33.6
    Rated (Btu/h)
    114600
Power Input(Cooling)
  • Rated (kW)
    8.90
POWER INPUT(HEATING)
  • Rated (kW)
    9.10
EFFICIENCY
  • EER(Rated) (W/W)
    3.78
    COP(Rated) (W/W)
    3.69
POWER FACTOR(COOLING/HEATING)
  • Rated
    0.93 / 0.93
OUTDOOR FAN
  • Type
    Propeller fan
    Air Flow Rate(High) (m³/min x No.)
    240 x 1
  • Discharge direction(Side / Top)
    Top
OUTDOOR FAN MOTOR
  • Type
    BLDC
    Drive
    DC INVERTER
  • Output (W x No.)
    1,200 x 1
COMPRESSOR
  • Type
    Hermetically Sealed Scroll
    Piston Displacement (cm3/rev)
    62.1
  • Number of Revolution (rev/min)
    3,600
    Oil Charging amount (cc x No.)
    5300 x 1
  • Starting Method
    Inverter
    Oil Type
    FVC68D(PVE)
HEAT EXCHANGER
  • Type
    Fin & Tube
    No.
    1
  • Fin Type
    Wide Louver Plus
Dimensions
  • Net(W x H x D) (mm)
    930 x 1690 x 760
    Shipping(W x H x D) (mm)
    960 x 1825 x 796
WEIGHT
  • Net (kg)
    172
    Shipping (kg)
    184
EXTERIOR
  • Color
    Morning Gray / Dawn Gray
    RAL (Classic)
    RAL 7038 / RAL 7037
PROTECTION DEVICE
  • High Pressure Prevention
    High pressure sensor / High pressure switch
    Frost Prevention
    O
  • Discharge Tempreature Control
    O
    Compressor/Fan Protection
    Over-heat protection / Fan driver overload protector
  • Inverter Protection
    Over-heat protection / Over-current protection
REFRIGERANT
  • Type
    R410A
    Precharged Amount (kg)
    4.7
  • GWP(Global Warming Potential)
    2087.5
    t-CO₂ eq.
    9.811
  • Control Type
    Electronic Expansion Valve
Connecting Pipe
  • Liquid (mm(inch))
    Φ12.7 (1/2)
    Gas (mm(inch))
    Φ28.58 (1-1/8)
PIPING CONNECTION TYPE
  • Liquid
    Brazing
    Gas
    Brazing
SOUND PRESSURE LEVEL (OUTDOOR UNIT)
  • Cooling / Heating (dB(A))
    59 / 60
MEASUREMENT STANDARD (PRESSURE LEVEL)
  • Measurement Standard (Pressure Level)
    ISO 3745
SOUND POWER LEVEL (OUTDOOR UNIT)
  • Cooling / Heating (dB(A))
    79 / 80
MEASUREMENT STANDARD (POWER LEVEL)
  • Measurement Standard (Power Level)
    ISO 9614
CONNECTING CABLE
  • Communication Cable(VCTF-SB) (mm² × cores)
    1.0 ~ 1.5 × 2C
ELECTRICAL CHARACTERISTIC
  • Minimium Circuit Amperes (MCA) (A)
    25.5
    Maximum Fuse Amperes (MFA) (A)
    32
  • Total Over Current Amperes (TOCA) (A)
    28
    Comp_Maximum Starting Current (MSC) (A)
    5.9
  • Comp_Rated Load Amperes (Cooling) (A)
    12.0
    Comp_Rated Load Amperes (Heating) (A)
    12.4
  • Outdoor Fan Motor_Full Load Amperes (FLA) (A)
    2.5
CONNECTABLE INDOOR UNITS NUMBER
  • Max. (Conditional) (EA)
    20(30)
