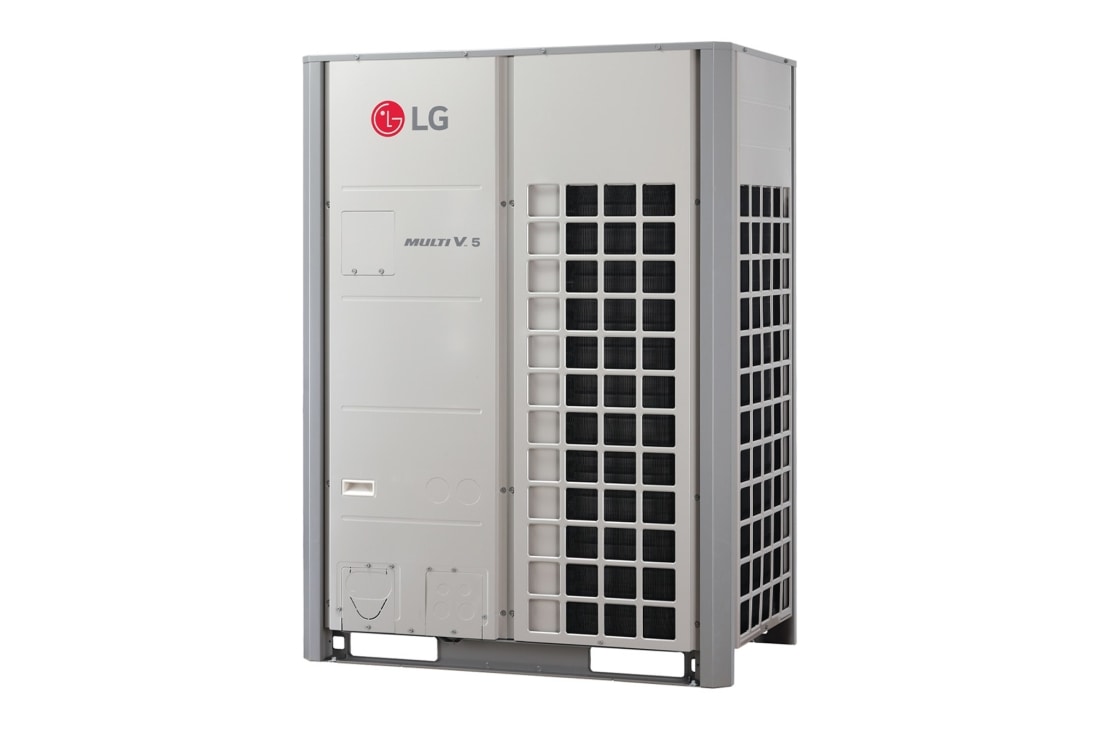

MULTI V 5 PRO, Heatpump, Outdoor Unit, 26HP, R410A
  • The 5th generation inverter compressor is surrounded by a shield represented by lines.

    High Reliability

    MULTI V 5 PRO is equipped with the 5th generation inverter compressor. It reduces vibration and bearing loads, and increases bearing performance in oil-free operation.

  • A cogwheel surrounded by two circulating arrows.

    Dual Sensing Control

    Dual Sensing Control senses both humidity and temperature. Also, it controls temperature and amount of air according to the surrounding environment for economical and comfortable operation.

  • A shield with a check mark in the circle.

    Corrosion Resistance

    LG’s exclusive “Black Fin” heat exchanger brings durability and long-lasting performance. This coating offers strong protection from various corrosive external substances.

Close
POWER SUPPLY
  • Case 1 (V, Phase, Hz)
    50 Hz 380-415 V 3N~
    Case 2 (V, Phase, Hz)
    60 Hz 380 V 3N~
  • Limit Range of Voltage(Case 1) (V)
    342 - 456
    Limit Range of Voltage(Case 2) (V)
    342 - 418
COOLING CAPACITY
  • Rated (kW)
    72.8
    Rated (Btu/h)
    248 400
HEATING CAPACITY
  • Rated (kW)
    72.8
    Rated (Btu/h)
    248 400
Power Input(Cooling)
  • Rated (kW)
    20.80
POWER INPUT(HEATING)
  • Rated (kW)
    20.50
EFFICIENCY
  • EER(Rated) (W/W)
    3.5
    COP(Rated) (W/W)
    3.55
POWER FACTOR(COOLING/HEATING)
  • Rated
    0.93 / 0.93
OUTDOOR FAN
  • Type
    Propeller fan
    Air Flow Rate(High) (m³/min x No.)
    320 X 2
  • Discharge direction(Side / Top)
    Top
OUTDOOR FAN MOTOR
  • Drive
    DC INVERTER
    Output (W x No.)
    900 × 2
COMPRESSOR
  • Type
    Hermetically Sealed Scroll
    Piston Displacement (cm3/rev)
    62.1
  • Number of Revolution (rev/min)
    3,600 ×2
    Oil Charge (cc)
    5,300 × 2
  • Starting Method
    Inverter
    Oil Type
    FVC68D(PVE)
HEAT EXCHANGER
  • Type
    Fin & Tube
    No.
    1
  • Fin Type
    Wide Louver Plus
Dimensions
  • Net(W x H x D) (mm)
    1240 x 1690 x 760
    Shipping(W x H x D) (mm)
    1280 x 1825 x 796
WEIGHT
  • Net (kg)
    268
    Shipping - kg(lbs)
    285
EXTERIOR
  • Color
    Morning Gray / Dawn Gray
    RAL (Classic)
    RAL 7038 / RAL 7037
PROTECTION DEVICES
  • High pressure protection
    High pressure sensor / High pressure switch
    Frost Prevention
    O
  • Discharge Tempreature Control
    O
    Compressor/Fan
    Over-heat protection / Fan driver overload protector
  • Inverter
    Over-heat protection / Over-current protection
REFRIGERANT
  • Type
    R410A
    Precharged Amount (kg)
    11
  • GWP(Global Warming Potential)
    2087.5
    t-CO₂ eq.
    22.963
  • Control
    Electronic Expansion Valve
Connecting Pipe
  • Liquid (mm(inch))
    Φ19.05 (3/4)
    Gas (mm(inch))
    Φ34.9 (1-3/8)
PIPE CONNECTIONS
  • Liquid Side - ㎜(inch)
    Brazing
    Gas Side - ㎜(inch)
    Brazing
SOUND PRESSURE LEVEL (OUTDOOR UNIT)
  • Cooling / Heating (dB(A))
    65 / 67
MEASUREMENT STANDARD (PRESSURE LEVEL)
  • Measurement Standard (Pressure Level)
    ISO 3745
SOUND POWER LEVEL (OUTDOOR UNIT)
  • Cooling / Heating (dB(A))
    88 / 90
MEASUREMENT STANDARD (POWER LEVEL)
  • Measurement Standard (Power Level)
    ISO 9614
CONNECTING CABLE
  • Communication Cable(VCTF-SB) (mm² × cores)
    1.0 ~ 1.5 × 2C
ELECTRICAL CHARACTERISTIC
  • Minimium Circuit Amperes (MCA) (A)
    54.5
    Maximum Fuse Amperes (MFA) (A)
    60
  • Total Over Current Amperes (TOCA) (A)
    60
    Comp_Maximum Starting Current (MSC) (A)
    11.8
  • Comp_Rated Load Amperes (Cooling) (A)
    31.5
    Comp_Rated Load Amperes (Heating) (A)
    31.0
  • Outdoor Fan Motor_Full Load Amperes (FLA) (A)
    2.5
CONNECTABLE INDOOR UNITS NUMBER
  • Max. (Conditional) (EA)
    42(64)
