DELUXE INVERTER V, Singlesplit 6,8kW, Energieeffizienz A++/A+, AC Tag on
Energy label P24EL,D24RL.png
Energieklasse : CH
Produktinformationsblatt

Spezifikationen

Bewertungen

Support

DELUXE INVERTER V, Singlesplit 6,8kW, Energieeffizienz A++/A+, AC Tag on

Energy label P24EL,D24RL.png
Energieklasse : CH
Produktinformationsblatt

DELUXE INVERTER V, Singlesplit 6,8kW, Energieeffizienz A++/A+, AC Tag on

D24RL
()

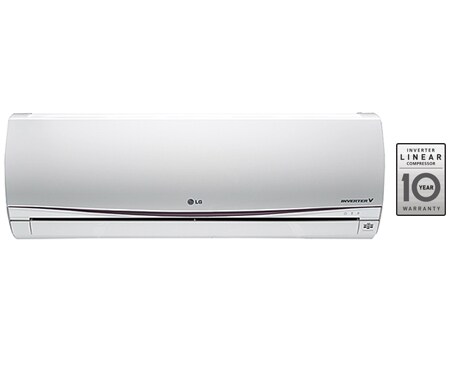

  • Vorderseite von DELUXE INVERTER V, Singlesplit 6,8kW, Energieeffizienz A++/A+, AC Tag on D24RL

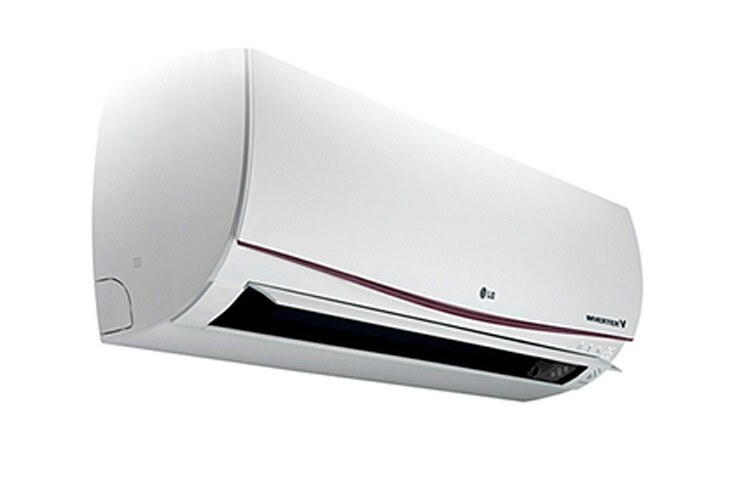

  • LG DELUXE INVERTER V, Singlesplit 6,8kW, Energieeffizienz A++/A+, AC Tag on, D24RL

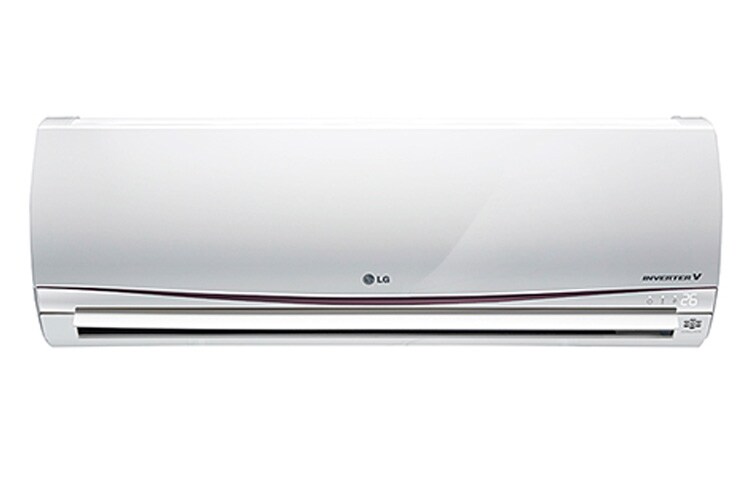

  • LG DELUXE INVERTER V, Singlesplit 6,8kW, Energieeffizienz A++/A+, AC Tag on, D24RL

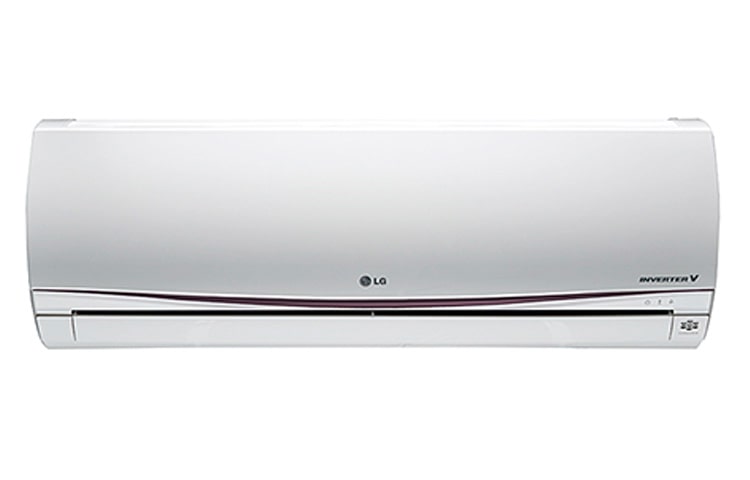

  • LG DELUXE INVERTER V, Singlesplit 6,8kW, Energieeffizienz A++/A+, AC Tag on, D24RL

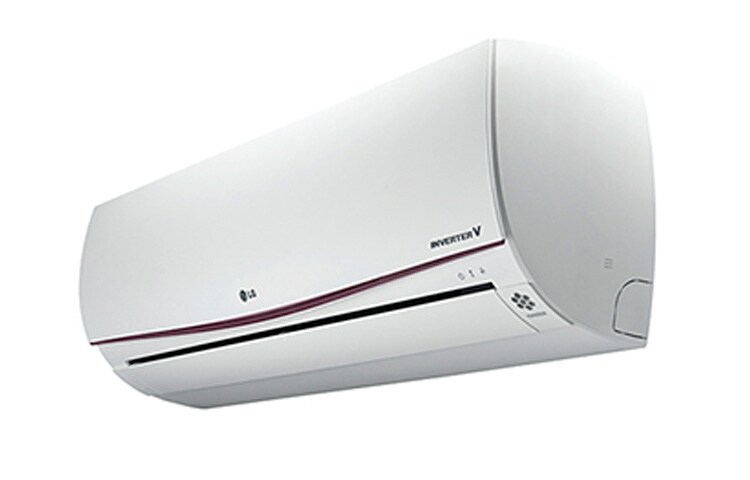

  • LG DELUXE INVERTER V, Singlesplit 6,8kW, Energieeffizienz A++/A+, AC Tag on, D24RL
  • LG DELUXE INVERTER V, Singlesplit 6,8kW, Energieeffizienz A++/A+, AC Tag on, D24RL
Vorderseite von DELUXE INVERTER V, Singlesplit 6,8kW, Energieeffizienz A++/A+, AC Tag on D24RL
LG DELUXE INVERTER V, Singlesplit 6,8kW, Energieeffizienz A++/A+, AC Tag on, D24RL
LG DELUXE INVERTER V, Singlesplit 6,8kW, Energieeffizienz A++/A+, AC Tag on, D24RL
LG DELUXE INVERTER V, Singlesplit 6,8kW, Energieeffizienz A++/A+, AC Tag on, D24RL
LG DELUXE INVERTER V, Singlesplit 6,8kW, Energieeffizienz A++/A+, AC Tag on, D24RL
LG DELUXE INVERTER V, Singlesplit 6,8kW, Energieeffizienz A++/A+, AC Tag on, D24RL

Hauptmerkmale

  • LG AC Tag On
  • Aktive Energiekontrolle
  • Stylisches Design
  • Plasmaster™ Ionisierer Plus
Mehr
Drucken

Alle Spezifikationen

INNENEINHEIT

  • Gewicht

    14,5 kg

  • Betriebsstrom (Standard/Max) in A

    Kühlung (10,0 / 10,6); Heizung (10,2 / 11,0)

  • Leistungsaufnahme (Standard) in kW

    Kühlung (2,2); Heizung +7°C (2,3)

  • Energieeffizienzklasse (Kühlen/Heizen)

    A++ / A+

  • COP

    3,5

  • Leistung (Min/Standard/Max) in kW

    Kühlung (0,9 / 6,8 / 7,4); Heizung (0,9 / 8,0 / 8,6; Heizung -7°C (4,8)

  • Empf. Verbingsleitung

    4 x 1,0 mm2

  • Empf. Netzkabel

    3 x 4 mm2

  • Lüfter Motorleistung

    76 W

  • Leistung (nominal) Heizen

    5,5 kW

  • Leistung (nominal) Kühlen

    6,8 kW

  • Spannungsversorgung ü. AE

    ø 1 / 220-240 V / 50Hz

  • Max. Absicherung

    25 A

  • Jahresenergievrbauch (Kühlen/Heizen) in kWh

    391 / 2027

  • SEER

    6,1

  • Anlaufstrom (Standard) in A

    Kühlung (10,0); Heizung (10,2)

  • SCOP

    3,8

  • Schallleistungspegel (Hoch) in dBA

    Kühlung (65 dBA)

  • Abmessungen (H x B x T) in mm

    330 x 1090 x 248

  • EER

    3,1

  • Luftvolumenstrom (Max/H/M/L/S) in m3/h

    Kühlung (1380 / 1020 / 840 / 660 / 480); Heizung ( - / 1110 / 900 / 690 / - )

  • Entfeuchtungsrate

    2,5 l/h

  • Schalldruckpegel (H/M/L/S) in dBA

    Kühlung (45 / 40 / 35 / 29); Heizung (45 / 40 / 35 / - )

AUSSENEINHEIT

  • Gewicht

    46 kg

  • Abmessungen (H x B x T) in mm

    655 x 870 x 320

  • Luftvolumenstrom (hoch) in m3/h

    Kühlung (3000)

  • Rohranschlüsse (mm/zoll)

    lüssig (6,35 / 1/4); Gas (15,88 / 5/8); Abfluss (21,5 / 0,85)

  • Verdichter

    Twin Rotary

  • Betriebsbereich (Kühlung)

    -10 - 48 °C DB

  • Schalldruckpegel (hoch) in dBA

    Kühlung (54); Heizung (54)

  • Leitungslänge (Min-Max)

    0-30m

  • Schallleistungspegel (Hoch) in dBA

    Kühlung (70)

  • Betriebsbereich (Heizung)

    -15 - 24 °C WB

  • Kältemittel (enthält fluorierte Treibhausgase)

    Typ (R410A); Füllmenge bis 7,5m (1350 g); Nachfüllmenge (35 g/m)

  • Lüfter Motorleistung

    85 W

  • Höhendifferenz (max)

    15m
