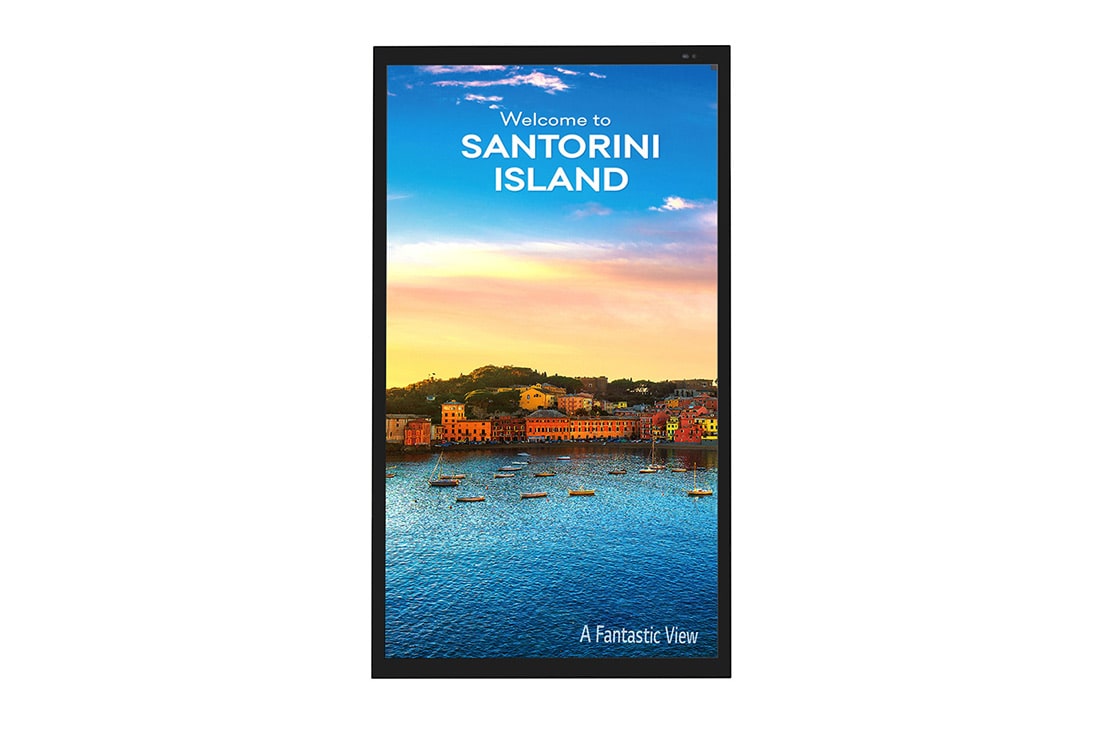

XE4F Series - 55" High Brightness Signage
55XE4F-B
(1) Site inspection is required on selected products,. (2) Extra cost involved on installation service at Discovery Bay. Please refer to FAQ section for details.
Shipping delays may occur due to the delivery company's circumstance., weather and traffic.
Speaker (Built-in)
NO
Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC / VCCI
ePEAT(US only)
NO
ERP / Energy Star
YES / NO
OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic
Optional
NO
Basic
Remote Controller, Manual(EIG, IG), Regulation Book, Phone to RS232C Gender, HDMI Cable, POWER CABLE, Battery, Screws
Response Time ('Paint' app on Windows 10 PC)
N/A
Accuracy (Typ.)
N/A
Available Object Size for Touch
N/A
Interface
N/A
Multi Touch Point
N/A
Operating System Support
N/A
Protection Glass Thickness
N/A
Protection Glass Transmission
N/A
Operation Humidity
5 % to 100 %
Operation Temperature
-30 °C to 50 °C
Bezel Width
T/R/L/B : 38.4/26/26/38.4mm
Bezel Color
Black
Carton Dimensions (W x H x D)
1446 x 890 x 207mm
Handle
NO
Monitor Dimensions (W x H x D)
1292.5 x 737.4 x 88.0mm
Monitor Dimension with Stand (W x H x D)
N/A
Packed Weight
46Kg
VESA Standard Mount Interface
N/A
Weight (Head)
40Kg
Weight (Head+Stand)
N/A
OPS Power Built-in
NO
OPS Type compatible
NO
Power Type
Built-in Power
Power Supply
AC 100-240V~, 50/60Hz
Anti-Reflective
YES
Degree of Protection
YES (IK10)
Infrared - Resistance (IR)
YES
Shatter-Proof
YES
Tempered / Chemical strengthening
Tempered strengthening
Thickness
5mm
Connected Care
YES
Mobile CMS
NO
Promota
NO
SuperSign Cloud
NO
SuperSign CMS
YES
SuperSign Control+
YES
SuperSign WB
NO
Power Protection
YES
Conformal Coating (Power Board)
YES
Direct Sunlight
YES
IP Rating
IP56
Overlay Touch Compatibility
N/A
Smart Calibration
N/A
Tilt (Face down)
N/A
Tilt (Face up)
Max. 15 degree
Contrast Ratio
1,000:1
Aspect Ratio
16:9
Back Light Type
Direct
Brightness
4,000nit (Typ.), 3,200nit (Min.)
Color Depth (Number of Colors)
16.7 Million colors
Color Gamut
NTSC 72%
Dynamic CR
500,000:1
Life time
50,000Hrs (Typ.)
Native Resolution
1920 x 1080 (FHD)
Operation Hours (Hours/Day)
24/7
Panel Technology
IPS / M+
Portait / Landscape
YES / YES
QWP (Quarter Wave Plate)
YES
Refresh Rate
60Hz
Response Time
9ms (G to G)
Screen Size (Inch)
55
Surface Treatment (Haze)
Haze 3%
Transparency
N/A
Viewing Angle (H x V)
178º x 178º
Local Key Operation
NO
Acceleration(Gyro) Sensor
YES
Auto Brightness Sensor
YES
BLU Sensor
YES
Current Sensor
NO
FAN (Built-in)
YES
Humidity Sensor
YES
Internal Memory (eMMC)
16GB
Pixel Sensor
YES
Power Indicator
YES
Proximity Sensor
NO
Temperature Sensor
YES
Wi-Fi/BT (Built-in)
NO
Daisy Chain
NO
Audio In
NO
Audio Out
NO
DP In
YES (HDCP 2.2)
DP Out
NO
DVI-D In
NO
External Speaker Out
YES
HDMI In
YES (2ea)
HDMI In (HDCP Ver.)
2.2
HDMI Out
NO
IR In
NO
IR Out
NO
RGB In
NO
RJ45(LAN) In
YES (2ea, LAN 1ea / HDbaseT 1ea)
RJ45(LAN) Out
YES
RS232C In
YES
RS232C Out
YES
Touch USB
NO
USB In
USB2.0 Type A (2ea)
Pro:Idiom
YES
Auto Set ID
YES
Backlight Sync
YES
Beacon
NO
Booting Logo Image
YES
Brightness Compensation
NO
Cisco Certification
NO
Control Manager
YES
Crestron Connected
NO
External Input Rotation
YES
Fail over
YES
Gapless Playback
YES
Group Manager
YES
HDMI-CEC
YES
ISM Method
YES
Local Contents Scheduling
YES
Local Network Sync
YES
Network Ready
NO
No Signal Image
YES
OS Ver. (webOS)
webOS 4.0
PBP
YES (2PBP)
PIP
YES
Play via URL
YES
PM mode
YES
RS232C Sync
YES
Scan Inversion
NO
Screen Rotation
YES
Screen Share
NO
Setting Data Cloning
YES
SI Server Setting
YES
Smart Energy Saving
YES
SNMP
YES
Status Mailing
YES
Tile Mode Setting
YES
USB Plug & Play
YES
Video Tag
YES (4 Video Tag)
Wake on LAN
YES
webRTC
YES
W/B Setting by Grey scale
NO
BTU (British Thermal Unit)
1126 BTU/Hr(Typ.), 1364 BTU/Hr(Max.)
DPM
3.5W(WOL Off), 8W(WOL on)
Power off
0.5W
Max.
400W
Typ.
330W (Full White) 178W (IEC 62087)
