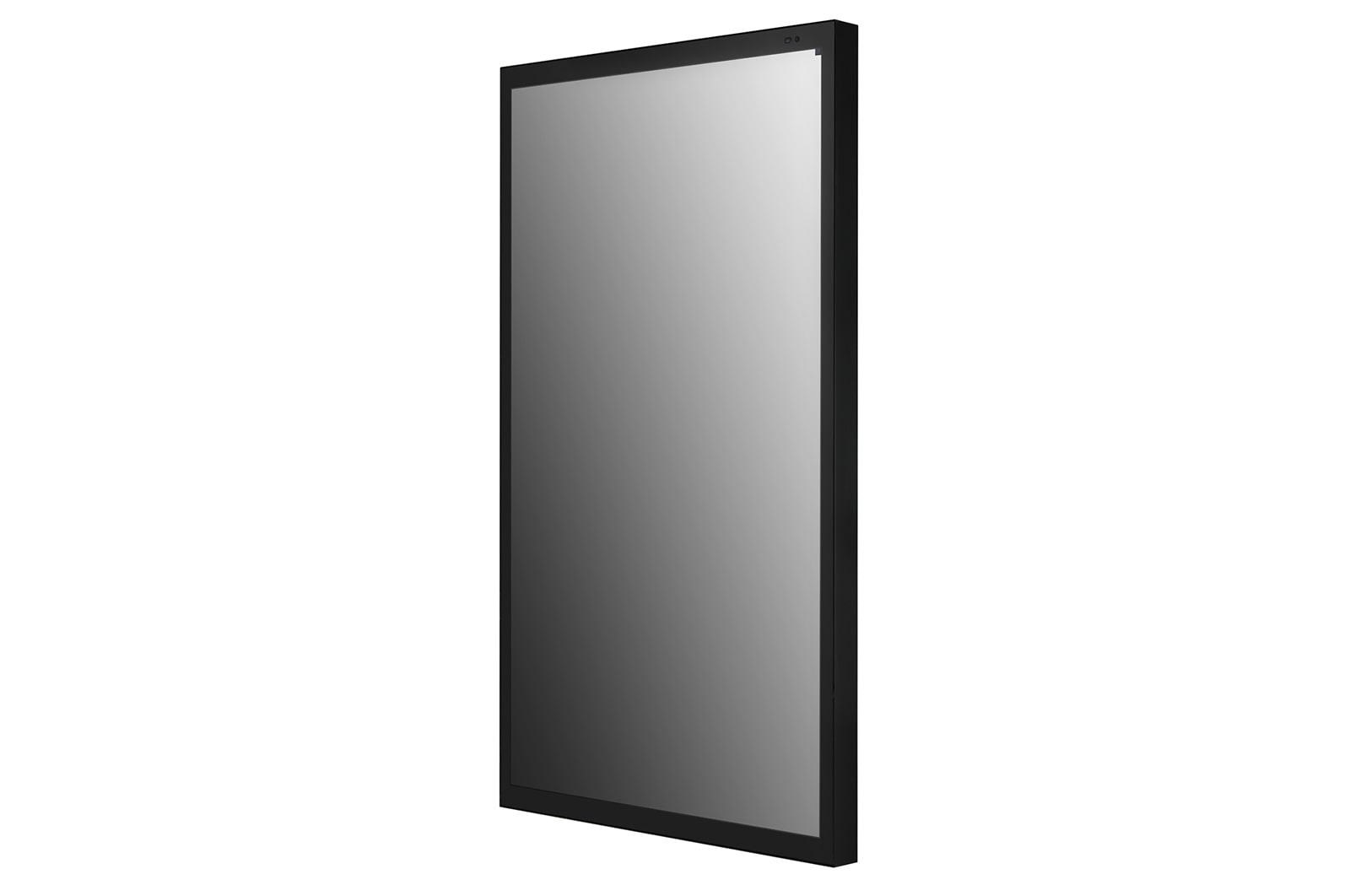

XE4F Series - 55" High Brightness Signage

55XE4F-B

XE4F Series - 55" High Brightness Signage

Slim & Robust Design with Outstanding Visibility

With a slim & robust design, XE4F series can be easily installed to meet the customer's needs under in external environments that require complex installation conditions. And upgraded brightness captures the customer's attention even under strong and direct sunlight.
SLIM & ROBUST DESIGN

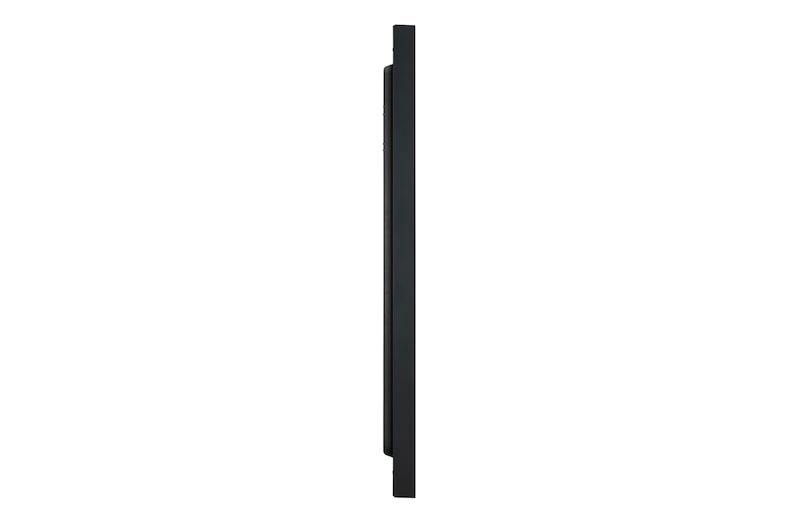

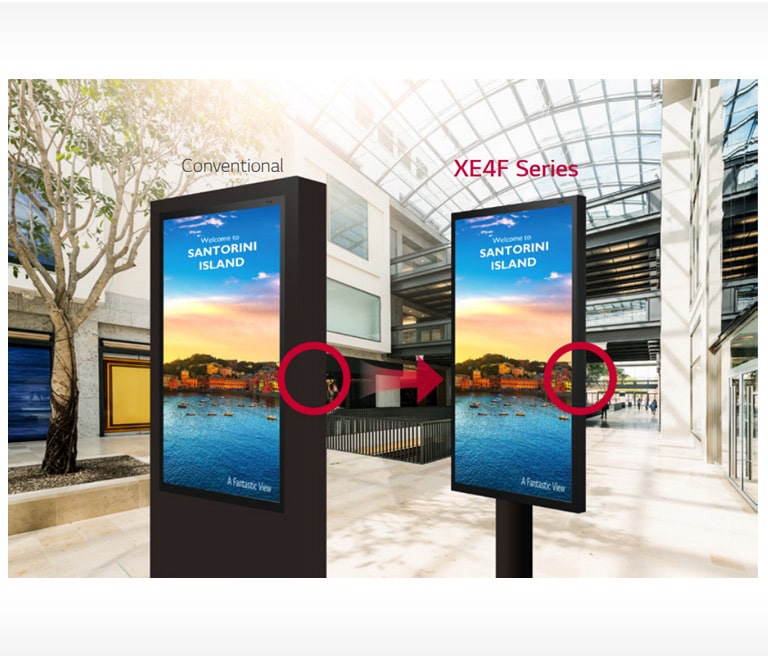

Slim & Light Design

XE4F series composed of single display with a light and slim design and it can be easily customized to suit various external environments with no need for separate casing.
SLIM & ROBUST DESIGN

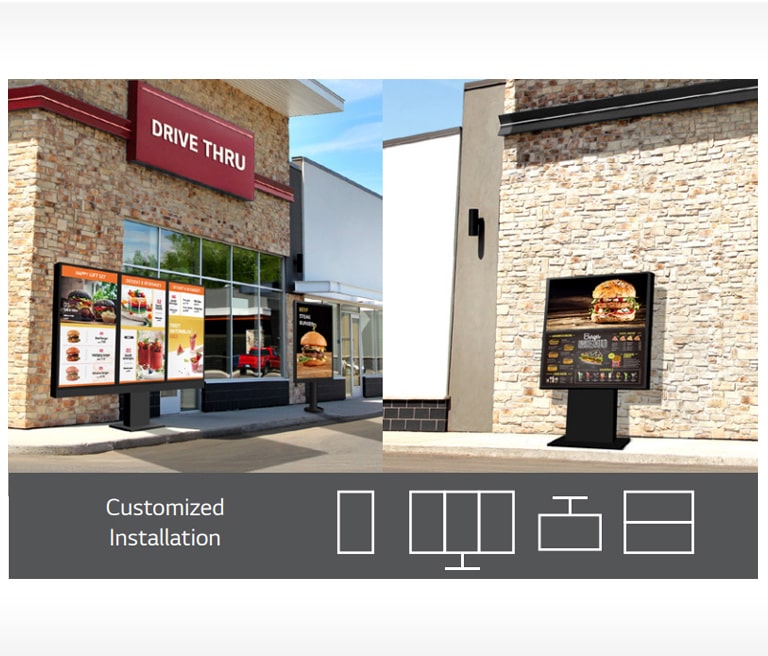

Easy integration for partner's customized design

The XE4F series are lighter and ready to be customized for various customer needs and settings. From outdoor menu boards to kiosks, the XE4F series are also mount ready and optimized for customers, based on the industry destination and use.
OUTSTANDING VISIBILITY

Bright & Brilliant

The XE4F series possess powerful brightness of 4,000nits, providing clear and vivid picture quality even under direct sunlight.
OUTSTANDING VISIBILITY

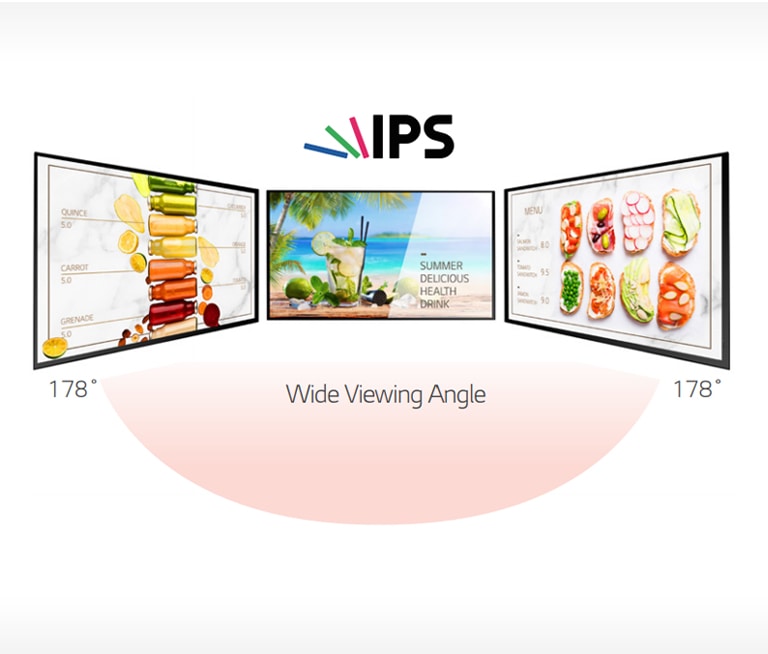

Wide Viewing Angle

IPS technology provides better control of the liquid crystals, which in turn allows the screen to be viewed at virtually any angle.
OUTSTANDING VISIBILITY

Long Lasting Brightness

By adding more LED units, XE4F operates brighter at a lower temperature, thereby lasting longer than conventional products.
OUTSTANDING VISIBILITY

Visible with Polarized Sunglasses

QWP* enables clear visibility even when the viewer is wearing polarized sunglasses.

*Lame quart d'onde

Protection assurée avec le design IP561
RELIABILITY FOR OUTDOOR USAGE

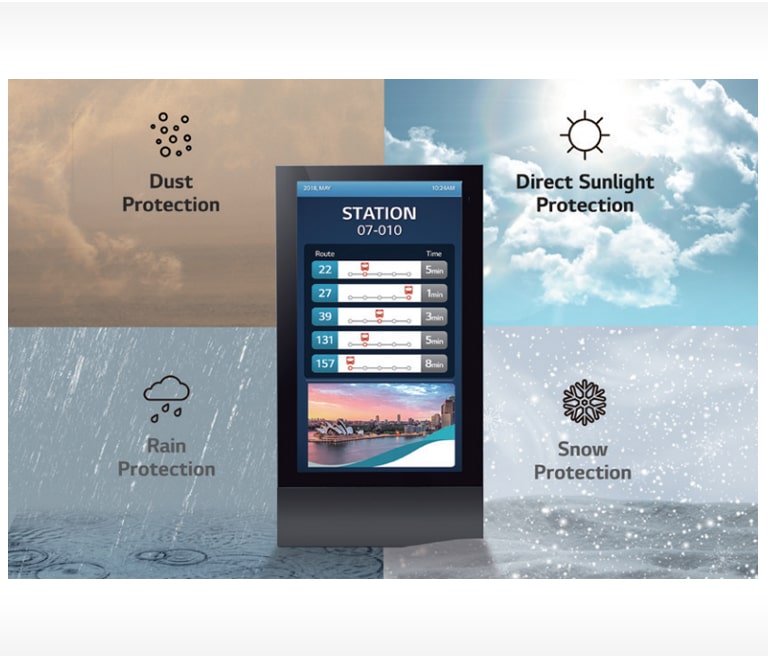

Secured Protection with IP56 Design

The display is sealed with IP56 design for reliable operation. It's designed to be not only waterproof but also weatherproof against the damaging effects of the sun, rain, snow, dust and wind, an essential feature for outdoor application.
RELIABILITY FOR OUTDOOR USAGE

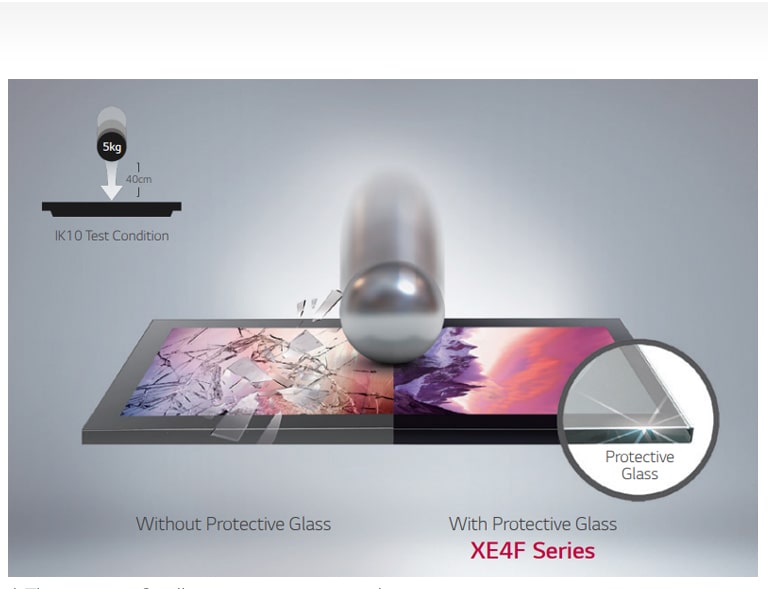

Protective Glass (IK10 Certified)

The tempered and laminated front glass ensures optimum protection from outdoor extremities, resulting in minimal to no damage from external impacts.

* L'image est utilisée à titre d'illustration uniquement.
* L'indice IK fait référence au degré de résistance aux impacts externes sur une échelle de 0 à 10. (10 indique le niveau de protection le plus élevé.)

EASY MAINTENANCE

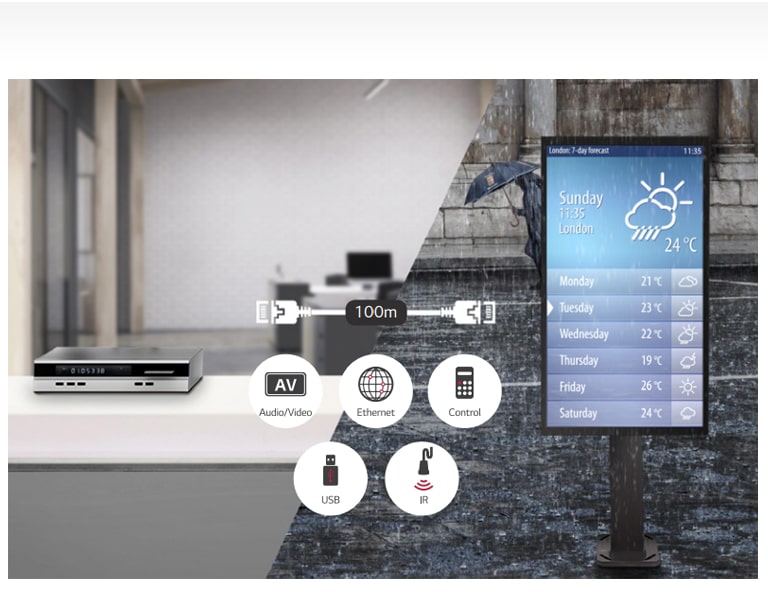

Support HDBaseT ™

XE4F Series support HDBaseT ™, the global standard for the transmission of ultra-high definition video & audio, Ethernet, controls, USB and IR over a single, long-distance cable, for easier control of the display and saving installaiton and maintenance costs.

* La série XE4F ne prend pas en charge l'alimentation électrique.

EASY MAINTENANCE

Web Monitoring

This web-based monitoring solution is user-friendly and allows the user to be at ease. It enables the user to have full access anywhere at anytime from their mobile phone while having access to both current and past data. It allows the user to monitor the unit, make adjustments, and control the unit remotely in real time.

* L'image est utilisée à titre d'illustration uniquement.

SCÈNE D'UTILISATEUR

SCÈNE D'UTILISATEUR1

All Spec

PANEL

Screen Size (Inch)

55

Panel Technology

IPS / M+

Back Light Type

Direct

Aspect Ratio

16:9

Native Resolution

1920 x 1080 (FHD)

Refresh Rate

60Hz

Brightness

4,000nit (Typ.), 3,200nit (Min.)

Contrast Ratio

1,000:1

Dynamic CR

500,000:1

Color Gamut

NTSC 72%

Viewing Angle (H x V)

178º x 178º

Color Depth (Number of Colors)

16.7 Million colors

Response Time

9ms (G to G)

Surface Treatment (Haze)

Haze 3%

Life time

50,000Hrs (Typ.)

Operation Hours (Hours/Day)

24/7

Portait / Landscape

YES / YES

Transparency

N/A

QWP (Quarter Wave Plate)

YES

CONNECTIVITY

HDMI In

YES (2ea)

HDMI In (HDCP Ver.)

2.2

DP In

YES (HDCP 2.2)

DVI-D In

NO

RGB In

NO

Audio In

NO

RS232C In

YES

RJ45(LAN) In

YES (2ea, LAN 1ea / HDbaseT 1ea)

IR In

NO

USB In

USB2.0 Type A (2ea)

HDMI Out

NO

DP Out

NO

Audio Out

NO

Touch USB

NO

External Speaker Out

YES

RS232C Out

YES

RJ45(LAN) Out

YES

IR Out

NO

Daisy Chain

NO

MECHANICAL SPECIFICATION

Bezel Color

Black

Bezel Width

T/R/L/B : 38.4/26/26/38.4mm

Weight (Head)

40Kg

Packed Weight

46Kg

Monitor Dimensions (W x H x D)

1292.5 x 737.4 x 88.0mm

Monitor Dimension with Stand (W x H x D)

N/A

Handle

NO

VESA Standard Mount Interface

N/A

Carton Dimensions (W x H x D)

1446 x 890 x 207mm

Weight (Head+Stand)

N/A

PROTECTION GLASS

Thickness

5mm

Degree of Protection

YES (IK10)

Tempered / Chemical strengthening

Tempered strengthening

Anti-Reflective

YES

Infrared - Resistance (IR)

YES

Shatter-Proof

YES

FEATURE - HARDWARE

Internal Memory (eMMC)

16GB

Wi-Fi/BT (Built-in)

NO

Temperature Sensor

YES

Auto Brightness Sensor

YES

Pixel Sensor

YES

Proximity Sensor

NO

Current Sensor

NO

BLU Sensor

YES

Humidity Sensor

YES

Acceleration(Gyro) Sensor

YES

Power Indicator

YES

Local Key Operation

NO

FAN (Built-in)

YES

FEATURE - SOFTWARE

OS Ver. (webOS)

webOS 4.0

Local Contents Scheduling

YES

Group Manager

YES

USB Plug & Play

YES

Fail over

YES

Booting Logo Image

YES

No Signal Image

YES

RS232C Sync

YES

Local Network Sync

YES

Backlight Sync

YES

PIP

YES

PBP

YES (2PBP)

Screen Share

NO

Video Tag

YES (4 Video Tag)

Play via URL

YES

Screen Rotation

YES

External Input Rotation

YES

Gapless Playback

YES

Tile Mode Setting

YES

Setting Data Cloning

YES

SNMP

YES

ISM Method

YES

Auto Set ID

YES

Status Mailing

YES

Control Manager

YES

Cisco Certification

NO

Crestron Connected

NO

Smart Energy Saving

YES

PM mode

YES

Wake on LAN

YES

Network Ready

NO

Beacon

NO

HDMI-CEC

YES

SI Server Setting

YES

webRTC

YES

Pro:Idiom

YES

Brightness Compensation

NO

W/B Setting by Grey scale

NO

Scan Inversion

NO

ENVIRONMENT CONDITIONS

Operation Temperature

-30 °C to 50 °C

Operation Humidity

5 % to 100 %

POWER

Power Supply

AC 100-240V~, 50/60Hz

Power Type

Built-in Power

POWER CONSUMPTION

Typ.

330W (Full White) 178W (IEC 62087)

Max.

400W

BTU (British Thermal Unit)

1126 BTU/Hr(Typ.), 1364 BTU/Hr(Max.)

DPM

3.5W(WOL Off), 8W(WOL on)

Power off

0.5W

SOUND

Speaker (Built-in)

NO

CERTIFICATION

Safety

CB / NRTL

EMC

FCC Class "A" / CE / KC / VCCI

ERP / Energy Star

YES / NO

ePEAT(US only)

NO

OPS COMPATIBILITY

OPS Type compatible

NO

OPS Power Built-in

NO

SOFTWARE COMPATIBILITY

SuperSign CMS

YES

SuperSign Control+

YES

SuperSign WB

NO

SuperSign Cloud

NO

Promota

NO

Mobile CMS

NO

Connected Care

YES

LANGUAGE

OSD

English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic

ACCESSORY

Basic

Remote Controller, Manual(EIG, IG), Regulation Book, Phone to RS232C Gender, HDMI Cable, POWER CABLE, Battery, Screws

Optional

NO

SPECIAL FEATURE

Overlay Touch Compatibility

N/A

Smart Calibration

N/A

Tilt (Face up)

Max. 15 degree

Tilt (Face down)

N/A

IP Rating

IP56

Conformal Coating (Power Board)

YES

Power Protection

YES

Direct Sunlight

YES

DEDICATED FEATURE - TOUCH

Available Object Size for Touch

N/A

Response Time ('Paint' app on Windows 10 PC)

N/A

Accuracy (Typ.)

N/A

Interface

N/A

Protection Glass Thickness

N/A

Protection Glass Transmission

N/A

Operating System Support

N/A

Multi Touch Point

N/A
