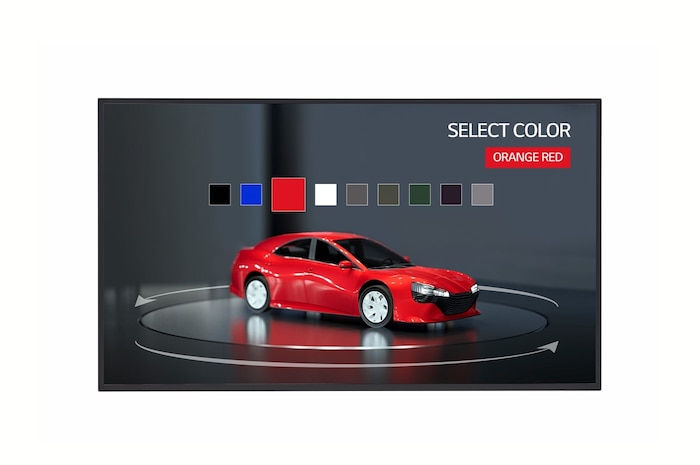

32'' In-Cell Touch Open Frame Signage
32TNF5J-B
(1) Site inspection is required on selected products,. (2) Extra cost involved on installation service at Discovery Bay. Please refer to FAQ section for details.
Shipping delays may occur due to the delivery company's circumstance., weather and traffic.
OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic, Polski
Speaker (Built-in)
NO
Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC
ePEAT(US only)
NO
ERP / Energy Star
YES / NO
Response Time ('Paint' app on Windows 10 PC)
90ms ↓
Accuracy (Typ.)
3.5mm
Available Object Size for Touch
Ø6 mm ↑
Interface
USB2.0
Multi Touch Point
Max. 10 Points
Operating System Support
Windows 10
Protection Glass Thickness
N/A
Protection Glass Transmission
N/A
Operation Humidity
10 % to 80 %
Operation Temperature
0 °C to 40 °C
Bezel Width
T/R/L/B : 11.3/11.3/11.3/13.2mm
Bezel Color
Black
Carton Dimensions (W x H x D)
812 x 510 x 142mm
Handle
NO
Monitor Dimensions (W x H x D)
723.0 x 419.4 x 39.1mm
Monitor Dimension with Stand (W x H x D)
N/A
Packed Weight
6.8Kg
VESA Standard Mount Interface
200 x 200 mm
Weight (Head)
5.6Kg
Weight (Head+Stand)
N/A
OPS Power Built-in
NO
OPS Type compatible
NO
Power Type
Built-In Power
Power Supply
AC 100-240V~, 50/60Hz
Optional
NO
Basic
Power Cord 1.55m, USB Cable(Type A-Type B) 1.8m, User Manual, QSG, Remote Controller(include battery 2ea), RS232C Gender, IR Receiver
Connected Care
YES
Mobile CMS
YES
Promota
NO
SuperSign Cloud
YES
SuperSign CMS
YES
SuperSign Control+
YES
SuperSign WB
NO
Power Protection
N/A
Conformal Coating (Power Board)
YES
Direct Sunlight
N/A
IP Rating
N/A
Overlay Touch Compatibility
N/A
Smart Calibration
N/A
Tilt (Face down)
N/A
Tilt (Face up)
Max. 45 degree
Contrast Ratio
1,000:1
Aspect Ratio
16:9
Back Light Type
Edge
Brightness
500nit (Typ.)
Color Depth (Number of Colors)
16.7 Million colors
Color Gamut
NTSC 72%
Dynamic CR
NO
Life time
50,000Hrs (Min.)
Native Resolution
1920 x 1080 (FHD)
Operation Hours (Hours/Day)
24/7
Panel Technology
IPS
Portait / Landscape
YES / YES
QWP (Quarter Wave Plate)
N/A
Refresh Rate
60Hz
Response Time
9ms (G to G)
Screen Size (Inch)
32
Surface Treatment (Haze)
Haze 12%
Transparency
N/A
Viewing Angle (H x V)
178º x 178º
Local Key Operation
NO
Acceleration(Gyro) Sensor
YES
Auto Brightness Sensor
NO
BLU Sensor
NO
Current Sensor
NO
FAN (Built-in)
NO
Humidity Sensor
NO
Internal Memory (eMMC)
8GB
Pixel Sensor
NO
Power Indicator
NO
Proximity Sensor
NO
Temperature Sensor
YES
Wi-Fi/BT (Built-in)
NO
Daisy Chain
NO
Audio In
NO
Audio Out
YES
DP In
NO
DP Out
NO
DVI-D In
NO
External Speaker Out
NO
HDMI In
YES (2ea)
HDMI In (HDCP Ver.)
1.4
HDMI Out
NO
IR In
YES
IR Out
NO
RGB In
NO
RJ45(LAN) In
YES (1ea)
RJ45(LAN) Out
NO
RS232C In
YES
RS232C Out
NO
Touch USB
USB2.0 Type B (1ea)
USB In
USB2.0 Type A (1ea)
Pro:Idiom
YES
Auto Set ID
NO
Backlight Sync
NO
Beacon
NO
Booting Logo Image
YES
Brightness Compensation
NO
Cisco Certification
YES
Control Manager
YES
Crestron Connected
YES
External Input Rotation
NO
Fail over
YES
Gapless Playback
YES
Group Manager
YES
HDMI-CEC
YES
ISM Method
YES
Local Contents Scheduling
YES
Local Network Sync
NO
Network Ready
YES
No Signal Image
YES
OS Ver. (webOS)
webOS 6.0
PBP
NO
PIP
NO
Play via URL
YES
PM mode
YES
RS232C Sync
NO
Scan Inversion
NO
Screen Rotation
YES
Screen Share
NO
Setting Data Cloning
YES
SI Server Setting
YES
Smart Energy Saving
YES
SNMP
YES
Status Mailing
YES
Tile Mode Setting
NO
USB Plug & Play
YES
Video Tag
YES (4 Video Tag)
Wake on LAN
YES
webRTC
YES
W/B Setting by Grey scale
NO
BTU (British Thermal Unit)
188 BTU/Hr(Typ.), 222 BTU/Hr(Max.)
DPM
0.5W
Power off
0.5W
Smart Energy Saving (70%)
39W
Max.
65W
Typ.
55W
