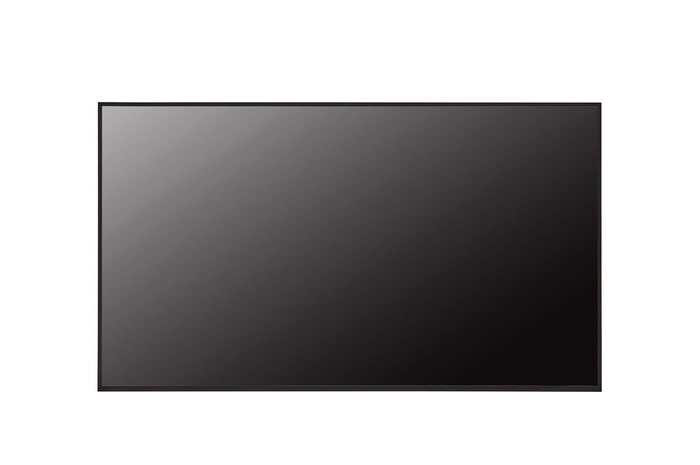

Front view of UH5N-M Signage with infill image

UH5N-M Series - 55" UHD Standard Signage

55UH5N-M

Key Features

Resolution : 3,840 × 2,160 (UHD)
Brightness : 500 nits (Typ.)
Bezel Width : 8.9 mm (T/R/L), 12.9 mm (B)
webOS Smart Platform

All Spec

PANEL

Screen Size (Inch): 55"

Panel Technology: ADS

Back Light Type: Edge

Aspect Ratio: 16:9

Native Resolution: 3840 x 2160 (UHD)

Refresh Rate: 60Hz

Brightness: 500nit (Typ.)

Contrast Ratio: 1,200:1

Dynamic CR: 1,000,000:1

Color Gamut: BT709 95%

Viewing Angle (H x V): 178 X 178

Color Depth (Number of Colors): 1.07G (8bits + FRC)

Response Time: 8m (G to G)

Surface Treatment (Haze): 25%

Life time: 50,000Hrs (Min.)

Operation Hours (Hours/Day): 24/7

Portait / Landscape: Yes / Yes

CONNECTIVITY

HDMI In: Yes(3), 3840x2160@60Hz, HDCP 2.2/1.4

DP In: Yes(1), 3840x2160@60Hz, HDCP2.2/1.3

RS232C In: Yes (1), 4pin Phone-jack

RJ45(LAN) In: Yes (1)

IR In: Yes (1)

USB In: USB2.0 Type A(2)

Audio Out: Yes (1)

RS232C Out: Yes (1), 4pin Phone-jack

IR Out: No (Support IR daisy chain via RS232C IN/OUT)

MECHANICAL SPECIFICATION

Bezel Color: Black

Bezel Width: T/R/L: 8.9mm, B: 12.9mm

Weight (Head): 16.1 kg

Packed Weight: 20.5 kg

Monitor Dimensions (W x H x D): 1231.4 x 707.2 x 29.7mm (without IR)

VESA Standard Mount Interface: 300 x 300

Carton Dimensions (W x H x D): 1360.0 x 810.0 x 152.0mm

FEATURE - HARDWARE

Internal Memory (eMMC): 16GB

Wi-Fi/BT (Built-in): Yes

Temperature Sensor: Yes

Auto Brightness Sensor: Yes(IR)

Acceleration(Gyro) Sensor: Yes

Local Key Operation: Yes

FEATURE - SOFTWARE

OS Ver. (webOS): webOS6.0

Local Contents Scheduling: Yes

Group Manager: Yes

USB Plug & Play: Yes

Fail over: Yes

Booting Logo Image: Yes

No Signal Image: Yes

RS232C Sync: Yes

Local Network Sync: Yes

PIP: Yes

PBP: Yes (4)

Screen Share: Yes

Video Tag: Yes (4)

Play via URL: Yes

Screen Rotation: Yes

External Input Rotation: Yes

Gapless Playback: Yes

Tile Mode Setting: Yes (Max. 15x15)

Setting Data Cloning: Yes

SNMP: Yes

ISM Method: Yes

Auto Set ID: Yes

Status Mailing: Yes

Control Manager: Yes

Crestron Connected: Yes

Smart Energy Saving: Yes

PM mode: Yes

Wake on LAN: Yes

Network Ready: Yes

Beacon: Yes

HDMI-CEC: Yes

SI Server Setting: Yes

webRTC: Yes

Pro:Idiom: Yes

ENVIRONMENT CONDITIONS

Operation Temperature: 0°C to 40°C

Operation Humidity: 10 % to 80 %

POWER

Power Supply: AC 100-240V~, 50/60Hz

Power Type: Built-In Power

POWER CONSUMPTION

DPM: 0.5W

Power off: 0.5W

SOUND

Speaker (Built-in): Yes (10W X 2)

CERTIFICATION

Safety: CB / NRTL

EMC: FCC Class "B" / CE / KC

ERP / Energy Star: Yes / Yes

SOFTWARE COMPATIBILITY

SuperSign CMS: Yes

SuperSign Control+: Yes

SuperSign WB: Yes

SuperSign Cloud: Yes

Mobile CMS: Yes

Connected Care: Yes

LANGUAGE

OSD: English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic

ACCESSORY

Basic: Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, Cable Holder(2EA), AC Cord Holder (1EA)

Optional: Slim Wall Mount (WB21LMA/B),
Wall Mount (OLW480A/B)
Wall Mount Adapter (AM-B330S)

SPECIAL FEATURE

Tilt (Face down): Yes(Max 15º degree, 40ºC temperature)

IP Rating: IP5X

Conformal Coating (Power Board): Yes (Partial space coating)
