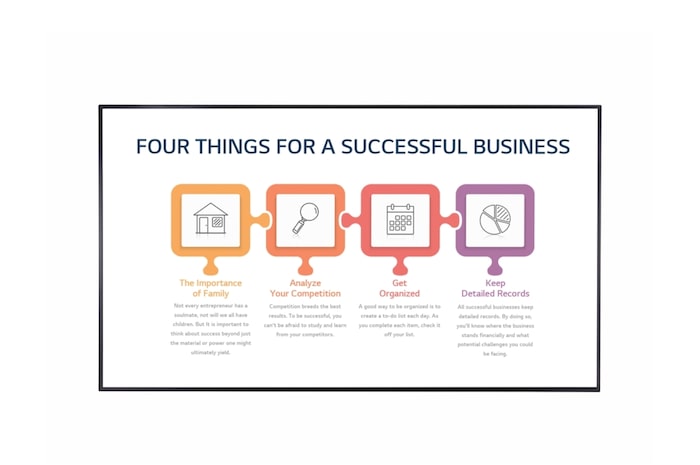

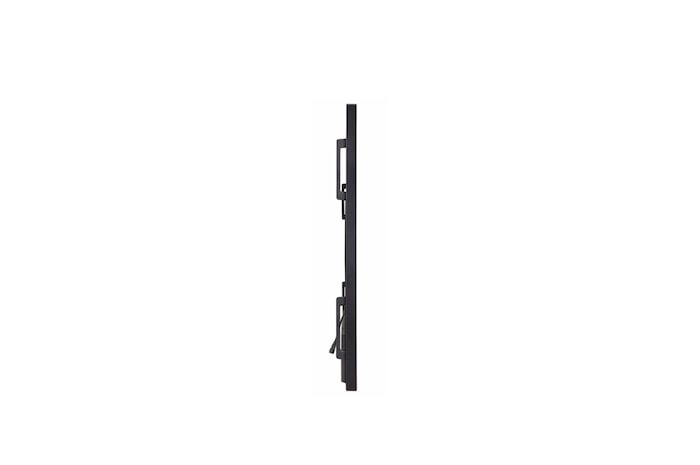

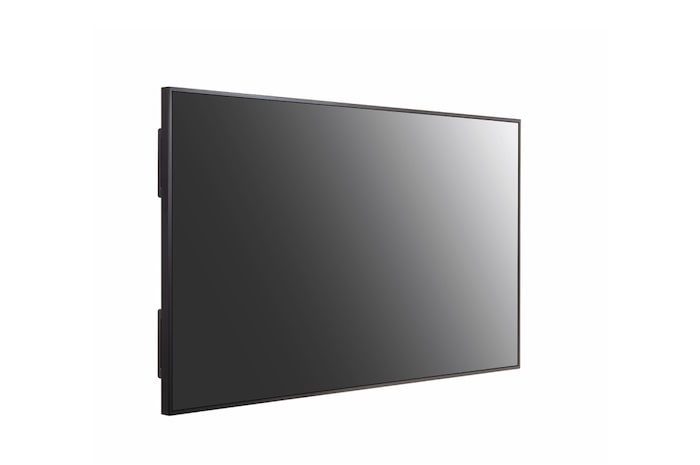

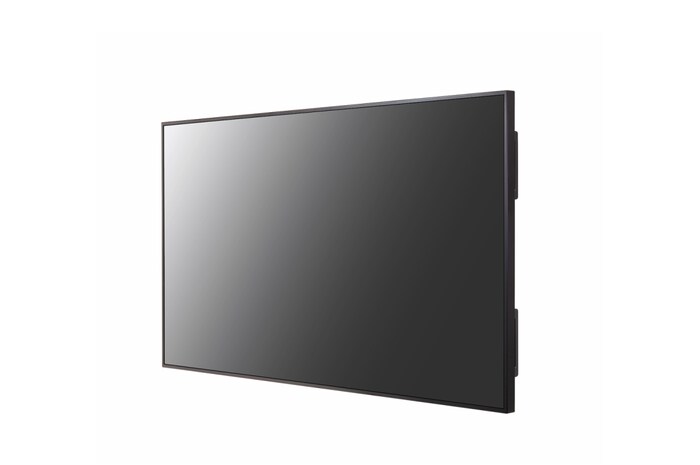

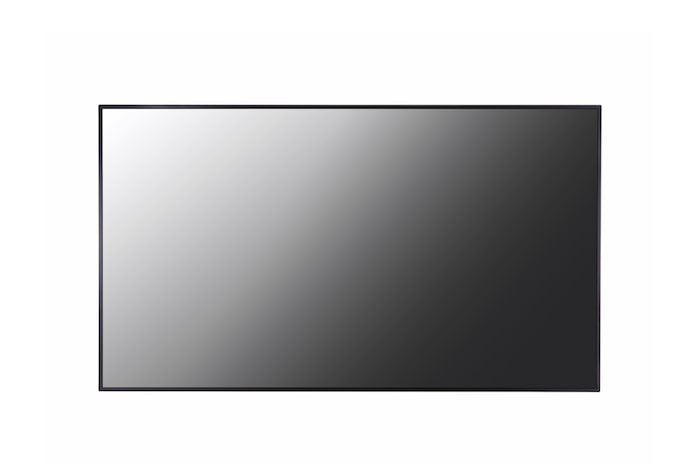

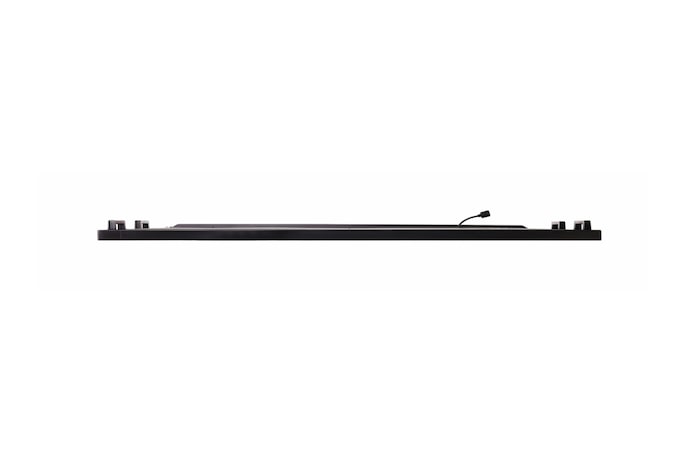

UM3DG Series - 86'' UHD Large Digital Signage
86UM3DG-H
(1) Site inspection is required on selected products,. (2) Extra cost involved on installation service at Discovery Bay. Please refer to FAQ section for details.
Shipping delays may occur due to the delivery company's circumstance., weather and traffic.
Speaker (Built-in)
YES (10W x 2)
Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC
ePEAT(US only)
NO
ERP / Energy Star
YES(Old ErP for Jordan) / NO
OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic
Bezel Width
Even bezel : 14.3mm
Bezel Color
Black
Carton Dimensions (W x H x D)
2073 x 1250 x 285mm
Handle
YES
Monitor Dimensions (W x H x D)
1926.2 x 1097.2 x 60.6mm (without Handle and LG Logo)
Monitor Dimension with Stand (W x H x D)
N/A
Packed Weight
72.5Kg
VESA Standard Mount Interface
600 x 400 mm
Weight (Head)
49.0Kg
Weight (Head+Stand)
N/A
OPS Power Built-in
NO
OPS Type compatible
NO
Power Type
Built-in Power
Power Supply
AC 100-240V~, 50/60Hz
Optional
LSW640A/B(Wall Mount)
Basic
Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender
Operation Humidity
10 % to 80 %
Operation Temperature
0 °C to 40 °C
Connected Care
YES
Mobile CMS
YES
Promota
YES
SuperSign Cloud
NO
SuperSign CMS
YES
SuperSign Control+
YES
SuperSign WB
YES
Power Protection
N/A
Conformal Coating (Power Board)
YES
Direct Sunlight
N/A
IP Rating
N/A
Overlay Touch Compatibility
N/A
Smart Calibration
N/A
Tilt (Face down)
N/A
Tilt (Face up)
N/A
Contrast Ratio
1,100:1
Aspect Ratio
16:9
Back Light Type
Edge
Brightness
350nit (Typ.)
Color Depth (Number of Colors)
1.07 Billion colors
Color Gamut
BT709 95%
Dynamic CR
1,000,000:1
Life time
50,000Hrs (Typ.)
Native Resolution
3840 x 2160 (UHD)
Operation Hours (Hours/Day)
24/7
Panel Technology
IPS
Portait / Landscape
YES / YES
QWP (Quarter Wave Plate)
N/A
Refresh Rate
120Hz
Response Time
8ms (G to G)
Screen Size (Inch)
86
Surface Treatment (Haze)
Haze 28%
Transparency
N/A
Viewing Angle (H x V)
178º x 178º
Local Key Operation
YES
Acceleration(Gyro) Sensor
NO
Auto Brightness Sensor
YES
BLU Sensor
NO
Current Sensor
NO
FAN (Built-in)
NO
Humidity Sensor
NO
Internal Memory (eMMC)
8GB
Pixel Sensor
NO
Power Indicator
NO
Proximity Sensor
NO
Temperature Sensor
YES
Wi-Fi/BT (Built-in)
YES
Daisy Chain
NO
Audio In
NO
Audio Out
YES
DP In
NO
DP Out
NO
DVI-D In
NO
External Speaker Out
NO
HDMI In
YES (3ea)
HDMI In (HDCP Ver.)
2.2/1.4
HDMI Out
NO
IR In
YES
IR Out
NO
RGB In
NO
RJ45(LAN) In
YES (1ea)
RJ45(LAN) Out
NO
RS232C In
YES
RS232C Out
YES
Touch USB
NO
USB In
USB2.0 Type A (1ea)
Pro:Idiom
YES
Auto Set ID
YES
Backlight Sync
NO
Beacon
YES
Booting Logo Image
YES
Brightness Compensation
NO
Cisco Certification
YES
Control Manager
YES
Crestron Connected
YES
External Input Rotation
YES
Fail over
YES
Gapless Playback
YES
Group Manager
YES
HDMI-CEC
YES
ISM Method
YES
Local Contents Scheduling
YES
Local Network Sync
YES
Network Ready
YES
No Signal Image
YES
OS Ver. (webOS)
webOS 4.1
PBP
NO
PIP
NO
Play via URL
YES
PM mode
YES
RS232C Sync
YES
Scan Inversion
NO
Screen Rotation
YES
Screen Share
YES
Setting Data Cloning
YES
SI Server Setting
YES
Smart Energy Saving
YES
SNMP
YES
Status Mailing
YES
Tile Mode Setting
YES
USB Plug & Play
YES
Video Tag
YES (4 Video Tag)
Wake on LAN
YES
webRTC
YES
W/B Setting by Grey scale
NO
BTU (British Thermal Unit)
733.69 BTU/Hr(Typ.), 955.5 BTU/Hr(Max.)
DPM
0.5W
Power off
0.5W
Smart Energy Saving (70%)
119W
Max.
215W
Typ.
170W
