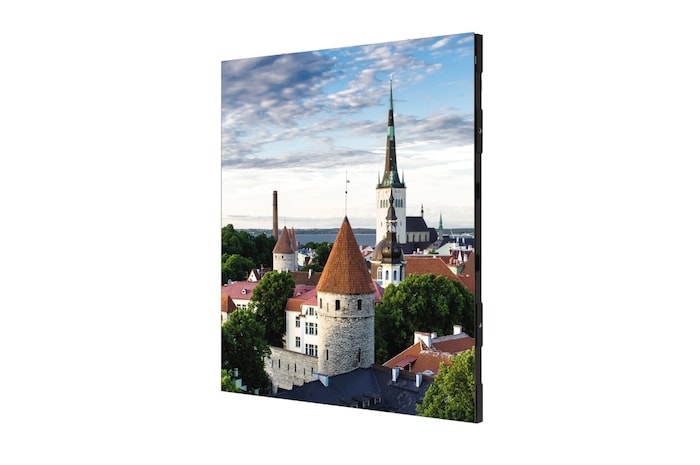

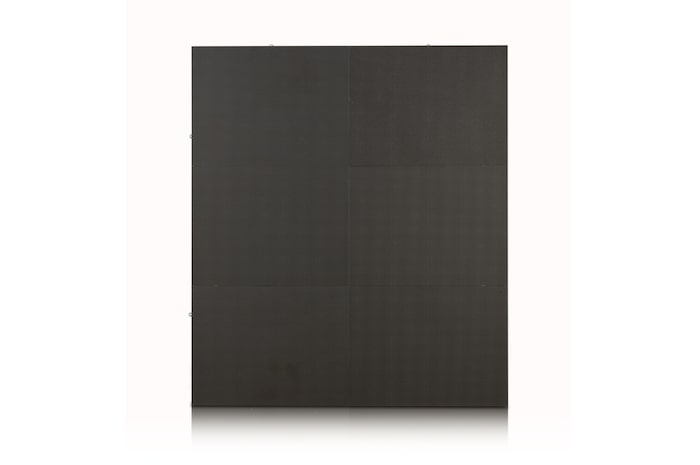

LAPE Series - Premium Fine-pitch LED Signage (Remote Power Model)
LAP015E
(1) Site inspection is required on selected products,. (2) Extra cost involved on installation service at Discovery Bay. Please refer to FAQ section for details.
Shipping delays may occur due to the delivery company's circumstance., weather and traffic.
Pitch Name
P1.5
Pixel Configuration
3 in 1 SMD
Pixel Pitch (mm)
1.50

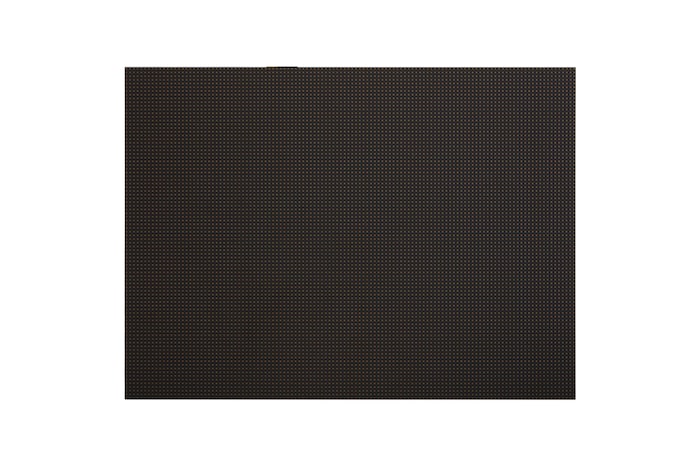

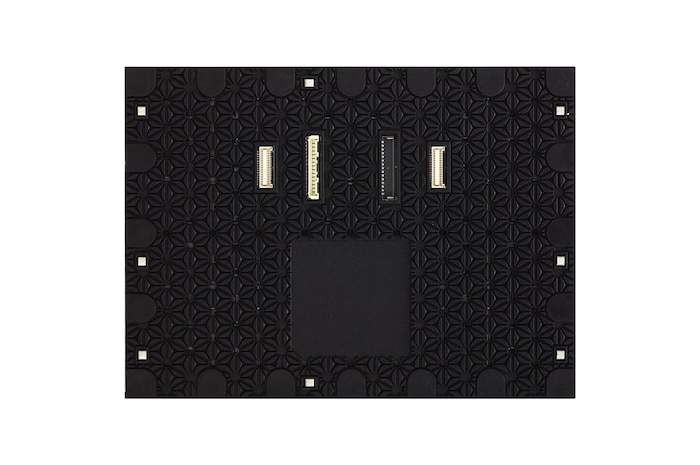

Module Resolution (W x H)
160 x 120
Module Dimensions (W x H, mm)
240 x 180
Weight per Module (kg)
0.36

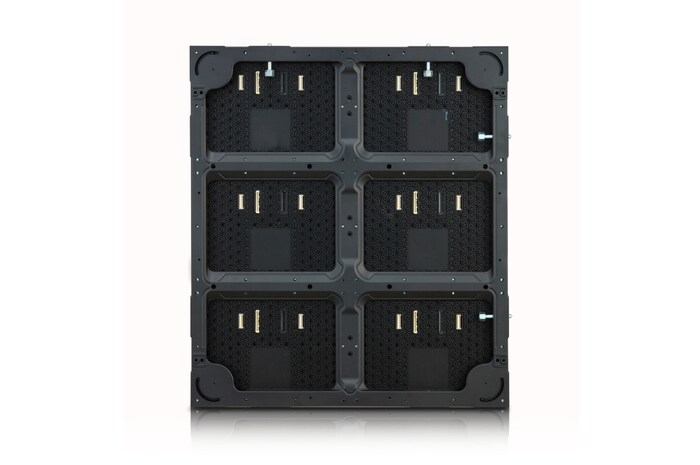

No. of Modules per Unit Case (W x H)
2 x 3
Unit Case Resolution (W x H)
320 x 360
Unit Case Dimensions (W x H x D, mm)
480 x 540 x 53
Unit Case Surface Area (m²)
0.260
Weight per Unit Case (kg/unit)
6.0
Weight per Square Meter (kg/m²)
22.2
Physical Pixel Density (pixels/m²)
444,444
Flatness of Unit Case (mm)
±0.2
Unit Case Material
Die Casting Aluminum
Service Access
Front and Rear
Min. Brightness (After Calibration)
1,0001) cd/m²
1)Brightness can be reduced (up to 300nit) by the number of PSU modules, thereby decreasing power consumption.
Color Temperature
3,200 ~ 9,300
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
140
Brightness Uniformity
95%
Color Uniformity
±0.015Cx, Cy
Contrast Ratio
6,000
Processing Depth (bit)
16 (HDR10)
Power Consumption (W/Unit, Max.)
318
Power Consumption (W/Unit, Avg.)
130
Power Consumption (W/m², Max.)
1,225
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
Lifetime (Duration of Half Brightness in Hours)
100,000
Operating Temperature (°C)
0°C to + 40°C
Operating Humidity
10-80% RH
EMC
FCC Class A / CE / KC
Environment
RoHS
Controller
LCLG003-A
Video Inputs
HDMI In, DP In, OPS In, USB
Control
RJ45 In, RS232C In/out
Special Features
HDR10, Temperature Sensor, Power Detection, ADA Compliant, PSU Hot Swappable
Optional Accessory
ACC-LAPPC06(DC PSU Cable 6m), ACC-LAPPC60(DC PSU Cable 60m)
