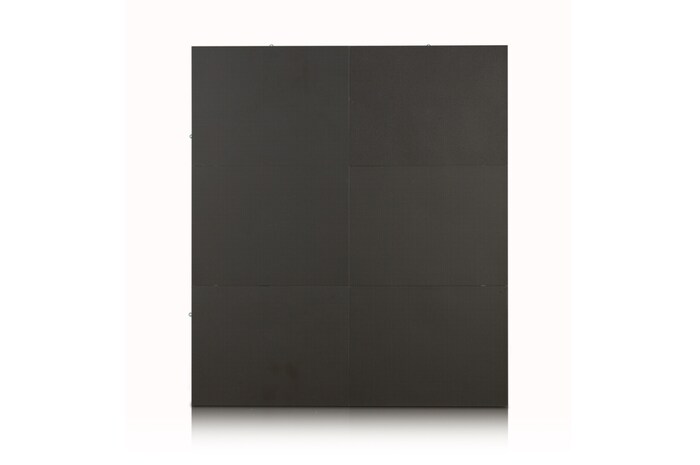

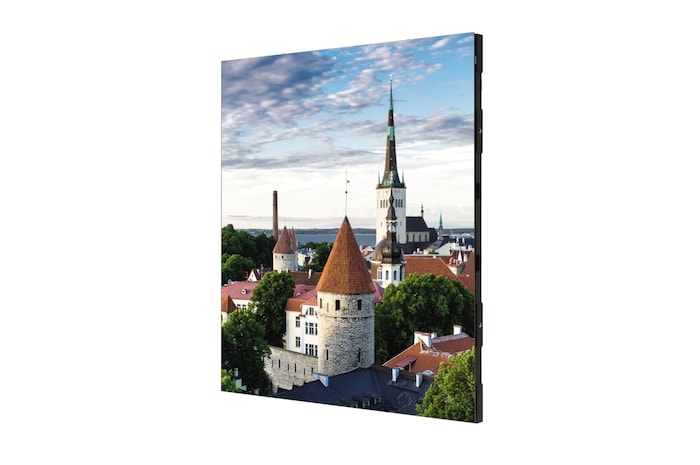

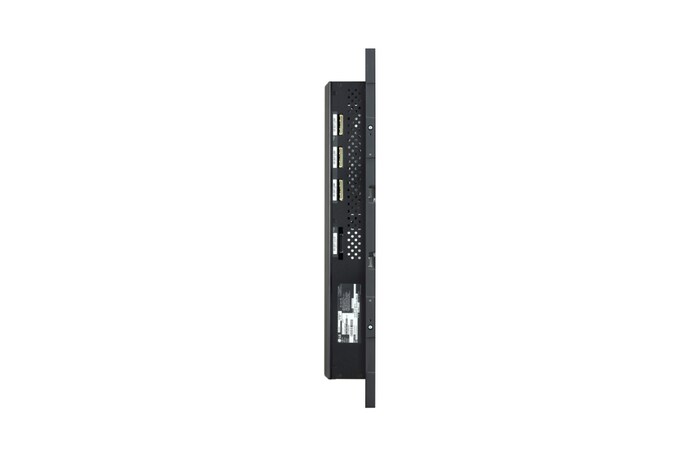

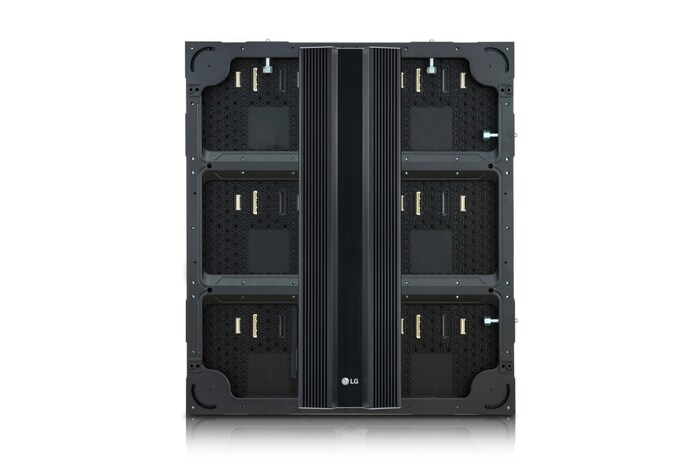

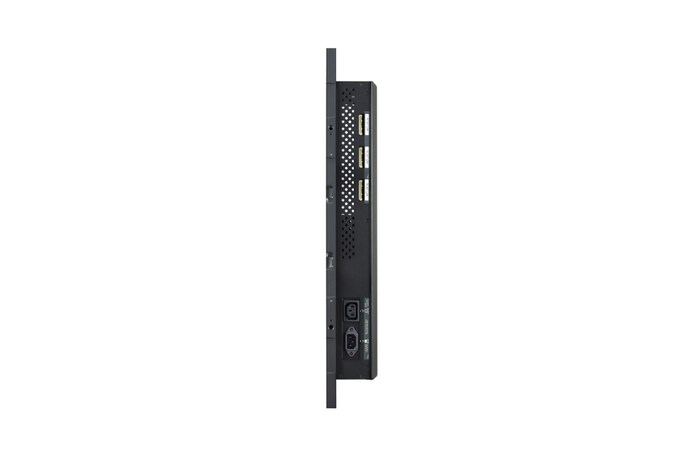

LAPE Series - Premium Fine-pitch LED Signage (Embedded Power Model)
LAP020EP
(1) Site inspection is required on selected products,. (2) Extra cost involved on installation service at Discovery Bay. Please refer to FAQ section for details.
Shipping delays may occur due to the delivery company's circumstance., weather and traffic.
EMC
FCC Class A / CE / KC
Environment
RoHS
Video Inputs
HDMI In, DP In, OPS In, USB
Control
RJ45 In, RS232C In/out
Special Features
HDR10, Temperature Sensor, Power Detection
Controller
LCLG005-A
Power Consumption (W/Unit, Max.)
187
Power Consumption (W/Unit, Avg.)
52
Power Consumption (W/m², Max.)
720
Power Supply (V)
100 to 240
Frame Rate (Hz)
50 / 60
Refresh Rate (Hz)
3,840
Lifetime (Duration of Half Brightness in Hours)
100,000
Operating Temperature (°C)
0°C to + 40°C
Operating Humidity
10-80% RH
Min. Brightness (After Calibration)
700 cd/m²
Color Temperature
3,200 ~ 9,300
Visual Viewing Angle (Horizontal)
160
Visual Viewing Angle (Vertical)
140
Brightness Uniformity
95%
Color Uniformity
±0.015Cx, Cy
Contrast Ratio
6,000
Processing Depth (bit)
16 (HDR10)
Optional Accessory
N/A
Pitch Name
P2.0

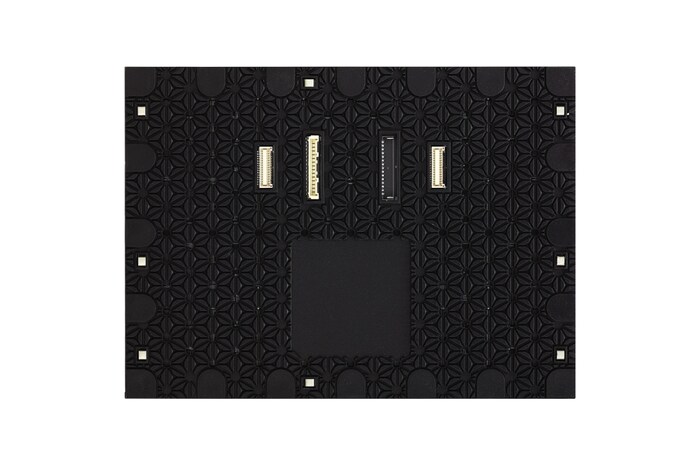

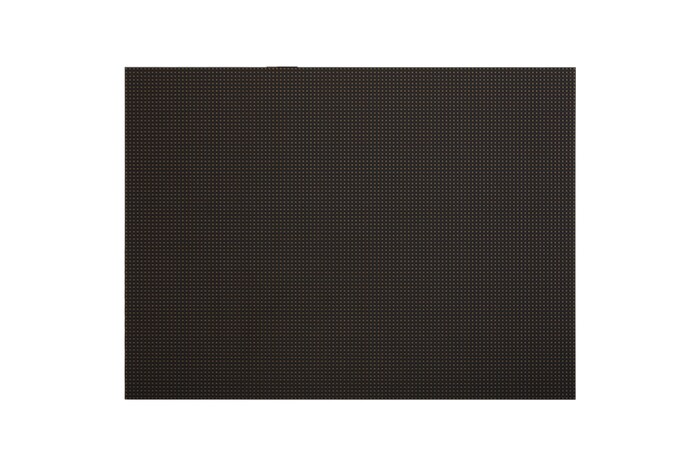

Pixel Configuration
3 in 1 SMD
Pixel Pitch (mm)
2.00
Module Resolution (W x H)
120 x 90
Module Dimensions (W x H, mm)
240 x 180
Weight per Module (kg)
0.36
No. of Modules per Unit Case (W x H)
2 x 3
Unit Case Resolution (W x H)
240 x 270
Unit Case Dimensions (W x H x D, mm)
480 x 540 x 105
Unit Case Surface Area (m²)
0.259
Weight per Unit Case (kg/unit)
10.1
Weight per Square Meter (kg/m²)
38.0
Physical Pixel Density (pixels/m²)
250,000
Flatness of Unit Case (mm)
±0.2
Unit Case Material
Die Casting Aluminum
Service Access
Front and Rear
