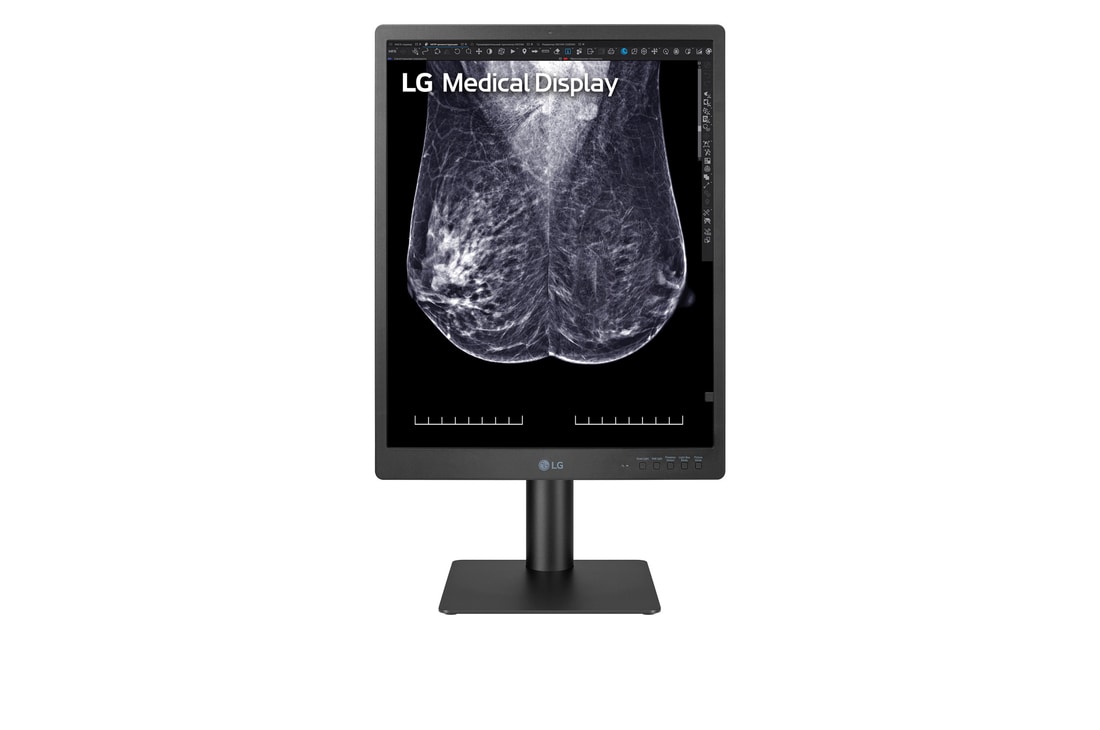

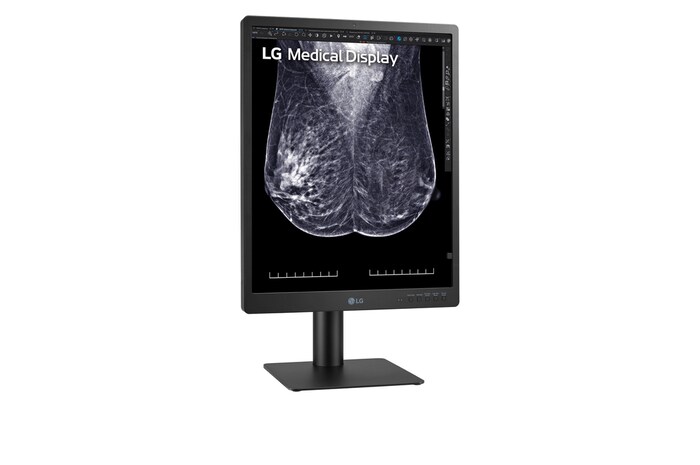

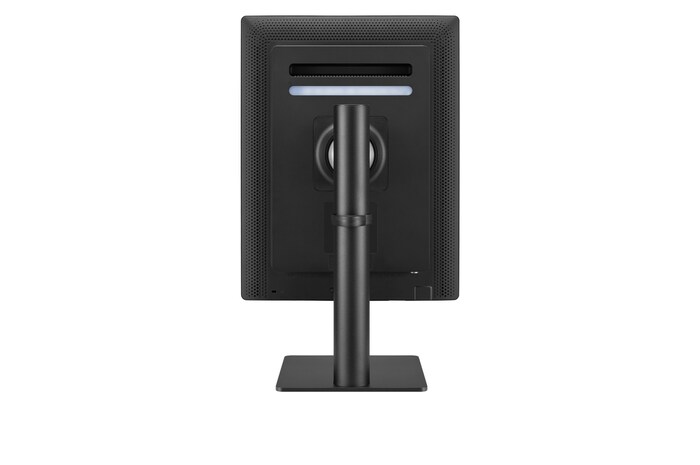

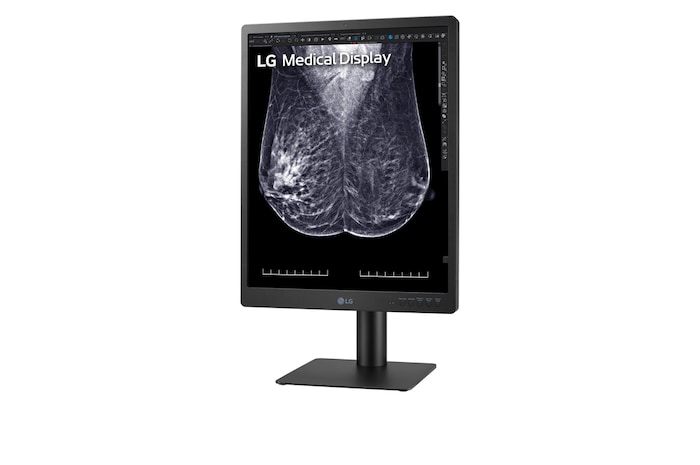

LG 21.3-inch 5MP IPS Diagnostic Monitor for Mammography
21HQ613D-B
(1) Site inspection is required on selected products,. (2) Extra cost involved on installation service at Discovery Bay. Please refer to FAQ section for details.
Shipping delays may occur due to the delivery company's circumstance., weather and traffic.
RoHS
YES
REACH
YES
WEEE
YES
MFDS
YES
UL (cUL)
YES
IEC (IEC 60601-1 / IEC 60601-1-2)
YES
EN (EN 60601-1 / EN 60601-1-2)
YES
IEC (IEC 60950-1 / IEC 55032, 55024)
YES
EN (EN 60950-1 / EN 55032, 55024)
YES
CE
MDR(Pending)
FDA
510(K)(Class II)
ISO13485
YES
GMP
YES
Dual Controller
YES
DVI-D
YES(1ea)
Display Port
YES
USB A to B
YES
Adapter
YES
Calibration Report (Paper)
YES
Power Cord
YES
Wall Mountable [mm]
100 x 100 mm

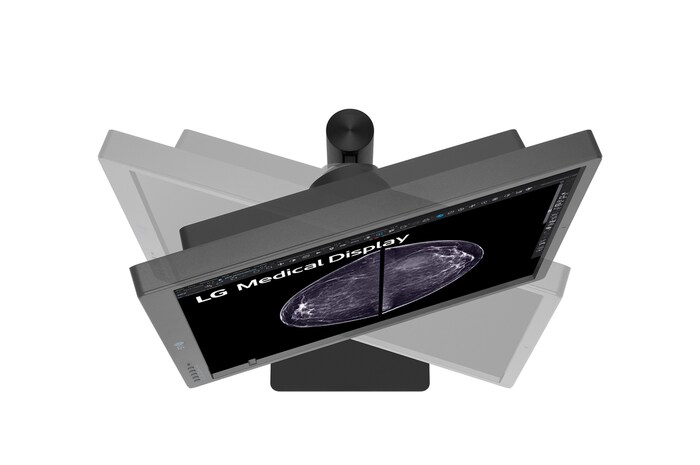

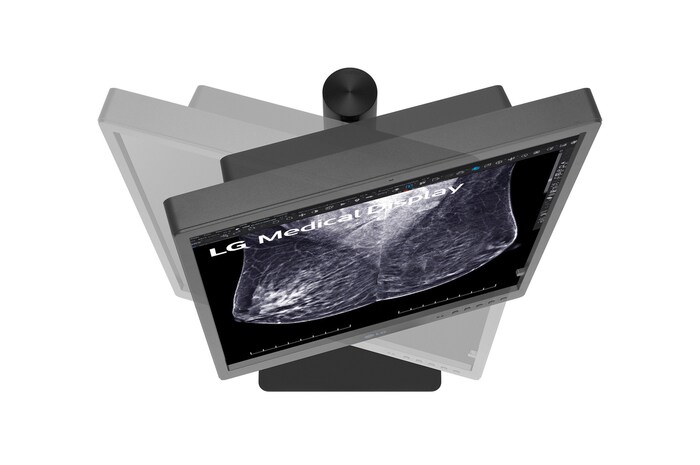

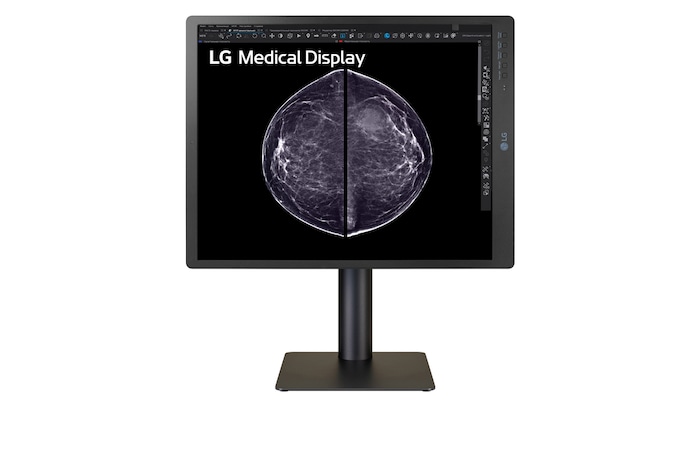

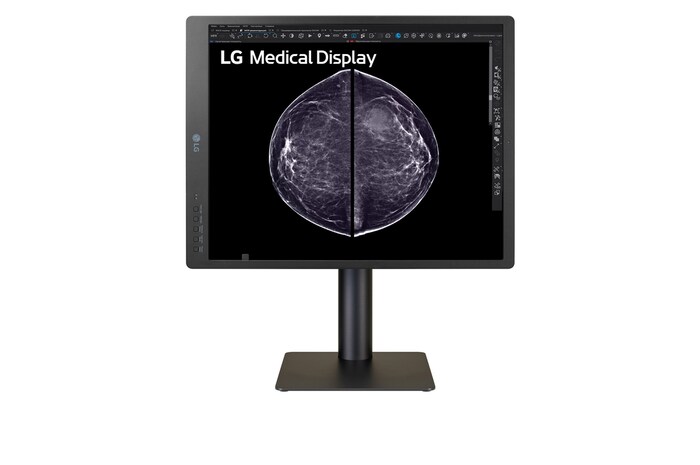

Display Position Adjustments
Tilt/Height/Swivel/Pivot
Borderless Design
Normal
Machanical Power Switch
YES
OneClick Stand
YES
Weight with Stand [kg]
7.85
Weight without Stand [kg]
5.45
Weight in Shipping [kg]
11.4
Dimension without Stand (W x H x D) [mm]
364.5 x 473.4 x 78
Dimension with Stand (W x H x D) [mm]
364.5 x 634.4 x 233.6
Dimension in Shiping (W x H x D) [mm]
524 x 577 x 296
HW Calibration
YES
Auto Brightness
YES
Flicker Safe
YES
Reader Mode
YES(Text Mode)
Super Resolution+
YES
Black Stabilizer
YES
Smart Energy Saving
YES
DICOM Compliant
YES
Hot Key
YES(5keys)
Brightness stabilization
YES
Presence Sensor
YES
Front Sensor
YES
Color Temperature
6500K / 7500K / 9300K / Manual (5000K ~ 10000K)
Pathology Mode
YES
Focus View
YES
Light Box Mode
YES
Lighting
YES(Down/ Wall)
Type
External Power(Adapter)
AC Input
100-240Vac, 50-60Hz
Power Consumption (DC Off)
Less than 0.3W
DC Output
19V @6.32A

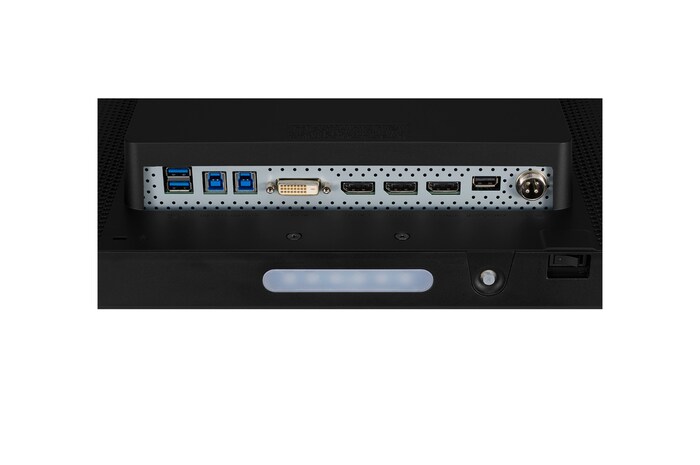

DisplayPort
YES(In 2ea / Out 1ea)
Daisy Chain
YES(5MP/48Hz)
USB Upstream Port
YES(2ea/ver3.0)
USB Downstream Port
YES(2ea/ver3.0)
Size [Inch]
21.3
Resolution
2048 x 2560
Panel Type
IPS
Aspect Ratio
4:5
Color Gamut (Typ.)
NTSC 72% (CIE1931)
Contrast Ratio (Typ.)
1800:1
Response Time
5ms (GtG at Faster)
Viewing Angle (CR≥10)
178º(R/L), 178º(U/D)
Pixel Pitch [mm]
0.165 X 0.165 mm
Brightness (Typ.) [cd/m²]
1100cd/m²
Color Bit
10bit
Surface Treatment
AG
