LBE Standard

D01_ID_LED-Signage-Outdoor_hero_03_M01_Standard_1538714461919

LBE Standard

The LBE Standard series is reasonable and provides versatile performance. It is available in various creative and user-friendly designs for convenient installation and maintenance.

D03_ID-LBE-Standard-01-Lightweight-and-Slim-Design_CN

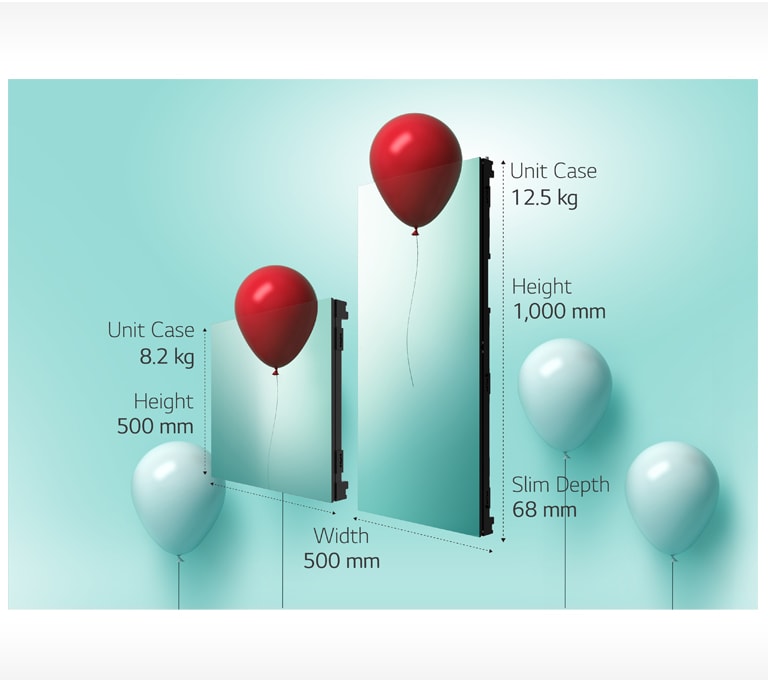

Lightweight and slim design

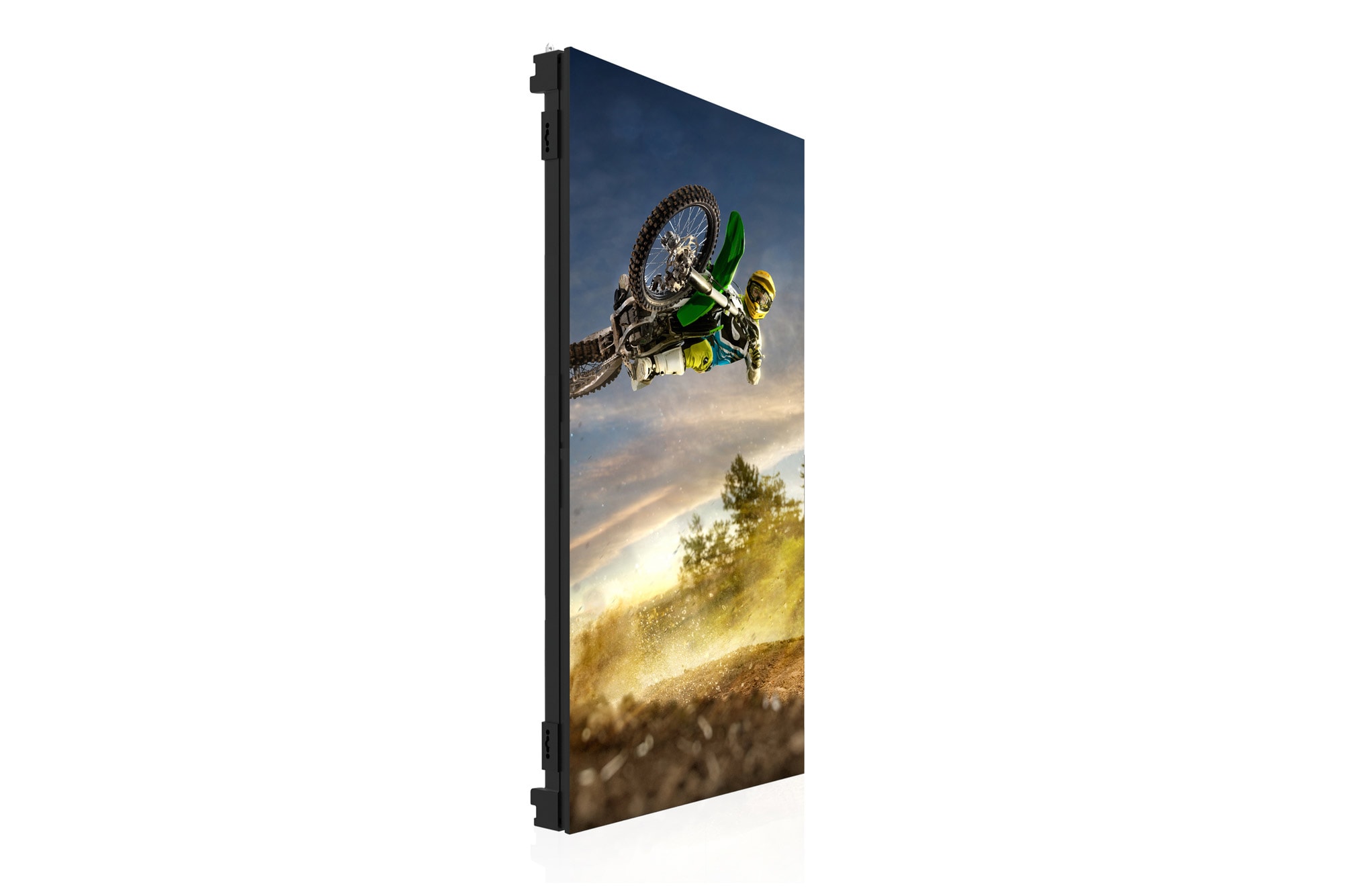

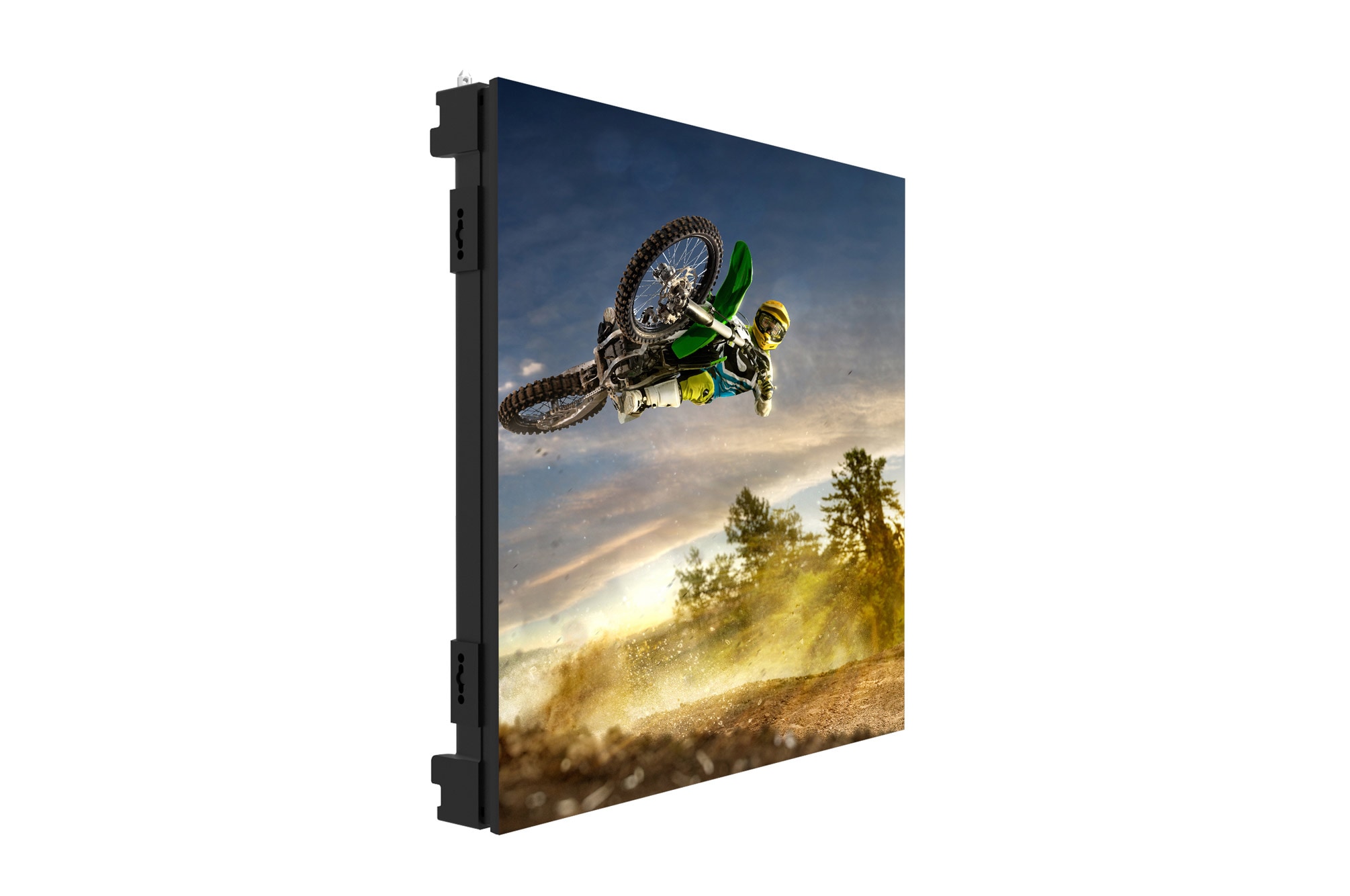

Each unit case weighs 8.2 kg or 12.5 kg, with a depth of 68 mm. This makes the screens easy to install, minimizes damage during installation, and reduces strain on the structure holding them.

D03_ID-LBE-DOOH-01-Reliable-Weatherproof-Design_1554339396959

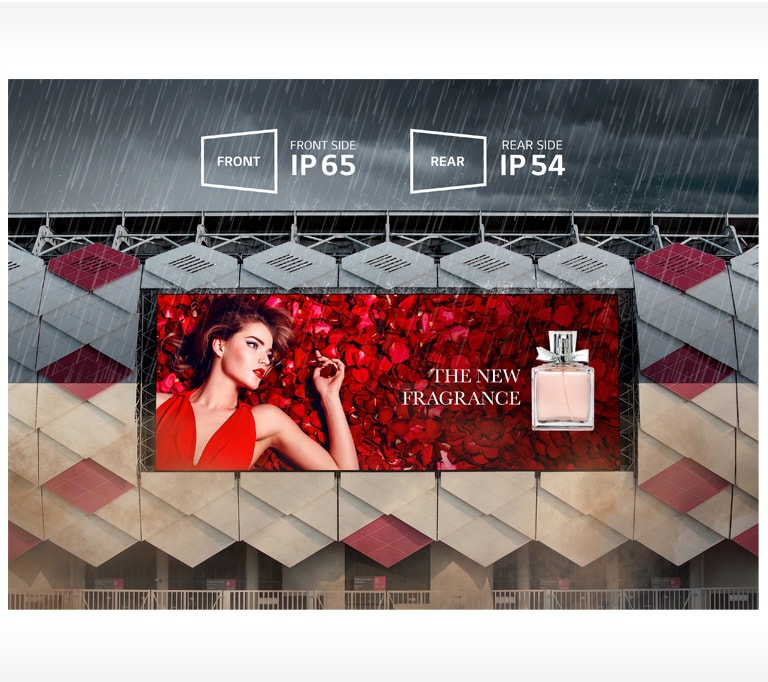

Reliable weatherproof design

The front and back of the unit case are IP65- and IP54-certified, respectively, allowing stable operation unaffected by weather and harmful outdoor environments.



D07_ID-LAE-Q-05-Front-or-Rear_1554421094259-hk

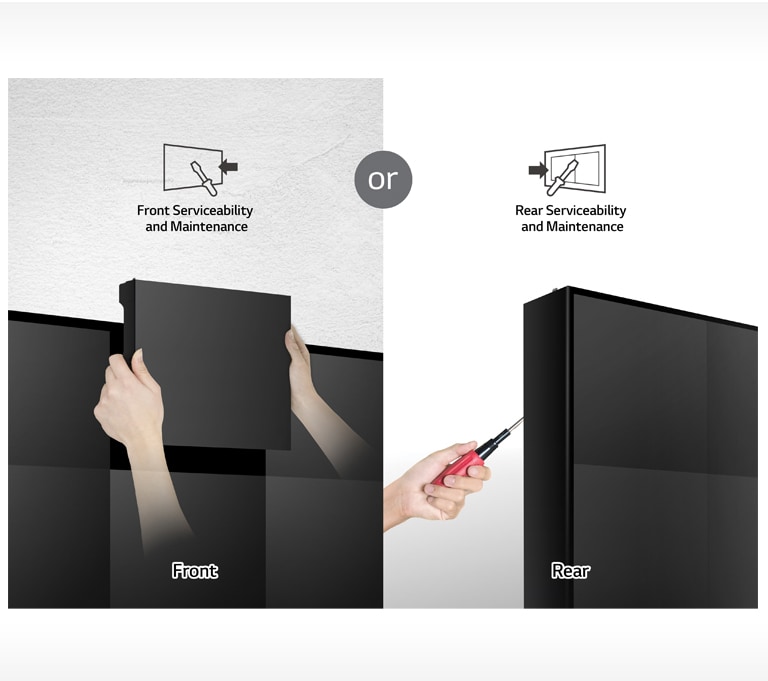

Front or rear serviceability

The product offers either front access or rear access, allowing customers to choose according to their installation environment and minimizing limitations in installation and maintenance.

*Support may differ by model

D06_ID-LBE-Standard-04-Easy-Maintenace-Fin_CN

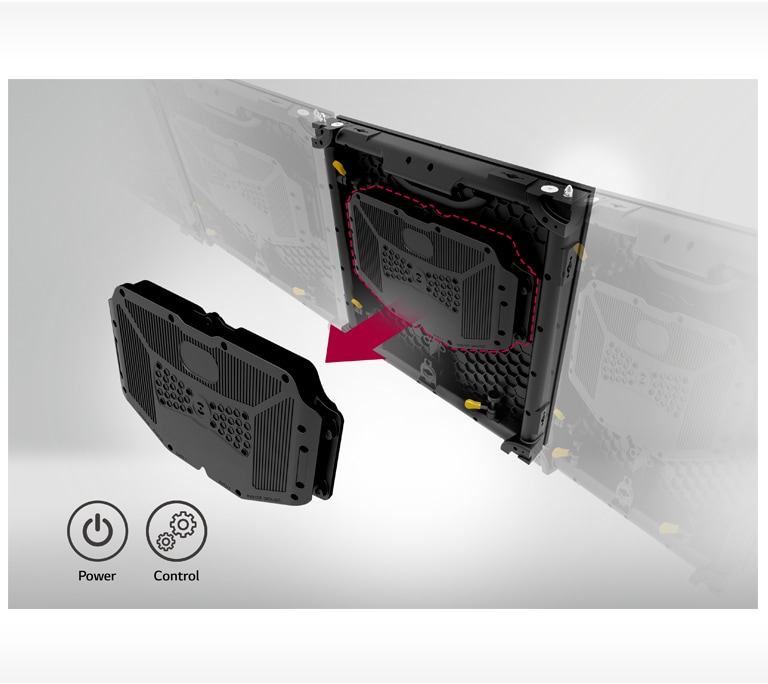

Easy maintenance

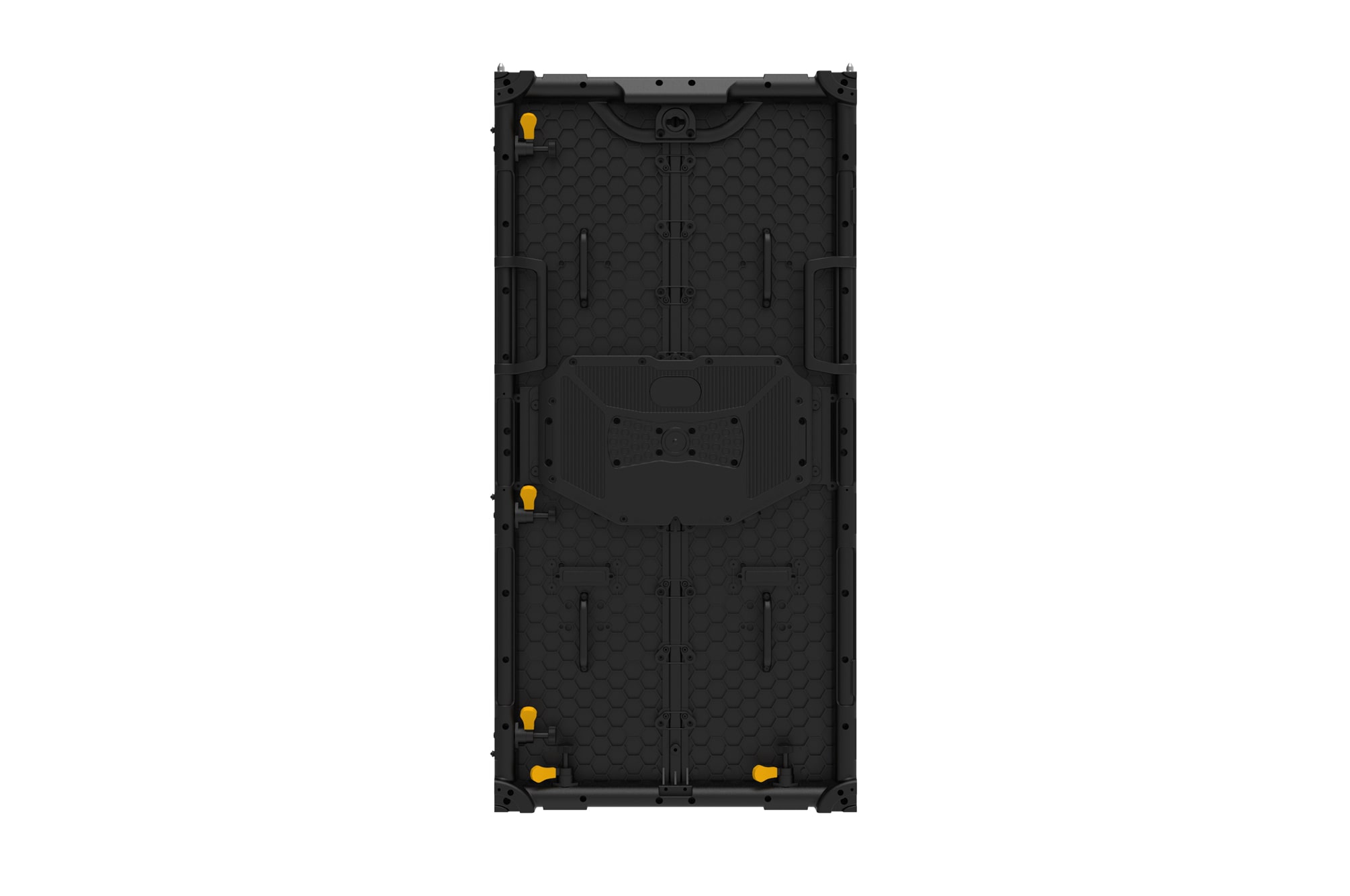

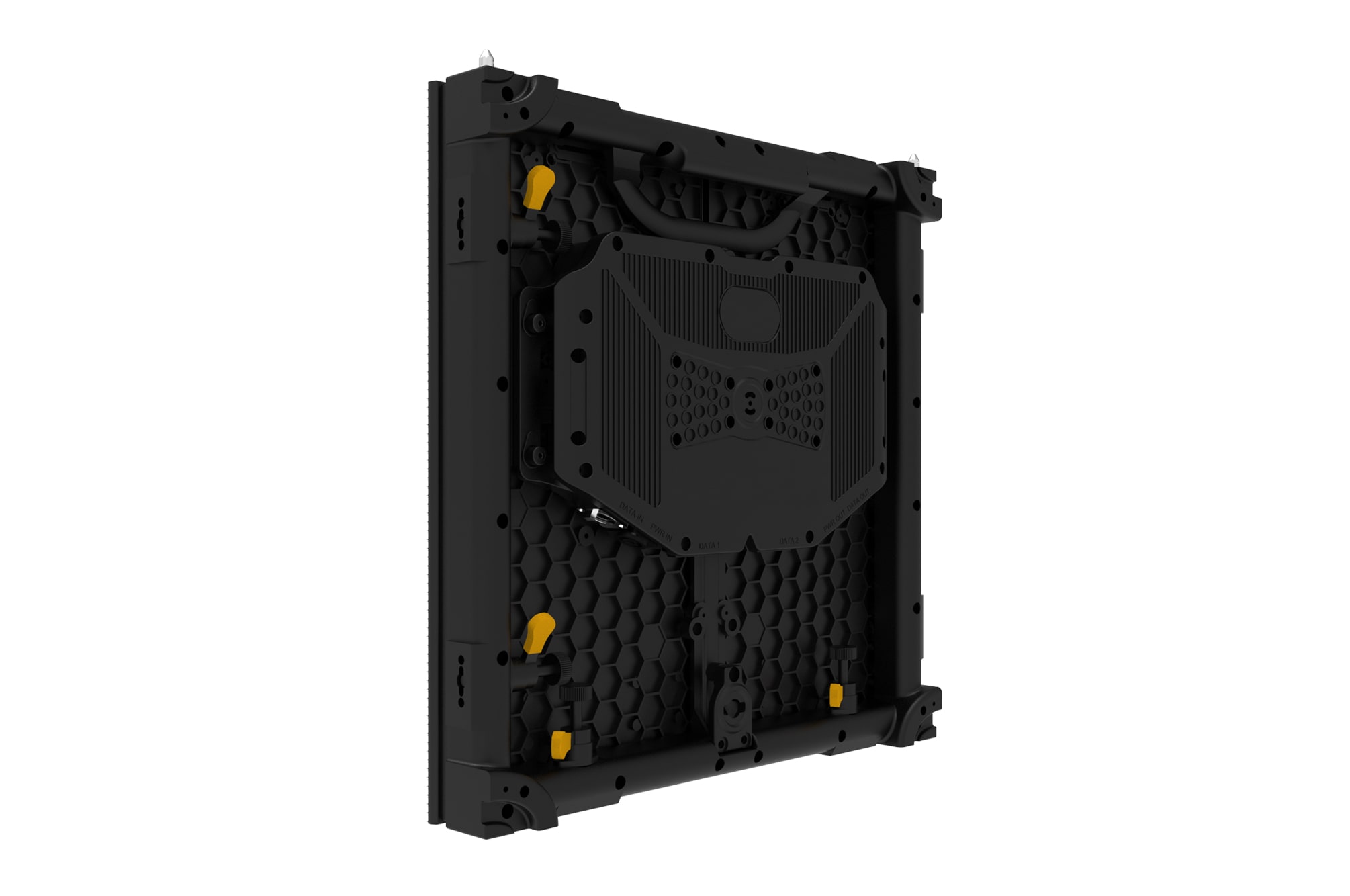

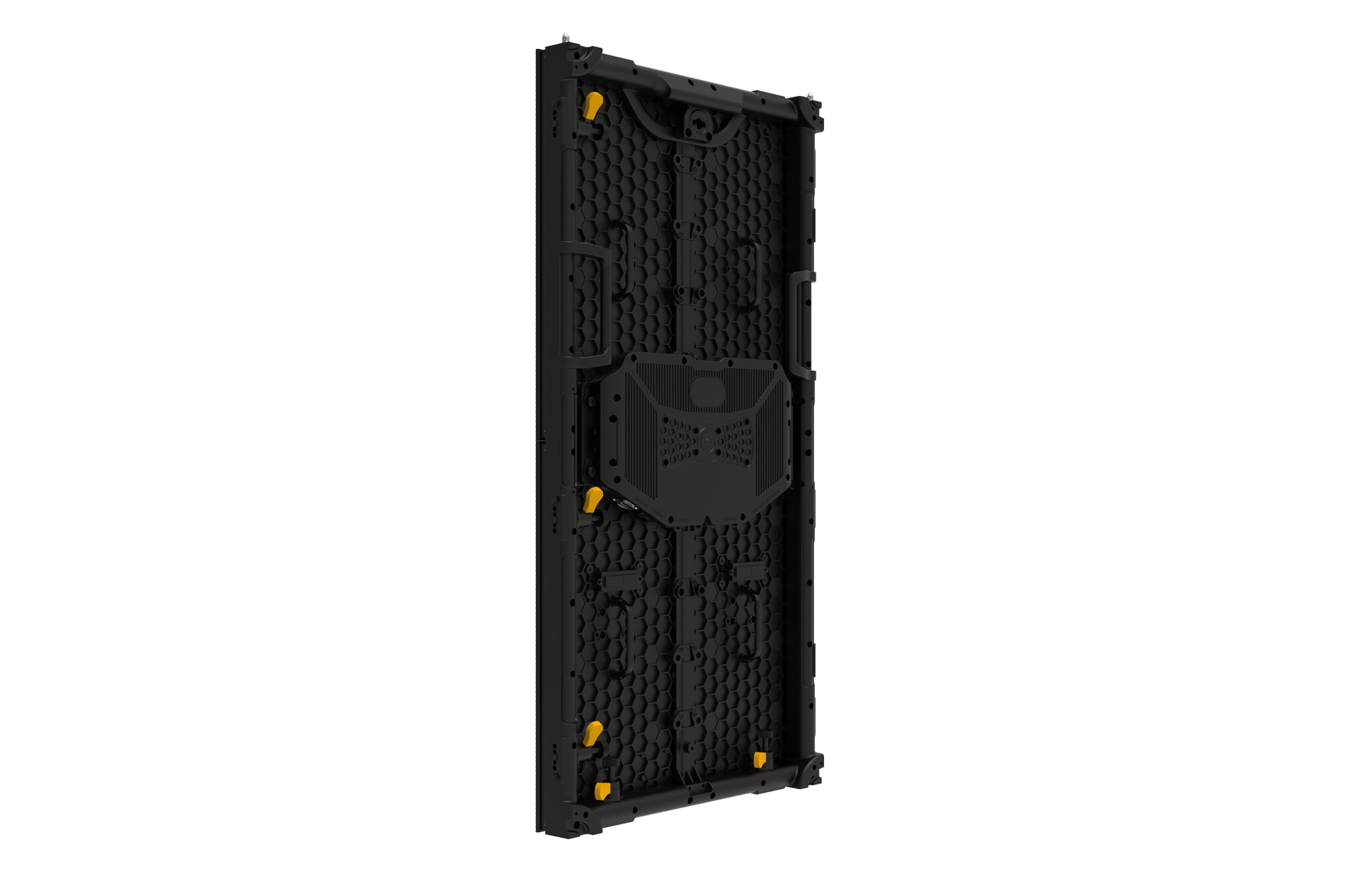

Power and control modules attached to the unit cases can be removed easily, making it easy to fix problems that may arise.

D05_ID-LAE-Standard-03-Easy-Installation_1554422703183-hk

Easy installation

Various factors including magnets on the top and bottom, positioning pins, and easy locks help installers easily set up and dismantle the screens.

D08_ID-LED-06-Uniform-Picture-Quality_hk

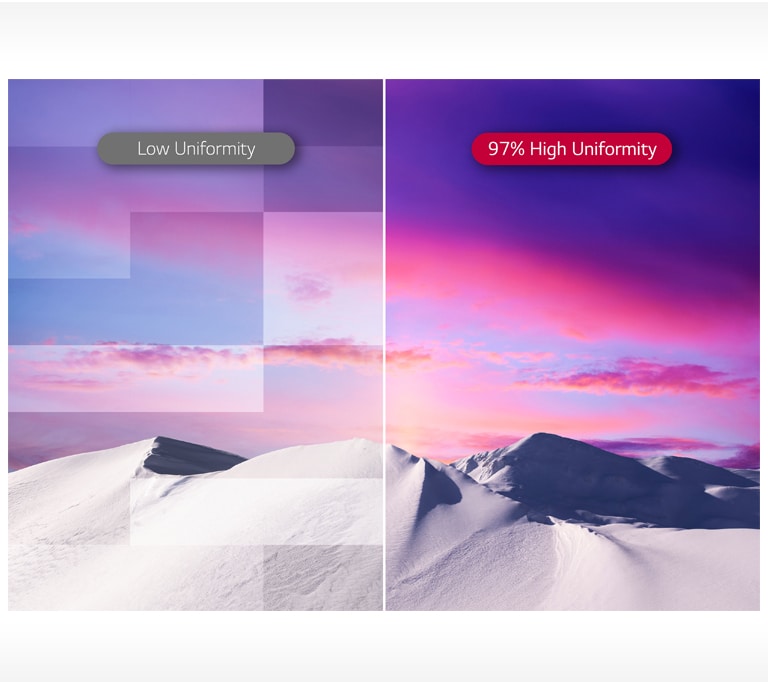

Uniform picture quality

Every step from production is strictly managed, while factory calibration ensures consistent quality between the LED units. The display provides seamless content with 97% brightness uniformity.

D09_ID-LED-07-Vividness-with-Color-Accuracy_hk

Vividness with color accuracy

LG’s rigorous quality standards also make LG LED signage reproduce accurate colors, vividly displaying the original colors of objects without distortion.

D10_ID-LED-08-RoHS-Certified-Safe-Product__1554427253259

RoHS certified safe product

Boasting RoHS certification, all LG LED signage models are environmentally-friendly products that do not use materials harmful to the environment and people.

Model NameLBE039DD3DLBE039DD3LBE039DD4DLBE039DD4
Pixel Configuration3 in 1 SMD3 in 1 SMD3 in 1 SMD3 in 1 SMD
Pixel Pitch(mm)3.913.913.913.91
Unit Case Resolution(WxH)128x128128x256128x128128x256
Unit Case Dimensions(WxHxD, mm)500x500x68500x1000x68500x500x68500x1000x68
Weight per Unit Case/Square Meter (kg)8.2/32.812.5/25.08.2/32.812.5/25.0
Service accessFront or RearFront or RearFront or RearFront or Rear
Min. Brightness(After Calibration, cd/m²)5,5005,5005,0005,000
Color Temperature6,5006,5006,5006,500
Visual Viewing Angle(Horizontal/Vertical)160/120160/120160/120160/120
Brightness Uniformity / Color Uniformity97%/±0.003Cx,Cy97%/±0.003Cx,Cy97%/±0.003Cx,Cy97%/±0.003Cx,Cy
Contrast Ratio5,0005,0005,0005,000
Processing Depth (bit)14141414
Power Consumption(W/Unit, Avg./Max.)53/160110/33053/160110/330
Power Consumption(W/m², Max.)640660640660
Power Supply (V)100 to 240100 to 240100 to 240100 to 240
Refresh Rate (Hz)3,8403,8403,8403,840
Lifetime(Half brightness, hrs)*80,00080,00050,00050,000
Operating Temperature(°C) / Humidity-20° to 50°/< 90%RH-10° to 45°/0-80%RH-10° to 45°/0-80%RH-10° to 45°/0-80%RH
IP rating Front / RearIP65/IP54IP65/IP54IP65/IP54IP65/IP54

*The Lifetime spec is subject to LED package spec.**All the models apply SMD package with goldwire.***Models may vary by region. Check with local salesteam.

Model NameLBE046DD3DLBE046DD3LBE046DD4DLBE046DD4
Pixel Configuration3 in 1 SMD3 in 1 SMD3 in 1 SMD3 in 1 SMD
Pixel Pitch(mm)4.634.634.634.63
Unit Case Resolution(WxH)108x108108x216108x108108x216
Unit Case Dimensions(WxHxD, mm)500x500x68500x1000x68500x500x68500x1000x68
Weight per Unit Case/Square Meter (kg)8.2/32.812.5/25.08.2/32.812.5/25.0
Service accessRearRearRearRear
Min. Brightness(After Calibration, cd/m²)5,5005,5005,0005,000
Color Temperature6,5006,5006,5006,500
Visual Viewing Angle(Horizontal/Vertical)160/120160/120160/120160/120
Brightness Uniformity / Color Uniformity97%/±0.003Cx,Cy97%/±0.003Cx,Cy97%/±0.003Cx,Cy97%/±0.003Cx,Cy
Contrast Ratio5,0005,0005,0005,000
Processing Depth (bit)14141414
Power Consumption(W/Unit, Avg./Max.)53/160110/33053/160110/330
Power Consumption(W/m², Max.)640660640660
Power Supply (V)100 to 240100 to 240100 to 240100 to 240
Refresh Rate (Hz)3,8403,8403,8403,840
Lifetime(Half brightness, hrs)*80,00080,00050,00050,000
Operating Temperature(°C) / Humidity-20° to 50°/< 90%RH-10° to 45°/0-80%RH-10° to 45°/0-80%RH-10° to 45°/0-80%RH
IP rating Front / RearIP65/IP54IP65/IP54IP65/IP54IP65/IP54

*The Lifetime spec is subject to LED package spec.**All the models apply SMD package with goldwire.***Models may vary by region. Check with local salesteam.

Model NameLBE069DD3DLBE069DD3LBE069DD4DLBE069DD4
Pixel Configuration3 in 1 SMD3 in 1 SMD3 in 1 SMD3 in 1 SMD
Pixel Pitch(mm)6.946.946.946.94
Unit Case Resolution(WxH)72x7272x14472x7272x72
Unit Case Dimensions(WxHxD, mm)500x500x68500x1000x68500x500x68500x1000x68
Weight per Unit Case/Square Meter (kg)8.2/32.812.5/25.08.2/32.812.5/25.0
Service accessRearRearRearRear
Min. Brightness(After Calibration, cd/m²)5,5005,5005,0005,000
Color Temperature6,5006,5006,5006,500
Visual Viewing Angle(Horizontal/Vertical)160/120160/120160/120160/120
Brightness Uniformity / Color Uniformity97%/±0.003Cx,Cy97%/±0.003Cx,Cy97%/±0.003Cx,Cy97%/±0.003Cx,Cy
Contrast Ratio5,0005,0005,0005,000
Processing Depth (bit)14141414
Power Consumption(W/Unit, Avg./Max.)53/160110/33053/160110/330
Power Consumption(W/m², Max.)640660640660
Power Supply (V)100 to 240100 to 240100 to 240100 to 240
Refresh Rate (Hz)3,8403,8403,8403,840
Lifetime(Half brightness, hrs)*80,00080,00050,00050,000
Operating Temperature(°C) / Humidity-20° to 50°/< 90%RH-10° to 45°/0-80%RH-10° to 45°/0-80%RH-10° to 45°/0-80%RH
IP rating Front / RearIP65/IP54IP65/IP54IP65/IP54IP65/IP54

*The Lifetime spec is subject to LED package spec.**All the models apply SMD package with goldwire.***Models may vary by region. Check with local salesteam.
