LBH High Brightness

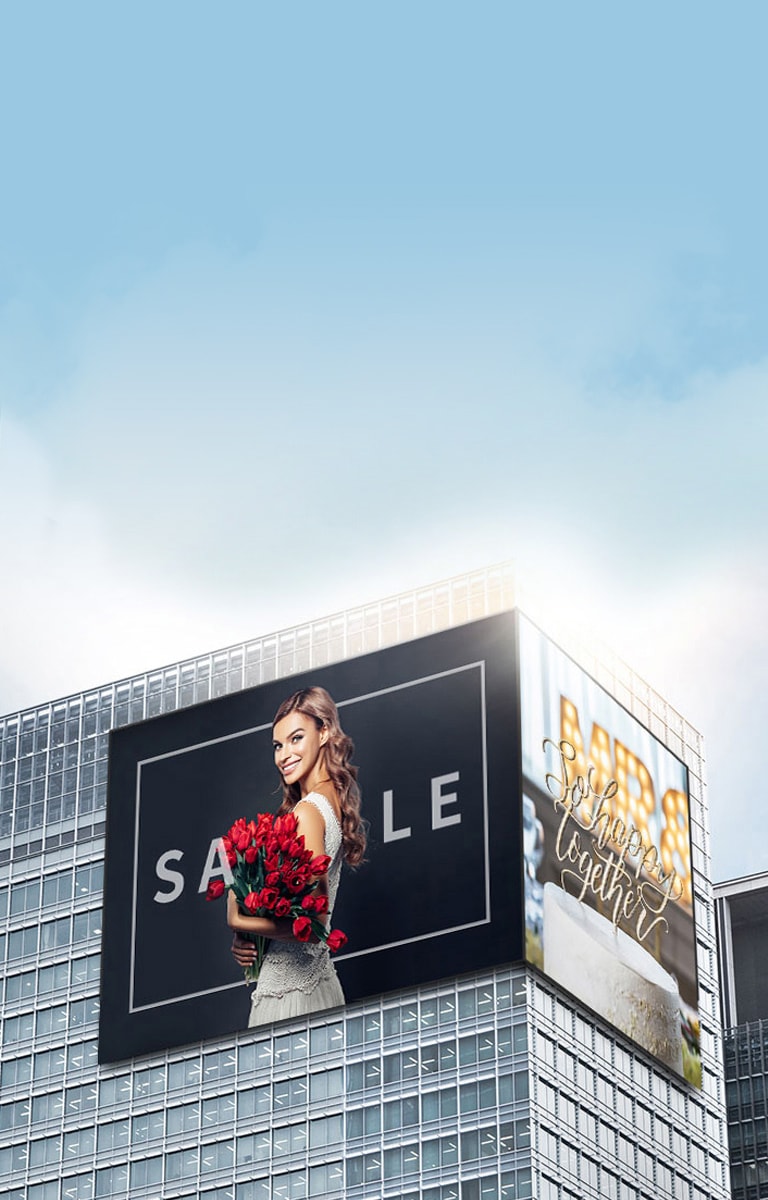

The LBH High Brightness series is recommended for fixed outdoor installations requiring high brightness and high contrast. With IP65-rated (front/rear) robust weatherproof design, it boasts reliable performance even under harsh environments.

M03_ID-LBH-High-Brightness-01-Outstading-Visibility-Mobile_full_1554707010005

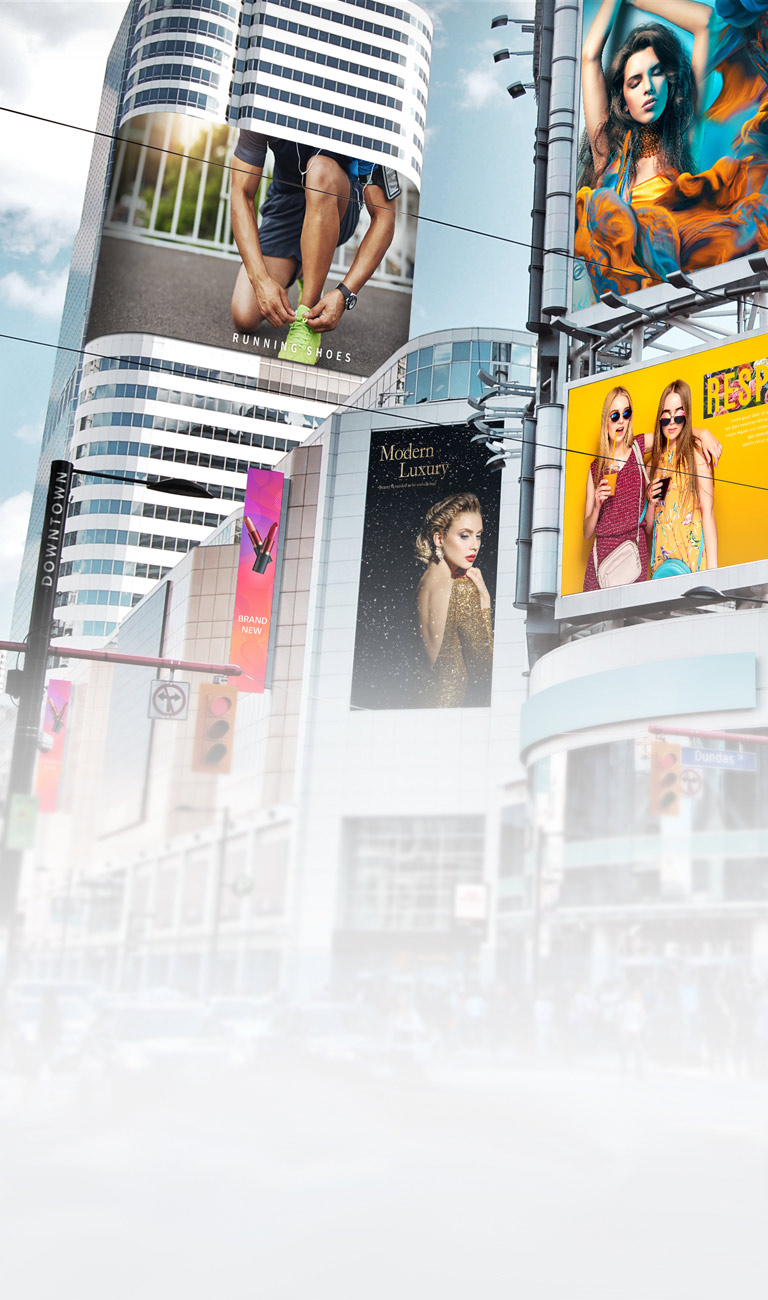

Outstanding Visibility

The brightness is a maximum of 8,000 nits for superb visibility. The product is perfect for outdoor spaces exposed to direct sunlight, instantly catching attention and delivering content more effectively than ever.

M03_ID-LBH-High-Brightness-01-Outstading-Visibility-Mobile_full_1554707010005

Reliable Weatherproof Design

The front and rear of the unit case are both IP65-certified. This keeps it resistant to dust and moisture penetration, allowing stable operation unaffected by weather and harmful outdoor environments.



M05_ID-LBH-High-Brightness-03-Smooth-Playback-in-Dynamic-Motion-Mobile_full_1554707053573

Smooth Playback in Dynamic Motion

A high refresh rate of 3,840Hz assures the smooth playback of content. The flicker-free image prevents the black bars that occur from video shooting, as well as eye strain and blurred vision in viewers.



M06_ID-LBH-High-Brightness-04-Realism-Through-Lifelike-Colors-Mobile_CN

Realism Through Lifelike Colors

The LBH series delivers vivid and distinctive picture quality through a wide range of color details with high contrast ratio.



D08_ID-LED-06-Uniform-Picture-Quality_hk

Uniform Picture Quality

Every step from production is strictly managed, while factory calibration ensures consistent quality between the LED units. The display provides seamless content with 97% brightness uniformity.

D09_ID-LED-07-Vividness-with-Color-Accuracy_hk

Vividness with Color Accuracy

LG’s rigorous quality standards also make LG LED signage reproduce accurate colors, vividly displaying the original colors of objects without distortion.

D10_ID-LED-08-RoHS-Certified-Safe-Product__1554427253259

RoHS Certified Safe Product

Boasting RoHS certification, all LG LED signage models are environmentally-friendly products that do not use materials harmful to the environment and people.


Model NameLBH106VD3-BLBH160VD3DB
Pixel ConfigurationOvalOval
Pixel Pitch(mm)10.6616
Unit Case Resolution(WxH)96x9664x64
Unit Case Dimensions(WxHxD, mm)1024x1024x1501024x1024x150
Weight per Unit Case/Square Meter (kg)42.0/40.042.0/40.0
Service accessFront or RearFront or Rear
Min. Brightness(After Calibration, cd/m²)6,0008,000
Color Temperature6,5006,500
Visual Viewing Angle(Horizontal/Vertical)160/120160/120
Brightness Uniformity / Color Uniformity97%/±0.003Cx,Cy97%/±0.003Cx,Cy
Contrast Ratio5,0005,000
Processing Depth (bit)1414
Power Consumption(W/Unit, Avg./Max.)220/682220/682
Power Consumption(W/m², Max.)650650
Power Supply (V)100 to 240100 to 240
Refresh Rate (Hz)3,8403,840
Lifetime(Half brightness, hrs)*80,00080,000
Operating Temperature(°C) / Humidity-20° to 50°/< 90%RH-10° to 45°/0-80%RH
IP rating Front / RearIP65/IP65IP65/IP65

*The Lifetime spec is subject to LED package spec.**All the models apply SMD package with goldwire.***Models may vary by region. Check with local salesteam.
