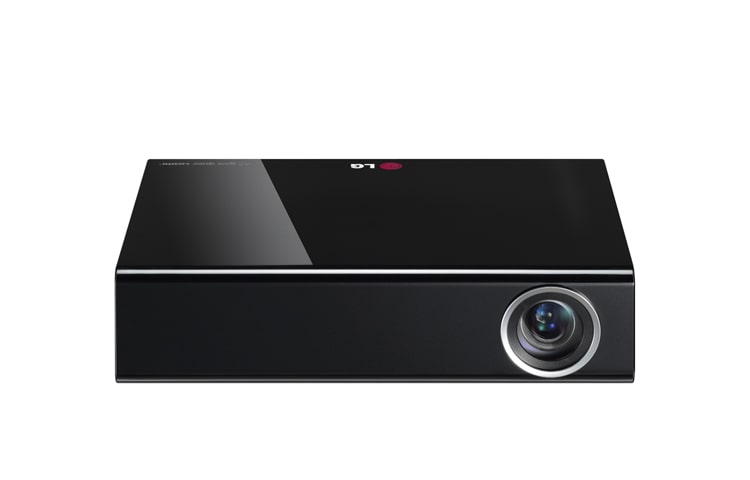

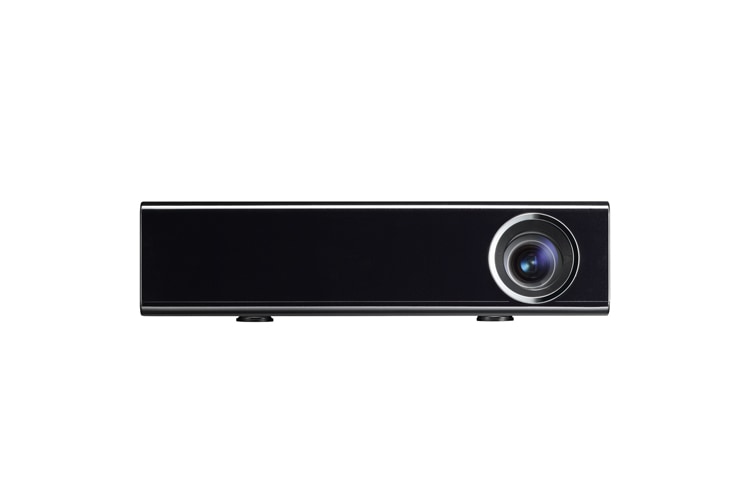

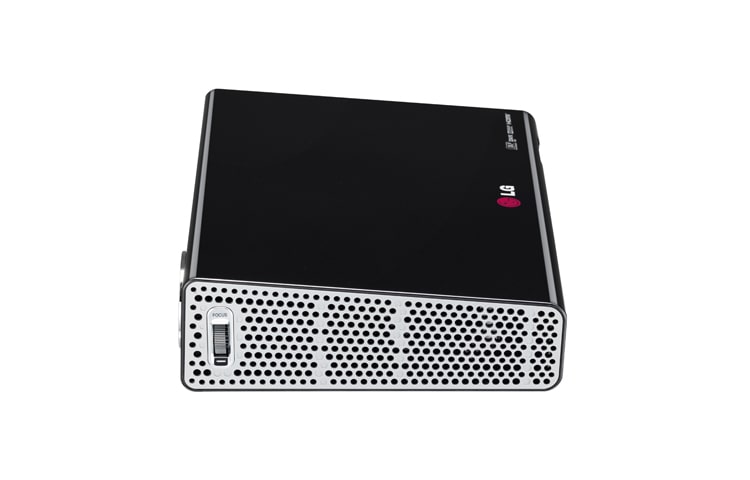

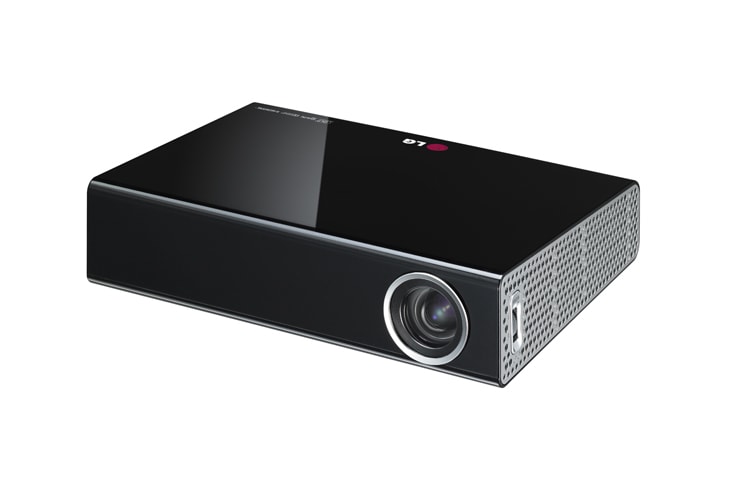

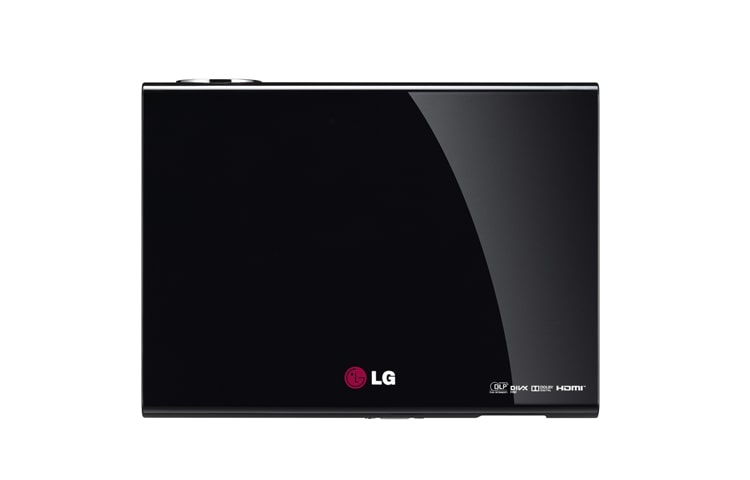

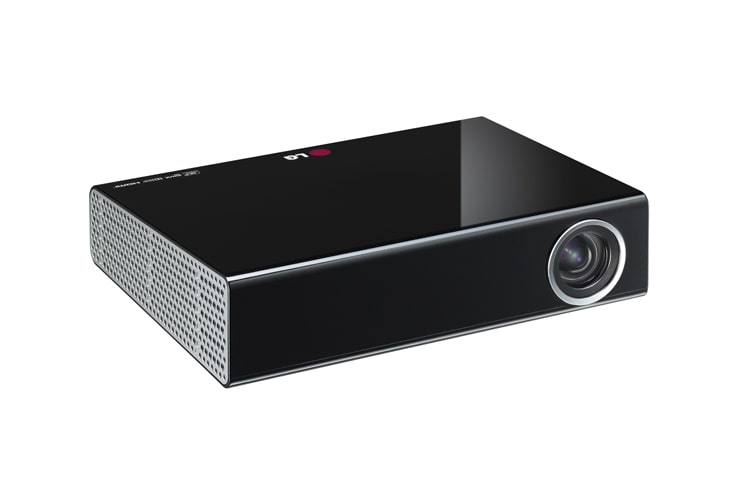

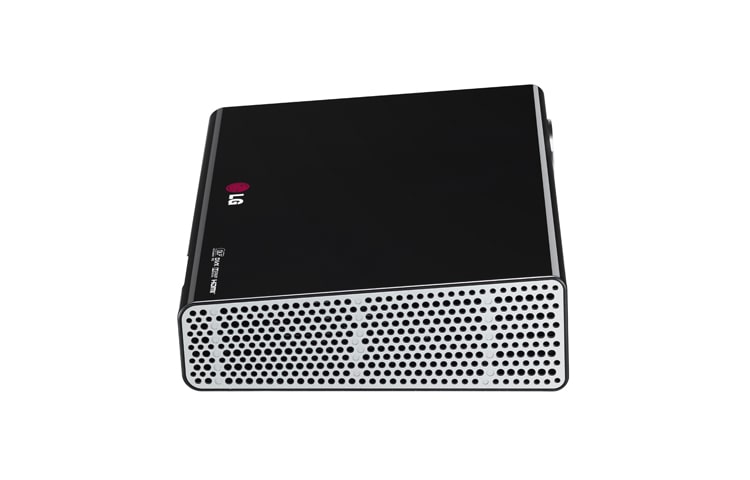

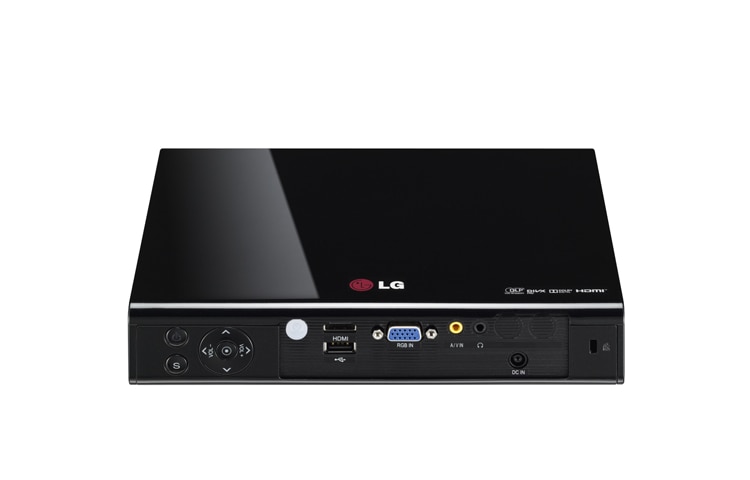

1000Ansi Minibeam

  • PA1000

Key Features

  • 1000Ansi brightness
  • LED illumination system
  • Diary design
  • Wireless mobile mirroring

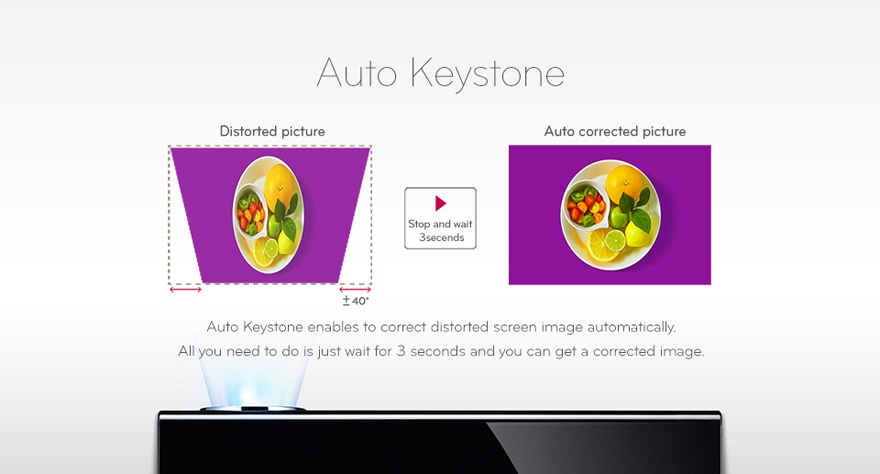

  • Auto keystone
  • 30,000Hours lasting LED








































Projection System
Projection System DLP(0.45")
Brightness(ANSI) 1000 ANSI * The brightness (ANSI) is based on the perceived brightness equivalent to the brightness of (standard) lamp projector
Contrast Ratio(Full On Full Off) 100,000 : 1
Lens - Focus Manual
Lens - Zoom Fixed
Noise - High Brightness Typ 32dB(A)
Noise - Normal Typ 25dB(A)
Noise - Economic Typ 23dB(A)
Uniformorty(JBMMA 9point) 85%
Projection Offset 100%
Lamp - Type RGB LED
Lamp - Life High Brightness 30,000 Hrs
Projection Image
Throw Ratio(Wide/Tele) 1.4
General Specification
Aspect Ratio Control "4:3/Just scan/Set by Pro./16:9/Full/Zoom/Cinema Zoom/Fulll
Dimension (mm) "230(W) x 170(D) x 44
Input Signal Compatibility - Digital(HDMI) 1080p/1080i/720p/480p
Menu Language Korean / English / French/ Spanish / German / Italian / Swedish / Portuguese / Chinese Simplified / polish/ Brazilian Portuguese / Russian/Arabic / Turkish / Hungarian
Power Consumption 80W ↓
Sound 3W+3W Stereo
Stand-by Power <0.5W
Power Supply Adapter (100V – 240V @ 50~60 Hz)
Operation Temp 0 ~ 40℃
Input Signal Compatibility RGB Up to WSXGA+(1680x1050@60Hz)
Input Signal Compatibility - Component Video 1080p/1080i/720p/480p/480i
Weight (kg) 1.2KG
Input/Output Terminals
Composite(AV) in Phone to AV in
Component (YPbPr) RGB to Component in
Audio Out 1 (Φ3.5)
HDMI 1 (MHL)
RGB in 1
RGB(PC) Audio in 1
USB 1 (Type A)
Main Features
3D DLP 3D Ready (DLP Link)
Digital Keystone Correction Yes (Vertical)
Auto Keystone Yes
Auto Source Detection Yes
Auto Input Search Yes
Auto Sleep (Off) Yes (Off/10/20/30/60/90/120/180/240)
Automatic Standby Yes
Blank Yes (Blue, Green)
Brilliant Color™ (Overlap Duty) Yes
Closed Caption Yes
Image Flip Yes(Horizontal/Vertical)
Color Temperature Yes
Black Level Control Yes
Expert controlvADJ Yes
Noise Reduction Yes
Picture Still Yes
Quick(Instant) Power on/off Yes (on 10 Sec off 2 ~3 Sec)
Plug & Play(RGB, DVI/HDMI Input) Yes
Sleep Timer Yes
Added Features
File(Office) Viewer Yes
MHL(Mobile High-definition Link) Yes
USB Host (DivX, MP3, Photo) Yes (HD DivX)
Wireless Mirroring (Awind, WiDi, WFD) Screen Share (WiDi, Miracast)
Design
Cabinet Color Pearl Black
Leg-Stand Yes
Local Key 7 tact key
Kensington Lock Yes
Accessory
Carry Bag Pouch
Manual Simple book, CD, Warranty
3D Glasses DLP Link Glasses (sold separately)
Cable
D-sub 15 1
Power code 1
Conformances(Regulation) "CE, IEC, MIC, USA/Chinese (Global)
Phone to AV (Composite) 1
