Perfect Chilling & Upscaling Features

  • GC-L237ALYN

Key Features

  • High Energy Efficiency with Inverter Linear Compressor
  • Hygiene Fresh
  • Luxurious LED Digital Touch Display
  • Non-Plumbing

Inverter Linear Compressor

LG’s Inverter Linear Compressor technology enables its refrigerators to be industry leaders in energy savings1) longer freshness, noise levels, capacity and durability2). LG’s Inverter Linear Compressor efficiently controls cooling power and reduces internal friction. Changing from reciprocal to piston drive means optimal efficiency and big energy savings. Fewer friction points work to reduce noise levels significantly while enhancing the product’s durability, allowing LG to offer a 10 years warranty on LG’s Inverter Linear Compressor. Moreover, officially proven 20-year-durable lifespan realizes your peace-of-mind.

1.Compared to the refrigerator with LG conventional reciprocating compressor.
Based on VDE testing comparing energy consumption and noise level between LGE model GBB530NSCXE and GBB530NSQWB.
2.Based on VDE testing comparing the average abrasion rate of LG inverter Linear Compressor FLA150NBMA and LG reciprocating compressor CMA121NAEM.
The testing was conducted according to LG’s internal accelerated 20 year life-test protocol.
Abrasion rate is a result of average wear in dimensions of internal components of each compressor type.
"

Inverter Linear Compressor

LG Inverter Linear Compressor

LG guarantees a ten year warranty of the Linear Compressor due to greater durability and reliability.

LG Inverter Linear Compressor
Eco LED Lighting

Eco LED Lighting

LG’s Eco LED Lighting is more compact than a conventional light
bulb. It occupies much less space allowing for more room.
Moreover, you can save energy 12 times better. With many other
benefits, we strongly recommend the Eco LED Lighting.

High-class Durability

You can have peace of mind with LG’s Inverter Linear Compressor that guarantees 10 year warranty. Now, LG also assures high-class durability based on the result of ‘accelerated 20-year lifespan test’ by VDE*.



*The VDE is the association for electrical, electronic and information technologies and their related sciences, technologies and applications.

High-class Durability

Soft -touch Controller

The soft-touch minibar brings you savings and convenience.
It minimizes cold air escaping from the refrigerator and saves on the energy required to restore the internal temperature.
The minibar opens smoothly with just a soft touch with your hand or elbow.

EXPRESS FREEZING
Start Express freezing for freezer compartment. It will be turned off automatically when fixed time passes.
Child lock
Child lock button : Hold for 3 secs to lock all buttons
REFRIGERATOR
Temperature adjust button for fresh food. Middle s middle strong s strong s weak -> middle weak
FREEZER
Temperature adjust button for freezer compartment. Middle s middle strong s strong s weak s middle weak
LIGHT/ FILTER
Dispenser light On/Off button/ Filter status reset button Hold for 3sec to reset filter replacement period.
DISPENSER
Dispenser selection button : Water s Cubed s Crushed
ENERGY-EFFICIENT FEATURE
The backlight in the LCD window automatically goes off when no activity is detected for 20 SEC.
DISPENSER Option MODE
By pressing the button, you can choose between water, crushed and cubed ice.

Soft -touch Controller

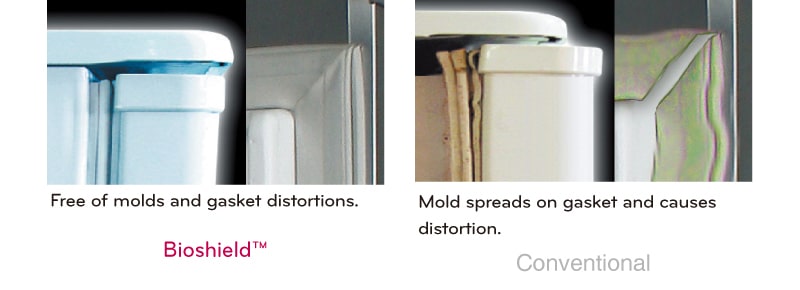

Bioshield ™

The door seals of the refrigerator are treated with anti-microbial agent to prevent the growth of mould which can distort the seal of your refrigerator. The doors can then be tightly closed at all times with no cold air seeping out to maintain coldness, thus it can save energy.

Bioshield ™
Capacity (ℓ) - ISO (Gross)
Total 659
Freezer 246
Refrigerator 413
Capacity (ℓ) - ISO (Storage)
Total 614
Freezer 208
Refrigerator 406
Dimension (mm)
Height (Net) - to Top of Hinge or Door Cap Deco (A) 1790
Height (Net) - to Top of Case (B) 1750
Depth (Net) - without door (C) 610
Depth (Net) - without handle (D) 702
Depth (Net) - including door & handle (E) 752
Width (Net) 912
Width x Height x Depth - Product 912 * 1790 * 752
Width x Height x Depth - Packing 968 * 1,891 * 850
Stuffing q'ty
20ft / 40ft / 40ft HC,Truck 14 / 28 /28
General Features
Refrigerant R600A
Linear Compressor Yes
Star Rating 4 Star
Climate Class T
Sound Power (dB) 39
Energy Class A+ / A++
Freezing Capacity (kg/24hr) 12
Cooling System (No Frost) Yes
Handle Type - Material Aluminum
Handle Type - Size Vertical Long (Curved)
Water Dispenser Yes
Filteration - Internal Option
Filteration - External Option
Bio Shield (gasket) Yes
Display - Exterial LED 88 Touch White
Temp. control - Digital Sensors Yes(6)
Temp. control - Express Freezing Yes
Temp. control - Child Lock Yes
Temp. control - Door alarm Yes
Refrigerator Compartment
Deodorizer (Option)
Multi-Air Flow Yes
Shelf - Tempered Glass Yes(4)
Door basket - Transparent Yes(4)
Door basket - Dairy Corner Yes
Door basket - Bottle guide Yes (Full)
Vaccum Fresh - Vaccum Pump Option
Veg Box Cover T/V - Tempered glass Yes
Vegetable Box - One Yes (2/3)
Egg bank Yes
Lamp LED(2)
Freezer Compartment
Ice maker - Automatic Yes
Multi Air Flow Yes
Door Basket - Transparent Yes (3)
Shelf - Tempered glass Yes(5)
Drawer - Transparent Yes(2)
Door Mounted Ice Maker - Xtra Space Yes(Slim)
Lamp LED(1)
