Ducted System - Big Ducting / High Static 20.0kW (Cooling)

  • B70AWY-9L6

Key Features

  • INVERTER TECHNOLOGY
  • DURABLE GOLDFIN™ COATING
  • DEMAND RESPONSE ENABLING DEVICE (DRED) CAPABLE
  • WEEKLY PROGRAMME
  • GROUP CONTROL
  • CHILD LOCK FUNCTION

HIGH RELIABILITY WITH PRESSURE CONTROL

HIGH RELIABILITY WITH PRESSURE CONTROL

QUIET OPERATION

The noise level of low static duct has been reduced, even though ESP has been increased.

QUIET OPERATION
Durable Coating (GoldFin™)

Durable Coating (GoldFin™)

GoldFin™‚ is an anti corrosive treatment on the surface of the heat exchanger in the outdoor unit. The treatment is designed to protect air conditioners from pollution and corrosive conditions and assists in the durability and longevity of the unit. This technology is the ideal solution for harsh Australian outdoor conditions.

E.S.P. CONTROL (E.S.P: EXTERNAL STATIC PRESSURE)

Air volume can be optimised to reduce noise and meet with the system design utilising E.S.P technology. This enables you to optimise duct work installation, by maintaining airflow and sound levels as required.

E.S.P. CONTROL (E.S.P: EXTERNAL STATIC PRESSURE)

WEEKLY PROGRAMME

The operator can set the timer and program the air conditioner for a period of one week.

Child Lock Function

This function prevents little hands from tampering with the control buttons on the unit. All the buttons on the indoor display panel will be blocked.

Group Control

This enables you to link several products together that can then be controlled by one control device. A connecting line is linked to each of the indoor units to enable communication. This control device can be used to control up to 16 indoor units.

POWERFUL BLDC COMPRESSOR

LG air conditioner comes with a BLDC compressor that uses a strong neodymium magnet. Its compressor has improved efficiency and the operation range has been expanded.

POWERFUL BLDC COMPRESSOR

BLDC FAN MOTOR TECHNOLOGY

The BLDC motor is made up of powerful ND magnets providing high torque, resulting in the ability to provide large air volume and high static pressure capability. This allows high speed operation at reduced electrical and mechanical noise.

BLDC FAN MOTOR TECHNOLOGY

HEAT EXCHANGER WITH WIDE LOUVER FIN

Improved heat exchanger efficiency up to 28%, applying Multi V technology.

HEAT EXCHANGER WITH WIDE LOUVER FIN

OPTIMISED HEAT EXCHANGER PATH

Improved Refrigerant cycle efficiency up to 5% with equal distribution.

OPTIMISED HEAT EXCHANGER PATH

OPERATION FOR MULTIPLE ROOMS

Using a duct (solid or flexible type), it is possible to operate cooling / heating for several rooms simultaneously.

OPERATION FOR MULTIPLE ROOMS

EASY SERVICE & MAINTENANCE

There is now a separate panel for the heat exchanger and fan/motor. Coupled with the fan/motor filter for easy removal and installation, maintenance of the LG unit has been simplified even in limited spaces.

EASY SERVICE & MAINTENANCE

SPLIT TYPE INDOOR UNIT

Fan/motor part assembly and heat exchanger assembly can be separated. This enables installation of the indoor unit in two parts before final assembly.

SPLIT TYPE INDOOR UNIT

HIGH HEAD DRAIN PUMP (Optional)

Auxiliary Drain Pump automatically drains water. A standard drain-head height of up to 700mm is possible, which helps create the ideal solution for water drainage.

HIGH HEAD DRAIN PUMP

Wi-Fi Smart Control (Optional)

Power and temperature control from your smart phone LG Smart AC App lets you easily access and control your air conditioner from your smartphone

Compatible Devices:
• Android Phone (ver. 2.3 or Higher)
• Apple iPhone (iOS6 or Higher)
* Not available for Low, Mid Static model

Wi-Fi Smart Control

MY FAVOURITE SETTING

The Perfect Setting for Me
Create your own settings with ease.
Enables you to save and easily access your favourite settings.

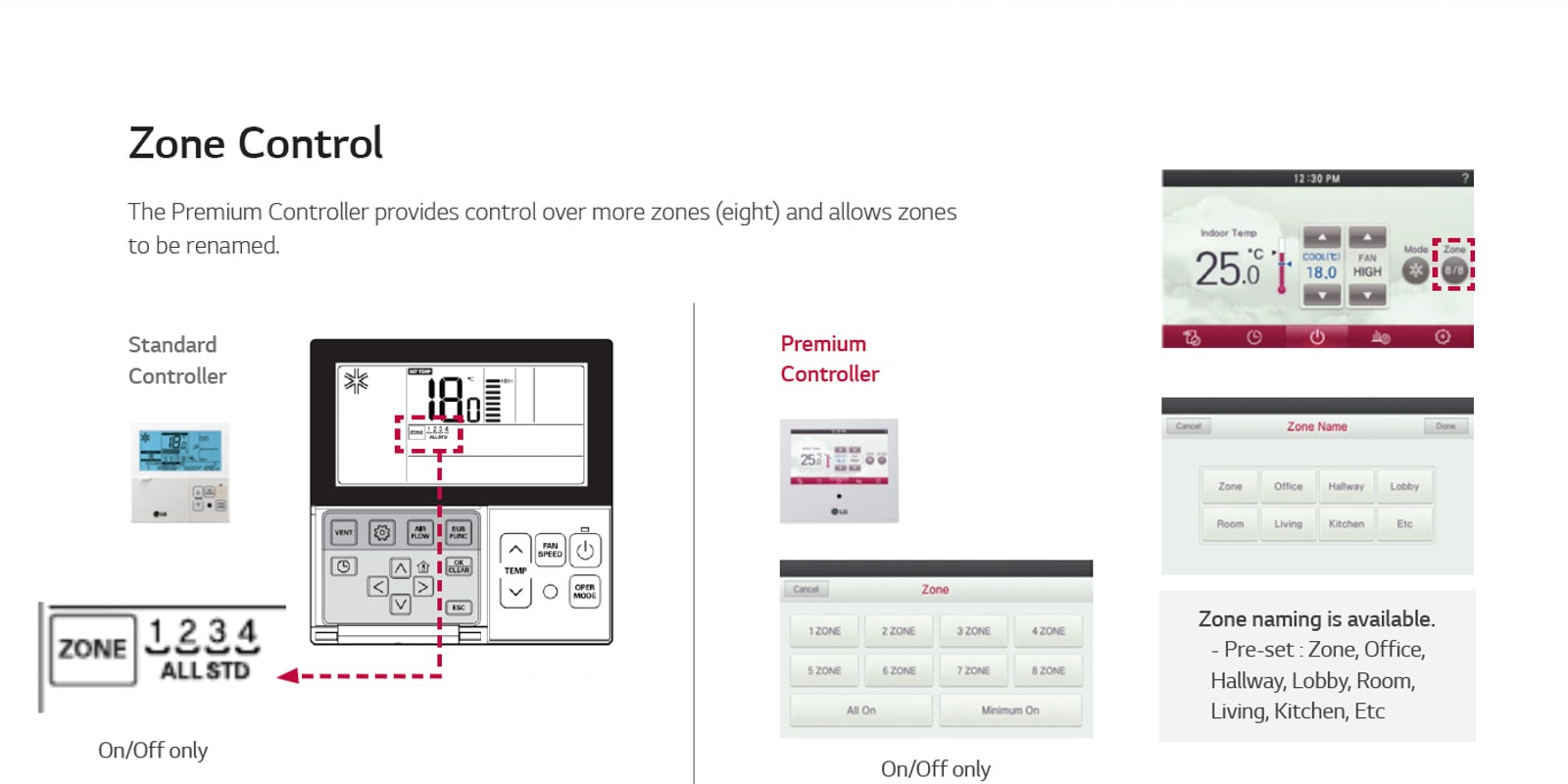

ZONE CONTROL (Optional)

Enables you to turn different zones on & off from your smartphone

ZONE CONTROL

DEMAND RESPONSE CAPABLE (Optional)

*Standard models require additional purchase of the Dry Contact accessory Part No. PQDSRCDUMO to become Demand Response Capable. A Demand Response Enabling Device (DRED) is required at the time of instillation to activate the demand response modes.

Available from your installing electrician.

Indoor Specifications
Capacity (Cooling)(Min/Rated Max) 8.0 / 20.0 / 22.0 kW
Capacity (Heating)(Min/Rated Max) 9.0 / 22.6 / 24.9 kW
Power Input (Cooling/Heating) 6.47 / 6.19 kW
EER 3.09
COP 3.65
Power Supply (V/ø/Hz) 220~240 / 1 / 50
Piping Connection (Liquid / Gas / Drain) ø 12.7 (1/2) mm / ø 22.2 (7/8) mm / ø 32/25 mm
Air Flow Rate (High/Medium/Low) Sirocco Fan - 80.0 / 72.0 / 64.0 m3/min - 1,333 / 1,200 / 1,067 l/s
Sound Pressure (Cooling) (High/Medium/Low/Sleep) 43/41/40 dBA
Dimensions (WxHxD) 1,563 X 458 X 791 mm
Net Weight 89.0 kg
Supply Air Spigot (WxH) 1,044 X 286 mm
Return Air Spigot (WxH) 1,368 X 392 mm
External Static Pressure (Min~Max) Pa 60 - 180 (130 factory)
Outdoor Specifications
Compressor Type Hermetically Sealed Scroll
Sound Pressure (Cooling/Heating) (Rated) 59 dBA / 60 dBA
Sound Power (Cooling) (Max) 71 dBA
Dimensions (WxHxD) 1,090 X 1,625 X 380 mm
Net Weight 144 kg
Refrigerant (Type / Charge / Chargeless Piping Length [after 7.5m]) R410A / 5,500g / 70m
Operation Range (Cooling, Min - Max) / (Heating, Min - Max) -20 ~ 48°C DB / -18 ~ 18°C WB
Power Supply (V/ø/Hz) 380~415 / 3 / 50
Running Current (Cooling/Heating) (Rated) 10.9/10.5A
Piping Length Total 75m (246.0)
Piping Connection (Liquid / Gas) mm ø 12.7 mm / ø 22.2 mm
Maximum Hight (O.D.U ~ I.D.U, Max) 30m (98.4)
