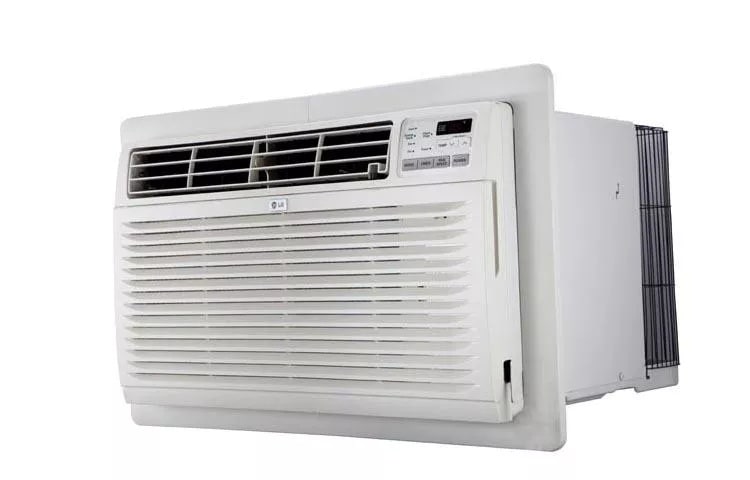

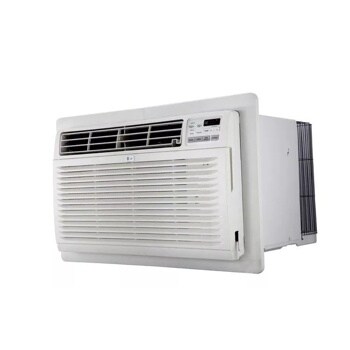

9,800 BTU Thru-The-Wall Air Conditioner

  • LT1014CNR

Key Features

  • 9,800 BTU
  • Cooling EER (BTU/Watts) 8.8
  • Universal Fit for Sleeve
  • Gold Fin™ Anti-Corrosion
PERFORMANCE
BTU Performance 9,800
EER 8.8
Dehumid. (Pts/Hr) 3.2
Dry Air Flow (CFM) 285
dBA Level (Indoor / Outdoor) 54/61
Est. Cooling Area (Sq. Ft.) 450
DIMENSIONS
Product (WxHxD) 24" x 14 13/32" x 20 3/32"
Shipping (WxHxD) 27 23/32" x 17 13/32" x 22 13/32"
Net Weight (lbs.) 78
Shipping Weight (lbs.) 88
Stuffing Quantity (40ft) 339
FEATURES
Thermostat Control Thermistor
Air Deflection 4-Way
Remote Control Yes
Energy Saver Function Yes
Fan Speed: Cooling 3
Fan Only Speed 3
Compressor Rotary
Indoor Fan Type Turbo
Type Air Discharge Top
Outdoor Vent / Exhaust Yes
Chassis Type XB
Auto Restart Yes
MATERIALS/FINISHES
Available Colors White
ELECTRICAL RATINGS
Voltage / 60 Hz 115
Watts 1,110
Rated Amps 10.2
OPTIONAL ACCESSORIES
Wall Sleeve AXSVA1
Wall Sleeve with Stamped Aluminum Grille AXSVA4
Stamped Aluminum Grille AXRGALA01
WARRANTY
Limited Warranty 1 Year Parts and Labor
UPC 048231 372879

What People Are Saying

We're here to support you with our product.

Contact us for any purchasing inquiries.

Product Support

ASK & ANSWER

Ask your questions. Share your answers.

1 Question & 1 Answer

Ask Your Questions, Share Your Answers

Ask your questions. Share your answers.



« Back


the front 3' which seems like a lot. Also , what holds it in the sleeve?
Category: I own this product
Interested in: How To use
9 months ago
User Name:
sisterhen
ar

Please wait while more information about sisterhen is loaded.
Additional information about sisterhen could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
We appreciate your interest in this air conditioner. The sleeves are typically interchangeable, to allow for the sleeve to be attached to the wall while the air conditioner itself can be replaced when necessary. According to Figure 6 on page 13 of the Installation Guide, it appears that the normal installation of a wall sleeve places 6” of the sleeve outside the home, and about 9 1/2” inside the home. If there are additional questions about the installation process, please contact our Customer Interactive Center at 800-243-0000
8 months ago
