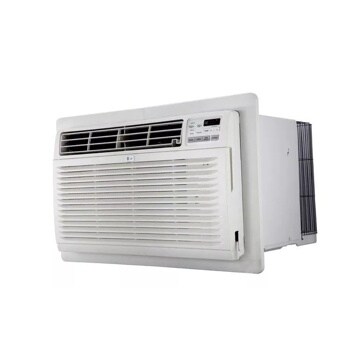

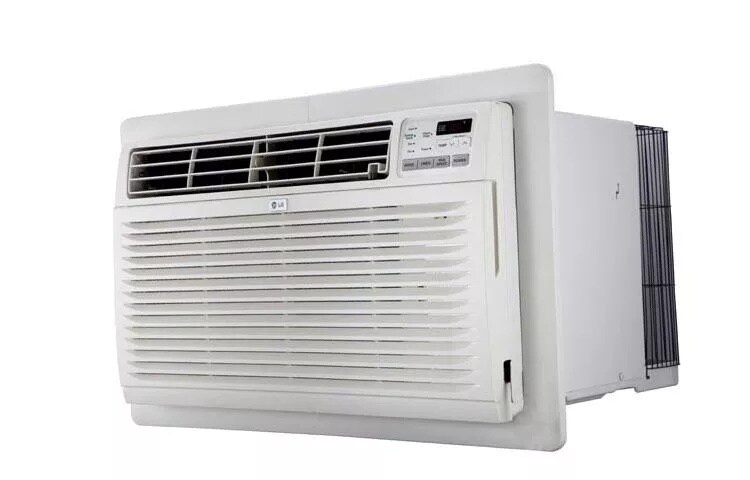

10,000 BTU Thru-The-Wall Air Conditioner

  • LT1034CNR

Key Features

  • 10,000 BTU
  • Cooling EER (BTU/Watts) 8.8
  • Universal Fit for Sleeve
  • Gold Fin™ Anti-Corrosion
PERFORMANCE
BTU Performance 10,000/9,800
EER 8.8/8.8
Dehumid. (Pts/Hr) 3.2
Dry Air Flow (CFM) 285
dBA Level (Indoor / Outdoor) 54/61
Est. Cooling Area (Sq. Ft.) 450
DIMENSIONS
Product (WxHxD) 24" x 14 13/32" x 20 3/32"
Shipping (WxHxD) 27 23/32" x 17 13/32" x 22 13/32"
Net Weight (lbs.) 78
Shipping Weight (lbs.) 88
Stuffing Quantity (40ft) 339
FEATURES
Thermostat Control Thermistor
Air Deflection 4-Way
Remote Control Yes
Energy Saver Function Yes
Fan Speed: Cooling 3
Fan Only Speed 3
Compressor Rotary
Indoor Fan Type Turbo
Type Air Discharge Top
Outdoor Vent / Exhaust Yes
Chassis Type Thru-The-Wall
Auto Restart Yes
MATERIALS/FINISHES
Available Colors White
ELECTRICAL RATINGS
Voltage / 60 Hz 230/208
Watts 1,140/1,110
Rated Amps (Cooling) 5.2/5.6
WARRANTY
Limited Warranty 1 Year Parts and Labor
UPC 048231 372886

What People Are Saying

We're here to support you with our product.

Contact us for any purchasing inquiries.

Product Support

ASK & ANSWER

Ask your questions. Share your answers.

2 Questions & 2 Answers

Ask Your Questions, Share Your Answers

Ask your questions. Share your answers.



« Back


Has staff answer
Has expert answer

1 answer

how to measure box

It states the box can fit most 26" sizes, which way are you measuring?
Width of unit?
Thank you.
Linda A Pytko

Model # LT103CNR Serial # 203TAEJ00020
Category: I own this product
1 year ago
User Name:
crooztime
Home

Please wait while more information about crooztime is loaded.
Additional information about crooztime could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
We appreciate your interest in this air conditioner. The average width of our wall air conditioner units is around 24” – 25”. The trim kit that comes with the unit will allow coverage for an installation cut-out of 26”. If there are additional questions about this installation, please contact our Customer Interactive Center at 800-243-0000.
10 months ago
User Name:
NeilE

Please wait while more information about NeilE is loaded.
Additional information about NeilE could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
Has staff answer
Has expert answer

1 answer

Where can I get a replacement filter for this model?

Please advise regarding availability of a replacement filter for this model. Where can I buy one? What is the part number of the filter, please?
Category: I own this product
11 months ago
User Name:
tonyinclearwater
Clearwater, FL, USA

Please wait while more information about tonyinclearwater is loaded.
Additional information about tonyinclearwater could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
Accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at http://www.mcmelectronics.com/conte.... The part number for this Air Filter is 5230A20041A.
9 months ago
