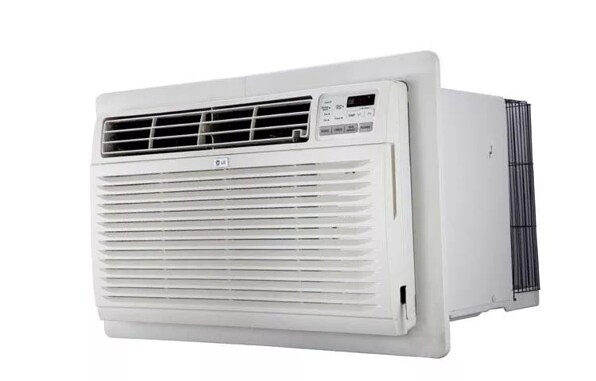

11,500/11,200 BTU Thru-The-Wall Air Conditioner

  • LT1234CNR

Key Features

  • 11,500/11,200 BTU
  • Cooling EER (BTU/Watts) 8.8/8.8
  • Universal Fit for Sleeve
  • Gold Fin™ Anti-Corrosion
PERFORMANCE
BTU Performance 11,500/11,200
EER 8.8/8.8
Dehumid. (Pts/Hr) 3.8
Dry Air Flow (CFM) 290
dBA Level (Indoor / Outdoor) 55/62
Est. Cooling Area (Sq. Ft.) 550
DIMENSIONS
Product (WxHxD) 24" x 14 13/32" x 20 3/32"
Shipping (WxHxD) 27 23/32" x 17 13/32" x 22 13/32"
Net Weight (lbs.) 80
Shipping Weight (lbs.) 90
Stuffing Quantity (40ft) 339
FEATURES
Thermostat Control Thermistor
Air Deflection 4-Way
Remote Control Yes
Energy Saver Function Yes
Fan Speed: Cooling 3
Fan Only Speed 3
Compressor Rotary
Indoor Fan Type Turbo
Type Air Discharge Top
Outdoor Vent / Exhaust Yes
Chassis Type XB
Auto Restart Yes
MATERIALS/FINISHES
Available Colors White
ELECTRICAL RATINGS
Voltage / 60 Hz 230/208
Watts 1,310/1,270
Rated Amps 6.0/6.4
OPTIONAL ACCESSORIES
Wall Sleeve AXSVA1
Wall Sleeve with Stamped Aluminum Grille AXSVA4
Stamped Aluminum Grille AXRGALA01
WARRANTY
Limited Warranty 1 Year Parts and Labor
UPC 048231 372909
