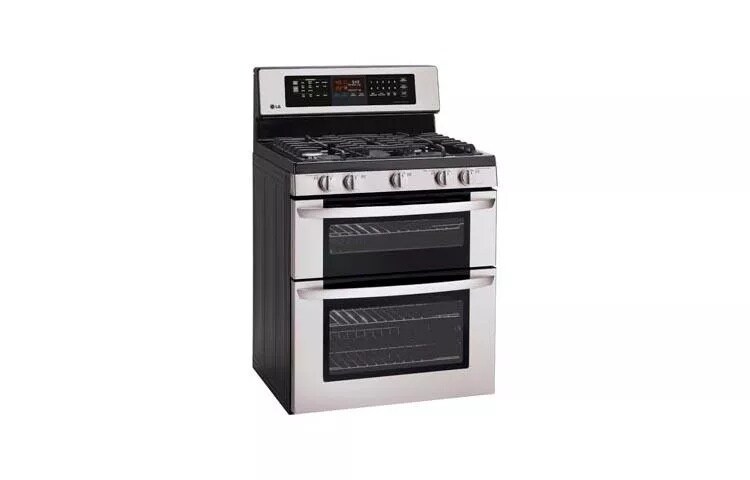

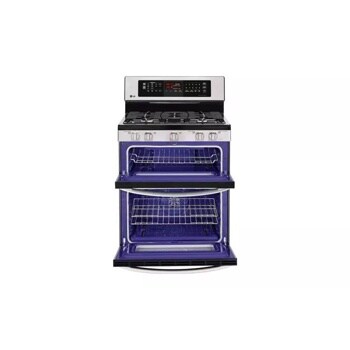

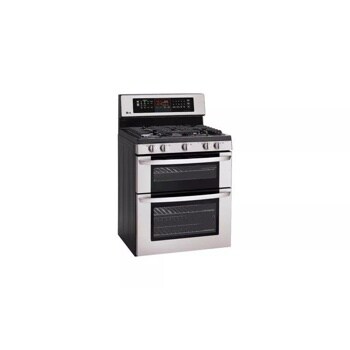

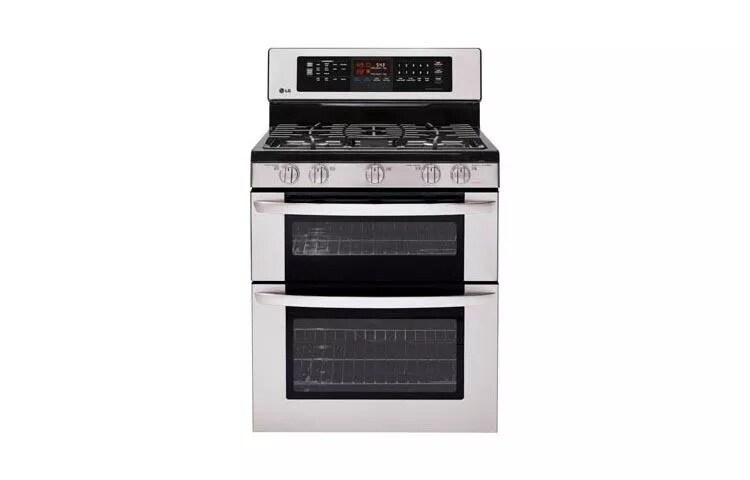

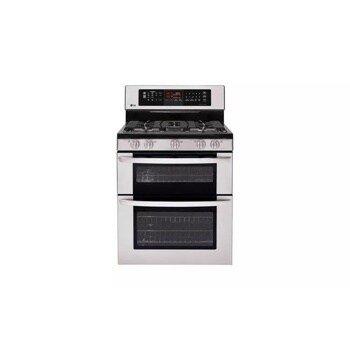

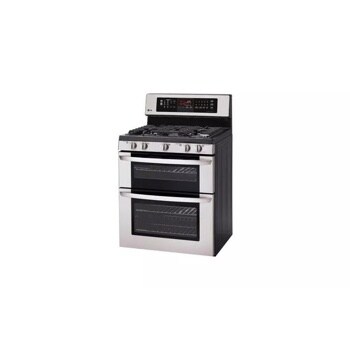

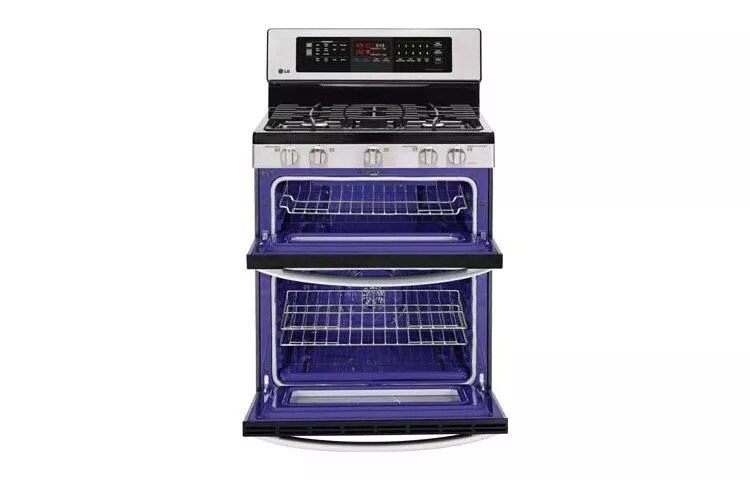

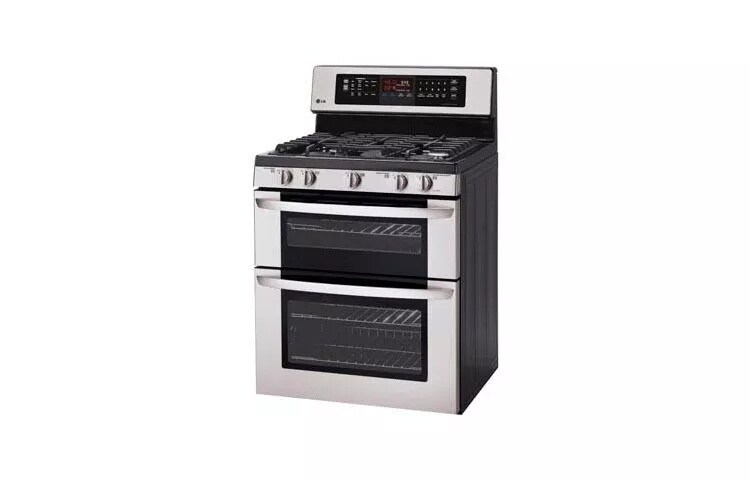

6.1 cu. ft. Capacity Gas Double Oven Range with Infrared Grill and EasyClean™

  • LDG3037ST

  • Stainless Steel
  • Discontinued Product

Key Features

  • Infrared Grill System
  • EasyClean™ Cleaning Feature
  • Large Capacity Gas Oven (6.1 cu ft)
  • EvenJet™ Convection System
AVAILABLE COLORS:
CAPACITY
Oven Capacity 2.2 cu.ft. Upper / 3.9 cu.ft. Lower
Total Capacity 6.1 cu. ft.
OVEN FEATURES
EasyClean™ Technology Yes
Configuration Freestanding Gas Double Oven
Control Type Knobs/Keypad
Infrared Grill System Yes
Display VFD Scrolling
Bake Element (Upper) 14,500 / 13,500 btu/h
Broil Burner (Upper) Infrared Grill 18000Btu/h / 13500Btu/h
Bake Element (Lower) 16,000 / 14,000 btu/h
Convection Conversion Yes
Convection System - Convection Bake Yes
Convection System - Convection Roast Yes
Cooking Modes Bake, Broil, Proof, Warm
Control Features Delay Bake, Delay Clean, Automatic Shut-Off
Cleaning Self Clean / EasyClean™
Oven Light Yes
No. of Racks 2 Standard Racks
Large WideView™ Window Yes
COOKTOP
Burner Type Sealed Gas Burners
Configuration - Left Front 12000Btu/h / 9500Btu/h
Configuration - Left Rear 9100Btu/h / 9100Btu/h
Configuration - Center (Single Oval) 8000Btu/h / 8000Btu/h
Configuration - Right Front 17000Btu/h / 10000Btu/h
Configuration - Right Rear 5000Btu/h / 5000Btu/h
DIMENSIONS/CLEARANCES/WEIGHT
Shipping Weight (lbs) 272
Cabinet Width (in) 30"
Overall Height (in) 35 9/10"
Overall Width (in) 29 9/10"
Depth (including handle) 26 2/5"
Oven Interior Dimensions (in) (W x H x D) 24 1/2" x 13 2/5" x 19 1/5"
Oven Interior Dimensions (Upper) (in) (W x H x D) 24 1/2" x 8 4/5" x 19 1/5"
POWER/RATINGS
Requirements 120 VAC
KW / Amp Rating @120V 1.65kW / 13.75A
MATERIALS/FINISHES
Available Colors Stainless Steel (ST)
Knobs Nikel Plating
Handle Matching Stainless
Door Full Stainless Steel Wrap
Cooktop Finish Porcelain
WARRANTY/UPC
Limited Warranty 1 Year Parts and Labor, 5 Years Glass Cooktop/Electric Elements/Sealed Gas Burners
UPC 048237 318365
