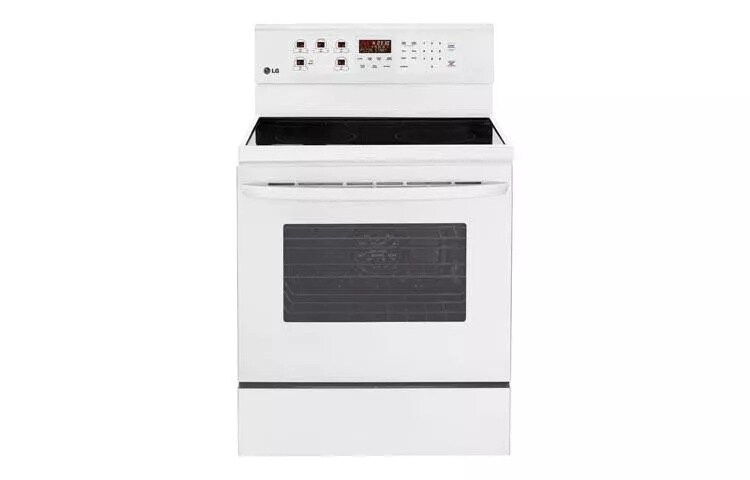

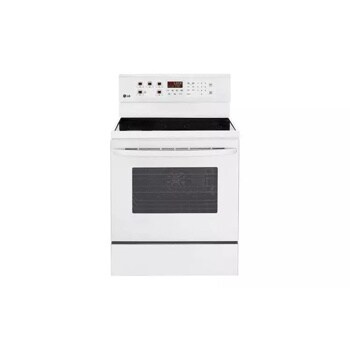

6.3 cu. ft. Capacity Electric Single Oven Range with Fan Convection

  • LRE3023SW

  • Smooth White

Key Features

  • Large Capacity (6.3 cu ft.)
  • Fan convection
  • IntuiTouch™ controls
  • 5 Cook Top Elements
AVAILABLE COLORS:
Without a doubt...one of the finest ovens we've seen.

Without a doubt...one of the finest ovens we've seen.

The heat is on and LG's largest capacity oven LRE3023 scores big time... for cooking capacity, temperature control and convection performance.

The Largest Electric Oven in the Industry*

The Largest Electric Oven in the Industry*

You can handle all of your family’s cooking needs. Whether you’re baking large batches of cookies or a roast for the holidays, this oven can fit it all.

*Based on manufacturers’ published specifications of freestanding electric single oven ranges, April 2012.

OUR FASTEST BOILING ELEMENT

OUR FASTEST BOILING ELEMENT

LG’s fastest boiling solution offers the most powerful double element in the market at 6400 Watts.* The dual element provides a total 6400W of power while each ring provides 3200W of power.



*Among leading brands, non-induction elements.

HEAT WAVE

HEAT WAVE

LG's fan convection system delivers the ideal temperature and airflow for fast preheating and precise cooking.

Easy Operation at a touch

Easy Operation at a touch

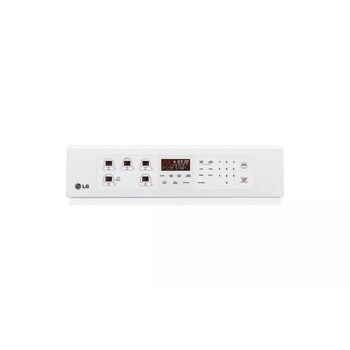

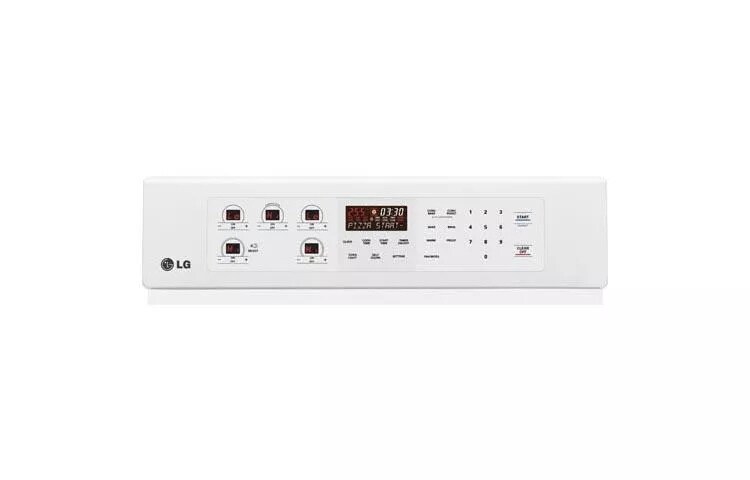

IntuiTouch™, with scrolling IntuiScroll™ display, makes operating your electric range a snap. The left side of the panel mirrors the cook top elements, while the right side controls the oven functions.

Less Mess

Less Mess

Conceals the lower oven bake element to eliminate hard-to-reach areas that collect food and spills for easy cleaning.

Brilliantly Lit

Brilliantly Lit

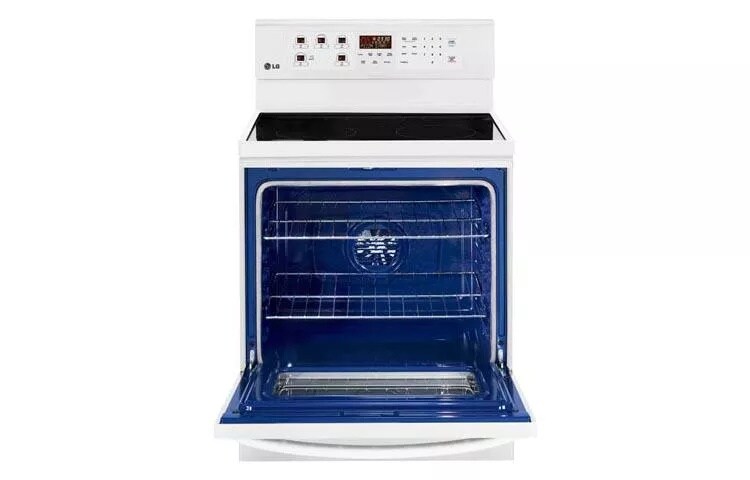

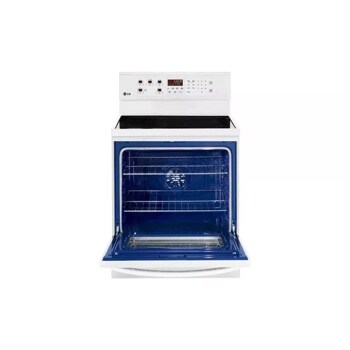

A premium range should meet your needs and look beautiful doing it. The Brilliant Blue Interior provides an upscale look with premium interior design.

SUMMARY
Range Type Single Door
CAPACITY
Oven Capacity 6.3 cu.ft.
OVEN FEATURES
Configuration Freestanding Electric Oven with Storage Drawer
Bake Element 3400W / 6 Pass (Hidden Bake)
Broil Element Sheathed Heater, 4200W / 6 Pass
Oven Cooking Technology EventJet™ Fan Convection
Oven Cooking Modes Bake, Broil, Conv Bake, Conv Broil, Warm, Proof, Favorites
Cleaning Self Clean (3,4,5 hours)
Oven Light Yes
Oven Rack 2 Standard Racks
Door Lock Yes
Oven Cleaning Features Delay Bake (up to 12 hours), Delay Clean, Automatic Shut-Off (After 12 hours)
COOKTOP
Element Size/Wattage - Left Rear 6" / 1200W
Element Size/Wattage - Right Rear 6" / 1200W
Element Size/Wattage - Center Rear 7"/100W (Warming)
Cooktop Burner Type Radiant
Cooktop Finish Grey Patterned on Black Ceramic Glass
5th Element Yes
CONTROL
Control Location Backsplash
Control Type IntuiTouch™ Keypad
Control Display Scrolling Display / White(Green VFD+Pink Smog)
APPEARANCE
Available Colors Stainless Steel, Smooth Black, Smooth White
Handle Matching Stainless
Oven Door Feature Large WideView™ Plus Window, Full SS Wrap
DIMENSIONS/CLEARANCES/WEIGHT
Shipping Weight (lbs) 180
Product Weight (lbs) 157
Cabinet Width (in) 30"
Overall Depth (in) 25 7/8 (to door) / 28 1/4" (including handle)
Overall Height (in) 47 1/8"
Overall Width (in) 29 7/8"
Oven Interior Dimensions (Upper) (in) (W x H x D) 24 13/16 x 19 11/16 x 19 1/4"
Height to Cooking Surface (in) 36"
Drawer Dimensions (in) (W x H x D) 22 3/16 x 4 1/2 x 16 3/8"
Carton Dimensions (in) (W x H x D) 33 11/16 x 50 7/8 x 30 9/16"
POWER/RATINGS
Amp Rating at 208V 120 / 208 VAC
Amp Rating at 240V 120 / 240 VAC
KW Rating at 208V 11.5 kW
KW Rating at 240V 15.3 kW
WARRANTY/UPC
Limited Warranty 1 Year Parts and Labor (In Home Service); 5 Years Limited on Cooktop and Radiant Surface Units

What People Are Saying

Rated 4.7 out of 5 by 106 reviewers.
Rated 5 out of 5 by Great appearance and features. We bought this range because of it's appearance and value. We have used it for a while now and it's lived up to our expectations. very nice range August 2, 2014
Rated 3 out of 5 by Nice but panel goes bad fast Buy the warranty!! I read reviews prior to buying, most liked the range, as we do, but as previous reviews stated the electronic panel buttons are hard to push and the panel breaks. Exactly 1 year of use and the panel does not work, and yes, the buttons are hard to push. We now have to go almost 6 weeks without a stove/range waiting for the part. Just glad we bought the warranty!!!!! I suggest that if you buy this product get the longest warrant available and have a alternate cooking device. July 27, 2014
Rated 5 out of 5 by Enjoying Cooking More with my LG I really love my new range, no knobs to clean around. Cooks so much quicker. I like the bread proofer, the warming burner. It heats up fast.I probably will buy another one for our Florida house. July 4, 2014
Rated 5 out of 5 by Great appliance Everything works as advertised. We enjoy all the features. It heats so fast it took a while to get used to it - overcooked a couple things in the process July 4, 2014
Rated 5 out of 5 by Overall Satisfaction Range installed today.....so far I love how it looks in my kitchen.....heated quickly and used the warming element right off......Think I'm going to enjoy my new toy. May 2, 2014
Rated 5 out of 5 by performance is awesome Always have been a lg customer very impressed with the easy cleaning aspect of the stove itself. Would highly recommend tuis product to all of my family and friends. April 19, 2014
Rated 3 out of 5 by A few problems I find the buttons to turn on the burners are harder to push than they should be. It is uncomfortable to need to push as hard as I have to in order to turn on the burners. Also the heat goes off and on and I need to keep changing the temperature. One minute it is boiling and the next simmering making it impossible to cook certain things properly. April 12, 2014
Rated 5 out of 5 by The quality is excellent This is one of LG appliances that we recently bought. We also bought a washer and dryer, and also a dishwasher. We also already had a LG tv set. We are sold on LG products.We highly recommend them. March 24, 2014
2 3 4 5 Next>>

We're here to support you with our product.

Contact us for any purchasing inquiries.

Product Support

ASK & ANSWER

Ask your questions. Share your answers.

7 Questions & 9 Answers

Ask Your Questions, Share Your Answers

Ask your questions. Share your answers.



« Back


When I go to your recommended dealer Best Buy in Melbourne Florida they tell me they cannot orderthe Range. When I go to the local Home Depot stores here in Melbourne Florida they give me different prices at different stores. In addition neither store employees seem to care about sellinbg your products. They give me the attitude that they careless.

My question is simple where can I buy at the best price an LGWhite Electric Range Model LRE3023SW along with a LG Refrigerator model LSC23924SW ?

they
Category: I do not own this product
Interested in: Where to buy
2 years, 1 month ago
User Name:
Edcon

Please wait while more information about Edcon is loaded.
Additional information about Edcon could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
Try ordering it online at home depot. There you will get the best price. I did.
Gender: male
1 year, 6 months ago
User Name:
brotherjerry
Corpus Christi, TX, USA

Please wait while more information about brotherjerry is loaded.
Additional information about brotherjerry could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
You can use the where to buy tool to find a retailer near you.
2 years ago
User Name:
LGJoel

Please wait while more information about LGJoel is loaded.
Additional information about LGJoel could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
Has staff answer
Has expert answer

2 answers

can you bake without using the convection feature.

Category: I do not own this product
1 year, 7 months ago
User Name:
oldtimecook

Please wait while more information about oldtimecook is loaded.
Additional information about oldtimecook could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
Yes. Just press the bake button which is just below the conv. bake button.
Gender: female
1 year, 7 months ago
User Name:
rlhsrh
Sioux Falls, SD, USA

Please wait while more information about rlhsrh is loaded.
Additional information about rlhsrh could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
Yes, there are multiple methods by which one may cook on this oven. According to page 13 of the owner’s manual, this unit has options to WARM, PROOF, BAKE, BROIL, Convection BAKE, and Convection BROIL.
1 year, 7 months ago
User Name:
NeilE

Please wait while more information about NeilE is loaded.
Additional information about NeilE could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
Please you can tell me, thank. I buy about 1 year ago in Muebleria Berrios in Puerto Rico
Category: I own this product
Interested in: Troubleshooting
1 year, 9 months ago
User Name:
Myrna
Puerto Rico

Please wait while more information about Myrna is loaded.
Additional information about Myrna could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
We regret the trouble you have experienced with this electric range. The F-1 Error Code suggests an opened sensor. Press the CLEAR OFF to clear the display and stop any beeping that may occur. Reprogram the oven settings and options. If the fault recurs, record the fault number, and contact a service technician. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at http://www.lg.com/us/support/repair....
1 year, 9 months ago
User Name:
NeilE

Please wait while more information about NeilE is loaded.
Additional information about NeilE could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
Has staff answer
Has expert answer

1 answer

What temperature is the oven at when on proof?

This is for an electric convection oven.
Category: I own this product
Interested in: How To use
1 year, 6 months ago
User Name:
Spokes

Please wait while more information about Spokes is loaded.
Additional information about Spokes could not be loaded.
+1point
1out of 1found this question helpful.
HelpfulNot Helpful

Answers

Answer:
We appreciate your interest in this electric range. The PROOF function will operate to keep a constant temperature in the oven which cannot exceed 125 degrees. Above this temperature, the PROOF feature will not operate.
1 year, 6 months ago
User Name:
NeilE

Please wait while more information about NeilE is loaded.
Additional information about NeilE could not be loaded.
+1point
1out of 1found this answer helpful.
HelpfulNot Helpful
For a LRE3023SW ELECTRIC RA NGE, WHAT SIZE (AMPS) CIRCUIT BREAKER
Category: I do not own this product
1 year, 4 months ago
User Name:
Nmacturk
Rehoboth Beach, DE, USA

Please wait while more information about Nmacturk is loaded.
Additional information about Nmacturk could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
POWER RATINGS
Amp Rating at 208V 120 / 208 VAC
Amp Rating at 240V 120 / 240 VAC
KW Rating at 208V 9.3 kW
KW Rating at 240V 12.4 kW
1 year, 3 months ago
User Name:
Nadine

Please wait while more information about Nadine is loaded.
Additional information about Nadine could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
