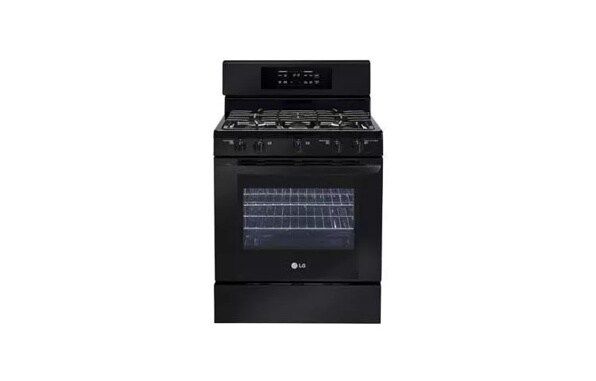

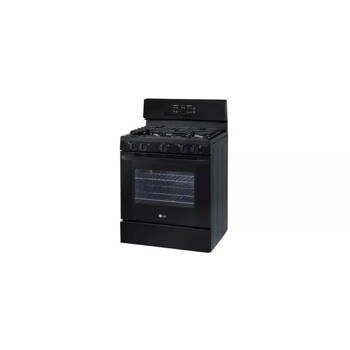

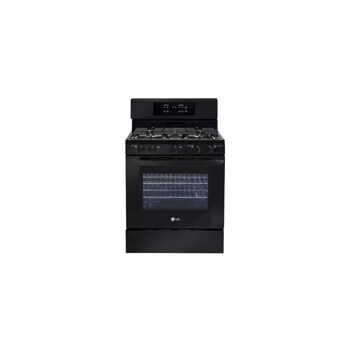

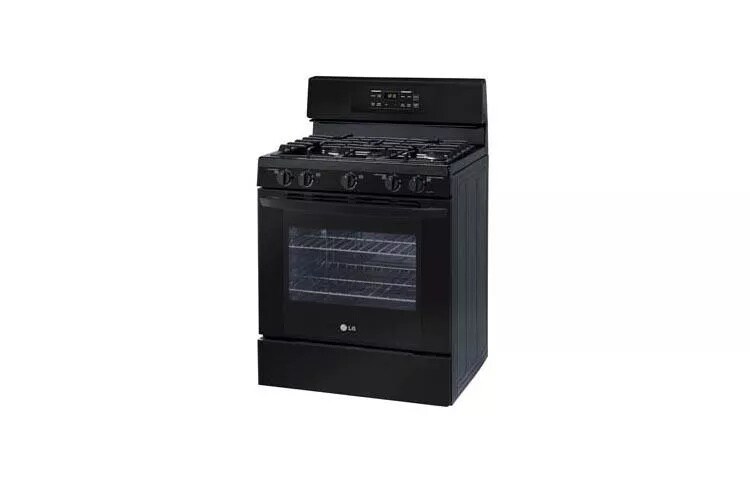

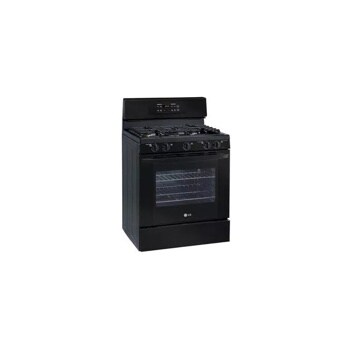

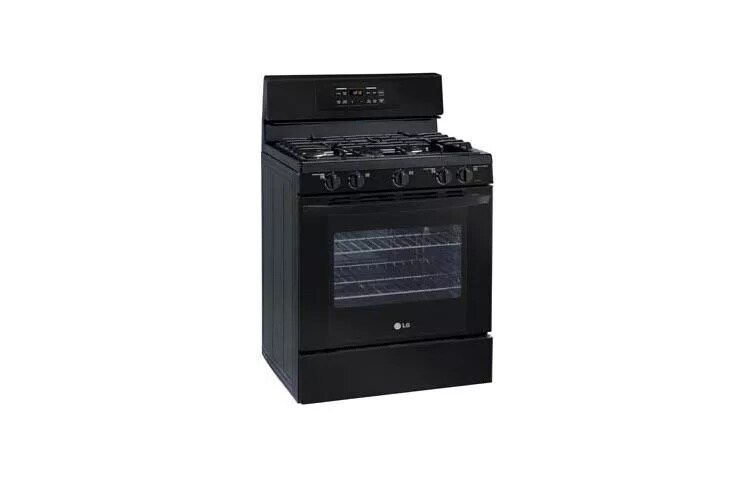

5.4 cu. ft. Capacity Gas Single Oven Range

  • LRG3091SB

  • Smooth Black

Key Features

  • Large Capacity Oven
  • PreciseTemp™ Bake System
  • Superboil™ 17,000 BTU Burner
  • 5 High Performance Sealed Burners
SUMMARY
Range Type Single Door
Cooktop Material Coated Porcelain
Capacity 5.4 cu. ft.
Product Dimensions (WxHxD) 29 15/16” x 47 5/8” x 26 1/2”
Color Smooth Black
WideView™ Window Yes
Control System Knobs/Keypad
Number of Burners 5
Interior Color Brilliant Blue
Self-Cleaning Yes
No.of Racks 2 Full
No. of Rack Positions 7
Variable Cleaning Time 2 hr, 3 hr, 4 hr
Delay Clean Yes
Delay Bake 12 Hours
Automatic Shut-Off After 12 Hours
Oven Light GoCook™ Smart Oven Light
DRAWER Storage Drawer
Capacity 1.0 cu. ft.
Type Storage
Oven Interior Brilliant Blue
Knobs Matching Metal
Other Colors Smooth White, Smooth Black
Handles Matching Stainless
OVEN FEATURES
Configuration Freestanding Gas Oven with Storage Drawer
POWER SOURCE
Electrical Requirements 540kW / 4.5A 120 VAC
Oven/Broiler BTU Rating - Natural Gas Broiler 14,500 BTU Oven/13,500 BTU Broiler

What People Are Saying

We're here to support you with our product.

Contact us for any purchasing inquiries.

Product Support

ASK & ANSWER

Ask your questions. Share your answers.

14 Questions & 13 Answers

Ask Your Questions, Share Your Answers

Ask your questions. Share your answers.



« Back


Has staff answer
Has expert answer

1 answer

looking for the n.p.t. size inlet for a gas range?

4 years, 3 months ago
User Name:
Anonymous
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
The LRG3091 requires a ½” or ¾” flare union adapter to the NPT internal thread of the manual shut-off valve. It also requires a male ½” flare union adapter to the ½” NPT internal thread at inlet of pressure regulator. Please refer to your Installation Manual for additional information.

Design, features and specifications subject to change without notice.
Gender: female
4 years, 3 months ago
User Name:
CustomerAdvocacy

Please wait while more information about CustomerAdvocacy is loaded.
Additional information about CustomerAdvocacy could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
Has staff answer
Has expert answer

1 answer

Does this range have a pilot conversion kit? Can I view the kit?

Category: I do not own this product
4 years, 3 months ago
User Name:
Anonymous
+1point
1out of 1found this question helpful.
HelpfulNot Helpful

Answers

Answer:
This range is convertible for use on natural or LP gas. The conversion kit does not come with the range, but some dealers provide installation with purchase.
4 years, 1 month ago
User Name:
Customeradvocate4

Please wait while more information about Customeradvocate4 is loaded.
Additional information about Customeradvocate4 could not be loaded.
0points
1out of 2found this answer helpful.
HelpfulNot Helpful
Has staff answer
Has expert answer

1 answer

how to order a part

Hi.
i want to buy some a part, but i don't know how to order a part.
Could you tell me that how to order a part thought Internet or web site??
i attached the picture.
User submitted photo
4 years, 1 month ago
User Name:
chihun
SanLuisObispo CA 93405
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
Thank you for your question. All parts and accessories can be purchased through our parts distributors:

Encompass Parts 866-779-7906 http://www.encompassparts.com/lgconsumer
MCM Electronics 800-824-9491 http://www.mcmelectronics.com/lgparts
Andrews Electronics 800-274-4666 http://lge.andrewselectronics.com
Gender: male
4 years, 1 month ago
User Name:
Stan

Please wait while more information about Stan is loaded.
Additional information about Stan could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
Category: I do not own this product
4 years ago
User Name:
astroman
illinois
+1point
1out of 1found this question helpful.
HelpfulNot Helpful

Answers

Answer:
LG gas ovens are shipped with electrical plugs already attached. This oven comes from the factory ready for use with natural gas, and is shipped with orifices in case you wish to connect with Liquid Propane (LP) gas. The only time that both of these would not be included is if the item obtained was an ELECTRIC RANGE. The model number of such a product would begin with the letters LRE, instead of LRG.
3 years, 11 months ago
User Name:
NeilE

Please wait while more information about NeilE is loaded.
Additional information about NeilE could not be loaded.
+2points
2out of 2found this answer helpful.
HelpfulNot Helpful
Category: I do not own this product
3 years, 11 months ago
User Name:
Anonymous
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
The door should be closed while broiling food.
Thank you for your question!
3 years, 11 months ago
User Name:
Nadine

Please wait while more information about Nadine is loaded.
Additional information about Nadine could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
