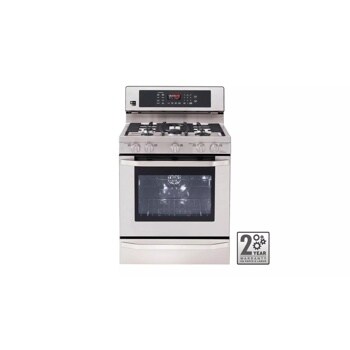

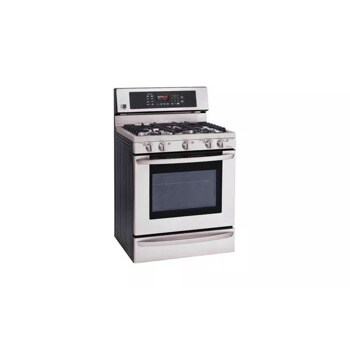

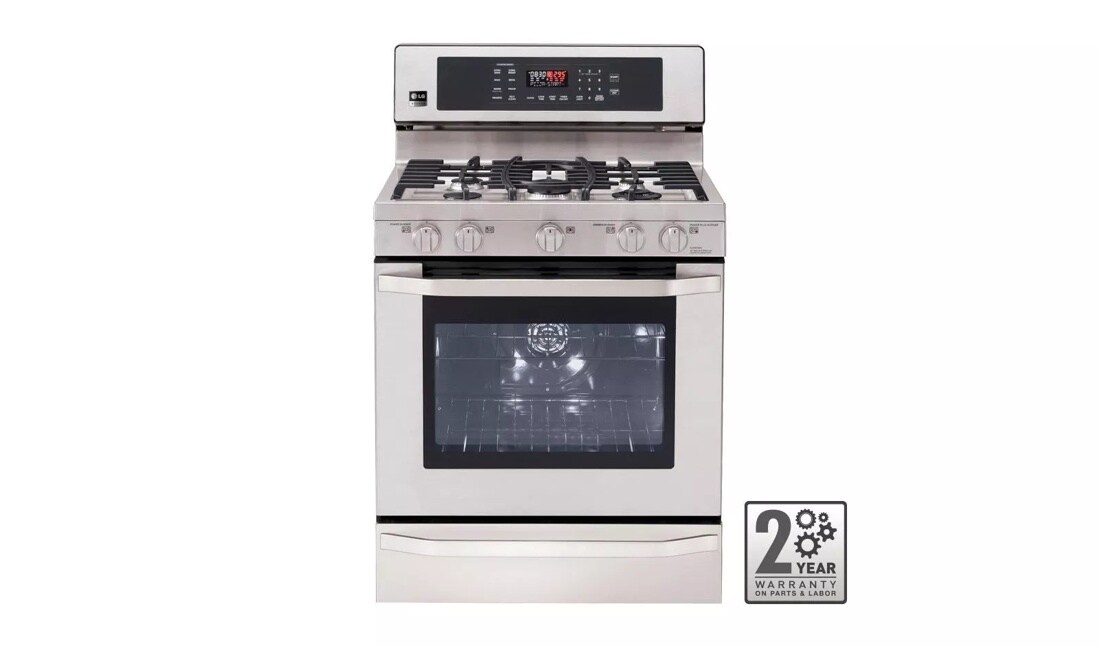

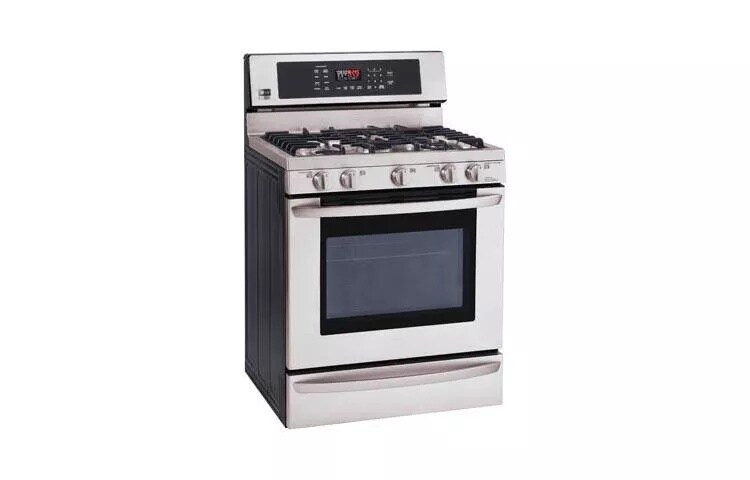

LG Studio - 5.4 cu. ft. Capacity Gas Single Oven Range with EvenJet™ Convection System

  • LSRG309ST

  • Stainless Steel
  • Discontinued Product

Key Features

  • Large Capacity Oven
  • UltraHeat™ 19,000 BTU Burner
  • Convection Oven
  • Flat Broil Heater
SUMMARY
LG Studio Yes
Range Type Single Door
Cooktop Material Stainless Steel
Capacity 5.4 cu. ft.
Product Dimensions (WxHxD) 29 15/16” x 47 5/8” x 27 31/32”
Color Stainless Steel
WideView™ Window Yes
Warming Drawer Yes
Control System SmoothTouch™/Knobs
Number of Burners 5
Interior Color Brilliant Blue
Electronic Clock & Timer Yes
Control Lock Function Yes
Audible Preheat Signal Yes
Self-Cleaning Yes
Special Functions Temperature Unit of Measure (F/C) Beeper Volume (High, Low, Mute), Language: English or Spanish, Preheating Alarm Light On/Off
Languages English / Spanish
Door Lock Yes
Burner Power (BTUs) Left Front (High Output): 12,000 BTU, Left Rear (All Purpose): 9,100 BTU, Center: 8,000 BTU, Right Front (UltraHeat™): 19,000 BTU, Right Rear (Simmer): 5,000 BTU
Convection System EvenJet™ Advanced Convection System
Convection System EvenJet™ Advanced Convection System
Convection Bake/Roast Yes
Convection Conversion Yes
No.of Racks 2 Full, 1 Gliding, 1 Split
Variable Cleaning Time 2 hr, 3 hr, 4 hr
Delay Clean Yes
Broil Burner 15,500 BTU Flat Broiler
Bake Burner 18,000 BTU
Delay Bake 12 Hours
Automatic Shut-Off After 12 Hours
Oven Light GoCook™ Smart Oven Light
Capacity 1.0 cu. ft.
Type Warming
Oven Interior Brilliant Blue
Knobs Matching Metal
Other Colors Smooth White, Smooth Black
Handles Matching Commercial Handle
Oval Burner Yes
OVEN FEATURES
Configuration Freestanding Gas Oven with Storage Drawer
POWER SOURCE
Electrical Requirements 1.14kW/9.5A, 120 VAC
Oven/Broiler BTU Rating - LP Gas Broiler 18,000 BTU Oven/15,500 BTU Broiler

What People Are Saying

Rated 4.8 out of 5 by 24 reviewers.
Rated 5 out of 5 by Great looking stove TOP IS VERY DELICATE, CLEANING NEED TO BE DONE IMMEDIATELY OR WILL LEAVE UGLY STAINS. BAKE MODE BURN BASIC THINGS. CONVECTION BAKE IS GREAT!!! WARMING DRAWER IS GREAT!!!! October 4, 2014
Rated 4 out of 5 The knobs break All the features work great. But we have had this for about a year and we need to replace 2 of the knobs. The interior is cheap plastic. And the only replacements that I can find are expensive. June 8, 2014
Rated 5 out of 5 This product is amazing Wife started baking cookies for Christmas. And by far this is the best range for baking with the convection feature she just loves it. December 10, 2013
Rated 5 out of 5 This is the Best Range my wife and I ever owned. My wife started baking cookies for the Christmas holiday and couldn't stop. She loves the oven for its convection feature.We loved the range so much we also bought the matching Microwave and that is the best one in many ways ease of operation quickness etc. We both love the LG products and are intending to purchase a refrigerator after the Holidays. December 10, 2013
Rated 5 out of 5 by Great Range Great looking but function is most important. I rate the functions higher than the looks. I love the different strength burners, something I've never had before. I like the large oven window as well. You can't go wrong with this purchase!!!!! November 2, 2013
Rated 5 out of 5 by All around great stovetop and oven I have been very happy with my stove/oven. I enjoy the super boil feature. I also am pleased with the griddle in the middle. Just be sure to give it enough time to preheat. Convection cooking has made my cookies and cakes turn out amazing. So glad I made this purchase. July 31, 2013
Rated 5 out of 5 by I'm very happy with my purchase The quality of the range is great. I am really enjoying getting used to the convection option for baking and roasting. The broiler works beautifully - we weren't used to actually cooking under a broiler with our old oven, it was more like instant burning of food. While I really like the idea of the center grill pan burner, it is sort of small and takes a really long time to heat sufficiently. I've also noticed that if we are cooking a big pan of bacon at the same time we're trying cook pancakes on the griddle, the two pans don't fit very well on the stovetop. I'm inclined to use my old griddle over two of the side burners, instead, but then there is the problem with the different sized burners. This is a very small complaint though. Overall, I really like this range and it has been a real joy to cook with. I'm looking forward to years of creating delicious meals with it. February 16, 2013
Rated 5 out of 5 by great range When our kitchenAid range fried it control board due to a boil over ( poorly located at at the front burner surface), we had to buy a new range. Home Depot had a good sale and the 3095ST was well rated by CU reports. It a sharp looking range and works great. February 9, 2013
  • 2015-08-27T13:35:25.792-05:00
  • bvseo_lps, prod_bvrr, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasreviews, tv_24, tr_24
  • loc_en_US, sid_MD00001161, prod, sort_default
2 Next>>

We're here to support you with our product.

Contact us for any purchasing inquiries.

Product Support

ASK & ANSWER

Ask your questions. Share your answers.

46 Questions & 43 Answers

Ask Your Questions, Share Your Answers

Ask your questions. Share your answers.



« Back


Has staff answer
Has expert answer

2 answers

What is the distance from the floor to the top of the burners ?

We're installing a microwave above the range, and need to have enough clearance between the 2. I know the height is 47.62" high, but that includes the back part. Only need to know height to the top of the burners. Thank you.
Category: I own this product

Products related to my question
LMV1680ST
4.1 out of 5(74)





3 years ago
User Name:
ambf
Denver

Please wait while more information about ambf is loaded.
Additional information about ambf could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
As close as I can measure, in our house, it is 37" from the floor to the top of the grates.
Gender: female
2 years, 7 months ago
User Name:
Betty711
Seattle, WA, USA

Please wait while more information about Betty711 is loaded.
Additional information about Betty711 could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
When installing an Over the Range Microwave Ovens, the bottom of the overhead cabinet must be 30” above the surface of the cooktop in order to provide proper clearance between the stove and the microwave.
3 years ago
User Name:
NeilE

Please wait while more information about NeilE is loaded.
Additional information about NeilE could not be loaded.
-1point
0out of 1found this answer helpful.
HelpfulNot Helpful
looking for a oven
Category: I do not own this product
3 years ago
User Name:
rori

Please wait while more information about rori is loaded.
Additional information about rori could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
We got ours at Home Depot with 2 years interest free financing and 10% off if you use a Home Depot credit card.
Gender: female
2 years, 10 months ago
User Name:
KarenC
Huntley, IL

Please wait while more information about KarenC is loaded.
Additional information about KarenC could not be loaded.
-1point
0out of 1found this answer helpful.
HelpfulNot Helpful

Answer:
We suggest taking a look at LG's where to buy tool. To find the closest retailer to you that sells the product.

http://www.lg.com/us/products/wtb?modelName=LSRG309ST
3 years ago
User Name:
LGJoel

Please wait while more information about LGJoel is loaded.
Additional information about LGJoel could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
Is the Studio series better construction or insulation or Stainless steel or ? Curious as to see the differentiators between this Studio and the "normal" model? Thanks.
Category: I do not own this product
2 years, 9 months ago
User Name:
Seattle
Seattle

Please wait while more information about Seattle is loaded.
Additional information about Seattle could not be loaded.
-1point
1out of 3found this question helpful.
HelpfulNot Helpful

Answers

Answer:
This model does have a warming tray.
2 years, 1 month ago
User Name:
SWERB

Please wait while more information about SWERB is loaded.
Additional information about SWERB could not be loaded.
+1point
1out of 1found this answer helpful.
HelpfulNot Helpful

Answer:
the LG LRG3097ST has a warming drawer. The LG LSRG309ST does not.
Gender: female
2 years, 7 months ago
User Name:
Betty711
Seattle, WA, USA

Please wait while more information about Betty711 is loaded.
Additional information about Betty711 could not be loaded.
-1point
1out of 3found this answer helpful.
HelpfulNot Helpful
DOES THIS RANGE COME WITH A GRIDDLE THAT FITS OVER THE CENTER BURNER? IF NO CAN ONE BE ORDERED AS AN ACCESSORY?
4 years, 6 months ago
User Name:
WSWHEELER
APPLE VALLEY, MN
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
The range does come with a griddle that fits over the burner.-( I own this range.)
2 years, 1 month ago
User Name:
SWERB
NY

Please wait while more information about SWERB is loaded.
Additional information about SWERB could not be loaded.
+1point
1out of 1found this answer helpful.
HelpfulNot Helpful
Has staff answer
Has expert answer

1 answer

Are your gas ranges available for propane use?

Can they be converted? Convertion kits available?
Gender: male
4 years, 5 months ago
User Name:
Marine
Lake Jackson, TX
+1point
1out of 1found this question helpful.
HelpfulNot Helpful

Answers

Answer:
Thank you for your question. Yes, some LG gas ranges are available for propane use and conversion. You will need to contact a certified gas technician to have them order the kit from us or the gas company.
4 years, 4 months ago
User Name:
LGcustomeradvocate1

Please wait while more information about LGcustomeradvocate1 is loaded.
Additional information about LGcustomeradvocate1 could not be loaded.
-7points
0out of 7found this answer helpful.
HelpfulNot Helpful
