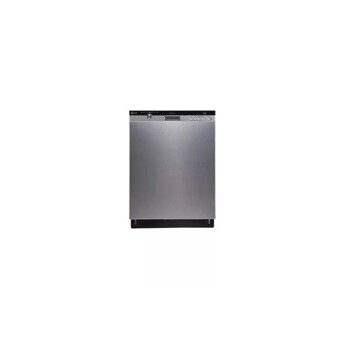

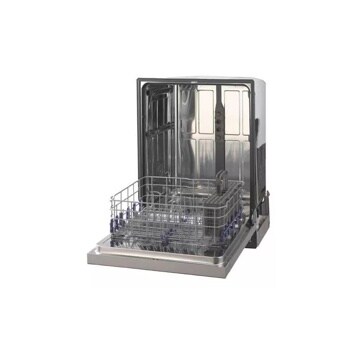

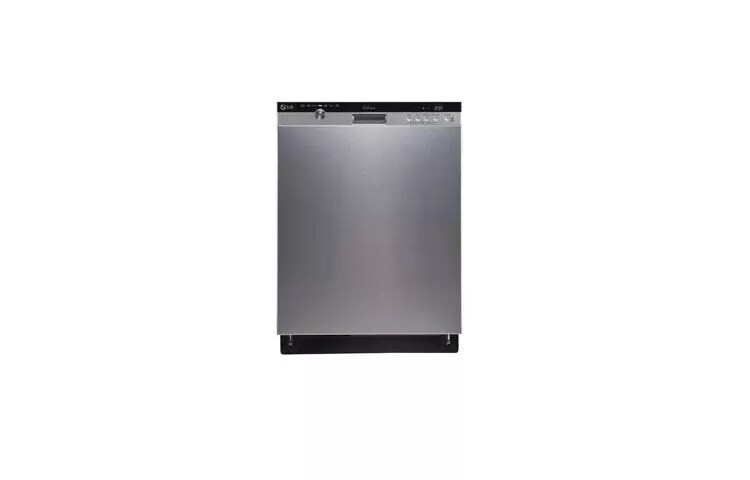

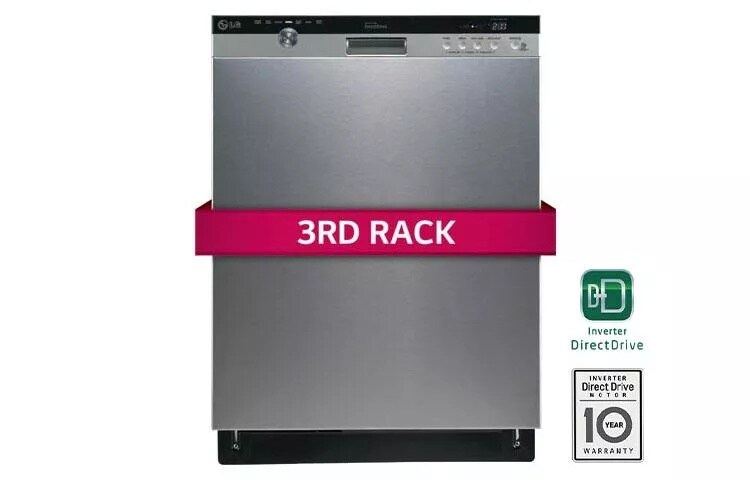

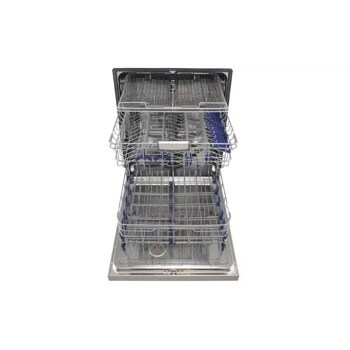

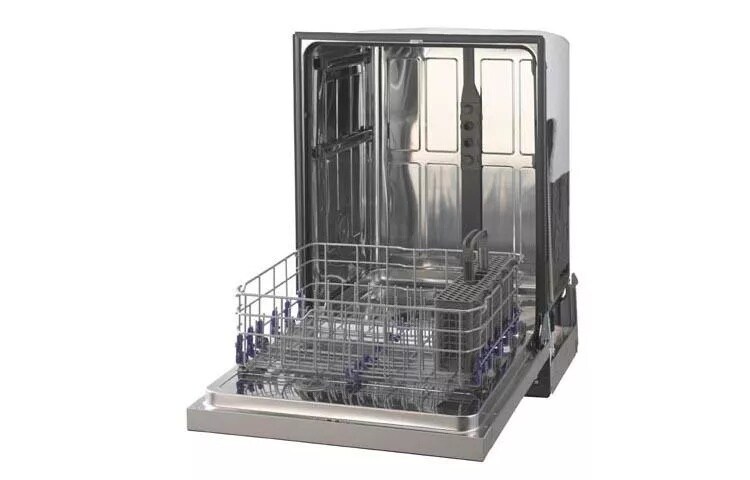

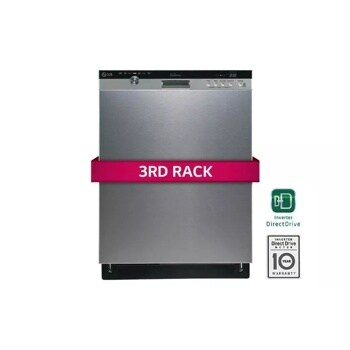

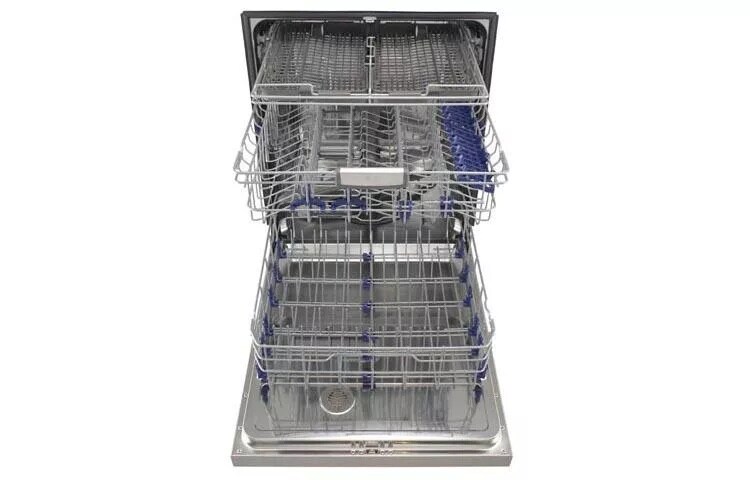

Semi-Integrated Dishwasher with Height-Adjustable 3rd Rack

  • LDS5560ST

  • Stainless Steel
  • Discontinued Product

Key Features

  • EasyRack™ Plus
  • 10-Year Limited Warranty on Inverter Direct Drive Motor
  • LoDecibel™ Operation
  • SmartDiagnosis™ System
Total Place Settings 14
Upper Rack Dish Height Limit 12"
Lower Rack Dish Height Limit 14"
Cutlery Baskets 3-in-1 Detachable Baskets
Stemware Holders Yes
Racks and Tines Nylon Coated with Rounded Tips
Height-Adjustable 3rd Rack Yes
EasyRack™ Plus System Yes
EasyRack™ Plus System: Upper Rack Color-Coded Foldable Tines Yes
EasyRack™ Plus System: Lower Rack Color-Coded Foldable Tines Yes
EasyRack™ Plus System: Height Adjustable Upper Rack Yes
Electronic Controls Semi-Integrated SmoothTouch™ Controls with LED Display
Time Remaining Indicator Yes
Rinse-Aid Indicator Yes
Tub Material NeveRust™ Stainless Steel
Available Colors Stainless Steel (ST)
LoDecibel™ Quiet Operation Yes
Slim Direct Drive Motor Yes
Overflow Detector Yes
120°F Inlet Water Capability Yes
3-Stage Filtration System Yes
Delay Start Up To 19 Hours
Child Lock Yes
Number of Wash Cycles 7
Wash Cycles Normal, Power Scrub, Delicate, Quick Wash, Rinse Only, Quick & Dry, Dual Intensity
SenseClean™ Wash System Yes
Sanitary Rinse Cycle Yes
Dual Spray Intensity Feature Yes
Variable Spray Intensities Strong/Medium/Soft
Extra Rinse Option Yes
Multi-Level Water Direction 5
Hybrid Condensing Drying System Yes
Noise Level 48 dB
Ratings/Requirements/Type UL Listed/120 V, 12 Amps/60 Hz
Circuit Breaker Size 15 Amps
ENERGY STAR® Qualified Yes
Unit Dimensions (WxHxD) 23 3/4" x 33 1/2" x 24 5/8"
Required Clearances (WxHxD) 24” x 33 1/2" x 24”
Carton Dimensions (WxHxD) 27 1/5" x 35 1/10" x 29 3/5"
Weight (Unit/Carton) 90.8 lbs / 97 lbs
Limited Warranty 1 Year Labor, 2 Year Parts, 10 Year Limited Warranty on the Direct Drive Motor, 5 Years Limited on Control Board and Rack Parts, Lifetime on the Stainless Steel Tub and Door Liner
UPC 048231 013826
