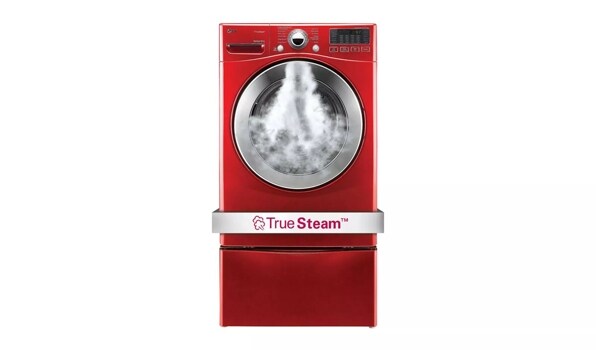

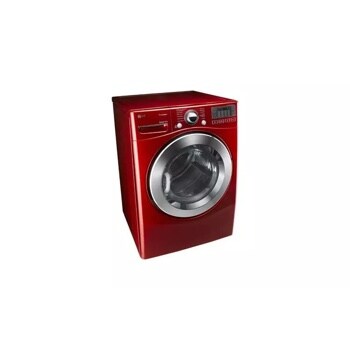

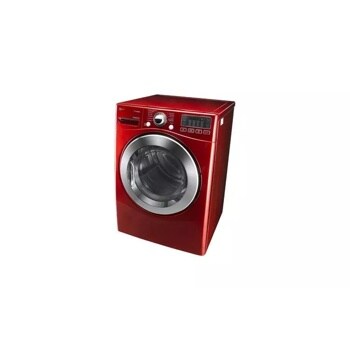

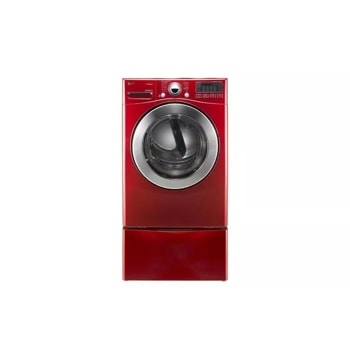

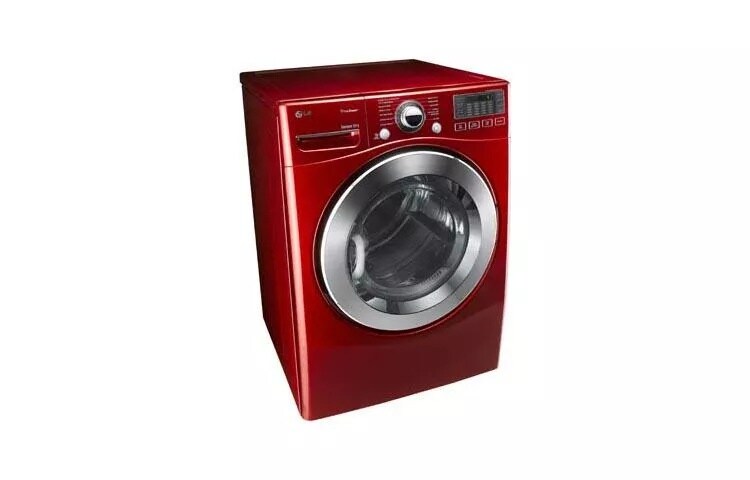

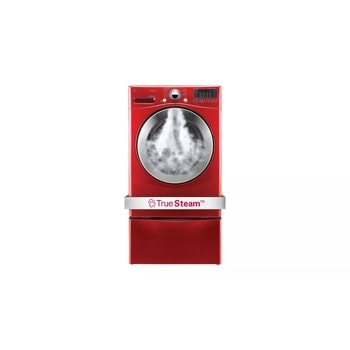

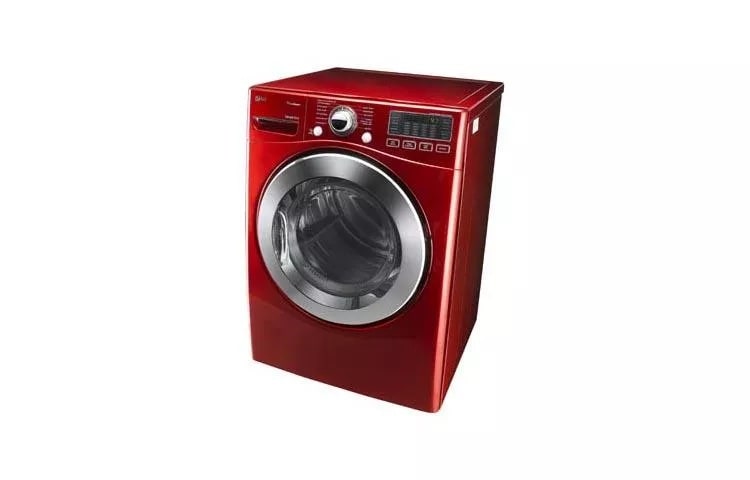

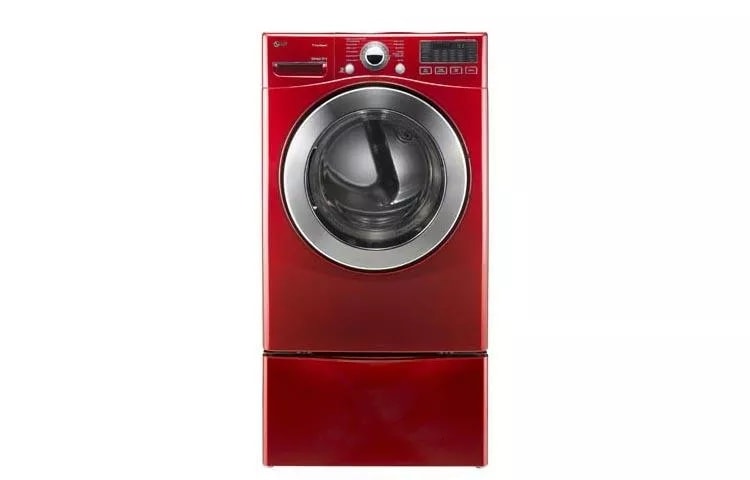

7.3 cu. ft. Ultra Large Capacity SteamDryer™ (Electric)

  • DLEX3070R

  • Wild Cherry Red

Key Features

  • 7.3 cu ft ultra large capacity
  • TrueSteam™ Technology
  • SteamFresh™ Cycle
  • SteamSanitary™ Cycle

LG Electric Dryers are rated by Consumer Reports

Read the Consumer Reports rating.

*Consumer Reports does not endorse products.

Big time saver

Big time saver

Do laundry a little less often. With 7.3 cubic feet of capacity, this dryer handles really large loads. Saving you time and energy.

Smooth operator

Smooth operator

A lot of those drying headaches can be a thing of the past. Our TrueSteam™ Technology generates real steam to reduce wrinkles and odors, and practically eliminates the need for ironing.

The quick fix

The quick fix

Late for the party and no time to iron your favorite outfit? The SteamFresh™ Cycle refreshes, and reduces wrinkles in up to five garments at a time with one 20-minute dryer cycle.

Wash the unwashable

You probably wish you could clean your throw pillows or children’s toys. With the SteamSanitary™ Cycle, you can. It uses steam to safely sanitize items marked as non-washable.

Really dry clothes

Really dry clothes

What’s worse than pulling clothes out of the dryer and finding they’re still damp? Our Sensor Dry system measures the moisture levels during the cycle and automatically adjusts the drying time, to help ensure you get dry laundry every time.

Get wise

Get wise

If you ever experience an issue with your LG dryer, you don't have to worry. The SmartDiagnosis™ feature helps the service center diagnose problems over the phone, or with a simple app on your smart phone, helping you minimize costly, inconvenient service calls.

Dryer Type Electric
Type of Display Dual LED
Dimensions (WxHxD) 27" x 38 11/16" x 29 3/4"
Capacity 7.3 cu. ft.
Stackable Yes
SteamDryer™ Yes
Number of Drying Programs 12
Number of Temp Levels 5
Number of Options 10
Dial-A-Cycle™ Yes
Sensor Dry System Yes
Warranty 1 Year Parts and Labor
Options Rack Dry, End of Cycle Signal, EasyIron, Reduce Static, Child Lock, Wrinkle Care, Damp Dry Signal, Custom Program, Less Time, More Time
Program Names Manual Dry: Air Dry, Speed Dry Sensor Dry: Anti-Bacterial, SteamSanitary™, SteamFresh™, Bulky/Large, Heavy Duty, Small Load, Delicates, Towels, Perm Press, Cotton/Normal
Temperature Levels High, Medium High, Medium, Low, Ultra Low
LoDecibel™ Quiet Operation Yes
FlowSense™ Duct Clogging Indicator Yes
Remaining Time Display/Status Indicator(s) Yes
End of Cycle Signal Yes
3 Minute Installation Check Yes
Drum Light Yes
Venting Option 4 Way Venting
Leveling Legs 4 Adjustable Legs
Reversible Door Yes
Drum NeveRust™ Stainless Steel
Top Plate Painted
Cabinet Painted Steel
Control Panel Plastic
Available Colors White, Wild Cherry Red
Door Rim Glass/Chrome
Ratings CSA Listed
Electrical Requirements 240V, 30 Amps
Type Electric
Pedestal (WxHxD) 27" x 13 3/5" x 28 2/5"
Stacking Kit KSTK1
Product (WxHxD) 27" x 38 11/16" x 29 3/4"
Carton (WxHxD) 29 1/2" x 44 3/4" x 30 3/4"
Weight (Product/Carton) 129 lbs./144lbs.
Pedestal (WxHxD) 27" x 13 3/5" x 28 2/5"
Width 27"
Height 38 11/16"
Depth 29 3/4"
Depth with Door Open 51"
Carton (WxHxD) 29 1/2" x 44 3/4" x 30 3/4"
Weight (Product) 129 lbs.
Weight (Shipping) 144 lbs.

What People Are Saying

Rated 5 out of 5 by from work horse for family of 9 We bought our lg dryer several years ago. We bought the washer and dryer matching set with the pedestals. We have a family of 9 and only recently has the dryer begun to have issues. The issues we have are because of the lint screen design allowing dryer sheets to end up in the blower. I've taken it apart and fixed it 3 times even after we stopped using dryer sheets. Honestly i'm not mad considering we've had these for years and do laundry daily to keep up with our large family. I'm buying another dryer and it will be from LG. Our washer model is WM2487HRMA and dryer is DLEX7177RM
Date published: 2017-01-23
Rated 4 out of 5 by from Really good product I wasn't much of a fan for this dryer but I got it since it goes with my washer. Overall it dies it's job. But they are better models. It takes longer time to dry but it gets the job done.
Date published: 2016-06-29
Rated 5 out of 5 by from Great dryer Have not used the steam yet but dryer works great so far
Date published: 2016-05-28
Rated 5 out of 5 by from Best Dryer Ever Bought the DLEX3070W steam dryer along with companion steam washer WM3370HWA originally intending to stack. But when I saw the SideKick pedestal mini washer I decided to put the dryer on a pedestal and purchase the SideKick. This dryer is very large capacity and dries very quickly with many options - but is so easy to use. It's quiet while operating and with the steam feature and optional dryer rack I'm very happy with my decision. This dryer is perhaps the BEST dryer I've ever used in the past 30 years and I've owned many high-end appliances. Don't hesitate if you're on the fence.
Date published: 2016-05-18
Rated 5 out of 5 by from great dryer We bought this dryer in February to replace one that was almost 20 year old. Can't believe all the bells & whistles. I didn't think we'd use the steam feature, but now so glad it has it!
Date published: 2016-03-14
Rated 4 out of 5 by from Nice Dryer It is nice that is senses if the clothes are dry or not.
Date published: 2016-02-11
Rated 5 out of 5 by from Crazy about my dryer! Love the cycles. They are intuitive and work well for each tyoe of laundry. My husband hates dried clothes because he swears they make his clothes shrink, but no longer does he complain! His clothes come out perfect and barely need ironing. I used the steam feature on Sunday with my favorite corduroy shirt that needed a touchup. Came out beautiful!
Date published: 2015-12-31
Rated 5 out of 5 by from Accurate drying - easy to use Old dryer died with wet clothes in it - this dryer is such a step up and does a wonderful job especially when I use the wrinkle free setting - big help if I get busy and forget to watch when the dryer shuts off!!
Date published: 2015-11-08
  • y_2017, m_2, d_19, h_20
  • bvseo_bulk, prod_bvrr, vn_bulk_0.0
  • cp_1, bvpage1
  • co_hasreviews, tv_7, tr_79
  • loc_en_US, sid_MD00002344, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-
  • CLOUD, getReviews, 6ms

We're here to support you with our product.

View DLEX3070R Product Support

Contact us for any support inquiries.


Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.


Asked by: kasmi
HI Kasmi, we regret to read that you're not able to dry Bulky Items in your LG 7.3 cu. ft. Ultra Large Capacity SteamDryer™ (Electric), Model # DLEX3070W. Although 7.3 cubic feet is a large capacity, keep in mind that both pillows and quilts when wet can be heavy. You specifically mention that the dryer runs for as few minutes then turns off for these type of items, if it's not happening with other items then you may just need to make your drying loads smaller and lighter. Check the display for any error codes that may indicate if there is a problem. If not, hopefully lessening the load helps resolve the issue...^IFV
Answered by: LGJoel
Date published: 2015-11-15

ON the display there are two columns of lights

they range from High to Low/off - what do the mean. They are no explained in the manual.
Asked by: fgnmdsvgvsdvs
I believe you are referring to the temperature setting?= TEMP CONTROL Dry level= for the sensor to decide how long to dry TIME DRY= manual modification of drying time (only non-sensor dry options)
Answered by: Professor
Date published: 2015-06-10

How do you change which direction the door opens on a dryer

Asked by: jerry1948
Answered by: Sheltiemom
Date published: 2015-02-06

Electric Steam Dryers #DLEX3470V

Does Model #DLEX3470V Electric Steam Dryers require a water connection
Asked by: markaholt14
No - you pour water into the reserve (not distilled water).
Answered by: Sheltiemom
Date published: 2015-02-06

What is the wattage of the electric dryer: DLEX3070?

I want to estimate annual energy use.
Asked by: ttownsend46
We appreciate your interest in this electric dryer. The wattage used will be directly affected by the power cord installed. If the unit is connected at 208V, the device will run at about 4,350 watts. When connected at 240V, it will be closer to 5,650 watts. These values are approximate and can vary according to the age and usage of the device.
Answered by: NeilE
Date published: 2014-07-28

Exact location of duct on back of dryer

I am looking for a picture (or drawing) showing the exact location of the duct on the back of the dryer. Thank you. This is for the LG Electronics 7.3 cu. ft. Extra Large Capacity Electric Steam Dryer
Asked by: Lotan
Hello Lotan, You can see a diagram of the back of the dryer in question showing you where the duct is located on the unit by downloading the free user manual from the LG site or when you watch the Video tutorial on how to maintain your unit. You can type the model number of the unit into the search field on the site and when the unit page comes up, click on the product support tab and that will bring up a page with the manuals & documents link under the Downloads heading. Scrolling further down on that page will bring you to the Video tutorials and you van see where the duct is located from the maintenance video.
Answered by: LGJoel
Date published: 2014-07-12

Is this unit suitable for commercial use?

Asked by: Studios
I just got one of these under three months ago and it is already broken. Our house hold is only 2 people and we clean it monthly. I would say no for commercial use.
Answered by: unhappy2014
Date published: 2016-04-24


I need to wire the 4-prog receptacle for my 3070 dryer and I don't know how do it. can you help with some instructions please? thank you.
Asked by: David12345
Wow you should not do this if you don't know the color code for ac, you should get an electrician and not burn your house down or electrocute yourself.
Answered by: unhappy2014
Date published: 2014-02-25
