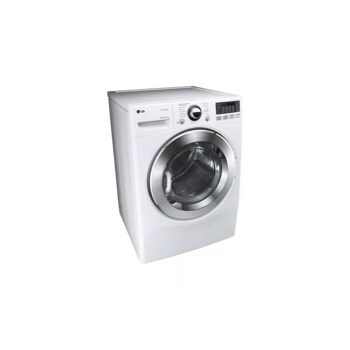

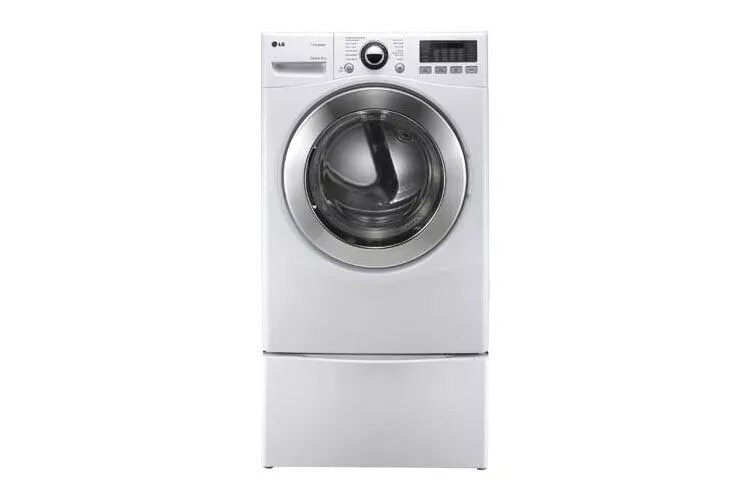

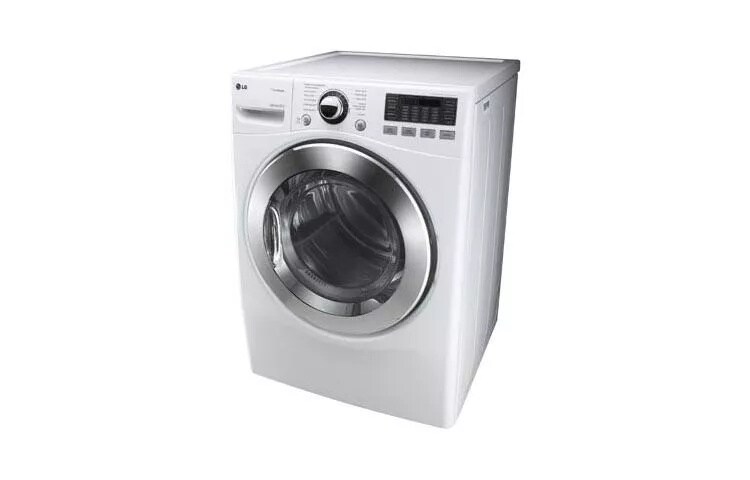

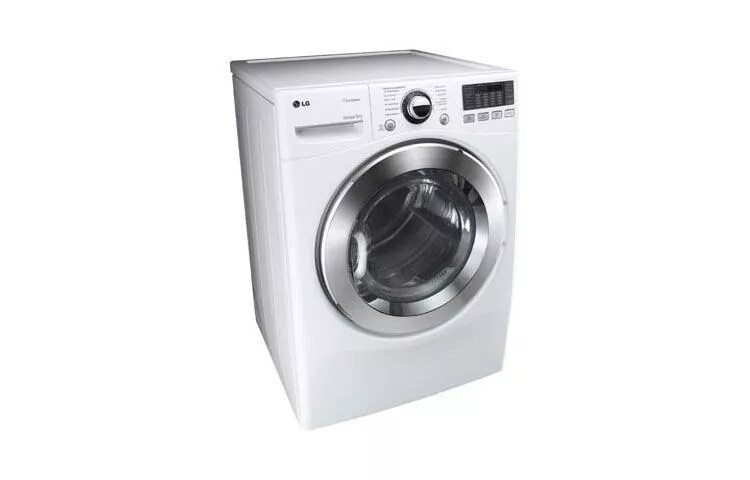

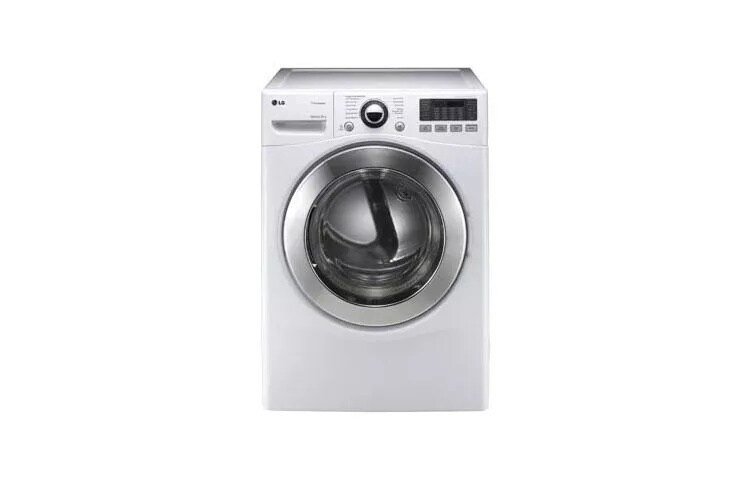

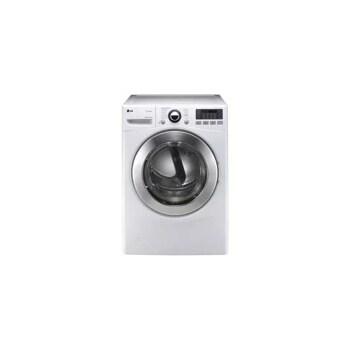

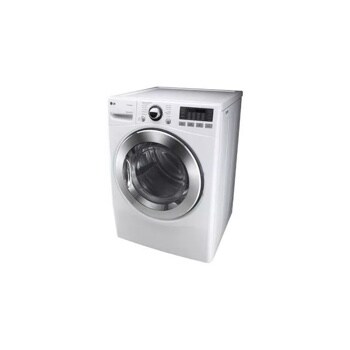

7.3 cu. ft. Ultra Large Capacity SteamDryer™ (Electric)

  • DLEX3070W

  • White

Key Features

  • 7.3 cu ft ultra large capacity
  • TrueSteam™ Technology
  • SteamFresh™ Cycle
  • SteamSanitary™ Cycle
AVAILABLE COLORS:
Big time saver

Big time saver

Do laundry a little less often. With 7.3 cubic feet of capacity, this dryer handles really large loads. Saving you time and energy.

Smooth operator

Smooth operator

A lot of those drying headaches can be a thing of the past. Our TrueSteam™ Technology generates real steam to reduce wrinkles and odors, and practically eliminates the need for ironing.

The quick fix

The quick fix

Late for the party and no time to iron your favorite outfit? The SteamFresh™ Cycle refreshes, and reduces wrinkles in up to five garments at a time with one 20-minute dryer cycle.

Wash the unwashable

You probably wish you could clean your throw pillows or children’s toys. With the SteamSanitary™ Cycle, you can. It uses steam to safely sanitize items marked as non-washable.

Really dry clothes

Really dry clothes

What’s worse than pulling clothes out of the dryer and finding they’re still damp? Our Sensor Dry system measures the moisture levels during the cycle and automatically adjusts the drying time, to help ensure you get dry laundry every time.

Get wise

Get wise

If you ever experience an issue with your LG dryer, you don't have to worry. The SmartDiagnosis™ feature helps the service center diagnose problems over the phone, or with a simple app on your smart phone, helping you minimize costly, inconvenient service calls.

SUMMARY
Dryer Type Electric
Type of Display Dual LED
Dimensions (WxHxD) 27" x 38 11/16" x 29 3/4"
Capacity 7.3 cu. ft.
Stackable Yes
SteamDryer™ Yes
Designer Color White
Number of Drying Programs 12
Number of Temp Levels 5
Number of Options 10
Dial-A-Cycle™ Yes
Sensor Dry System Yes
Warranty 1 Year Parts and Labor
DRYING PROGRAMS
Options Rack Dry, End of Cycle Signal, EasyIron, Reduce Static, Child Lock, Wrinkle Care, Damp Dry Signal, Custom Program, Less Time, More Time
Program Names Manual Dry: Air Dry, Speed Dry Sensor Dry: Anti-Bacterial, SteamSanitary™, SteamFresh™, Bulky/Large, Heavy Duty, Small Load, Delicates, Towels, Perm Press, Cotton/Normal
Temperature Levels High, Medium High, Medium, Low, Ultra Low
CONVENIENCE FEATURES
LoDecibel™ Quiet Operation Yes
FlowSense™ Duct Clogging Indicator Yes
Remaining Time Display/Status Indicator(s) Yes
End of Cycle Signal Yes
3 Minute Installation Check Yes
Drum Light Yes
Venting Option 4 Way Venting
Leveling Legs 4 Adjustable Legs
Reversible Door Yes
MATERIALS AND FINISHES
Drum NeveRust™ Stainless Steel
Top Plate Painted
Cabinet Painted Steel
Control Panel Plastic
Available Colors White, Wild Cherry Red
Door Rim Glass/Chrome
POWER SOURCE
Ratings CSA Listed
Electrical Requirements 240V, 30 Amps
Type Electric
OPTIONS

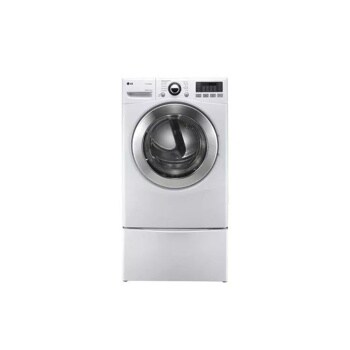

Pedestal WDP4W
Pedestal (WxHxD) 27" x 13 3/5" x 28 2/5"
Stacking Kit KSTK1
DIMENSIONS
Product (WxHxD) 27" x 38 11/16" x 29 3/4"
Carton (WxHxD) 29 1/2" x 44 3/4" x 30 3/4"
Weight (Product/Carton) 129 lbs./144lbs.
Pedestal (WxHxD) 27" x 13 3/5" x 28 2/5"
SIZE AND WEIGHT
Width 27"
Height 38 11/16"
Depth 29 3/4"
Depth with Door Open 51"
Carton (WxHxD) 29 1/2" x 44 3/4" x 30 3/4"
Weight (Product) 129 lbs.
Weight (Shipping) 144 lbs.

What People Are Saying

Rated 4.9 out of 5 by 77 reviewers.
Rated 5 out of 5 by Upgrade to quality What a great system. I worked at Lowes and met and interviewed a lot people. Almost all the people recommended LG products over other makers. Had dryer for 3 months and " ZERO " complaints. August 1, 2015
Rated 4 out of 5 by Quality LG Product We bought this dryer to match the washer. It doesn't take as long to dry the clothes because the clothes are practically dry from the final spin cycle in the washer. we like the steam dry feature and the clothes come out wrinkle free. Our other dryer gave up the ghost after 20 years. If this dryer last that long then it would be considered a good product. July 11, 2015
Rated 2 out of 5 by Worked great Worked great for first year or so. The Electronic Control Board then went out. Replaced the ECB and dryer worked fine for a few months. Now the dryer is no longer heating. Dryer, when working properly, is great. May 14, 2015
Rated 5 out of 5 by Adaptability for every dryer load This dryer is efficient without frying your clothes! It dries them is record time but it did not shrink or damage even the most delicate items I have. It is also a "smart" dryer, someone had placed a trash can in front of my dryer vent and it stopped the dryer and displayed a code telling me that there was an obstruction to the venting so the dryer would not overheat or run all day trying to dry one load. How cool is that? Do yourself a favor and go get this dryer! May 12, 2015
Rated 5 out of 5 by works well, just over a month using. works well.its nice to look at. i like it. April 2, 2015
Rated 5 out of 5 by Quiet and efficient Does a great job. I don't use all of the fancy settings but it is easy to use and works very well. March 20, 2015
Rated 5 out of 5 by Super quiet! I love my new steam dryer! Our old dryer was 15+ years old and finally kicked the bucket & I must say I actually did a little happy dance!! I finally got a new steam dryer. Our old dryer took forever to dry our clothes, and it was really, really loud.....fast forward to the new dryer - I have actually gone into the laundry room to see why the dryer shut off (after just starting it & not realizing how quiet it was)!! I really do love this dryer. February 6, 2015
Rated 5 out of 5 by Excellent product! This dryer is amazing. It dries so quickly. It has many pre-set options to choose or you can custom select your length of time and drying temp. I love using the steam option. I made this into a stackable unit on top of my older LG washer -- love love love! January 14, 2015
  • 2015-08-27T13:35:31.174-05:00
  • bvseo_lps, prod_bvrr, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasreviews, tv_77, tr_77
  • loc_en_US, sid_MD00002343, prod, sort_default
2 3 4 Next>>

We're here to support you with our product.

Contact us for any purchasing inquiries.

Product Support

ASK & ANSWER

Ask your questions. Share your answers.

15 Questions & 18 Answers

Ask Your Questions, Share Your Answers

Ask your questions. Share your answers.



« Back


Does Model #DLEX3470V Electric Steam Dryers require a water connection
Category: I do not own this product
Interested in: Specifications
2 years, 9 months ago
User Name:
markaholt14
NJ

Please wait while more information about markaholt14 is loaded.
Additional information about markaholt14 could not be loaded.
+2points
3out of 4found this question helpful.
HelpfulNot Helpful

Answers

Answer:
No - you pour water into the reserve (not distilled water).
6 months ago
User Name:
Sheltiemom
ID

Please wait while more information about Sheltiemom is loaded.
Additional information about Sheltiemom could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
You don't need a water connection, it has a storage container on the top left and I found that if you use distilled water it seems to smell fresher.
Gender: male
1 year, 6 months ago
User Name:
unhappy2014
Grand Junction, CO, USA

Please wait while more information about unhappy2014 is loaded.
Additional information about unhappy2014 could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
It does not require a water connection. There is a small container inside the front drawer on the top left hand side. You fill it with tap water when you want to use the steam cleaning.
Gender: female
2 years ago
User Name:
Niemanville
Millbrook, NY 12545, USA

Please wait while more information about Niemanville is loaded.
Additional information about Niemanville could not be loaded.
+1point
1out of 1found this answer helpful.
HelpfulNot Helpful

Answer:
No water hookup needed :) the water will be supplied with a steam feeder (see image attached).
User submitted photo
2 years, 8 months ago
User Name:
Nadine

Please wait while more information about Nadine is loaded.
Additional information about Nadine could not be loaded.
+1point
1out of 1found this answer helpful.
HelpfulNot Helpful
Has staff answer
Has expert answer

2 answers

HOW DO I WIRE A 240V/30A RECEPTACLE

I need to wire the 4-prog receptacle for my 3070 dryer and I don't know how do it. can you help with some instructions please? thank you.
Category: I own this product
2 years, 10 months ago
User Name:
David12345

Please wait while more information about David12345 is loaded.
Additional information about David12345 could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
Wow you should not do this if you don't know the color code for ac, you should get an electrician and not burn your house down or electrocute yourself.
Gender: male
1 year, 6 months ago
User Name:
unhappy2014
Grand Junction, CO, USA

Please wait while more information about unhappy2014 is loaded.
Additional information about unhappy2014 could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
We appreciate your interest in this electric dryer. Unfortunately, as we are not licensed electricians, we cannot provide any recommendations relating to the wiring of your receptacle.
2 years, 9 months ago
User Name:
NeilE

Please wait while more information about NeilE is loaded.
Additional information about NeilE could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
Has staff answer
Has expert answer

2 answers

How do you change which direction the door opens on a dryer

Category: I own this product
Interested in: Troubleshooting
2 years, 5 months ago
User Name:
jerry1948
Salem oregon

Please wait while more information about jerry1948 is loaded.
Additional information about jerry1948 could not be loaded.
+1point
1out of 1found this question helpful.
HelpfulNot Helpful

Answers

Answer:
Yes
6 months ago
User Name:
Sheltiemom
ID

Please wait while more information about Sheltiemom is loaded.
Additional information about Sheltiemom could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
To avoid damage to the dryer or the door, support the door with a stool or box that fits under the door, or have an assistant support the weight of the door. Always reverse the door BEFORE stacking the dryer on top of the washer, should that be intended. Avoid dropping the door to avoid damage to the door or the floor. THE DRYER DOOR IS VERY LARGE AND HEAVY. Failure to follow the instructions below can result in damage to the dryer, property damage or injury to persons. Open the door to reverse. Check screws to remove (4 on the Left, and 2 on the Right). Remove the four dummy screws using a screwdriver. Remove the two screws from the latch, in order to disassemble it. Hold onto the hinge while removing the 2 hinge screws (to prevent the door dropping). Remove the door from the cabinet cover. Move the door to the left side and insert the hinge to hinge hole. Hold onto the hinge while tightening the screw down onto the hinge (to prevent the door dropping). Insert the latch into the right side and install the screws. Screw down the four dummy screws into the right side. Finally, check that the door closes and latches properly.
2 years, 5 months ago
User Name:
NeilE

Please wait while more information about NeilE is loaded.
Additional information about NeilE could not be loaded.
+1point
1out of 1found this answer helpful.
HelpfulNot Helpful
Has staff answer
Has expert answer

1 answer

Does this dryer turn off after mulitple loads?

When drying a load right after the first one, the dryer will start for 2 seconds then stop and restart again about 5 - 10 minutes later. We've had this dryer for a year and a half now and it's been fine with drying load after load. It's been doing this for about 3 months now, I have just placed a third service call with Sears because of this problem. I would like to know if this is normal for this dryer.
Category: I own this product
Interested in: Warranty issue
3 years, 1 month ago
User Name:
Anonymous

Please wait while more information about This Contributor is loaded.
Additional information about This Contributor could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
We regret the trouble you have experienced with this dryer. It is not common for a dryer to shut off in such a manner. It is possible that there is a problem with a thermostat or something causing the unit to overheat. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at http://www.lg.com/us/support/repair....
3 years, 1 month ago
User Name:
NeilE

Please wait while more information about NeilE is loaded.
Additional information about NeilE could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
Category: I do not own this product
Interested in: Specifications
2 years, 10 months ago
User Name:
newlinux

Please wait while more information about newlinux is loaded.
Additional information about newlinux could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
1 inch on each side and the front, and 5 inches in the back (varies if you change the venting to bottom or side venting). No clearance specifications are given for the top.
2 years, 10 months ago
User Name:
Nadine

Please wait while more information about Nadine is loaded.
Additional information about Nadine could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
