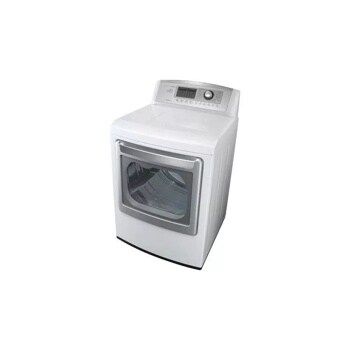

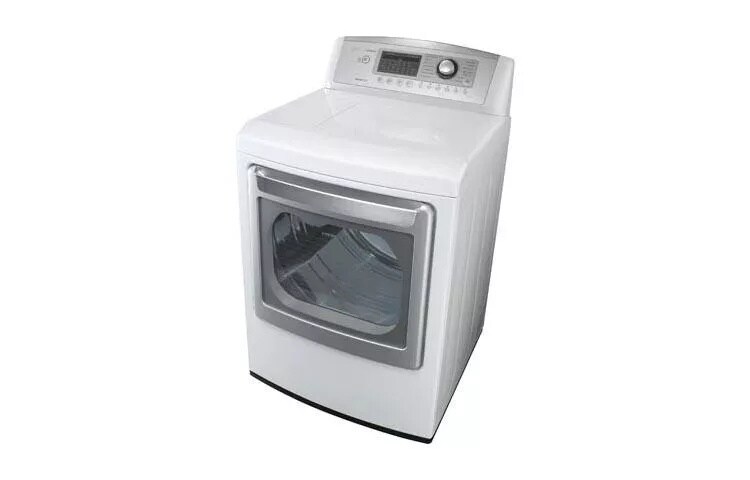

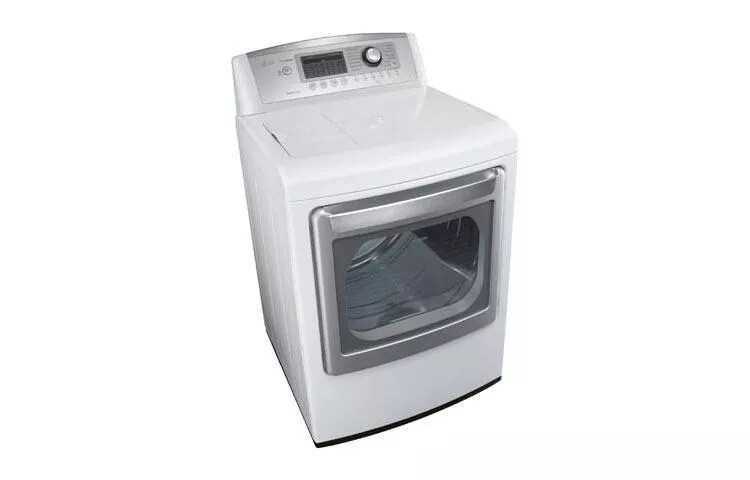

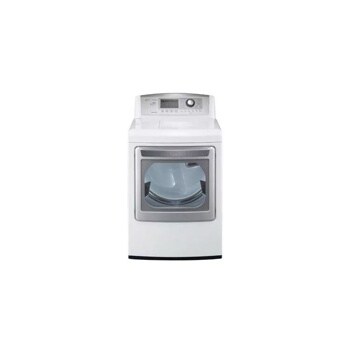

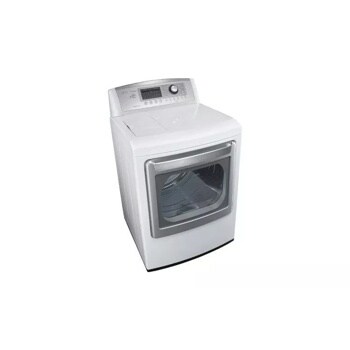

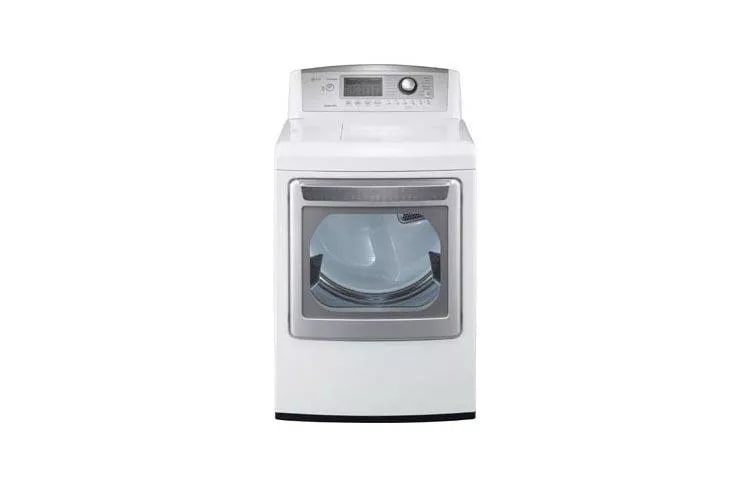

7.3 cu. ft. Ultra Large Capacity SteamDryer™ (Electric)

  • DLEX5170W

  • White

Key Features

  • 7.3 cu. ft. Ultra Capacity
  • TrueSteam™ Technology
  • SteamFresh™ cycle
  • SteamSanitary™ cycle
AVAILABLE COLORS:
Big time saver

Big time saver

Do laundry a little less often. With 7.3 cubic feet of capacity, this dryer handles really large loads. Saving you time and energy.

Smooth operator

Smooth operator

A lot of those drying headaches can be a thing of the past. Our TrueSteam™ Technology generates real steam to reduce wrinkles and odors, and practically eliminates the need for ironing.

The quick fix

The quick fix

Late for the party and no time to iron your favorite outfit? The SteamFresh™ Cycle refreshes, and reduces wrinkles in up to five garments at a time with one 20-minute dryer cycle.

Wash the unwashable

You probably wish you could clean your throw pillows or children’s toys. With the SteamSanitary™ Cycle, you can. It uses steam to safely sanitize items marked as non-washable.

Get wise

Get wise

If you ever experience an issue with your LG dryer, you don't have to worry. The SmartDiagnosis™ feature helps the service center diagnose problems over the phone, or with a simple app on your smart phone, helping you minimize costly, inconvenient service calls.

Really dry clothes

Really dry clothes

What’s worse than pulling clothes out of the dryer and finding they’re still damp? Our Sensor Dry system measures the moisture levels during the cycle and automatically adjusts the drying time, to help ensure you get dry laundry every time.

SUMMARY
Dryer Type Electric

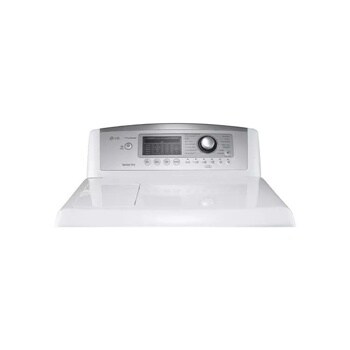

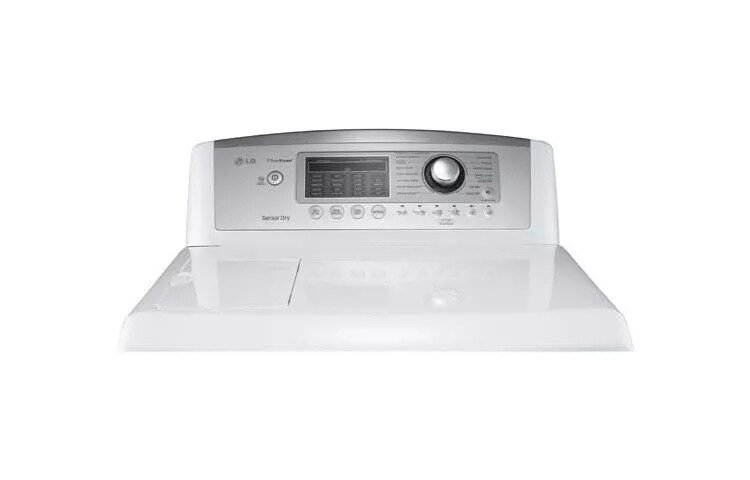

Type of Display Dual LED
Dimensions (WxHxD) 27" x 45 3/8" x 28 3/8"
Capacity 7.3 cu. ft.
SteamDryer™ Yes
Designer Color White
Number of Drying Programs 14
Number of Temp Levels 5
Number of Options 9
Dial-A-Cycle™ Yes
Sensor Dry System Yes
Warranty 1 Year Parts and Labor
DRYING PROGRAMS
Options Damp Dry Signal, End of Cycle Signal, EasyIron™, ReduceStatic™, Less Time, More Time, Child Lock, Custom Program, Wrinkle Care
Program Names Manual Dry: Rack Dry, Air Dry, Speed Dry Sensor Dry: Cotton/Normal, Perm/Press, Heavy Duty, Bulky Bedding, Delicates, Anti-Bacterial, Towels, Small Load, Sports Wear, SteamFresh™, SteamSanitary™
Temperature Levels High, Medium High, Medium, Low, Ultra Low
CONVENIENCE FEATURES
LoDecibel™ Quiet Operation Yes
FlowSense™ Duct Clogging Indicator Yes
Remaining Time Display/Status Indicator(s) Yes
End of Cycle Signal Yes
Damp Dry Beep Yes
Sensor Dry (Dual System) Yes
3 Minute Installation Check Yes
Drying Rack Yes
Drum Light Yes
Venting Option 4 Way Venting
Leveling Legs 4 Adjustable Legs
Reversible Door Yes
MATERIALS AND FINISHES
Drum NeveRust™ Stainless Steel
Top Plate Painted Steel
Cabinet Painted Steel
Control Panel Plastic
Available Colors Graphite Steel, White
Door Rim Glass/Chrome
POWER SOURCE
Ratings CSA Listed
Electrical Requirements 240V, 30 Amps
Type Electric
DIMENSIONS
Product (WxHxD) 27" x 45 3/8" x 28 3/8"
Carton (WxHxD) 29 1/2” x 48” x 31 1/4”
Weight (Product/Carton) 133.2 lbs./145.5 lbs.
SIZE AND WEIGHT
Width 27"
Height 45 3/8"
Depth 28 3/8"
Depth with Door Open 55 3/4"
Carton (WxHxD) 29 1/2” x 48” x 31 1/4”
Weight (Product) 133.2 lbs.
Weight (Shipping) 145.5 lbs.

What People Are Saying

Rated 4.9 out of 5 by 493 reviewers.
Rated 5 out of 5 by Great Features I like the steam sanitary feature for wrinkles on shirts. Seems to be a reliable machine so far. July 5, 2015
Rated 5 out of 5 by Super Dryer This dryer is amazing! Dries so fast and clothes come out looking great! May 25, 2015
Rated 5 out of 5 by I <3 this washer This washer is great! Easy to use, cleans great and is so quiet. Any size load, settings for any type of load, and the ability to pause as needed. When I first purchased the washer, I couldn't stop watching it work - fascinating! March 25, 2015
Rated 5 out of 5 by Great Dryer......quiet and smooth Great product-it really was 3 steps up from our old dryer. March 11, 2015
Rated 5 out of 5 by Best dryer ever! We recently purchased this new LG model DLEX5170W and have been very pleased. It is easy to use, it will handle everything from small to large loads, and is very quiet. Best dryer we have ever had! February 26, 2015
Rated 3 out of 5 by This item is not so good. This product already has out of order since buying just one year and half year. No working. No good. No buying LG , never. February 14, 2015
Rated 5 out of 5 by steam works well I don't have iron any more. I like the steam option . February 3, 2015
Rated 5 out of 5 by Lov'in my dryer Amazing dryer! The large capacity is a perfect match for my large LG capacity washer. It dries quickly, user friendly and very quiet. Beautiful! I'm absolutely thrilled with the looks and performance of my new set. February 3, 2015
  • 2015-08-27T13:35:25.900-05:00
  • bvseo_lps, prod_bvrr, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasreviews, tv_493, tr_493
  • loc_en_US, sid_MD00002350, prod, sort_default
2 3 4 5 ... 17 Next>>

We're here to support you with our product.

Contact us for any purchasing inquiries.

Product Support

ASK & ANSWER

Ask your questions. Share your answers.

49 Questions & 70 Answers

Ask Your Questions, Share Your Answers

Ask your questions. Share your answers.



« Back


Category: I do not own this product
Interested in: Feature comparison
2 years, 11 months ago
User Name:
lbsigmon
North Carolina

Please wait while more information about lbsigmon is loaded.
Additional information about lbsigmon could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
The lint filter is just inside the door at the bottom.
Gender: female
2 years, 6 months ago
User Name:
fox25
Cookeville, TN, USA

Please wait while more information about fox25 is loaded.
Additional information about fox25 could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
the lint filter is in the front of the dryer near/just inside the door.
Gender: female
2 years, 8 months ago
User Name:
KTDD
St Louis, MO, USA

Please wait while more information about KTDD is loaded.
Additional information about KTDD could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
The lint filter is just as you open the door.
Gender: female
2 years, 9 months ago
User Name:
cdk63
Gray, TN

Please wait while more information about cdk63 is loaded.
Additional information about cdk63 could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
The lint filter is just inside the door when opened. It pulls straight up and is easy to clean.
2 years, 10 months ago
User Name:
Anonymous
Montgomery, AL, USA
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
It is located on the inside of the dryer
2 years, 10 months ago
User Name:
JLOH

Please wait while more information about JLOH is loaded.
Additional information about JLOH could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
I attached an image for you that shows where the lint filter is located.

Have a lovey day :)
User submitted photo
2 years, 11 months ago
User Name:
Nadine

Please wait while more information about Nadine is loaded.
Additional information about Nadine could not be loaded.
+2points
2out of 2found this answer helpful.
HelpfulNot Helpful
Category: I do not own this product
3 years, 2 months ago
User Name:
Hello

Please wait while more information about Hello is loaded.
Additional information about Hello could not be loaded.
+2points
2out of 2found this question helpful.
HelpfulNot Helpful

Answers

Answer:
Side
Gender: male
2 years, 5 months ago
User Name:
jokerji
Canton, MI

Please wait while more information about jokerji is loaded.
Additional information about jokerji could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
the side
Gender: female
2 years, 9 months ago
User Name:
cdk63
Gray, TN

Please wait while more information about cdk63 is loaded.
Additional information about cdk63 could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
in the top left hand corner is where you pull, and the dryer opens out to the side... I will say I do miss having a dryer to open down to catch any wet clothes that may slip from my hand
Gender: female
3 years, 1 month ago
User Name:
mzjenae
Kentucky

Please wait while more information about mzjenae is loaded.
Additional information about mzjenae could not be loaded.
+1point
1out of 1found this answer helpful.
HelpfulNot Helpful

Answer:
Door opens to the sides only left hinge or right
Gender: female
3 years, 2 months ago
User Name:
Camissy
Sacramento, CA, USA

Please wait while more information about Camissy is loaded.
Additional information about Camissy could not be loaded.
+1point
1out of 1found this answer helpful.
HelpfulNot Helpful
where and how does the water line connect to appliance
DLEX5170
Category: I do not own this product
2 years, 10 months ago
User Name:
rlevenson
WA

Please wait while more information about rlevenson is loaded.
Additional information about rlevenson could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
No water line is needed, as there is a removable plastic water container that you add water to.
Gender: female
2 years, 9 months ago
User Name:
cdk63
Gray, TN

Please wait while more information about cdk63 is loaded.
Additional information about cdk63 could not be loaded.
+1point
1out of 1found this answer helpful.
HelpfulNot Helpful

Answer:
No! you simply add a very small amount of water( a cup or less) in a small reservoir @ the top of the dryer. It is really easy. The water evaporates during the steaming function. It really works great to remove wrinkles in clothes you might forget to take out of the dryer. Also works great to freshen up sport coats & such that really don't need to go to the dry cleaners yet.
Gender: male
2 years, 9 months ago
User Name:
laundryman53
Garland, TX, USA

Please wait while more information about laundryman53 is loaded.
Additional information about laundryman53 could not be loaded.
+3points
3out of 3found this answer helpful.
HelpfulNot Helpful

Answer:
No it does not. there is a compartment on the top of the drer where you put the water.
Gender: female
2 years, 9 months ago
User Name:
sandy78
Indianapolis, IN, USA

Please wait while more information about sandy78 is loaded.
Additional information about sandy78 could not be loaded.
+1point
1out of 1found this answer helpful.
HelpfulNot Helpful
Is your 'sensor dry' on the electric clothes dryer a moisture sensor?
Category: I do not own this product
3 years ago
User Name:
winlockkid

Please wait while more information about winlockkid is loaded.
Additional information about winlockkid could not be loaded.
-2points
1out of 4found this question helpful.
HelpfulNot Helpful

Answers

Answer:
yes
Gender: male
1 week, 4 days ago
User Name:
husker
Lincoln, NE, USA

Please wait while more information about husker is loaded.
Additional information about husker could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
I believe that it is. My clothes dry really fast, and the time never goes as long as it says on the readout that it will take.
Gender: female
2 years, 9 months ago
User Name:
cdk63
Gray, TN

Please wait while more information about cdk63 is loaded.
Additional information about cdk63 could not be loaded.
0points
1out of 2found this answer helpful.
HelpfulNot Helpful

Answer:
Please contact LG's Customer Service team at www.LGusa.com/support for assistance.
3 years ago
User Name:
LGJoel

Please wait while more information about LGJoel is loaded.
Additional information about LGJoel could not be loaded.
-3points
0out of 3found this answer helpful.
HelpfulNot Helpful
Category: I do not own this product
3 years, 1 month ago
User Name:
sadieslove
Iowa, USA

Please wait while more information about sadieslove is loaded.
Additional information about sadieslove could not be loaded.
0points
0out of 0found this question helpful.
HelpfulNot Helpful

Answers

Answer:
Yes, press the Signal button multiple times - as you press it, the sound will be low, high and off.
Gender: female
3 years, 1 month ago
User Name:
HappyKath
Rome, GA, USA

Please wait while more information about HappyKath is loaded.
Additional information about HappyKath could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful

Answer:
Yes you can. All you have to do is press the sound button until it is off.
Gender: female
3 years, 1 month ago
User Name:
MrsSebastian88
Duncan, OK, USA

Please wait while more information about MrsSebastian88 is loaded.
Additional information about MrsSebastian88 could not be loaded.
0points
0out of 0found this answer helpful.
HelpfulNot Helpful
  • 2015-08-27T13:36:23.419-05:00
  • bvseo_lps, prod_bvqa, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasquestionsanswers
  • loc_en_US, sid_MD00002350, prod, sort_default
2 3 4 5 ... 10 Next>>
  • 2015-08-27T13:36:23.425-05:00
  • bvseo_lps, prod_bvqa, vn_prr_5.6
  • cp-1, bvpage1
  • co_hasquestionsanswers
  • loc_en_US, sid_MD00002350, prod, sort_default
2 3 4 5 ... 10 Next>>
