7.3 cu.ft. Ultra Large High Efficiency SteamDryer™ w/ SteamSanitary™

  • DLEX5680W

  • White
  • Discontinued Product

Key Features

  • Ultra Large 7.3 cu. ft. Capacity
  • Steam Technology
  • SteamFresh™ Cycle
  • SteamSanitary™ Cycle
AVAILABLE COLORS:
CAPACITY
Capacity 7.3 cu. ft.
APPEARANCE
Design Look Rear Control
Intelligent Electronic Controls with Dual LED Display Yes
Touch Buttons Yes
Dial-A-Cycle™ Yes
DRYING PROGRAMS
No. of Programs 14
Programs (Sensor Dry) Cotton/Normal, Perm. Press/Casual, Heavy Duty, Bulky Bedding, Delicates, A nti-Bacterial, Towels, Small Load, Sports Wear, SteamFresh™, SteamSanitary™
Programs (Manual Dry) Speed Dry, Freshen Up, Air Dry
No. of Options 10
Options More Time, Less Time, Wrinkle Care, Custom Program, Child Lock, ReduceStatic™, E asyIron™, Damp Dry Signal, End of Cycle Signal, Rack Dry
Temperature Settings High, Medium High, Medium, Low, Ultra Low
Drying Levels Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry
Manual Dry Times 60 min., 50 min., 40 min., 30 min., 20 min., More Time/Less Time
FABRIC CARE FEATURES
SteamFresh™ Cycle Yes
SteamSanitary™ Cycle Yes
ReduceStatic™ Option Yes
EasyIron™ Option Yes
Sensor Dry Yes
Precise Temperature Control with Variable Heater Yes
CONVENIENCE FEATURES
LoDecibel™ Quiet Operation Yes
SmartDiagnosis™ Yes
FlowSense™ Duct Clogging Indicator Yes
Anti-Bacterial Cycle Yes
Wrinkle Care Option Yes
Remaining Time Display/Status Indicator(s) Yes
End of Cycle Signal Yes
Child Lock Yes
Drum Light Yes
Reversible Door Yes
Leveling Legs 4 Adjustable Legs
Venting Option Electric: 4 Way Venting / Gas: 3 Way Venting
3 Minute Installation Check Yes
Drying Rack Yes
MATERIALS AND FINISHES
NeveRust™ Stainless Steel Drum Yes
Cabinet Painted Steel
Control Panel Plastic
Top Cover Painted Steel
Diamond Glass Door Transparent (White), Dark Gray Tint (Graphite Steel)
Available Colors White (W), Graphite Steel (V)
POWER SOURCE
Ratings CSA Listed
Electrical Requirements 120V, 15 Amps (Gas) / 240V, 30 Amps (Electric)
Type Gas/Electric
OPTIONS
LP Conversion Kit 4948EL4002B
Side Venting Kit 383EEL9001B
DIMENSIONS
Product (WxHxD) 27" x 45 3/8" x 28 3/8" (50 1/4" H with door open)
Carton (WxHxD) 29 1/2" x 48" x 31 1/4"
Weight (Product/Carton) 134 lbs/155 lbs
WARRANTY/UPC
Limited Warranty 1 Year Parts and Labor
UPC 048231 013543

What People Are Saying

Rated 4 out of 5 by from Large Capacity, Quick Drying We bought this dryer to match the washer we bought a few months ago. The larger capacity seems to help the clothes dry quicker. I just wish you could change the chime at the end of the cycle (it's the same as the washer so you can't tell which one just finished). Also, it would be nice if it had more sound insulation (you can hear the snaps and zippers banging on the drum more than our old dryer).
Date published: 2016-03-07
Rated 5 out of 5 by from Outstanding Dryer We bought this dryer 4 months ago and couldn't be more pleased. It is quiet and efficient with multiple functions for whatever drying need you might have. When you need it, the steam function is easy to use and does a great job on getting wrinkles out of your clothes. For those of us who tend to forget and leave clothes in the dryer well after the drying cycle has finished, the wrinkle care function is a lifesaver. Just can't say enough about this dryer....highly recommend.
Date published: 2016-02-21
Rated 5 out of 5 by from Great Features Love the steam feature & the other features of it.
Date published: 2016-01-26
Rated 5 out of 5 by from Love the features This dryer will hold a lot of clothes and will not over dry, has easy access for lint trap.
Date published: 2015-12-31
Rated 5 out of 5 by from Love it, very good product It's a nice system and high energy efficient. It gives some music tone when it finishes the drying. The machine is quiet; the functions are easy to use; though they look intimidated at first glance...so many buttons to press.
Date published: 2015-12-14
Rated 5 out of 5 by from Amazing product with amazing features I love this dryer. It has so many features wonderful support and overall looks stylish.
Date published: 2015-12-08
Rated 5 out of 5 by from Huge great features Purchased 6 weeks no issues The size of tub is great
Date published: 2015-12-03
Rated 5 out of 5 by from Great dryer...quiet and efficient. My old dryer took forever to dry a load so I am looking forward to savings on my electric bill.
Date published: 2015-11-08
  • 2016-04-20T09:10CST
  • bvseo_cps, prod_bvrr, vn_cps_3.2.0
  • cp_1, bvpage1
  • co_hasreviews, tv_2, tr_109
  • loc_en_US, sid_MD05083310, PRD, sort_mostRecent
  • clientName_LG
  • bvseo_sdk, java_sdk, bvseo-2.3.0.0
  • CLOUD, getReviews, 6ms
  • REVIEWS, PRODUCT

We're here to support you with our product.

View DLEX5680W Product Support

Contact us for any support inquiries.

ASK & ANSWER

Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

LG dryer 010631066U041A118592 (171R0077 0 (only 4 years old); starts then stops maybe 10 seconds later; can you troubleshoot it using the smart-technology feature?

Asked by: nancylroman
We regret the trouble you have experienced with this electric dryer. It is recommended to contact our Customer Interactive Center at 800-243-0000 to troubleshoot the situation with this dryer.
Answered by: NeilE
Date published: 2016-02-23

Beeping noise heard during antibacterial drying cycle.....what causes this?

Asked by: Ronni70
We regret the trouble you have experienced with this dryer. There does not appear to be a beep associated with this Anti-Bacterial cycle. If this alert continues, please contact our Customer Interactive Center at 800-243-0000 for assistance.
Answered by: NeilE
Date published: 2016-02-03

I'm trying to set up my dryer on my phone app.  How can I do that?

Asked by: Cindy09
We appreciate your interest in this electric dryer. According to the owner’s manual of this model, there does not appear to be Smart Phone compatibility available, other than the Smart Diagnosis features.
Answered by: NeilE
Date published: 2015-10-03

I'm here with a repairman who can't open the top up to service.  Any suggestion?

Asked by: Dave t
You need to check that this repairman working on your LG 7.3 cu.ft. Ultra Large High Efficiency SteamDryer™ w/ SteamSanitary™, Model # DLEX5680V is an LG Authorized repairman, he should access to the service manual for the dryer or should be trained in how to repair LG dryers. If he is not an LG Authorized Service Technician then regrettably, he will not be able to get a service manual and there is not much else that we can suggest...^IFV
Answered by: LGJoel
Date published: 2015-10-17

im trying to locate the dryer vent on the rear of your dlex5680 model? how can I access the manual for this.

Asked by: joromey

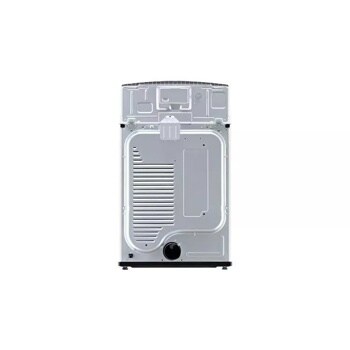

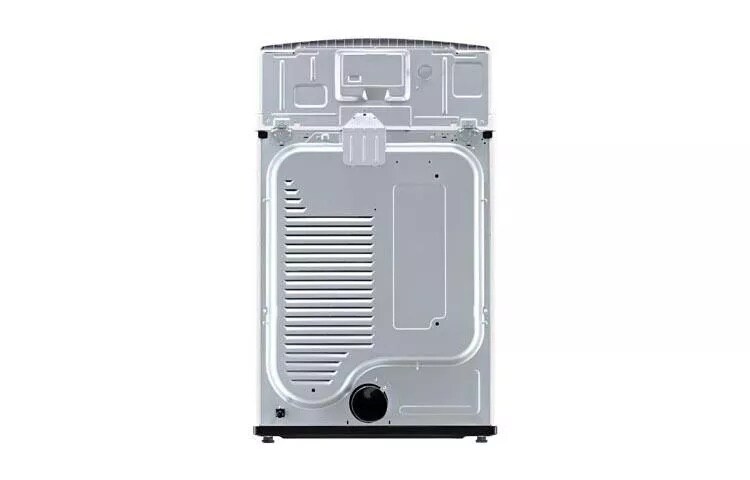

You can visit the LG site [http://www.lg.com/us/support-product/lg-DLEX5680W] and download an print out a PDF copy of the owner's manual for the LG 7.3 cu.ft. Ultra Large High Efficiency SteamDryer™ w/ SteamSanitary™, Model # DLEX5680W from there. The location of the dryer vent on this unit is easy to find in the rear of the unit. When you visit the page for this unit on the company site, you can use the left/right cursors on the main image right under the heading for the unit to scroll to the last image that shows the back of the dryer and right in the middle of the unit at the bottom is a large circular hole which is where the dryer duct connects...^IFV
Answered by: LGJoel
Date published: 2015-09-04

Where is the steam option button?

page 34 of the manual, to add steam to a standard cycle, #3 says Press the steam option button?? This is for model DLEX5680.
Asked by: myboys
This is actually in the manual and it's not a button it's an additional setting like anti static
Answered by: RandyShmc
Date published: 2015-08-31

DOES DRYER HAVE A MOISTURE SENSOR

DOES DRYER HAVE A MOISTURE SENSOR so it will not over dry and shrink clothes. If this model does not have it what model does in this size.
Asked by: welchlam
Yes it does
Answered by: RandyShmc
Date published: 2015-08-31

i need specs of backside for venting install. DLEX5680V

Asked by: RickyBoy
Although the LG 7.3 cu.ft. Ultra Large High Efficiency SteamDryer™ w/ SteamSanitary™, Model # DLEX5680V has been tested for a spacing of 1 inch in the sides and rear of the unit, the recommended spacing is 5 inches in the rear and 1 inch on the sides. The unit itself has a total height in the back of 45 7⁄16" (115.3 cm). It has a depth of 28 15⁄16" (73.4 cm) and the door is 21 1⁄4" (54 cm) so that when it is opened 90 degrees, the total depth is 50 1⁄4" (127.5 cm)...IFV
Answered by: LGJoel
Date published: 2015-08-05
