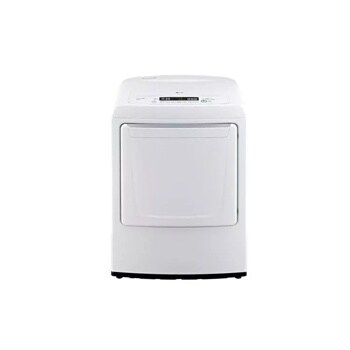

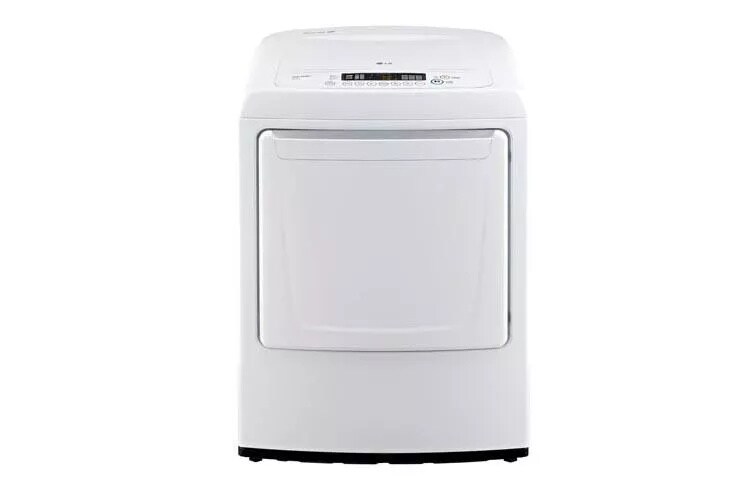

7.3 cu. ft. Ultra Large Capacity Top Load Dryer with Distinct and Modern Front Control Design (Gas)

  • DLG1002W

  • White

Key Features

  • 7.3 cu. ft. Ultra Large Capacity
  • SmartDiagnosis™
  • Easy Front Control Panel with LED Display
  • FlowSense™ Duct Clogging Indicator
Big time saver

Big time saver

Do laundry a little less often. With 7.3 cubic feet of capacity, this dryer handles really large loads. Saving you time and energy.

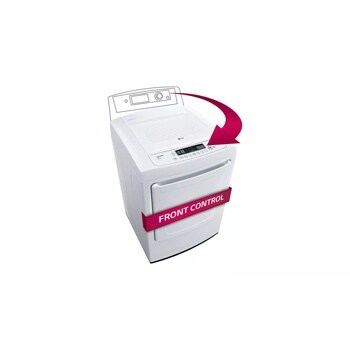

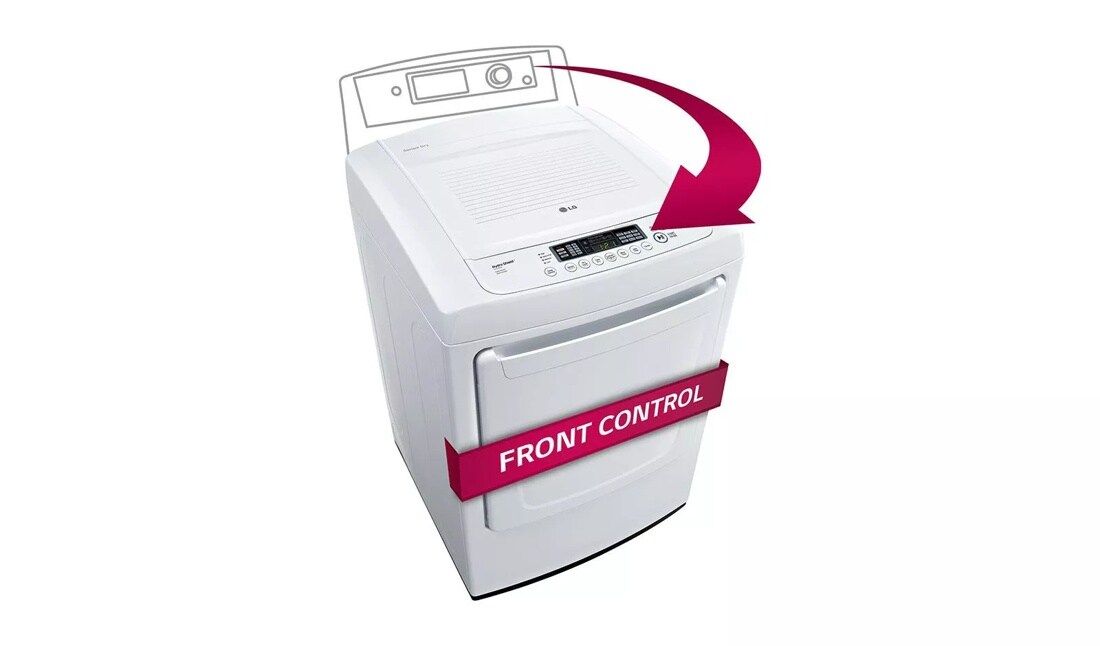

A revolutionary spin on laundry.

A revolutionary spin on laundry.

LG puts a modern design spin on the traditional top load laundry pair. By moving the control panel from the back to the front, the buttons and LED display are easier to read and use. This simple change makes for a more intuitive and functional design and a look that is unlike anything you’ve ever seen.

Get wise

Get wise

If you ever experience an issue with your LG dryer, you don't have to worry. The SmartDiagnosis™ feature helps the service center diagnose problems over the phone, or with a simple app on your smart phone, helping you minimize costly, inconvenient service calls.

Electronic Control Panel with Dual LED Display & Hydroshield™

Electronic Control Panel with Dual LED Display & Hydroshield™

Keep it quiet

Keep it quiet

There’s no need for laundry to be noisy. Thanks to LG's LoDecibel™ operation, chances are you may not even notice it.

Stay Efficient.

Stay Efficient.

The FlowSense™ Duct Clogging Indicator will tell you when it’s time to clean the ducts out. Clean ducts mean a great drying every time.

Dryer Type Gas
Capacity 7.3 cu. ft.
Design Look Front Control
Front Electronic Control Panel with LED Display Yes
No. of Programs 9
Programs (Sensor Dry) Cotton/Normal, Perm. Press/Casual, Heavy Duty, Delicates, Small Load, Towels
Programs (Manual Dry) Freshen Up, Speed Dry, Air Dry
No. of Options 7
Options More Time, Less Time, Wrinkle Care, Custom Program, Child Lock, Damp Dry Signal, End of Cycle Signal
Temperature Settings High, Medium High, Medium, Low
Drying Levels Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry
Manual Dry Times 60 min., 50 min., 40 min., 30 min., 20 min., More Time/Less Time
Sensor Dry Yes
Precise Temperature Control with Variable Heater Yes
LoDecibel™ Quiet Operation Yes
SmartDiagnosis™ Yes
FlowSense™ Duct Clogging Indicator Yes
Wrinkle Care Option Yes
Remaining Time Display/Status Indicator(s) Yes
End of Cycle Signal Yes
Child Lock Yes
Drum Light Yes
Reversible Door Yes
Leveling Legs 4 Adjustable Legs
Venting Option 3 Way Venting
3 Minute Installation Check Yes
Aluminized Alloy Steel Drum Yes
Cabinet Painted Steel
Control Panel Plastic
Top Cover Plastic
Body-Matching Solid Door Yes
Available Colors White (W)
Ratings CSA Listed
Electrical Requirements 120V, 15 Amps
Type Gas
LP Conversion Kit 4948EL4002B
Side Venting Kit 3911EZ9131X
Product (WxHxD) 27" x 40 5/32" x 28 3/8" (50 1/4" D with door open)
Carton (WxHxD) 29 1/2" x 43 7/10" x 31 1/4"
Weight (Product/Carton) 125.4 lbs. / 143.3 lbs.
Limited Warranty 1 Year Parts and Labor
UPC 048231 013956

What People Are Saying

  • bvseo_sdk, java_sdk, bvseo-
  • CLOUD, getReviews, 500ms
  • bvseo-msg: Execution timed out, exceeded 500ms;

We're here to support you with our product.

View DLG1002W Product Support

Contact us for any purchasing inquiries.


Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

I need to know what kind of hose and size hose I need to hook up my dryer

I have model DLG1002W and need the exact hose size
Asked by: Bleek
We appreciate your interest in this dryer and its proper assembly. According to the specifications listed on page 17 of the owner’s manual, the exhaust duct must be 4 inches in diameter with no obstructions. The exhaust duct should be kept as short as possible. The total length of flexible metal duct work should not exceed 8 feet in length.
Answered by: NeilE
Date published: 2015-06-23

Is there a side venting kit available for the DLG1002W Gas Dryer

This question was asked before and the answer was a support web site. There was no such kit available through the web site. My question is whether this kit exists at all. I want to buy this dryer, but probably cannot because there is not enough space in the back for venting.
Asked by: PotentialLGDryerBuyer
Check out side venting kit 3911EZ9131X as listed in the technical specifications as an option. I have no personal information about this item. There are also some rear venting options that are very compact and inexpensive, approximately 3" thick.
Answered by: Robwes
Date published: 2015-06-19

Can this model gas dryer accommodate a 100 ft vent run? If not does LG make one that can?

Asked by: mjest
Hi mjest. The LG DLG1002W Dryer like any other dryer must meet the requirements as stipulated in the International Residential Code (IRC) SECTION M1502 CLOTHES DRYER EXHAUST guidelines which states that "The maximum length of a clothes dryer exhaust duct shall not exceed 25 feet (7,620 mm) from the dryer location to the wall or roof termination. The maximum length of the duct shall be reduced 2.5 feet (762 mm) for each 45-degree (0.8 rad) bend, and 5 feet (1,524 mm) for each 90-degree (1.6 rad) bend. The maximum length of the exhaust duct does not include the transition duct." This means that vents should also be as straight as possible and cannot be longer than 25 feet. Any 90-degree turns in the vent reduce this 25-foot number by 5 feet, since these turns restrict airflow...^IFV
Answered by: LGJoel
Date published: 2015-07-18

will my new gas dryer come with an lp conversion kit

Asked by: bandit1
We appreciate your interest in this gas dryer. The 383EEL3002D LP Orifice Kit must be ordered separately, and should be installed by a qualified gas technician, and the change should be noted on the dryer.
Answered by: NeilE
Date published: 2015-03-12

DLG1002W Gas Dryer Venting Question

Assuming the DLG1002W gas dryer can be vented from the right side using an adapter kit, how much space between the right side of the dryer and the wall is required? Also, if the dryer is vented from the right side, can the back of the dryer be positioned flush against the back wall? Thank you.
Asked by: Slip
could be flush with wall and vented directly through wall and in that case could be up against back wall
Answered by: nana13
Date published: 2014-09-18


I recently purchased this dryer and it stopped drying my laundry. on the display screen it flashed "dry" but also shows the word "cooling". I misplaced the manual so I don't have that for a reference.
Asked by: AMZimm
We regret the trouble you have experienced with this gas dryer. If the cooling indicator stays on constantly, then it would seem the unit is not operating properly. This unit will likely require service. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at
Answered by: NeilE
Date published: 2014-04-25

What is the Energy Star Rating for the DLG1002W? What is the estimated annual operating costs?

Asked by: JDallas
We appreciate your interest in this gas dryer. While this unit is more energy efficient than some other models, this unit has not been Energy Star Certified. Residential dryers are not listed by Energy Star. As estimated operating costs are generated by Energy Star, and this dryer is not rated by Energy Star, there is no listing for such an estimate.
Answered by: NeilE
Date published: 2014-04-21

Lg front control gas dryer

Wondering what size gas line and fittings fit this appliance.
Asked by: dryerhookup
We appreciate your interest in the proper installation of this gas dryer. The unit does require a connection to either a 1/2” or a 3/4" gas pipe. This information can be found on page 19 of your Installation Guide.
Answered by: NeilE
Date published: 2014-03-07
