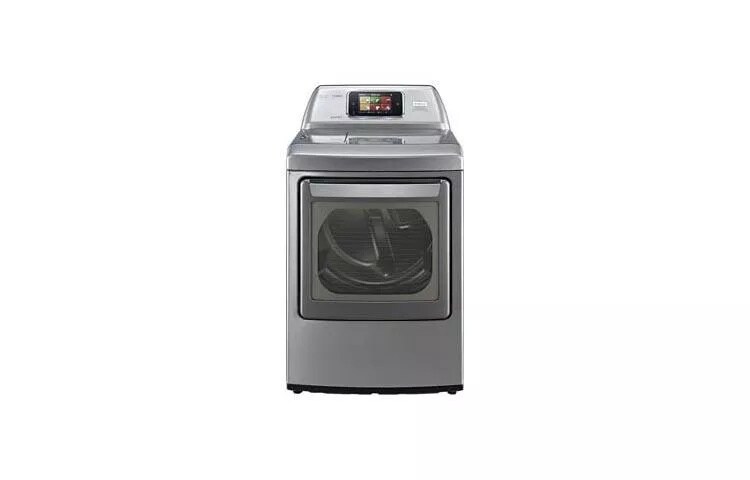

7.3 cu. ft. Ultra Large Capacity SteamDryer™ with Smart ThinQ™ Technology (Gas)

  • DLGX6002V

  • Graphite Steel
  • Discontinued Product

Key Features

  • Smart ThinQ™ Technology
  • 7.3 cu. ft. Ultra Large Capacity
  • TrueSteam™ Technology
  • SteamFresh™ Cycle
SUMMARY
Dryer Type Gas
SteamDryer™ Yes
CAPACITY
Capacity 7.3 cu. ft.
APPEARANCE
Design Look Rear Control
Intelligent Electronic Controls with Dual LED Display Yes
Dial-A-Cycle™ Yes
DRYING PROGRAMS
No. of Programs 14
Programs (Sensor Dry) Cotton/Normal, Perm. Press/Casual, Heavy Duty, Bulky Bedding, Delicates, Anti-Bacterial, Towels, Small Load, Sports Wear, SteamFresh™, SteamSanitary™
Programs (Manual Dry) Speed Dry, Air Dry, Rack Dry
No. of Options 9
Options More Time, Less Time, Wrinkle Care, Custom Program, Child Lock, ReduceStatic™, EasyIron™, Damp Dry Signal, End of Cycle Signal
Temperature Settings High, Medium High, Medium, Low, Ultra Low
Drying Levels Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry
Manual Dry Times 60 min., 50 min., 40 min., 30 min., 20 min., More Time/Less Time
FABRIC CARE FEATURES
SteamFresh™ Cycle Yes
SteamSanitary™ Cycle Yes
ReduceStatic™ Option Yes
EasyIron™ Option Yes
Sensor Dry Yes
Precise Temperature Control with Variable Heater Yes
CONVENIENCE FEATURES
LoDecibel™ Quiet Operation Yes
SmartThinQ™ Technology Yes
SmartDiagnosis™ Yes
FlowSense™ Duct Clogging Indicator Yes
Anti-Bacterial Cycle Yes
Wrinkle Care Option Yes
Remaining Time Display/Status Indicator(s) Yes
End of Cycle Signal Yes
Child Lock Yes
3 Minute Installation Check Yes
Drying Rack Yes
Drum Light Yes
Venting Option 3 Way Venting
Leveling Legs 4 Adjustable Legs
Reversible Door Yes
MATERIALS AND FINISHES
NeveRust™ Stainless Steel Drum Yes
Top Plate Painted Steel
Cabinet Painted Steel
Control Panel Plastic
Transparent Glass Door Yes
Available Colors Graphite Steel
POWER SOURCE
Ratings CSA Listed
Electrical Requirements 120V, 15 Amps
Type Gas
OPTIONS
LP Conversion Kit 4948EL4002B
Side Venting Kit 3911EZ9131X
DIMENSIONS
Product (WxHxD) 27" x 45 3/8" x 28 3/8" (50 1/4" D with door open)
Carton (WxHxD) 29 1/2” x 48” x 31 1/4”
Weight (Product/Carton) 136.7 lbs. / 149.0 lbs.
WARRANTY/UPC
Limited Warranty 1 Year Parts and Labor
UPC 048231 012287

What People Are Saying

Rated 5 out of 5 by from overall performance is excellent The fastest machine I ever owned. Love the customizable features. Needs lock out feature.
Date published: 2013-07-23
Rated 5 out of 5 by from a wonderful dryer I can do so many things with this dryer. Clothes that look wrinkled...with a little swerll in the dry...they look brand new. I can fit my kings sized comforters in this dryer and they come out great It is wonderful to freshen up and steralize the bed pillows. I am really enjoying using this dryer.
Date published: 2012-12-09
  • 2016-04-20T09:07CST
  • bvseo_cps, prod_bvrr, vn_cps_3.2.0
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_2
  • loc_en_US, sid_MD05015460, PRD, sort_mostRecent
  • clientName_LG
  • bvseo_sdk, java_sdk, bvseo-2.3.0.0
  • CLOUD, getReviews, 6ms
  • REVIEWS, PRODUCT

We're here to support you with our product.

View DLGX6002V Product Support

Contact us for any support inquiries.

ASK & ANSWER

Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

I am seeking a replacement for the USB wifi modem dongle. It appears this either never came with the dryer I purchased or had been thrown out somehow. I cannot find the part anywhere and its part identified is frustratingly not in the manual.  Thanks

Asked by: spillmar
Accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at http://www.mcmelectronics.com/content/en-US/forms/lg_parts. The part number for Dongle Accessory is AAA74370801.
Answered by: NeilE
Date published: 2015-10-22

Can the DLGX6002v gas dryer be vented out the right side of the cabinet as you are facing the machine?

Asked by: losuds
Your new dryer is shipped to vent to the rear. It can also be configured to vent to the bottom or side (right-side venting is not available on gas models). An adapter kit, part number 383EEL9001B, may be purchased from your LG retailer. This kit contains the necessary duct components to change the dryer vent location.
Answered by: Nadine
Date published: 2013-01-15

Venting question

Three part question (for the gas version): 1. what temp does the vent gas get to with its efficiency? Say on the low versus high cycle? 2. Can this dryer be vented offset into the wall behind the unit. The vent entry is approximately 24" off the ground at the left corner of the dryer (when facing it) 3. what are the typical lengths & materials allowed for venting through the house to the exterior? I.e. PVC, aluminum, etc... Thanks! Lane
Asked by: LaneF
