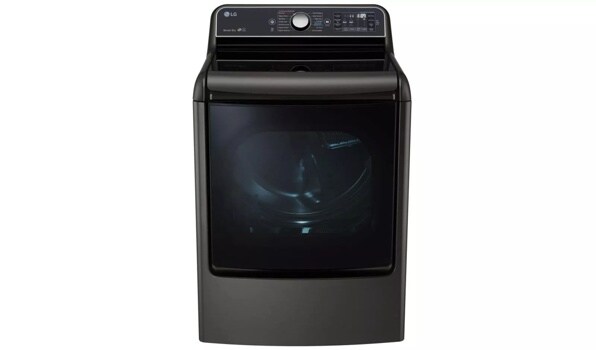

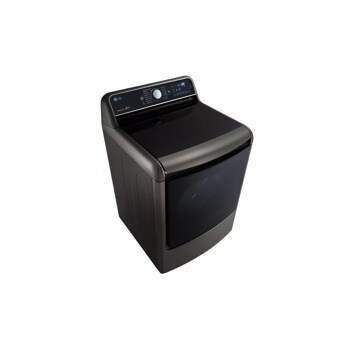

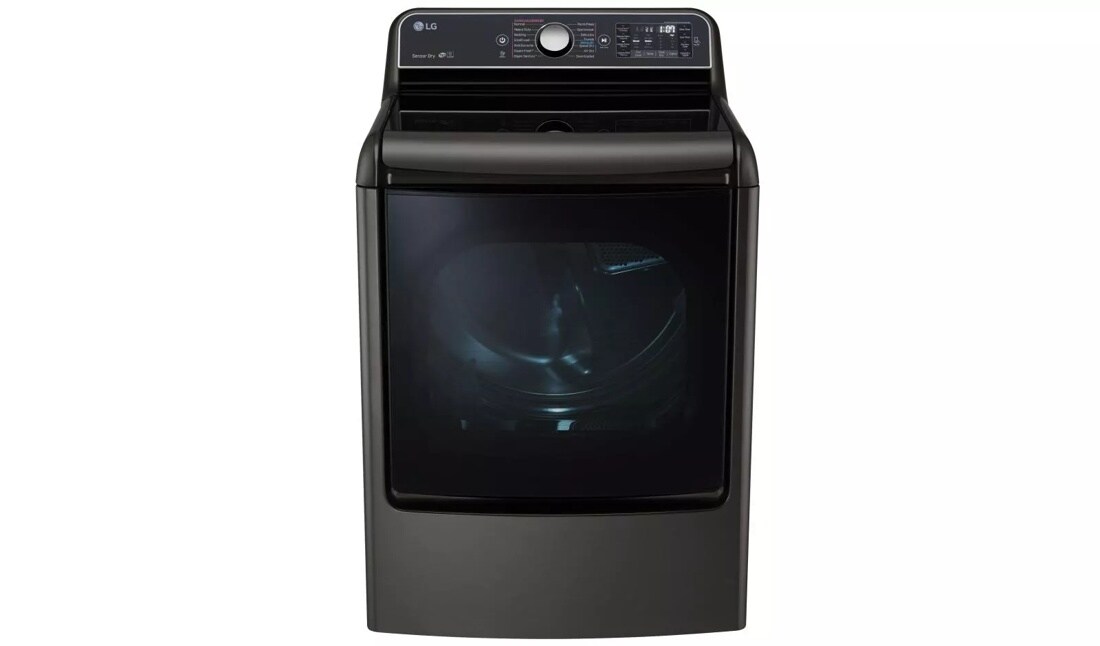

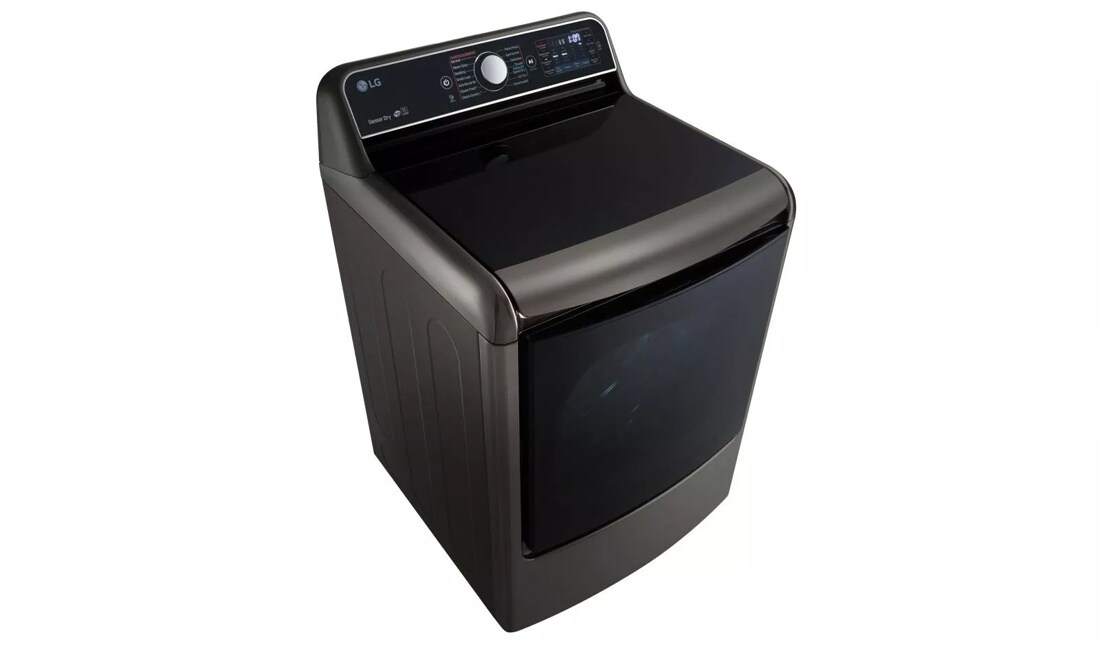

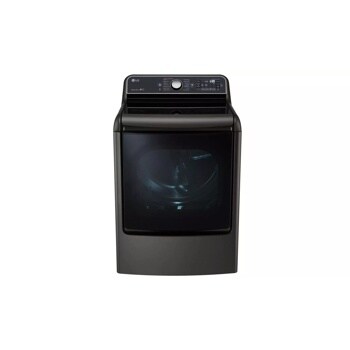

9.0 Cu. Ft. Mega Capacity TurboSteam™ Gas Dryer With EasyLoad™ Door

  • DLGX7701KE

  • Black Stainless Steel

Key Features

  • 9.0 cu. ft. Ultra Large Capacity with NeveRust™ Stainless Steel Drum
  • EasyLoad™ Door
  • TurboSteam™ Technology
  • SteamFresh™ Cycle

J.D. Power Award Winner

“Highest in Customer Satisfaction with Dryers”

LG Dryers were Evaluated by Consumer Reports

*Consumer Reports does not endorse products or services.

More Room to Dry

More Room to Dry

When it comes to laundry capacity, big is good, bigger is better, but biggest is best. With 9.0 cu ft of mega capacity, now you can fit a king size comforter and full set of bedding in a single load! You'll definitely have more room to dry.

Open Up to Convenience

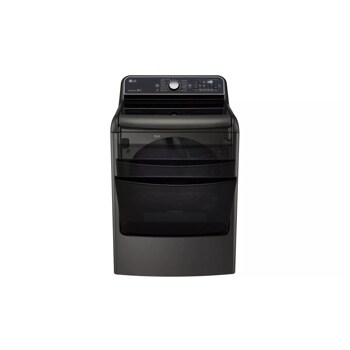

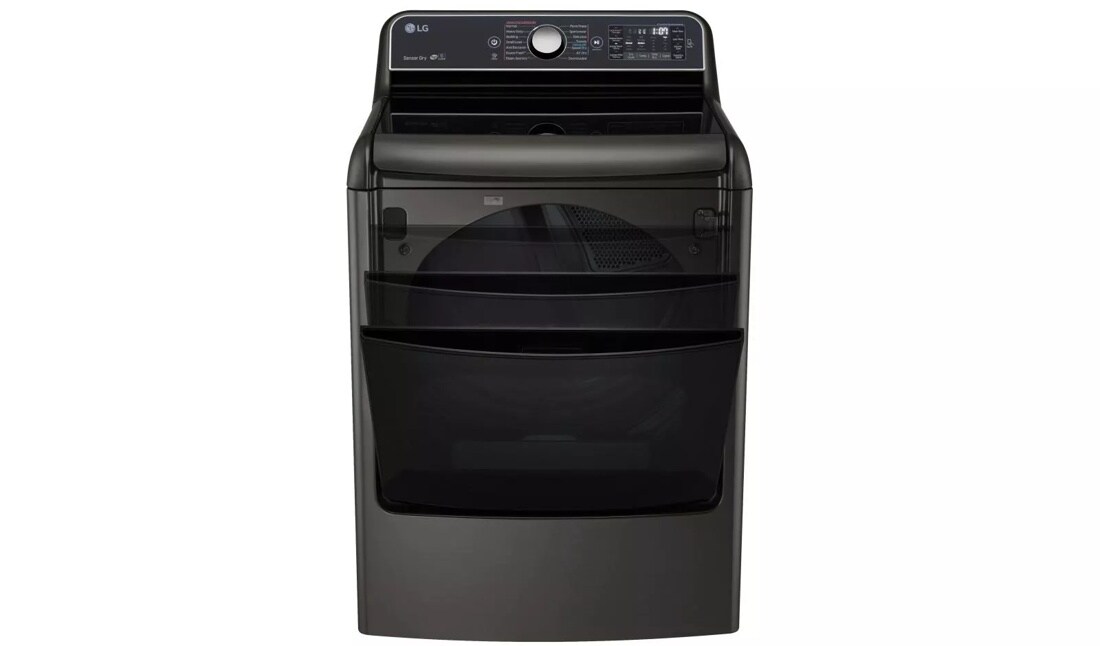

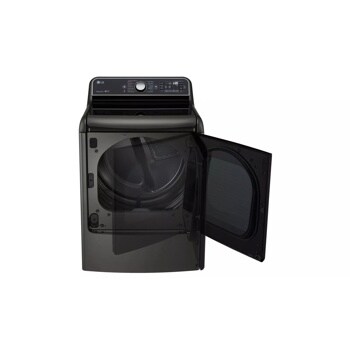

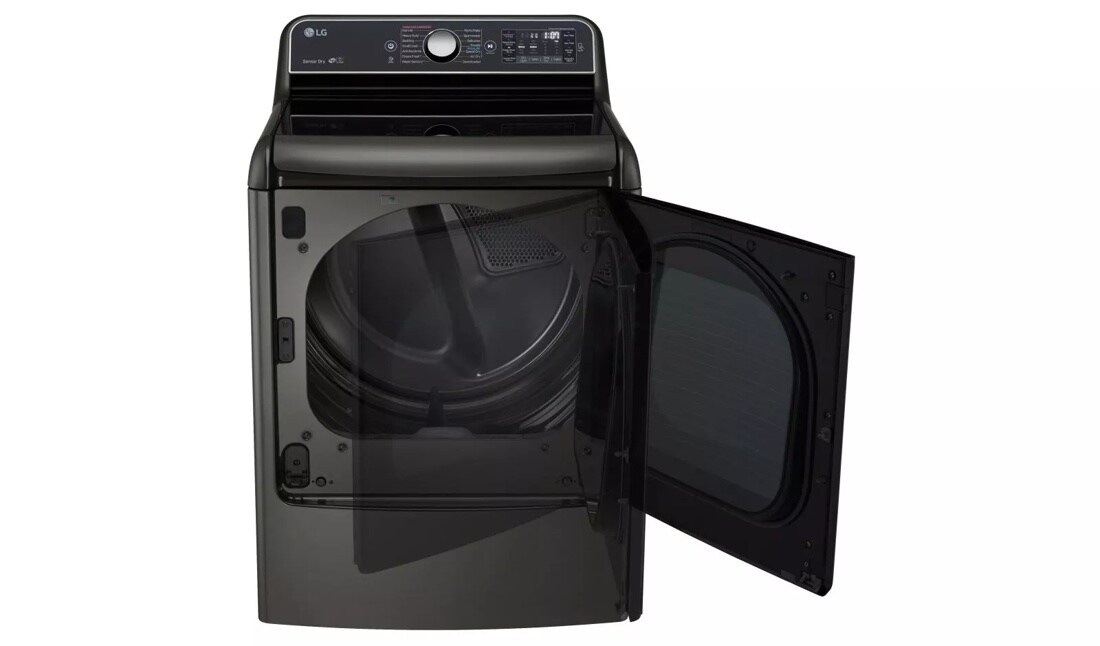

The dual-opening options of the LG EasyLoad™ door make loading and unloading the dryer easier than ever. Transferring wet clothes from the washer? Simply press the release button and pull the door down, hamper style to keep that stray sock from hitting the floor. Removing dry items? Swing the door to the side to clear the way for your basket below. Even tight spaces and challenging laundry-room layouts are no match for versatility like this.

The quick fix

The quick fix

Late for the party and no time to iron your favorite outfit? The SteamFresh™ Cycle refreshes, and reduces wrinkles in up to five garments at a time with one 20-minute dryer cycle.

Wash the unwashable

You probably wish you could clean your throw pillows or children’s toys. With the SteamSanitary™ Cycle, you can. It uses steam to safely sanitize items marked as non-washable.

SUMMARY
Dryer Type Gas
SteamDryer™ Yes
CAPACITY
Capacity 9.0 cu. ft.
APPEARANCE
EasyLoad™ Door Yes
Design Look Rear Control
Intelligent Electronic Controls with Dual LED Display Yes
Dial-A-Cycle™ Yes
Touch Buttons Yes
DRYING PROGRAMS
No. of Programs 14
Programs (Sensor Dry) Cotton/Normal, Perm. Press/Casual, Heavy Duty, Bulky Bedding, Delicates, Anti-Bacterial, Towels, Small Load, Sports Wear, SteamFresh™, SteamSanitary™
Programs (Manual Dry) Speed Dry, Air Dry, Download
No. of Options 9
Options More Time, Less Time, Wrinkle Care, Custom Program, Child Lock, ReduceStatic™, EasyIron™, Damp Dry Signal, End of Cycle Signal
Temperature Settings High, Medium High, Medium, Low, Ultra Low
Drying Levels Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry
Manual Dry Times 60 min., 50 min., 40 min., 30 min., 20 min., More Time/Less Time
FABRIC CARE FEATURES
TurboSteam® Technology Yes
Allergiene™ Cycle Yes
Sanitary Cycle Yes
WaveForce™ Technology Yes
SmartRinse™ Jet Spray System Yes
ColdWash™ Option Yes
SenseClean™ System Yes
ReduceStatic™ Option Yes
EasyIron™ Option Yes
Sensor Dry Yes
Precise Temperature Control with Variable Heater Yes
CONVENIENCE FEATURES
NFC Tag On Technology Yes
LoDecibel™ Quiet Operation Yes
SmartDiagnosis™ Yes
FlowSense™ Duct Clogging Indicator Yes
Anti-Bacterial Cycle Yes
Wrinkle Care Option Yes
Remaining Time Display/Status Indicator(s) Yes
End of Cycle Signal Yes
Child Lock Yes
Drum Light Yes
Reversible Door Yes
Leveling Legs 4 Adjustable Legs
Venting Option 3 Way Venting
3 Minute Installation Check Yes
MATERIALS AND FINISHES
NeveRust™ Stainless Steel Drum Yes
Cabinet Painted Steel
Control Panel Plastic
Top Cover Painted Steel
Diamond Glass Door Transparent (White), Dark Gray Tint (Graphite Steel)
Available Colors White (W), Graphite Steel (V), Black Stainless Steel (K)
POWER SOURCE
Ratings CSA Listed
Electrical Requirements 120V, 15 Amps
Type Gas
OPTIONS
Dryer Rack AHB73109001
LP Conversion Kit 4948EL4002B
Side Venting Kit 383EEL9001B
DIMENSIONS
Product (WxHxD) 29" x 45 1/8" x 31 1/2" (54 1/2" D with door open), (52 3/4" H Top Cover Storage Open)
Carton (WxHxD) 31 15/16 x 48 1/32 x 33 3/4
Weight (Product/Carton) 156.3 lbs/177.4 lbs
WARRANTY/UPC
Limited Warranty 1 Year Parts and Labor
UPC 048231018838

What People Are Saying

Rated 5 out of 5 by from Amazing I’m totally in love with my washer and dryer from LG. All the great features even the hubby can do the laundry ! Beautiful design and now I can’t wait to my laundry!
Date published: 2017-10-19
Rated 5 out of 5 by from Awesome love this dryer! Bought in January and is best dryer ever owned. Thank you for making this product.
Date published: 2017-09-26
Rated 5 out of 5 by from Great dryer My dryer is about 1 yr old and it works great. I have no problems with it so far....
Date published: 2017-09-25
Rated 5 out of 5 by from Great product, couldn't have purchased a better washer and dryer for the price.
Date published: 2017-09-22
Rated 4 out of 5 by from Hard to repair I've had my dryer for 2 years. Mine is Gas. Loved all the features until it broke and we can't find anyone to work on it. Make sure you have LG authorized service in your area before you buy. Even the extended warranty people can't find someone.
Date published: 2017-05-31
Rated 3 out of 5 by from Large Dryer! I bought this dryer because of its large capacity. It's been great to dry bedsheets and blankets in about 1.5 hrs. I did find that if you dry a few clothes, it takes longer to dry than a full washer of towels.
Date published: 2017-05-03
Rated 5 out of 5 by from Awesome Dryer I have had this dryer for about a year. It does everything. Bin is large. Handles large loads. I no longer need to use dryer sheets. Clothes come out great
Date published: 2017-05-02
Rated 3 out of 5 by from Huge tub I have been using this for almost a year and the tub is huge.
Date published: 2017-05-02
  • y_2017, m_11, d_19, h_1
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_11
  • loc_en_US, sid_MD05806913, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-2.3.0.0
  • CLOUD, getReviews, 6ms
  • REVIEWS, PRODUCT

We're here to support you with our product.

View DLGX7701KE Product Support

Contact us for any support inquiries.

ASK & ANSWER

Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

Where can I order the drying rack?

Asked by: Stephany11
The rack for this dryer may be purchased on our website here: http://www.lg.com/us/laundry-accessories/lg-AHB73109001-front-load-dryer-rack
Answered by: Shena
Date published: 2017-11-01

Does the dryer door open all the way down when opening from top to bottom?

Asked by: Jmswych
When using the hamper door on the LG 9.0 Cu. Ft. Mega Capacity TurboSteam™ Gas Dryer With EasyLoad™ Door, Model # DLGX7701KE when loading, it acts as a chute to help guide the items into the drum and prevents them from falling onto the floor. It does not open all the way down. It does not open more than 40˚...^IFV
Answered by: LGJoel
Date published: 2017-09-19

When I used the steam fresh to get the wrinkles out it worked but left the shorts to wet to wear. Are closes suppose to come out real damp?

Asked by: Lowlo
We regret the trouble you have experienced with this gas range. The Steam Fresh is designed to allow wrinkles to be reduced, and make it easier to iron the clothing. Between the drying cycle and the iron, clothing should be sufficiently dry.
Answered by: NeilE
Date published: 2017-04-24

our new DLGX7701 dryer keeps giving a D90 error, what is that? Also most times it shuts off during a cycle and does not finish a timed cycle but not every time. Do we need to call for service? Our new dryer is only 3 months old

Asked by: Mr B
We regret the trouble which has been experienced with this gas dryer. The D90 error code denotes 90 percent obstruction in the exhaust duct. This can also cause the automatic shut-off of the machine. It is recommended to check and clear the exhaust vent of the machine and anything to which it is connected.
Answered by: NeilE
Date published: 2017-04-03

The lid broke off of my dryer, can I order a replacement lid?  How much would a replacement lid cost.

Asked by: Lucca 1
Parts and accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at http://www.mcmelectronics.com/content/en-US/forms/lg_parts. The part number for this item is: AGU74888702.
Answered by: NeilE
Date published: 2017-03-16

The dryer is stuck on pause and drum light will not turn off. How do I fix this?

Asked by: msmith0519
We regret the trouble you have experienced with this gas dryer. The START/PAUSE button has to be held for at least half a full second in order to pause or resume the cycle operations. If the cycle does not resume within 4 minutes, then the dryer is designed to turn off automatically. If this is not happening, then the dryer may require service. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at http://www.lg.com/us/support/repair/support-repair-provider-lookup.jsp.
Answered by: NeilE
Date published: 2016-10-26

I need to get the propane conversion kit for this dryer. Can you please supply the part number

Asked by: Darc
We appreciate your interest in this gas dryer. According to page 26 of the owner’s manual, the correct LP orifice kit is part number 383EEL3002D. It should always be installed by a qualified gas technician or plumber, and the change should be noted on the machine. Parts and accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at http://www.mcmelectronics.com/content/en-US/forms/lg_parts.
Answered by: NeilE
Date published: 2016-09-14

Why cant i find a lint filter for my dryer?? Model dlgx7701ve

Asked by: Zappa fan
Parts and accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at http://www.mcmelectronics.com/content/en-US/forms/lg_parts. The part number for this item is: ADQ74233201.
Answered by: NeilE
Date published: 2016-08-24
