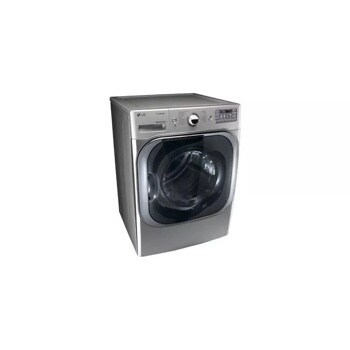

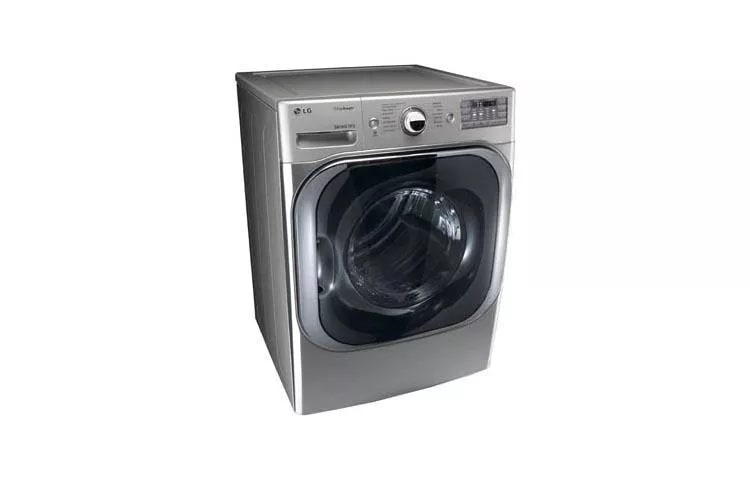

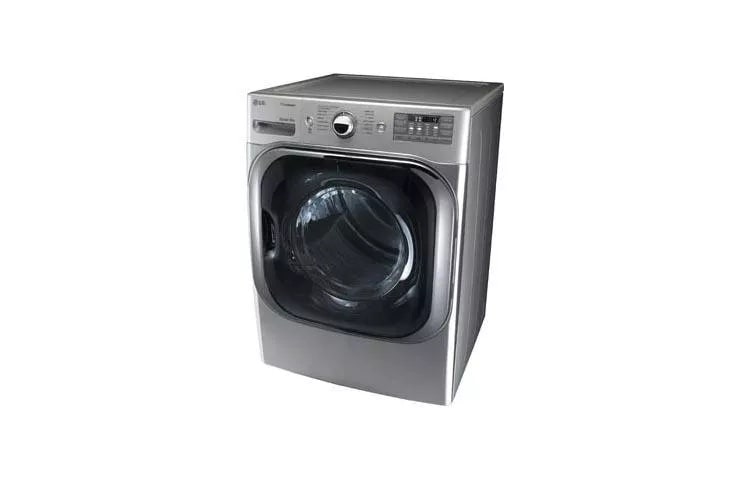

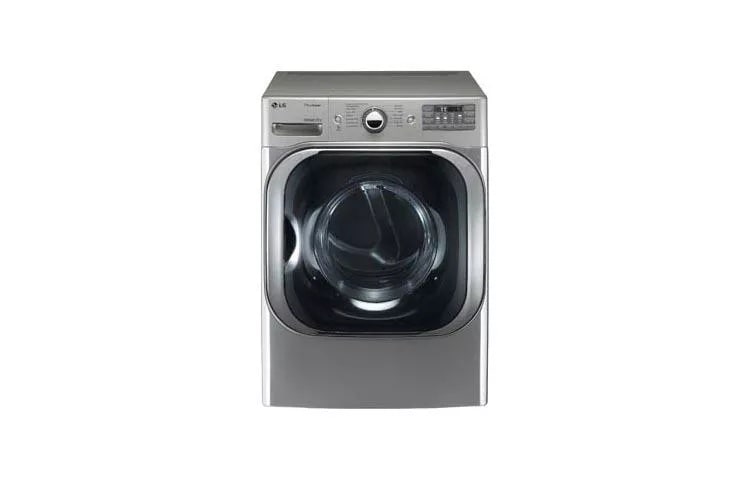

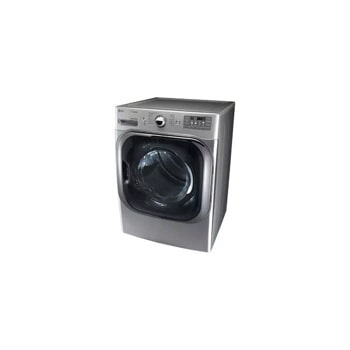

9.0 cu. ft. Mega Capacity Dryer with Steam™ Technology (Gas)

  • DLGX8001V

  • Graphite Steel

Key Features

  • 9.0 cu. ft. Mega capacity
  • TrueSteam™ Technology
  • SmartDiagnosis™
  • SteamFresh™ Cycle
AVAILABLE COLORS:
More Room to Dry

More Room to Dry

When it comes to laundry capacity, big is good, bigger is better, but biggest is best. With 9.0 cu ft of mega capacity, now you can fit a king size comforter and full set of bedding in a single load! You'll definitely have more room to dry.

Smooth operator

Smooth operator

A lot of those drying headaches can be a thing of the past. Our TrueSteam™ Technology generates real steam to reduce wrinkles and odors, and practically eliminates the need for ironing.

Get wise

Get wise

If you ever experience an issue with your LG dryer, you don't have to worry. The SmartDiagnosis™ feature helps the service center diagnose problems over the phone, or with a simple app on your smart phone, helping you minimize costly, inconvenient service calls.

The quick fix

The quick fix

Late for the party and no time to iron your favorite outfit? The SteamFresh™ Cycle refreshes, and reduces wrinkles in up to five garments at a time with one 20-minute dryer cycle.

See Spot Run

See Spot Run

Got a small stain or spot? Our SpotClean™ Cycle is designed to use the power of steam to effectively remove stains and freshen clothes right in the dryer.

Wash the unwashable

You probably wish you could clean your throw pillows or children’s toys. With the SteamSanitary™ Cycle, you can. It uses steam to safely sanitize items marked as non-washable.

SUMMARY
Dryer Type Gas
Stackable Yes
SteamDryer™ Yes
CAPACITY
Capacity 9.0 cu. ft.
APPEARANCE
Design Look Front Control
Intelligent Electronic Controls with Dual LED Display Yes
Touch Buttons Yes
Dial-A-Cycle™ Yes
DRYING PROGRAMS
No. of Programs 14
Programs (Sensor Dry) Cotton/Normal, Perm. Press, Towels, Delicates, Heavy Duty, SteamFresh™, SteamSanitary™, SpotClean™, Anti-Bacterial, Jumbo Dry, Wool, Super Dry
Programs (Manual Dry) Speed Dry, Air Dry
No. of Options 11
Options More Time, Less Time, Custom Program, Damp Dry Signal, Wrinkle Care, Child Lock, ReduceStatic™, EasyIron™, Rack Dry, End of Cycle Signal, Drum Light
Temperature Settings High, Medium High, Medium, Low, Ultra Low
Drying Levels Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry
Manual Dry Times 60 min., 50 min., 40 min., 30 min., 20 min., More Time/Less Time
FABRIC CARE FEATURES
SteamFresh™ Cycle Yes
SteamSanitary™ Cycle Yes
SpotClean™ Cycle Yes
ReduceStatic™ Option Yes
EasyIron™ Option Yes
Sensor Dry Yes
Precise Temperature Control with Variable Heater Yes
CONVENIENCE FEATURES
LoDecibel™ Quiet Operation Yes
SmartDiagnosis™ Yes
FlowSense™ Duct Clogging Indicator Yes
Anti-Bacterial Cycle Yes
Wrinkle Care Option Yes
Remaining Time Display/Status Indicator(s) Yes
End of Cycle Signal Yes
Child Lock Yes
3 Minute Installation Check Yes
Drying Rack Yes
Drum Light Yes
Venting Option Electric: 4 Way Venting / Gas: 3 Way Venting
Leveling Legs 4 Adjustable Legs
Reversible Door Yes
MATERIALS AND FINISHES
NeveRust™ Stainless Steel Drum Yes
Top Plate White: Powder Coat / VCM: Porcelain
Cabinet Painted Steel
Control Panel Plastic
Transparent Door Glass Yes
Available Colors White (W), Graphite Steel (V)
Door Rim Large Chrome Rimmed Glass Door with Dark Blue Tinted Cover
POWER SOURCE
Ratings CSA Listed
Electrical Requirements 120V, 15 Amps (Gas) / 240V, 30 Amps (Electric)
Type Gas/Electric
OPTIONS
Pedestal WDP5W/WDP5V
Pedestal (WxHxD) 29" x 13 9/10" x 29 2/5"
Stacking Kit KSTK2
LP Conversion Kit 383EEL3002D
Side Venting Kit DVK2 (383EEL9001L)
DIMENSIONS
Product (WxHxD) 29" x 40 4/5" x 32 3/10" (57" D with door open)
Carton (WxHxD) 31 3/10" x 44 2/3" x 33 3/4"
Weight (Product/Carton) 158 lbs. / 181 lbs.
WARRANTY/UPC
Limited Warranty 1 Year Parts and Labor
UPC 048231 012515

What People Are Saying

Rated 5 out of 5 by from Finally a steam dryer Finally got a new dryer and what a difference... Clothes smell much better and can dry anything because the capacity is huge.
Date published: 2016-01-07
Rated 4 out of 5 by from Good product but very expensive. This is a good clothes dryer but there should be no reason that any clothes dryer is as expensive as a washer which is much more complex. A dryer is a relatively simple machine and should not be priced the same as the washer.
Date published: 2015-06-26
Rated 5 out of 5 by from Great capacity. Steam fresh leaves clothes damp. I wish drum light would stay on longer for loading/unloading and I wish the ENTIRE control panel would light up to make it easier to read. Have used steam fresh several times and clothes come out freshened but damp. Cycle fills up with steam but then drum stops periodically, then restarts. If it is suppose to help reduce wrinkles, why does drum stop periodically? Going to call tech support, but still moving in new home. Capacity is great.
Date published: 2015-05-24
Rated 5 out of 5 by from Great Dryer This is a very large dryer and has helped speed up the laundry process. Great features! Great sensors that let you know when clothes are ready and they actually are is great!
Date published: 2015-05-22
Rated 5 out of 5 by from This product has all the features you need The dryer will take out stains,because I tried it with a work shirt.
Date published: 2015-03-24
Rated 5 out of 5 by from Great Dryer - Superb Performance Love the large capacity, as other users have noted. Relatively quiet dryer, and the steam function works pretty well in keeping clothes from getting wrinkled, thus saving on ironing time. Lots of good features, and overall easy to use.
Date published: 2015-03-21
Rated 5 out of 5 by from Quiet and Efficient We have owned our dryer for almost a month now and it has been fantastic. We love how quiet and efficient it is, and also how it adjusts the drying time based on how damp the clothes are. The steam feature is particularly great for getting wrinkles out or just freshening up an item.
Date published: 2015-03-10
Rated 5 out of 5 by from The Best Dryer I have ever owned Quiet, can dry LARGE loads. Drying King Size sheet sets with blankets is NOT a problem. This dryer is everything the sales person said it would be and more. The Cotton setting is a clothers saver. If an artical of clothing was accidently placed in the dryer that was 100% cotton you just had to throw it away it shrunk so much. With the LG Cotton setting the shrinkage is minimal.
Date published: 2015-03-04
  • 2016-02-09T09:34CST
  • bvseo_cps, prod_bvrr, vn_cps_3.1.6
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_73
  • loc_en_US, sid_MD00019583, PRD, sort_mostRecent
  • clientName_LG
  • bvseo_sdk, java_sdk, bvseo-2.3.0.0
  • CLOUD, getReviews, 6ms
  • REVIEWS, PRODUCT

We're here to support you with our product.

View DLGX8001V Product Support

Contact us for any support inquiries.

ASK & ANSWER

Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

how many btu's do you need for the dryer dlgx8001w

Asked by: malky
Someone answered earlier 23,000 BTUs.
Answered by: Navychop
Date published: 2015-12-16

what is the gas load for dryer dlgx8001v

Asked by: nortonjohn
Are you looking for 23,000 BTU?  A 3/8" line will supply that. Keep line as short as possible. These lines normally come in 3', or MAYBE 4' lengths.  Or are you looking for 4-10.5 inches WC for NG?  8-13" WC for propane.
Answered by: Navychop
Date published: 2015-12-16

Can you please compare the efficiently of the electric dryer with a propane gas one

I am looking at the 9.0. Steam model and have the option for gas or electric so want to compare the efficiency of the two. Thank you
Asked by: Lisa06831
IN GENERAL, and this may vary with your local costs, natural gas is cheapest, followed by propane and then electric. But again, your local rates drive this.
Answered by: Navychop
Date published: 2015-12-16

Does this machine come with the options to be coin operated?

I was told about these machine and was wondering if it would be able to be equipped to be put into a coin operated laundromat setting? If not, does LG make a coin operated machine to be put in such application?
Asked by: hometowncoin
Intended for home use. You should consider something like Speed Queen for commercial use.  Warranty only mentions home use.
Answered by: Navychop
Date published: 2015-12-16

I need help.  Can this dryer be vented on the bottom?m Best Buy can't help with anything!

Asked by: Helpplesse
Yes. Page 19 of manual. Side, back and bottom. Side is to the left as you look at dryer door.
Answered by: Navychop
Date published: 2015-12-16

Does the water line for the dryer come From the hot or cold line

Asked by: Dtornadoman
There is no water line. Pour some cold tap water into the dispenser.
Answered by: Navychop
Date published: 2015-12-16

Is it possible to convert the gas dryer to electric?

Asked by: Dk12
No.
Answered by: Navychop
Date published: 2015-12-16

My filter light is on and will not work. I cleaned the trap and the filter

Asked by: Rayc69
We regret the trouble you have experienced with this gas dryer. It is suggested to disconnect the exhaust duct and make sure it is clear. If this does not resolve the matter, please contact our Customer Interactive Center at 800-243-0000.
Answered by: NeilE
Date published: 2015-09-21
