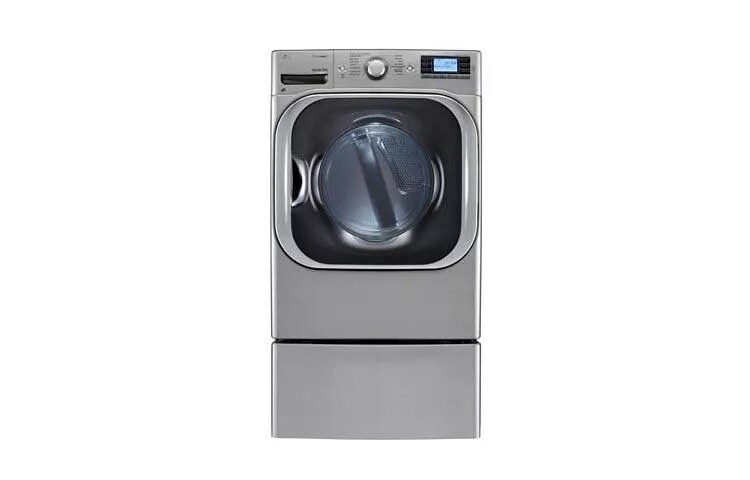

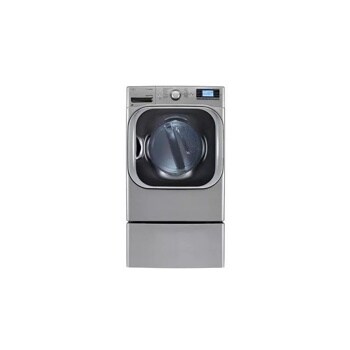

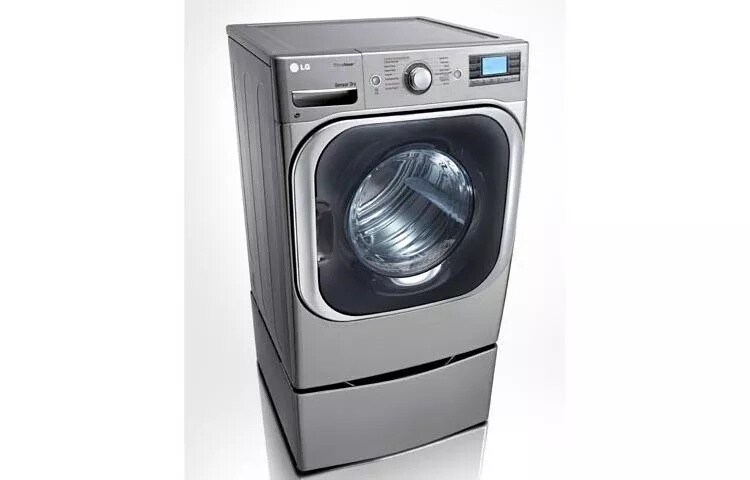

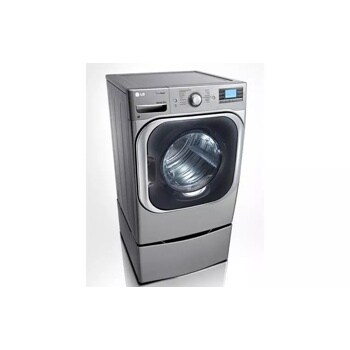

Mega Capacity High Efficiency SteamDryer™ w/ NFC Tag On

  • DLGX8501V

  • Graphite Steel
  • Discontinued Product

Key Features

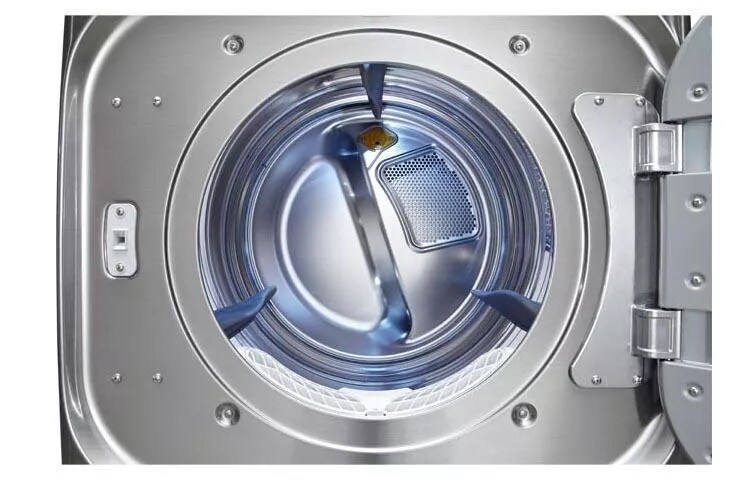

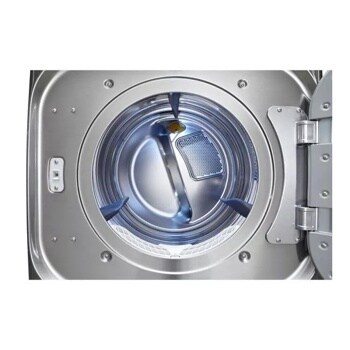

  • 9.0 cu. ft. Mega Capacity with NeveRust™ Stainless Steel Drum
  • 14 Drying Programs

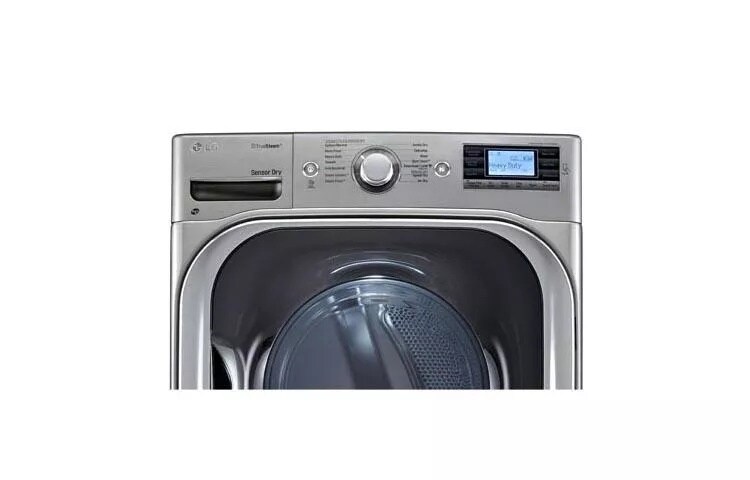

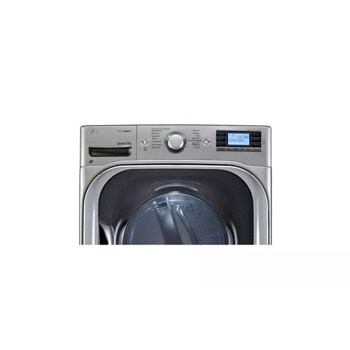

  • Upfront Electronic Control Panel with 3.9” Monochrome LCD and Dial-A-Cycle™ with touch buttons
  • TrueSteam™ Technology
Dryer Type Gas
SteamDryer™ Yes
Stackable Yes
Capacity 9.0 cu. ft.
Design Look Front Control
Intelligent Electronic Controls with 3.9" Monochromatic LCD Yes
Dial-A-Cycle™ Yes
Touch Buttons Yes
No. of Programs 14
Programs (Sensor Dry) Cotton/Normal, Perm. Press, Towels, Delicates, Heavy Duty, SteamFresh™, SteamSanitary™, Small Load/Download, Anti-Bacterial, Jumbo Dry, Wool, Super Dry
Programs (Manual Dry) Speed Dry, Air Dry
No. of Options 11
Options More Time, Less Time, Custom Program, Damp Dry Signal, Wrinkle Care, Child Lock, ReduceStatic™, EasyIron™, Rack Dry, End of Cycle Signal, Drum Light
Temperature Settings High, Medium High, Medium, Low, Ultra Low
Drying Levels Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry
Manual Dry Times 60 min., 50 min., 40 min., 30 min., 20 min., More Time/Less Time
SteamFresh™ Cycle Yes
SteamSanitary™ Cycle Yes
ReduceStatic™ Option Yes
EasyIron™ Option Yes
Sensor Dry Yes
Precise Temperature Control with Variable Heater Yes
LoDecibel™ Quiet Operation Yes
SmartDiagnosis™ Yes
FlowSense™ Duct Clogging Indicator Yes
Anti-Bacterial Cycle Yes
Wrinkle Care Option Yes
Remaining Time Display/Status Indicator(s) Yes
End of Cycle Signal Yes
Child Lock Yes
Drum Light Yes
Reversible Door Yes
Leveling Legs 4 Adjustable Legs
Venting Option Electric: 4 Way Venting / Gas: 3 Way Venting
3 Minute Installation Check Yes
Drying Rack Yes
NeveRust™ Stainless Steel Drum Yes
Cabinet Painted Steel
Control Panel Plastic
Top Plate Porcelain
Transparent Glass Door Yes
Door Rim Large Square Chrome Rimmed Glass Door with Dark Blue Tinted Cover
Available Colors Graphite Steel (V)
Ratings CSA Listed
Electrical Requirements 120V, 15 Amps (Gas) / 240V, 30 Amps (Electric)
Type Gas/Electric
Pedestal WDP5V
Pedestal (WxHxD) 29" x 13 9/10" x 29 2/5"
Stacking Kit KSTK2
LP Conversion Kit 383EEL3002D
Side Venting Kit DVK2 (383EEL9001L)
Product (WxHxD) 29" x 40 4/5" x 32 3/10" (57" D with door open)
Carton (WxHxD) 31 3/10" x 44 2/3" x 33 3/4"
Weight (Product/Carton) 158 lbs. / 181 lbs.
Limited Warranty 1 Year Parts and Labor
UPC 048231 012430

What People Are Saying

  • bvseo_sdk, java_sdk, bvseo-
  • CLOUD, getReviews, 357ms
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

We're here to support you with our product.

View DLGX8501V Product Support

Contact us for any support inquiries.


Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

Does the DLGX8501V come with left open door? I need the pull handle to be on the LEFT side, swinging open to the right.

Asked by: antgut
The door on the LG Mega Capacity High Efficiency SteamDryer™ w/ NFC Tag On, Model # DLGX8501V is reversible and can be changed from a right swing to a left swing...^IFV
Answered by: LGJoel
Date published: 2016-05-25

Good morning, please let me know vent connection size and CFM being exhausted for this product. We are engineering firm. This dryer was specified on one of our residential projects. Your help is appreciated.

Asked by: Diane G
We appreciate your interest in this gas dryer. The vent on this dryer is a standard 4” diameter cylindrical dryer duct. According to the owner’s manual, it is recommended to only use a rigid or semi-rigid metal duct. The Cubic Feet per Minute (CFM) has not been specified on this dryer.
Answered by: NeilE
Date published: 2016-03-22

Does the LG DLGX8501V have a white version? If so, what is the model #

Asked by: TomSamps1001
Our offices, in the United States, do not have product information for Canada. In order to obtain such information, it is recommended to check our subsidiary’s website, at You may also contact our Canada offices at 1-888-542-2623.
Answered by: NeilE
Date published: 2016-03-11

What is the BTU rating of this dryer?

I need to know the BTU rating in order to install some natural gas piping for this dryer.
Asked by: Flogger
You may want to confirm with your Liquid Propane supplier on this, but the BTU rating for the LG Mega Capacity High Efficiency SteamDryer™ w/ NFC Tag On, Model # DLGX8501V is AGA-certified for elevations below 10,000 feet. If you are installing it at an elevation above 10,000 feet, it must be derated by a qualified technician or gas supplier...^IFV
Answered by: LGJoel
Date published: 2015-08-18

How high are the controls when stacked?

If a this dryer is stacked on the WM8500, how high will the dryer controls be? Will a step ladder be needed for someone who is 5'-7" tall? How about someone 5'-2"? Can the dryer be provided with the controls at the bottom?
Asked by: LagunaBob
Both the LG Mega Capacity High Efficiency SteamDryer™ w/ NFC Tag On, Model # DLGX8501V and the LG Mega Capacity TurboWash™ Washer w/ NFC Tag On, Model # WM8500H*A have a height of 40 4/5" so when they are stacked the total height will be 81.6". The controls for the dryer are about 2 inches from the top of the dryer so they will be about 79" from the floor, that's about 6' 7". The dryer does not come configured in any other way and cannot be provided with the controls at the bottom...^IFV
Answered by: LGJoel
Date published: 2015-07-29

Can DLGX8501V be used as Electric dryer

Hi, I want to check if my dryer currently hooked up to Gas line be used as Electric dryer instead. If so do I need to shut off the gas line when I switch to electric mode? Also do I need to change any settings when I hook it up to electric supply? Thanks, Srinivas
Asked by: svaranasy
I apologize, but no; a gas dryer cannot be converted to operate as an electric dryer. The gas dryer does not have an electrical heating element to perform in such a manner.
Answered by: NeilE
Date published: 2015-02-26

I'm planning to buy the 8500 series washer and gas dryer to install it stacked in a loundry nook W31.5 " H 100" D 40" with the dryer vent running from the floor behind both appliances that's -5" from 40". What are the minimum size enclosures. Thanks

Asked by: mynetideasg


What's the difference between the LG DLGX8501V and LG DLGX8001V dryers?
Asked by: ClintonM
