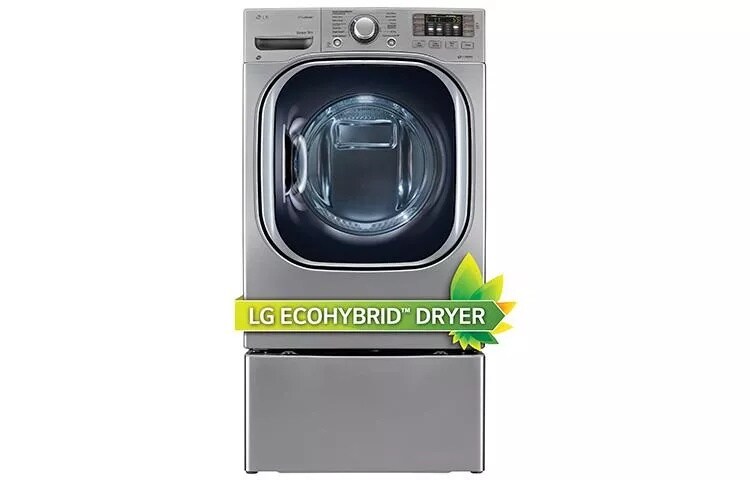

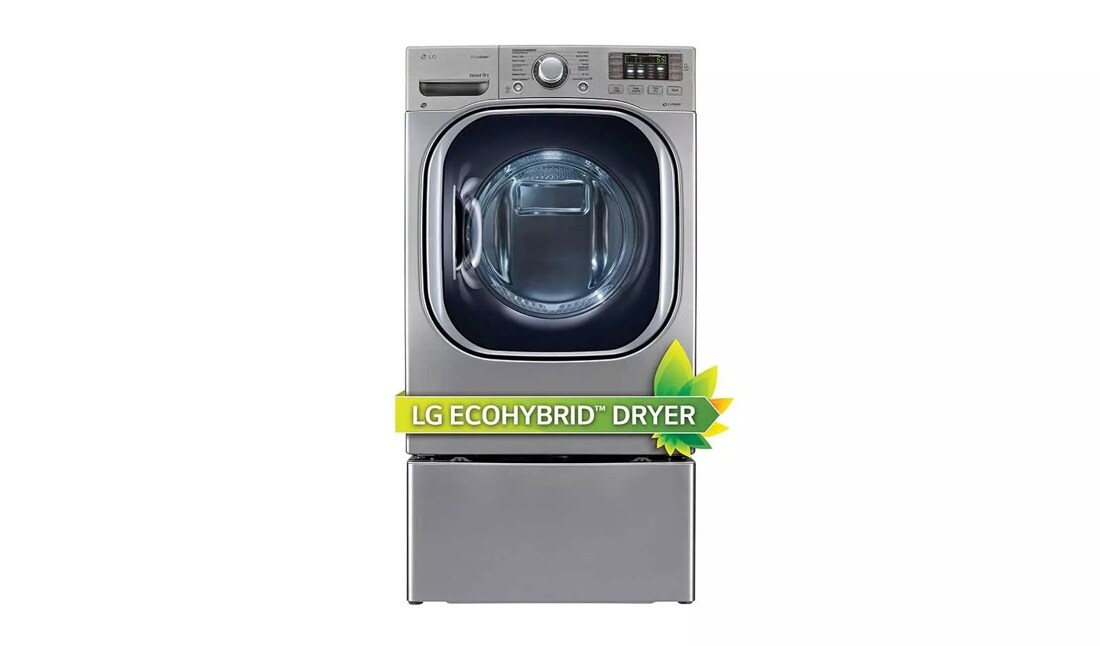

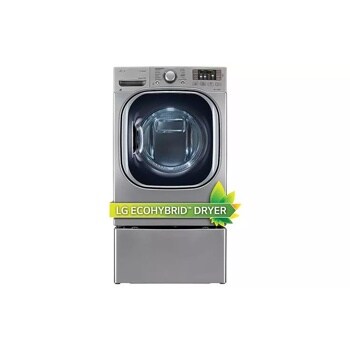

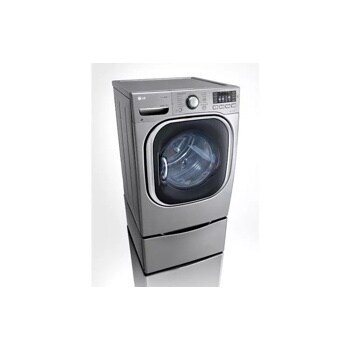

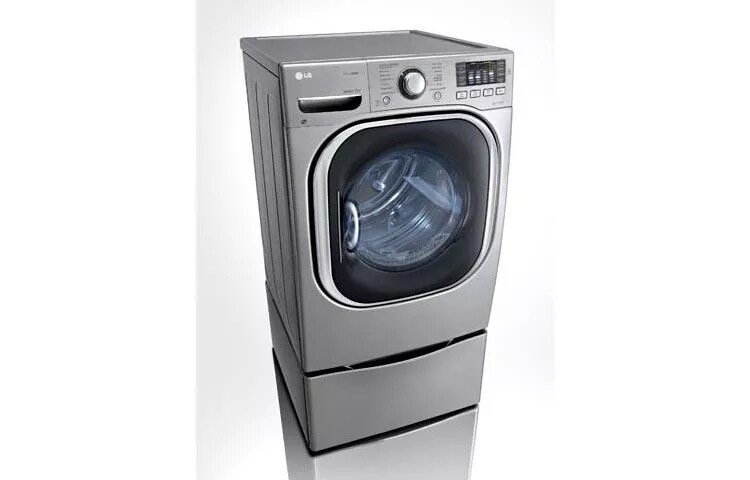

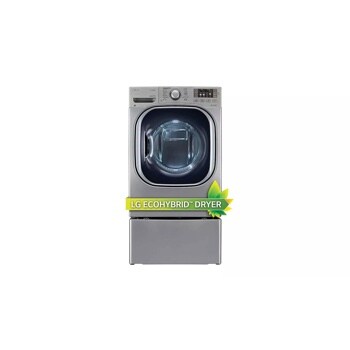

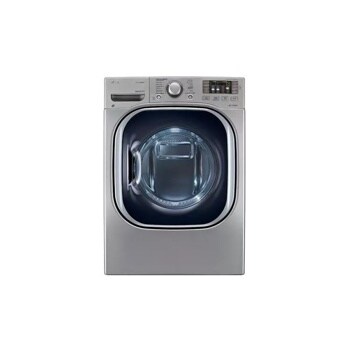

7.3 cu. ft. Ultra Large Capacity Dryer with EcoHybrid™ Technology

  • DLHX4072V

  • Graphite Steel

Key Features

  • 7.3 cu. ft. Ultra Large Capacity with NeveRust™ Stainless Steel Drum
  • EcoHybrid™ Technology
  • TrueSteam® Technology
  • SteamFresh™ Cycle
  • ENERGY STAR® Qualified

LG Electric Dryers are rated by Consumer Reports

Read the Consumer Reports rating.

*Consumer Reports does not endorse products.

Big time saver

Big time saver

Do laundry a little less often. With 7.4 cubic feet of capacity, this dryer handles really large loads. Saving you time and energy.

Smooth operator

Smooth operator

A lot of those drying headaches can be a thing of the past. Our TrueSteam™ Technology generates real steam to reduce wrinkles and odors, and practically eliminates the need for ironing.

EcoHybrid™ Energy-Saving Technology

Use 53% less energy every time you dry* with America's first ever heat pump dryer.

* Based on simultaneous use of the dryer's control settings: Low Temp Dry plus EcoHybrid, Dry Level Normal and Temperature Control medium. Based on comparison to minimum Federal Energy Factor Standards (10 CFR 430.32(h))

ENERGY STAR® Qualified

ENERGY STAR® Qualified

Among the most energy-efficient dryers in its class.

Dryer Type Electric
SteamDryer™ Yes
Stackable Yes
Heat Pump Yes
Capacity 7.3 cu. ft.
Design Look Front Control
Intelligent Electronic Controls with Dual LED Display Yes
Dial-A-Cycle™ Yes
ENERGY STAR® Qualified Yes
No. of Programs 14
Programs (Sensor Dry) Cotton/Normal, Perm. Press, Heavy Duty, Bulky/Large, LowTemp Dry+, Delicates, Power Dry, Towels, Sports Wear, SteamFresh™, SteamSanitary™
Programs (Manual Dry) Speed Dry, Air Dry, Download Cycle
Options EcoHybrid™, Wrinkle Care, Custom Program, Child Lock, More Time, Less Time, ReduceStatic™, EasyIron™, Damp Dry Signal, Rack Dry, Program Save, Drum Light
Temperature Settings High, Medium High, Medium, Low, Ultra Low
Drying Levels Very Dry, More Dry, Normal Dry, Less Dry, Damp Dry
Manual Dry Times 60 min., 50 min., 40 min., 30 min., 20 min.
Signal Volume Level High, Medium, Low, Off
SteamFresh™ Cycle Yes
TrueSteam® Technology Yes
SteamSanitary™ Cycle Yes
ReduceStatic™ Option Yes
EasyIron™ Option Yes
Sensor Dry Yes
Precise Temperature Control with Variable Heater Yes
NFC Tag On Yes
LoDecibel™ Quiet Operation Yes
SmartDiagnosis™ Yes
FlowSense™ Duct Clogging Indicator Yes
Wrinkle Care Option Yes
Remaining Time Display/Status Indicator(s) Yes
End of Cycle Signal Yes
Child Lock Yes
Drum Light Yes
Reversible Door Yes
Leveling Legs 4 Adjustable Legs
Venting Option 1 Way Venting
3 Minute Installation Check Yes
Drying Rack Yes
NeveRust™ Stainless Steel Drum Yes
Cabinet Painted Steel
Control Panel Plastic
Transparent Glass Door Yes
Door Rim Large Square Chrome Rimmed Glass Door with Dark Blue Tinted Cover
Available Colors Smooth White (W), Graphite Steel (V)
Ratings CSA Listed
Electrical Requirements 240V, 26 Amps (Electric)
Type Electric
Pedestal WDP4W, WDP4V
Pedestal (WxHxD) 27" x 13 3/5" x 28 2/5"
Stacking Kit KSTK1
Product (WxHxD) 27" x 30" x 39" (51" D with door open)
Carton (WxHxD) 29 1/2" x 31" x 43"
Weight (Product/Carton) 167.5 lbs/171.3 lbs
Limited Warranty 1 Year Parts and Labor
UPC 048231 013758

What People Are Saying

  • bvseo_sdk, java_sdk, bvseo-
  • CLOUD, getReviews, 3ms
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

We're here to support you with our product.

View DLHX4072V Product Support

Contact us for any support inquiries.


Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

Can this dryer run ventless as long as you never use the "quick/hot" settings? I assume if it's running on "eco" mode only it presumable could exhaust into the house just like any other ventless dryer?

Asked by: scavonejoe
The ENERGY STAR® Qualified LG 7.3 cu. ft. Ultra Large Capacity Dryer with EcoHybrid™ Technology, Model # DLHX4072W uses a combination of conventional heating elements and a heat pump system to dry your clothes. The heat pump recovers heat from the hot, moist air that is normally exhausted to the outside and lost. Using a heat pump to preheat the air coming into the dryer recovers this heat and saves electricity, because it takes less electricity to move the heat than to create it with a conventional heater. It is a Gas Dryer and the International Residential Code that most home inspectors in the U.S. use when citing regulations pertaining to dryer venting (section M1502 of the IRC) require that Gas Dryers be vented and that your dryer vent must terminate outside the building. The codes in your state may have additional provisions, but the dryer has to be vented to the outside...^IFV
Answered by: LGJoel
Date published: 2017-04-20

We own a Sensor Dry DLE2301R dryer for 6 yrs now. Six weeks ago it would not work and the repair person installed a new computer panel   Now it won't turn on again and the repair person came over and stated that the panel has no warranty?  Contact LG

Asked by: Wilma maldonado
We regret the trouble you have experienced with this dryer. Parts purchased from LG’s parts department, and installed by an Authorized LG Service Technician, carry a 90-day part warranty for any failures caused by the manufacturing of the part itself. However, if the tech obtained the part from a 3rd party distributor, LG will have no control over the available warranty.
Answered by: NeilE
Date published: 2017-03-13

The dryer button (the first one) says 4 things. Reduce static East iron Energy saver Custom PGM What does PGM mean?

Asked by: Per month
We appreciate your interest int his dryer. The PGM is an abbreviation for PROGRAM. The Custom PGM button allows for storing a custom configuration of cycle, water temperature, spin speed and cycle modifiers other than one of the preset features.
Answered by: NeilE
Date published: 2017-03-27

Why does my dryer sound like it has rocks rolling around when the dryer rotates?

Asked by: captmark
We regret the trouble you have experienced with this dryer. It is difficult to determine the cause of this noise without an inspection by a qualified service technician. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at
Answered by: NeilE
Date published: 2016-08-25

Is the Height and Depth of this product switched? Are the washer and dryer 30 inches Tall/High ? ?

I have a spot for a new washer dryer that is 60 wide (left to right) 40 deep (front to back) and 38 1/2 tall (bottom to top). I really like the LG but I didn't think it fit when I measured it in the store. However this model fits based on measurements you give. But I think you have the height and depth confused. What are the correct measurements? These are the dimensions on your web page: Product: 27" x 30" x 39" (51" D with door open) Carton: 29 1/2" x 31" x 43" Weight: 167.5 lbs/171.3 lbs
Asked by: PamelaR
Luckily I read the answer from Burk and checked the installation instructions. I did have to cancel the pedestal and side kick order because they would be too tall to fit my space using the correct 39" height. Glad I didn't have to wait until delivery to find that out. Even the owner's manual has the height and depth switched but the installation instructions show the height needed to stack them or place in a cabinet which confirmed that they had the dimensions switched. I think LG Joel must have just read the manual rather than get out a tape measure. Since this is new and quite expensive they aren't going to sell many if they don't figure out why their posted washer and dryer dimensions would never match up or fit the pedestal or side kick.
Answered by: Kuala1313
Date published: 2017-03-13

how to do a diagnostic thru the phone on the dryer mike

Asked by: Mike c
We appreciate your interest in this electric dryer and its features. The steps for using the SmartDiagnosis function can be found on page 41 of your owner’s manual. These steps should never be used without speaking with the service department at 800-243-0000.
Answered by: NeilE
Date published: 2016-02-03

Is there a reset sequence. We moved the washer and dryer to the new addition and now there is no heat.

Asked by: housekeeper
We regret the trouble you have experienced with this dryer. It is recommended to check the circuit breaker associated with this outlet, and ensure that the power cord is secure on the dryer. It may also be considered to check the wiring of this new addition, or to check the dryer in its original location. If this does not resolve the matter, then it may require service. To make service arrangements, you may either contact our Customer Interactive Center at 800-243-0000, or you can check our Repair Provider Lookup on our website, at
Answered by: NeilE
Date published: 2017-01-30

Are the doors switchable on either the washer or dryer so you can open from left to right or right to left?

Asked by: mileskr
The door on the LG 7.3 cu. ft. Ultra Large Capacity Dryer with EcoHybrid™ Technology, Model # DLHX4072V is reversible. This unit can stacked on most 27" washers but not all of them have reversible doors. Since there isn't a specific washer that is designated as the match to this dryer, if there is a washer that interests you that you would like to find out if it has a reversible door, we would be more than happy to provide you with that information...^IFV
Answered by: LGJoel
Date published: 2016-01-13
