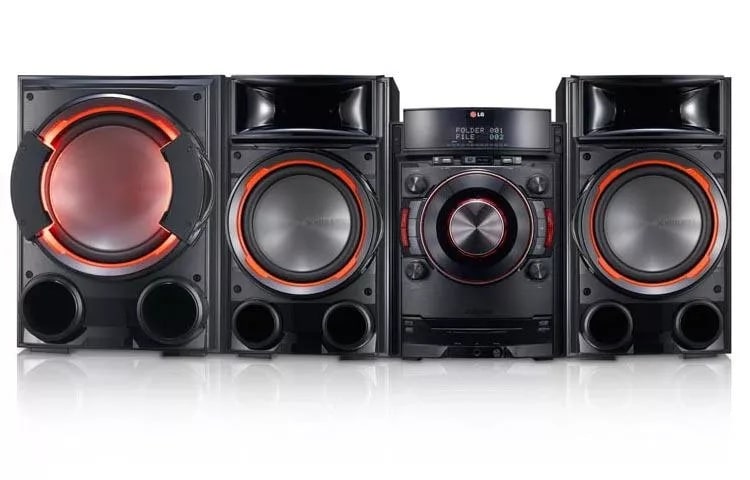

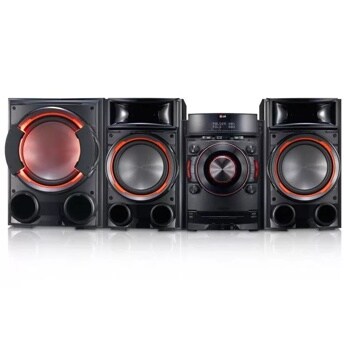

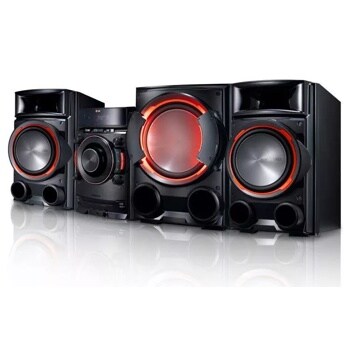

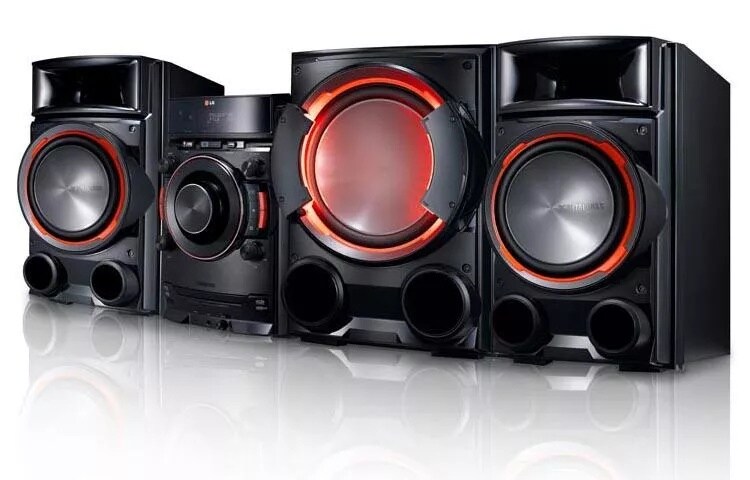

1200W CD Mini HiFi Shelf System

  • CM8430

Key Features

  • 1200W
  • Bluetooth®
  • 2 USB Inputs
  • X Metal
POWERFUL SOUND

POWERFUL SOUND

Want the capabilities of your state-of-the-art speakers to be maximized? 1200 watts of power output will make it happen by boosting sound performance for a rich, captivating listening experience.

Bluetooth®

Bluetooth®

Stream music wirelessly from your smart phone for more versatile listening experience. Disclaimer: *Internet connection required and sold separately.

MULTIPLE INPUTS

MULTIPLE INPUTS

2 USB inputs allow you to connect multiple USBs at once for your convenience.

HIGH QUALITY SOUND

HIGH QUALITY SOUND

Great design that helps deliver great sound. Using The X-Metal design rather than a metal gives the LG speaker a sleek look that delivers a deep bass sound.

AMPLIFIER / SPEAKER
Output Power - Front 400W x 2
Output Power - Subwoofer 400W
Total 1200W
Function Selector CD, Tuner, Aux in, USB Host, Portable in, Bluetooth®
Front Speaker System 2 way
Subwoofer System 1 way
Tweeter Unit Semi Horn
Woofer Size 10"
PLAYABLE DISC / FILE TYPE
Number of Discs 1
Loading Type Tray
Playable Disc Types Audio CD, MP3, WMA CD, CD-R, CD-RW
Playable File Formats MP3, WMA
AV INPUTS/OUTPUTS
USB 2.0 2
Portable Audio In 1
FM Antenna Input 1
AM Antenna Input 1
AUX in (L/R) 1
Speaker Out/Type 9 pin System Jack
Karaoke Function Yes
SOUND
EQ User EQ, Cluster2 EQ, Pop, Classic, Rock, Jazz, Natural EQ, Auto EQ, Bass Blast, Loudness, MP3 Optimizer
Smart DJ Yes
Juke Box Yes
DJ Effect Yes
Auto DJ Yes
TUNER
Tuner Type PLL
Band FM/AM
FM Tuning Range (50kHz / 100kHz) 87.5 ~ 108.0 MHz
Radio Tuner Presets 50
Memory/Erase Yes
Clock/Time/Sleep/Set Yes
SUPPLIED ACCESSORIES
Remote Control MA2
FM Antenna 1
AM Loop Antenna 1
POWER
Power Consumption 190W
Standby 1W
DIMENSIONS / WEIGHT
Unit Dimensions (WxHxD) 11.2" x 15.5" x 14.3"
Speaker Dimensions (W x H x D) 10.4" x 13.5" x 17.6"
Subwoofer (W x H x D) 13.1" x 14.4" x 17.5"
Shipping Dimensions (WxHxD) 51.6" x 20.6" x 17.7"
WARRANTY / UPC
Limited Warranty 1 Year Parts and Labor
UPC 719192589445

What People Are Saying

Rated 5 out of 5 by from great love the sound its small but sound big love it,, work well sound is clear nice
Date published: 2016-12-12
Rated 5 out of 5 by from Been having mine 21/2years, very fine stereo and play it every day
Date published: 2016-03-13
Rated 5 out of 5 by from This product has great features This is an awesome system. Very loud and sounds like you are in a nightclub. Still haven't figure out how to usw the DJ effects.
Date published: 2014-09-24
Rated 5 out of 5 by from Love it Great sound quality and bass. I like rock music and it's hard to find something that does bass on this level that doesn't distort my music. Only pet peeves is the auto-dj effect(random function). It cuts off the end and beginnings of songs which is annoying, you can turn it off but it's not the default setting. Also I wish it was more portable. All in all a great system though.
Date published: 2014-05-10
  • y_2017, m_2, d_24, h_14
  • bvseo_bulk, prod_bvrr, vn_bulk_0.0
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_4
  • loc_en_US, sid_MD05041793, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_lg
  • bvseo_sdk, java_sdk, bvseo-2.3.0.0
  • CLOUD, getReviews, 5ms
  • REVIEWS, PRODUCT

We're here to support you with our product.

View CM8430 Product Support

Contact us for any support inquiries.

ASK & ANSWER

Ask your questions. Share your answers.
Please first review the detailed product information and help guides in the Product Support section for this product prior to posting a question.

where can I find a printboard. can I order one if yes where and how.

Asked by: narin
Our offices, in the United States, do not have any product information for Suriname. In order to obtain such information, it is recommended to check our subsidiary’s website, at http://www.lge.com/br/support/contact/support-here-to-help.jsp.
Answered by: NeilE
Date published: 2017-02-22

Please help. How can i reprogram the radio fm station. No radio station works on mine,now.nefore yes.cannot hear none. Thanks.

Asked by: Pettee
Our offices, in the United States, do not have specific product information units released in Belize. In order to obtain such information, it is recommended to check our subsidiary’s website, at http://www.lg.com/pa_en/support/contact-customer-support.
Answered by: NeilE
Date published: 2017-02-15

Dose is have a remote or can I order one

Asked by: Rodas
Parts and accessories can be obtained through our parts distributor, MCM Electronics. Their contact number, for placing orders, is 800-824-9491. You can also use their website, at http://www.mcmelectronics.com/content/en-US/forms/lg_parts. The part number for this item is: AKB73655721.
Answered by: NeilE
Date published: 2017-02-14

Ok how do you adjust the treble and mids?

Asked by: Brandon b
Activate the SMART DJ feature. While in this mode of operations, search for, and select, the EFFECT LEVEL repeatedly, until MIDDLE, HIGH or LOW appears. This will provide operations for the adjustments you have requested.
Answered by: NeilE
Date published: 2017-02-13

How do I open cd tray

Asked by: J 8267
We appreciate your interest in this Audio System. The OPEN/CLOSE button should be located on the right hand side of the stereo device. It can also be found on the top right corner of the remote control.
Answered by: NeilE
Date published: 2017-02-08

How to make the light come on on big speaker

Asked by: JustinP
We appreciate your interest in this audio system. According to page 31 of your owner’s manual, various types of speaker lights can be selected and activated by pressing the SPK LIGHTING / DEMO button on the right-side of the system cabinet
Answered by: NeilE
Date published: 2017-01-04

Do I need an antenna to play my music  that I have on my phone through Bluetooth?

Asked by: Williamsbrett
The Bluetooth® on the LG 1200W CD Mini HiFi Shelf System, Model # CM8430 is a wireless technology that has a range of about 33 feet (10 m) and works much the same way that your WiFi does and does not need an antenna, you just need to be in the proper range to stream music from your Bluetooth capable phone after you have paired your phone to the CM8430...^IFV
Answered by: LGJoel
Date published: 2016-12-22

how do I set the user equalizer

Asked by: Todd 123
We appreciate your interest in this audio system and its features. 1. Press USER EQ on the unit. “USER EQ” will be displayed. 2. Press DJ EFFECT on the unit while “USER EQ” is displayed. 3. Select BASS, MIDDLE, or TREBLE by using DJ EFFECT on the unit. 4. Adjust the sound level by turning |<< / >>| knob. 3. To finish the setting, press DJ EFFECT.
Answered by: NeilE
Date published: 2016-12-10
