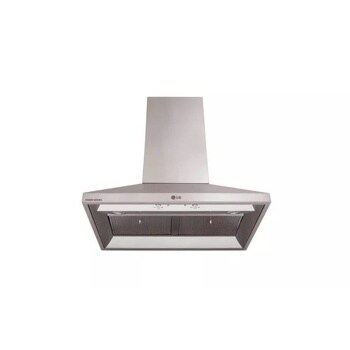

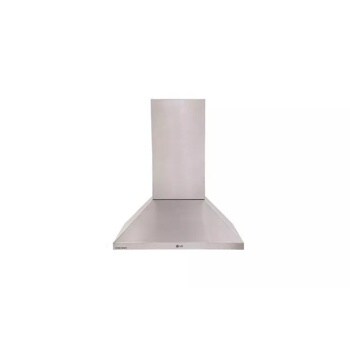

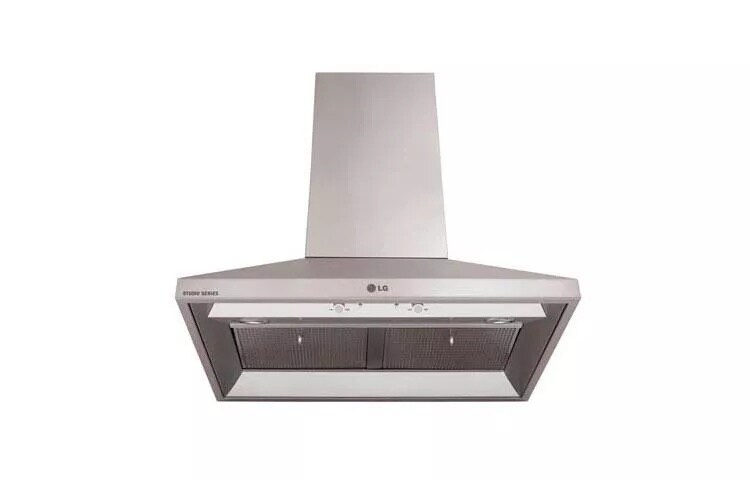

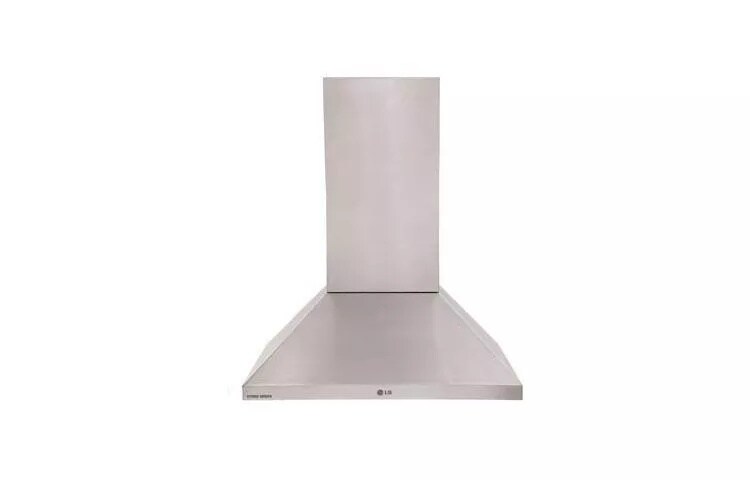

LG Studio - 30" Chimney Hood

  • LSVC302ST

  • Stainless Steel

Key Features

  • 460 CFM
  • Heat Sensor
  • Built-In Timer
  • Halogen Lights
Type Chimney Hood
Size 30"W, 12"H
Overall Width 29 7/8"
Overall Height 12"
Overall Depth (from rear) 24"
Duct Cover Width 16"
Duct Cover Height 18" – 30"
Duct Cover Depth 12"
Net Weight 56 lbs.
Venting Type Interior Power Ventilator
CFM/Sones Rating 460 CFM
Control Location Hidden
No. of Lights 2 (50W Halogen)
Fan Speed Control 2-Speed
Light Control Dimmer Knob
Dishwasher Safe Filters 2
Interior Duct Size 7"
12 Hour Timer Yes
Heat Sensor Yes
Available Colors Stainless Steel (ST)
Electrical Requirements 120 VAC/60Hz
Max. Amps 5.6
Certification UL/cUL Listed
Limited Warranty 2 Years Parts and Labor

What People Are Saying

  • bvseo_sdk, java_sdk, bvseo-
  • CLOUD, getReviews, 254ms
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

We're here to support you with our product.

Contact us for any purchasing inquiries.

Product Support


Ask your questions. Share your answers.

Where can I purchase this chimney good, and what is suggested retail price?

Asked by: Aligirl
As much as I am glad to help, there is some information I should let you know so you could understand a bit more how LG products are sold. Since we do not sell the products directly, I do not have information to fully help out locate products I am afraid. LG only manufactures the units and offers support for the products. Our products and accessories for the products are only sold through certified dealers such as Best Buy, Radio Shack, Sears, Home Depot, Sixth Avenue, etc... I would also like to let you know that LG Electronics does not actually sell directly to any of these retailers. Retailers purchase our products from various distributors; LG has no control over retailer’s inventory. If the dealer does not have the unit available for shipping at this time, I unfortunately do not have a way of finding out when it may be delivered since the dealers order their units through their regional sales representatives which would be a contact of their own, not from LG unfortunately.
Answered by: Nadine
Date published: 2013-12-13

Are there extensions for the chimney stack? If so what is the maximum height?

Asked by: Eager
Please contact our Customer Interactive Center at 800-243-0000 for additional information.
Answered by: LGJoel
Date published: 2015-01-16

Can the hood be installed under a cabinet (without the chimney cover)?

Asked by: betsybetsyb
Please contact our Customer Interactive Center at 800-243-0000 for additional information.
Answered by: LGJoel
Date published: 2015-01-16

Do you have any accompanying hoods for the 30" ranges that are not Chimney hoods?

Asked by: Anonymous
As it turns out, we don't have a non-chimney hood as of right now. Appliance Accessories which are currently available are the ones you can see here:
Answered by: Nadine
Date published: 2012-02-03


Is this hood available as a non-ducted hood, or is there a recirculating kit available to adapt it?
Asked by: Anonymous
Ducted only. Thank you.
Answered by: LGTraining2
Date published: 2011-08-20

do you carry 30 inches island hoods

Asked by: pop
LG currently does not carry island hoods.
Answered by: LGAnswers
Date published: 2011-08-12


Asked by: hood1

I can not get the light out it does not screw out like the owners manual suggest. Tried putting suction cup on the light no luck, any sugestions?

Asked by: Home owner
